Description
Overview

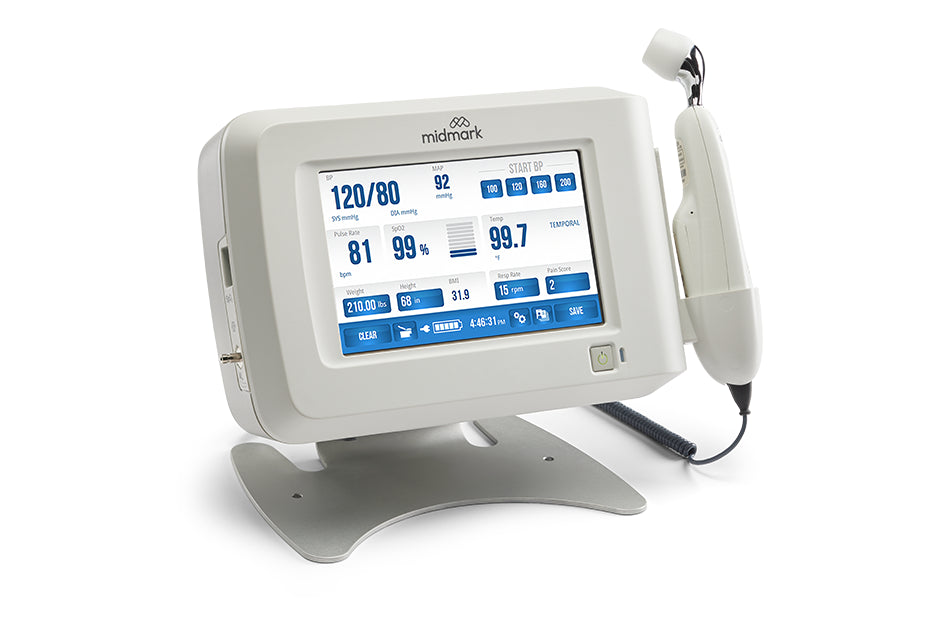

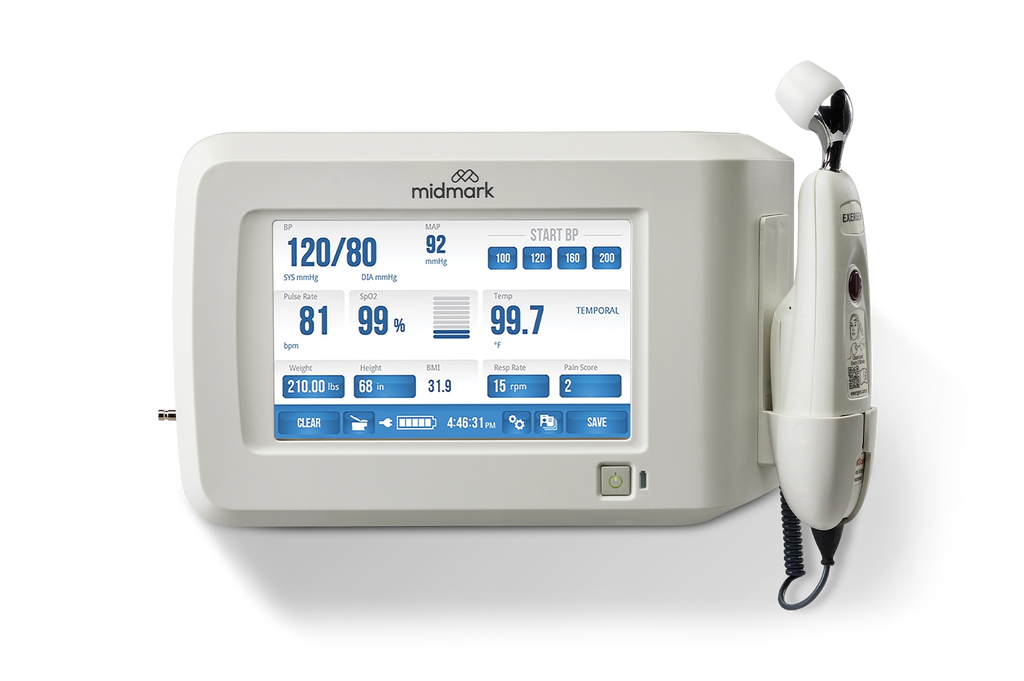

A touchscreen, Windows-based vital signs device that automates blood pressure, temperature and pulse rate, with optional SpO2. It works standalone, through Midmark IQmanager on a PC, or connected to the EMR so readings transfer straight to the patient chart.
Key Features
- Oscillometric NIBP with selectable inflation presets: place the cuff, press the inflation rate button, and results show on the display
- Exergen TemporalScanner temporal thermometer comes standard
- Connects to the Midmark 626 Barrier-Free Exam Chair integrated scale to capture weight with one touch and calculate BMI automatically

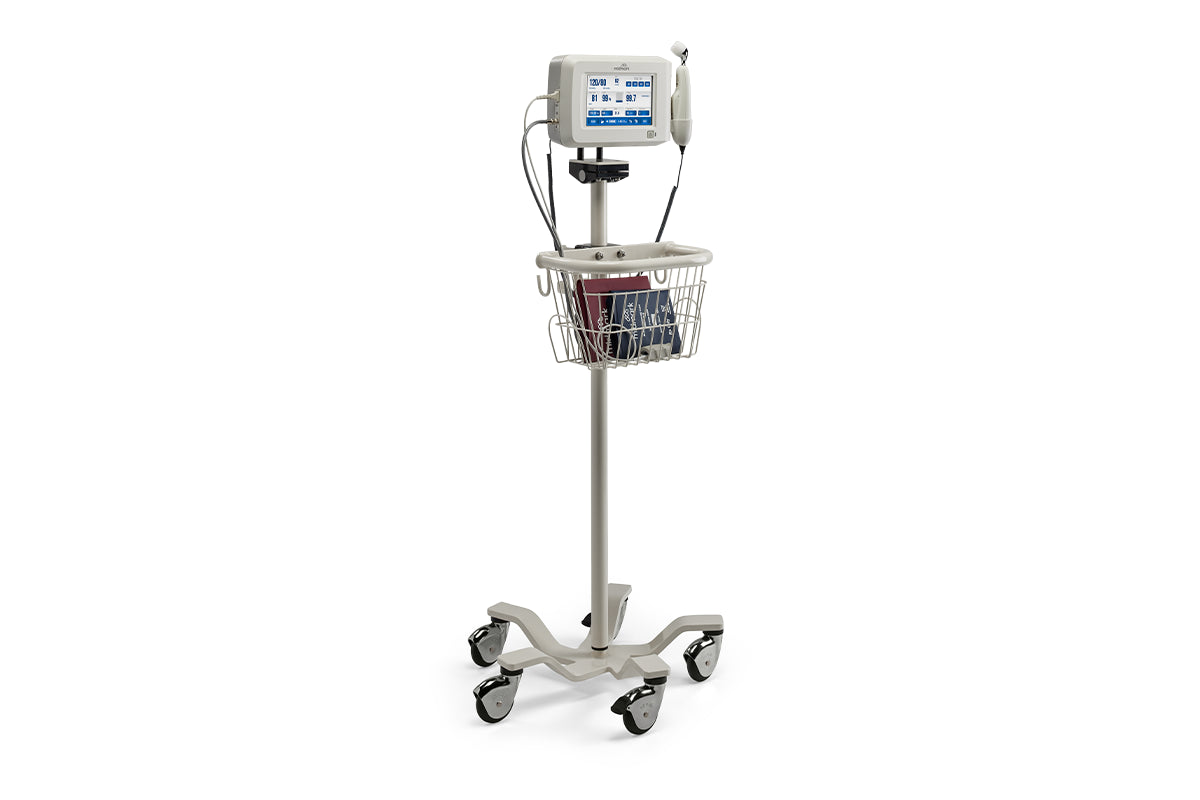

- Lightweight with a rechargeable lithium-ion battery; mounts on a mobile cart, wall, countertop or equipment pole
Configuration and Package Contents
- 4-000-0540: Digital Vital Signs Device without SpO2 (blood pressure, temperature, pulse rate)
- 4-000-0550: Digital Vital Signs Device with SpO2, including an Envitec reusable adult finger clip sensor
- Exergen TemporalScanner thermometer included on both versions
- Mounts, mobile cart, printer, scale and additional cuffs are sold separately
- Requires either an EMR with integrated Midmark software or Midmark IQmanager software to connect to a PC
Technical Specifications
| Weight | 4.0 lb (1.8 kg) without TemporalScanner; 4.7 lb (2.1 kg) with TemporalScanner |
| Dimensions | 12 x 4 x 7 in (L x W x H) without TemporalScanner; 12 x 4 x 8 in with TemporalScanner |
| NIBP method | Oscillometric; systolic, diastolic and MAP |
| Temperature | Exergen TemporalScanner, °F or °C |
| SpO2 (4-000-0550) | Dual-wavelength spectrophotometric, 1% resolution |
| Pulse rate resolution | 1 BPM |
| Display | Color LCD touchscreen |
| Battery | Rechargeable 10.8 V lithium-ion |
| AC adapter | 100 to 240 V, 50/60 Hz, 700 mA input; 15 V / 2 A output |
Compatibility and Accessories
- Reusable BP cuffs (Midmark): infant 3-009-0068, child 3-009-0070, small adult 3-009-0062, adult 3-009-0064, large adult 3-009-0066, adult long 3-009-0072, large adult long 3-009-0074, thigh 3-009-0076
- Reusable SpO2 finger sensors: adult 3-009-0020, small 3-009-0021; 4 ft extender cable 3-009-0026
- Disposable thermometer caps: 2-200-0116 (box of 100), 2-200-0115 (box of 1,000)
- Mounting: mobile cart 3-004-2000, wall mount 3-009-0003, equipment pole mount 3-004-2008, countertop mount 3-009-0001
- Weight capture: Midmark 626 Barrier-Free Examination Chair (scale-equipped configurations); also see Midmark Digital ECG
Documents and Warranty
- Midmark Digital Vital Signs Device product page
- Midmark Digital Vital Signs Device brochure (PDF)
- Quick Reference Guide
- Technical documentation
- Midmark offers an Extended Warranty Replacement Plan that extends the base warranty to up to 5 years of coverage: Midmark diagnostic extended warranty
Compare Models
| Version | Measurements |
| 4-000-0540 | Blood pressure, temperature, pulse rate |
| 4-000-0550 | Blood pressure, temperature, pulse rate, SpO2 (Envitec adult finger sensor included) |
