Description

The 626 exceeds the 2024 US Access Board standard with a 15.5" low seat height. See what the standard requires →

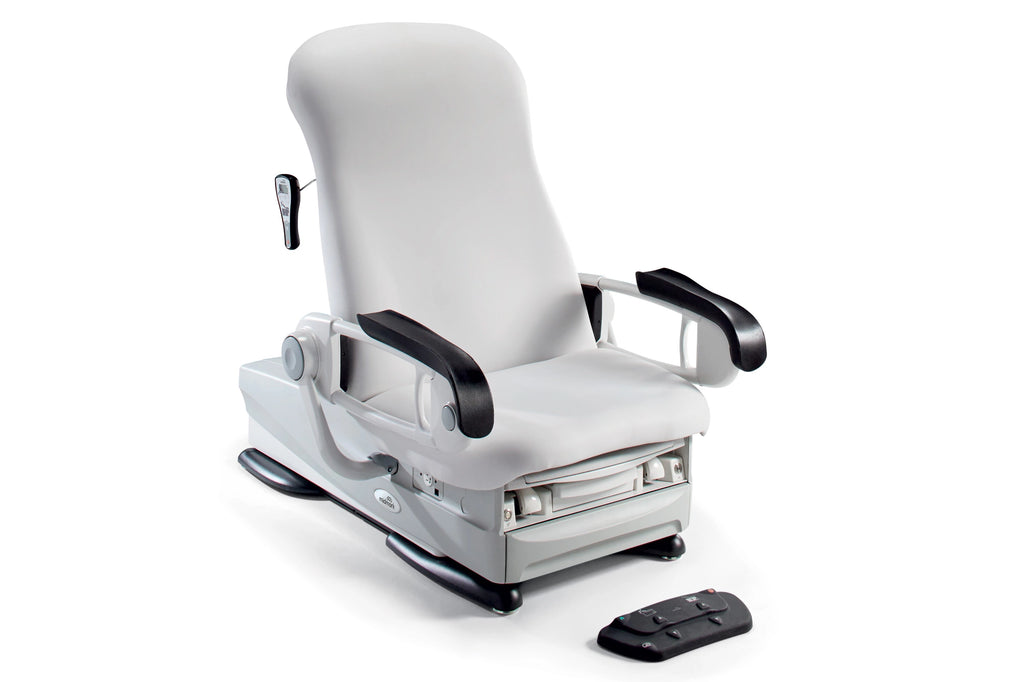

The Midmark 626 is a power exam chair built around accurate blood pressure capture and easy, dignified patient transfers. It lowers to 15.5", so most patients can sit with their back supported and feet flat on the floor, then rises to 37" for the exam.
Better Blood Pressure
- Low seat height keeps patients seated correctly for a resting BP reading.
- Optional Patient Support Rails+ (see Accessories below) hold the cuffed arm at heart level.
- Pairs with the Midmark Digital Vital Signs Device for automated, consistent readings.
Patient Accessibility
- 15.5" low / 37" high seat height, exceeding the 2024 US Access Board Standards for Accessible Medical Diagnostic Equipment.
- Wide, height-adjustable transfer surface; works with patient lifts.
- Optional Patient Support Rails and Articulating Knee Crutches provide the transfer and leg supports the standard calls for.
Connectivity
- Optional integrated IQscale weighs patients right on the chair.
- Connect to a Midmark vital signs device and send weight and vitals straight to the EMR.
Configurations
- #626-001: Wired Hand/Foot Controls.
- #626-002: Wired Hand/Foot Controls, Heated-Top Ready.
- #626-003: Wireless Hand/Foot Controls, Includes IQscale.
- #626-004: Wireless Hand/Foot Controls, Heated-Top Ready, Includes IQscale.
- #626-005: Wired Hand/Foot Controls, Includes IQscale.
- #626-006: Wired Hand/Foot Controls, Heated-Top Ready, Includes IQscale.
Our chair quotes include standard upholstery in your selected color: a 28" premium top on every configuration. Heated-top-ready configurations (-002, -004, -006) can be upgraded to a heated top. Not sure which you need? Ask us to help configure your chair.
Colors
Standard Upholstery Colors
UltraFree* Upholstery Colors
*Ultraleather® by Ultrafabrics®
On-screen colors can differ from the actual material, and suppliers may change colors. Ask us for a physical sample to confirm your selection before ordering. Midmark upholstery color guide (PDF)
Accessories
Patient Support Rails and Rails+, the Articulating Knee Crutch Kit, wireless hand/foot controls, thick footrest pad, stainless steel treatment pan and upholstery top upgrades are listed under Recommended accessories below, each with its own page and quote button. View all Midmark 626 accessories →
Technical Specifications
| Patient weight capacity | 650 lb (295 kg) |
| Seat height | 15.5" low / 37" high (uncompressed) |
| Upholstery top | 28" W x 60" L standard; 32" W x 60" L wide option |
| Length, footrest extended | 76" |
| Pelvic tilt | 5.2° |
| Heated drawer | 92°F–112°F |
| Heated upholstery (option) | Low 95°F / High 102°F |
| Paper roll | 24" wide x 3.56" dia. |
| Receptacles | Hospital-grade, left and right sides |
| Electrical | 115 VAC, 50/60 Hz, 12 A |
| Chair / shipping weight | 435 lb / 485 lb |
Resources
- Midmark 626 brochure (PDF)
- Midmark upholstery color guide (PDF)
- US Access Board standards brief (PDF)
- Patient Support Rails brochure (PDF)
Pricing: Contract and volume pricing available, including Vizient and Provista. Add the chair to your quote with your upholstery color and any upgrades or accessories and we'll confirm pricing, lead time, warranty and freight delivery within 1 business day.
Compare the Midmark 626, Ritter 228 and Ritter 229 →
Your selected configuration
The 20 standard colors are included. UltraFree seamless upholstery is an upgrade.
Heated tops fit the heated-top ready bases (-002, -004, -006).
Our chair quotes include standard upholstery in your selected color. Optional upgrades and accessories are quoted separately.
