Clinical Recliners
13 products
Showing 1 - 13 of 13 products
Clinical care recliners from Lumex and Gendron by Graham-Field for infusion, dialysis, oncology, recovery and patient rooms, from standard, drop-arm and pivot-arm Lumex recliners to extra-wide, powered and bariatric chairs rated up to 850 lb. Swing-away tables, IV pole mounts and head pillows are also available. Vizient and Provista contract pricing is available for eligible facilities.
Shop: Graham-Field | Exam Stools & Medical Seating | IV Stands
Buying guide, comparison and FAQ
How to choose a clinical recliner
- Weight capacity and seat width: 350 lb on the Lumex 577RG and 597 Ortho-Biotic II; 400 lb on the 566G, 566DG, 601 and 565WG; 450 lb with a 24" seat on the 587W and 587WD. For bariatric patients, the Lumex 588W is rated 700 lb, the Gendron TRC 750 750 lb and the Gendron 7150 / 7155 850 lb.
- Transfers: self-storing drop arms on the 566DG and 587WD, and drop arms on the 588W, make lateral transfers to a bed or stretcher easier; both arms of the Lumex 601 pivot outward.
- Positioning: the 577RG, 566G and 601 have three recline positions plus caregiver-activated Trendelenburg; the 597 and 565WG recline to infinite positions; the 588W is powered by a four-function hand pendant with battery backup.
- Comfort options: heat and massage is available on the 577RG, 566G, 566DG, 587W, 587WD and 601 (H models), and the 601 and 597 use viscoelastic memory foam.
- Fabric: Lumex recliners are offered in the standard Lumex fabric collections (Guardian, Savoy, Patriot Plus, Dolce and Renaissance), with swatches on each product page; the 588W comes in four colors.

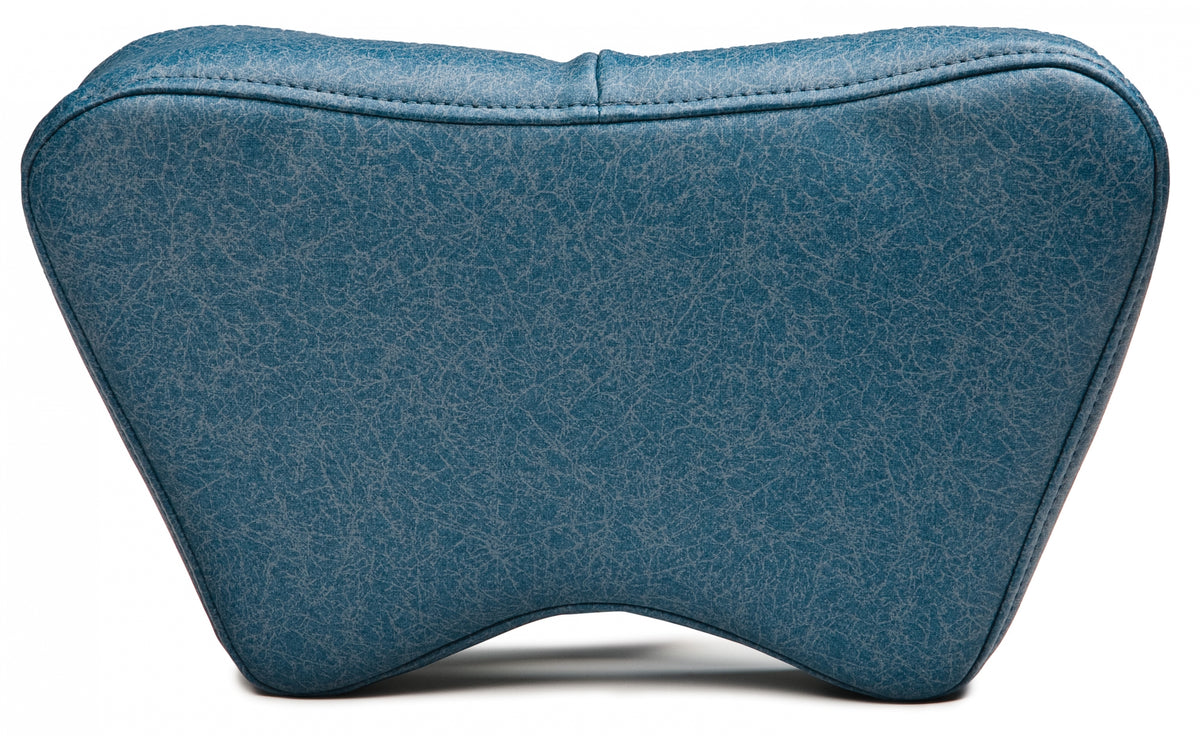

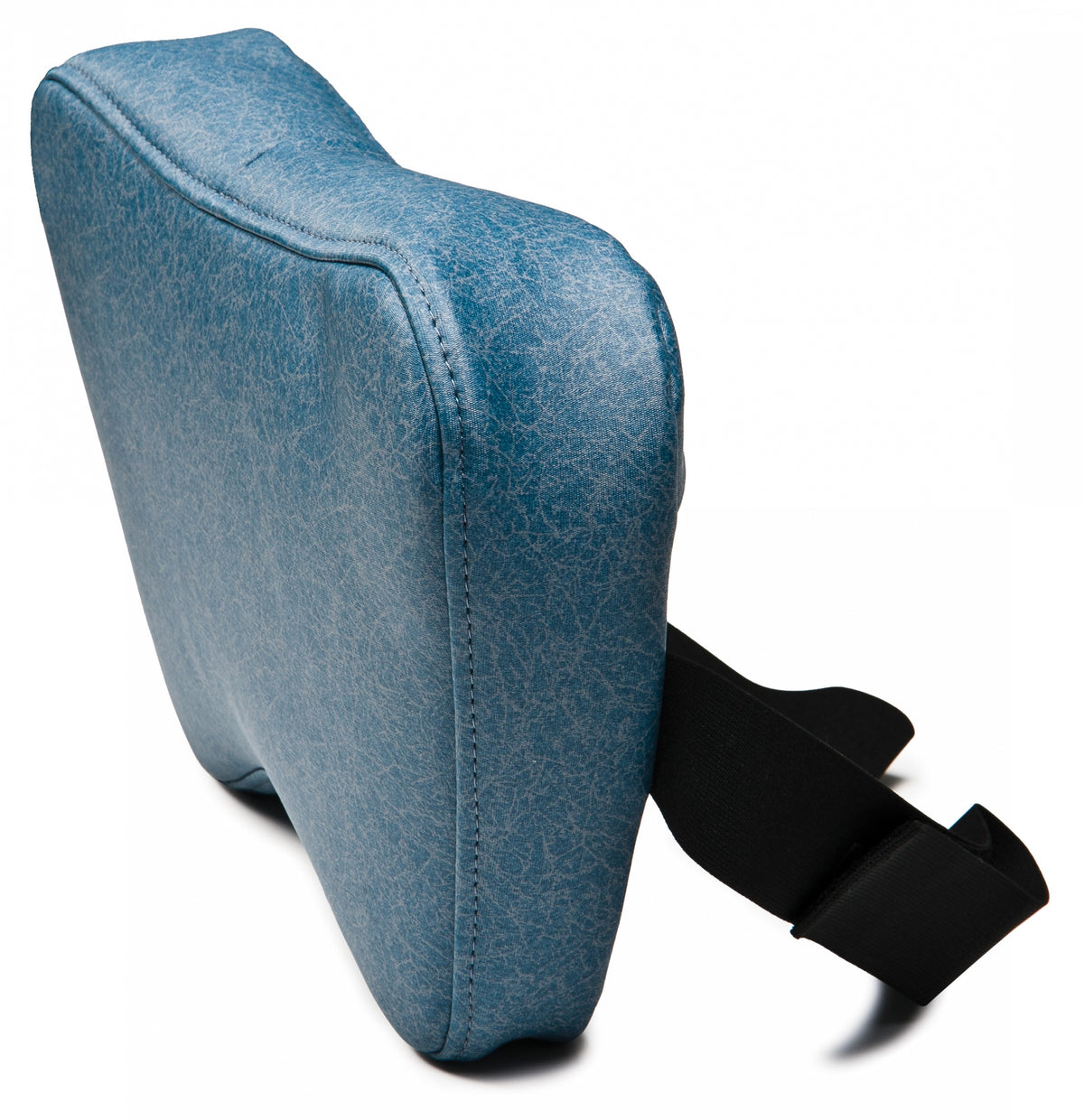

- Accessories: swing-away tables, IV pole mounts and extension legs and the Lumex universal head pillow. Check the fit notes for your recliner model.
Clinical recliners compared
| Lumex 577RG | Lumex 566DG | Lumex 587W | Lumex 601 | Lumex 588W | Gendron 7150 / 7155 | |
|---|---|---|---|---|---|---|
| Weight capacity | 350 lb | 400 lb | 450 lb | 400 lb | 700 lb | 850 lb |
| Positioning | 3 positions plus caregiver Trendelenburg | 3 positions plus Trendelenburg (side pedals) | Upright, 2 recline positions and Trendelenburg; dual gas cylinders | 3 positions (120°, 135°, 160°) plus Trendelenburg | Powered, infinite positions, 4-function pendant | 42° back recline, 20° seat tilt, elevating legrest |
| Arms and transfers | Wallsaver caps or padded arms | Self-storing drop arms | Wallsaver caps or padded arms; 24" seat | Both arms pivot outward | Drop arms; battery backup | 25.25" or 29.25" seat width |
FAQ
Which recliners help with lateral transfers?
The Lumex 566DG, 587WD and 588W have drop arms, and both arms of the Lumex 601 pivot outward for access, transfers and cleaning.
Can I order a recliner in a specific fabric?
Yes. Choose from the standard Lumex fabrics shown on each product page; additional Lumex fabrics and customer's own material are available by special order. The 588W is offered in Blue Ridge, Doe Skin, Jade and Rosewood.
Can we buy on Vizient or Provista contract pricing?
Yes. Vizient and Provista members can request contract pricing; request a quote or call (800) 575-2375.
