Description
Overview

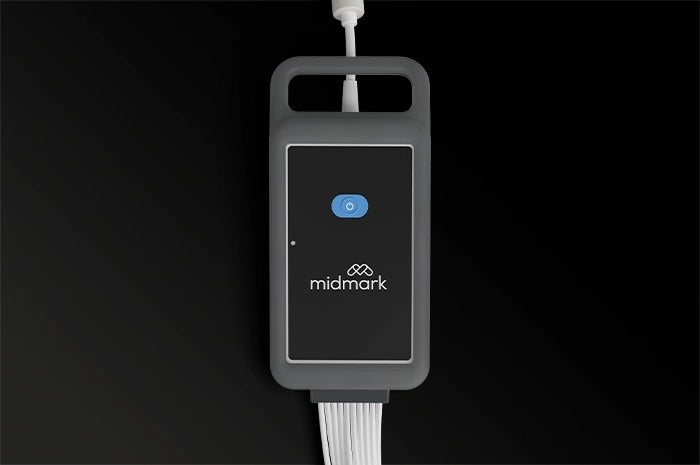

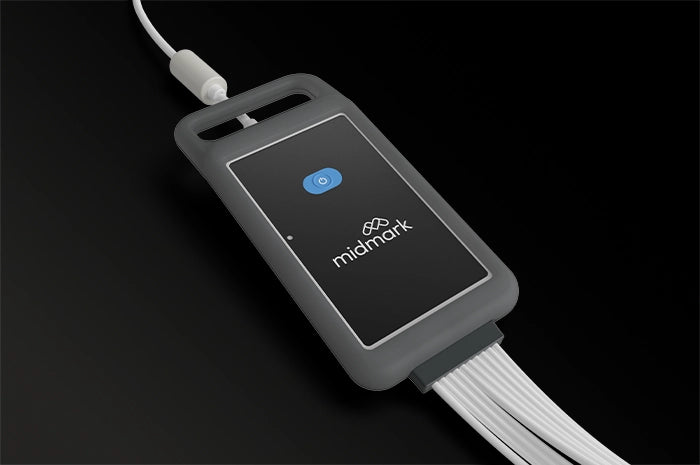

A compact, PC-based 12-lead resting ECG that connects by USB and acquires, stores and syncs ECGs into the EMR through Midmark Connect. An optional DICOM software license sends ECGs to the cardiologist's preferred CVIS in an editable format.
Key Features
- High signal quality with low noise for high-resolution waveforms
- Integrates with leading EMR systems, so results go to the patient chart without manual transcription
- Optional DICOM license (900-402 Midmark ECG License) for data exchange with the cardiology CVIS
- USB powered and about the size of a smartphone, so it needs no separate power supply or cart
Configuration and Package Contents

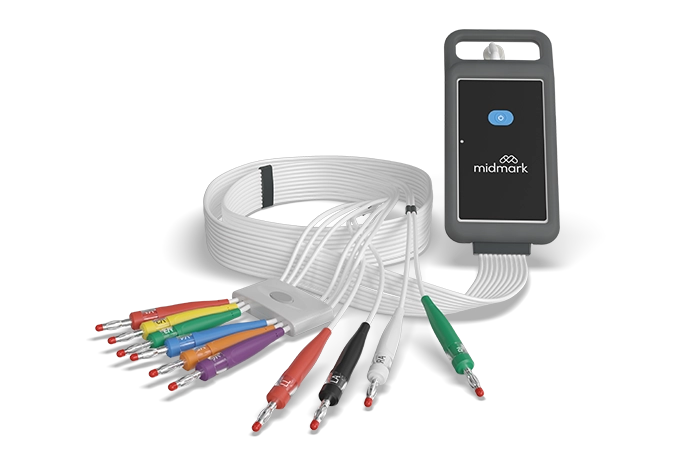

- Midmark part 4-000-0080: Midmark Digital ECG, USB version
- Includes a standard 10-lead patient cable and a removable USB cable; contact us to confirm full kit contents
- Requires a PC and either an EMR with integrated Midmark software or Midmark IQmanager software (software purchased separately from Midmark)
- DICOM compatibility is an optional software license, sold separately
Technical Specifications
| Power | USB port |
| Dimensions | 2.5 x 0.59 x 4.5 in (65 x 15 x 115 mm) |
| Frequency response | 0.67 to 150 Hz |
| ADC resolution | 24 bits at 2.5 µV/bit |
| Dynamic range | ±500 mV |
| Electrode offset | ±500 mV |
| Input impedance | ≥100 megohms |
| Front-end sampling rate | 128,000 samples/s per channel |
| Analysis sampling rate | 500 samples/s |
| Filters | AC, drift and muscle |
Compatibility and Accessories
- Replacement patient cable: Midmark 10-lead patient cable 015-11871-00
- Silicone protective cover: Midmark 002-10937-00
- Disposable ECG tab electrodes: Midmark 2-100-0208 (box of 1,000)
- Also from Midmark diagnostics: Midmark Digital Vital Signs Device
Documents and Warranty
- Midmark Digital ECG product page
- Midmark Digital ECG brochure (PDF)
- Midmark Digital ECG Quick Reference Guide (PDF)
- DICOM Implementation Sheet (PDF)
- Midmark digital diagnostics minimum computer requirements (PDF)
- Extended warranty plans are available from Midmark: Midmark diagnostic extended warranty
Genuine Midmark product, sold by The Hospital Equipment Company.
