Description
Overview

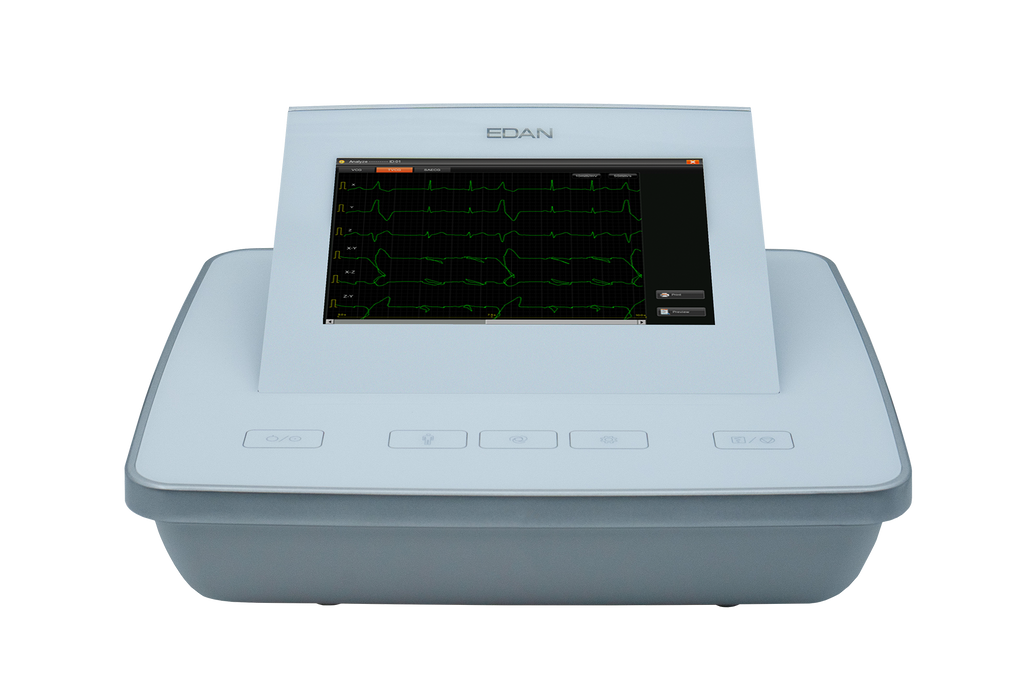

The Edan SE-1202 is a 12-channel resting electrocardiograph with a 10.1-inch touch screen and an A4-width thermal printer, for cardiology practices, clinics and hospitals. Built-in Glasgow interpretation and advanced analysis (VCG, SAECG, HRV) set it apart from basic 12-lead units.
Key Features
- Simultaneous 12-lead acquisition plus a 9-lead mode for neonatal resting ECG
- Built-in Glasgow interpretation, auto lead-placement check and auto arrhythmia detection support faster reads
- Vector ECG (VCG/TVCG), signal-averaged ECG (SAECG), heart rate variability (HRV) and ST-segment view; recording sessions up to 1,800 seconds
- Stores 1,000 ECGs and exports PDF, JPG, FDA XML, DICOM and HL7
- Connects to HIS/EMR/PACS directly via HL7/DICOM or through the Edan SE-1515 Data Management System; Wi-Fi 2.4/5 GHz (802.11 a/b/g/n)
Configuration and Package Contents
- SE-1202 main unit with standard accessories:
- ECG cable, 4 mm banana connector, AHA (01.57.471614)
- Adult resting tab electrodes (PT-2334)
- 10-lead universal clips (01.57.040172)
- Recording paper, 210 × 295 mm, 100 pages (SE-12P)
- Fuse (01.21.64073)
- Power cord, US (01.13.036106)
- Battery fixing bar (11.51.32501)
- Rechargeable lithium battery, 2500 mAh (21.21.064149)
- Sold separately: SE-1515 Data Management System software, 5000 mAh battery, 4G module, cart
Technical Specifications

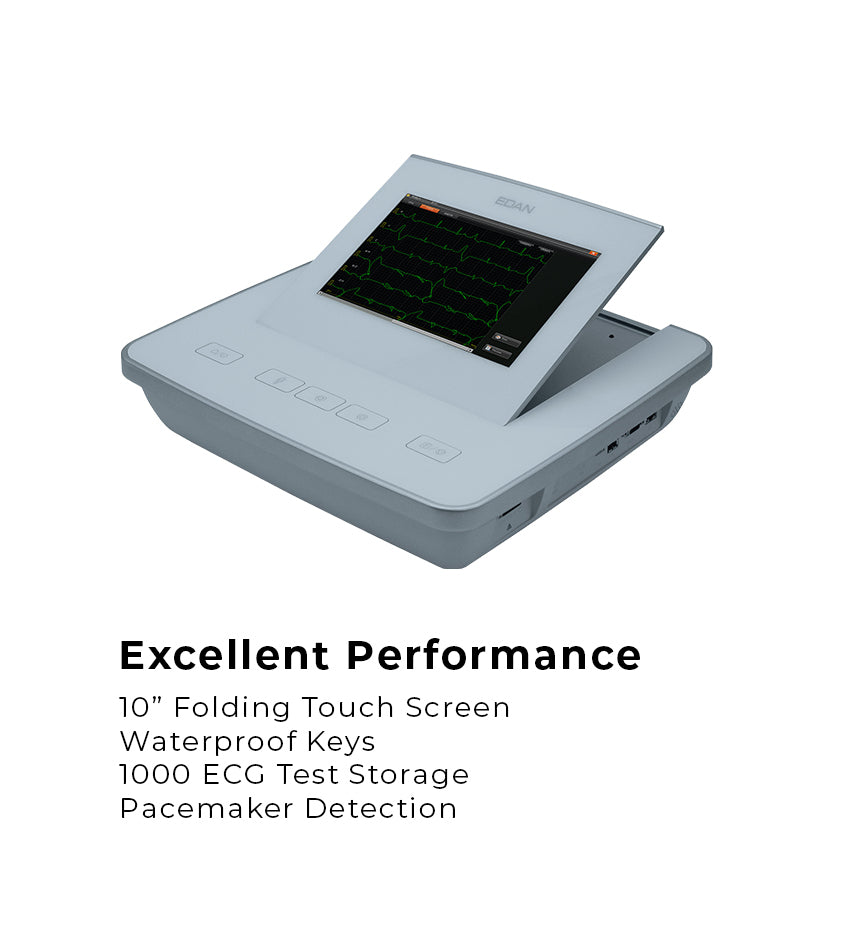

| Display | 10.1" color LCD touch screen, tilts 25° |
| Leads | 12 standard leads (9-lead neonatal mode), simultaneous |
| Sampling rate | 64,000 samples/s per channel |
| A/D converter | 24-bit |
| Frequency response | 0.01–350 Hz (−3 dB) |
| Heart rate range | 30–300 bpm (±1 bpm) |
| Recorder | Thermal dot-matrix, 210 mm print width |
| Paper | Folded thermal, 210 × 295 mm or 215 × 280 mm |
| Paper speeds | 5, 6.25, 10, 12.5, 25, 50 mm/s |
| Storage | 1,000 ECGs |
| Battery | Li-ion, 14.8 V; 2500 mAh included (about 3 h full charge); 5000 mAh available |
| Power | 100–240 V, 50/60 Hz |
| Dimensions | 15.7 × 14.2 × 3.5 in (400 × 360 × 90 mm) |
| Weight | ≤14.3 lb (≤6.5 kg), excluding paper and battery |
Compatibility and Accessories
- Uses 210 × 295 mm (SE-12P) or 215 × 280 mm folded thermal paper
- Works with the Edan SE-1515 Data Management System (sold separately)
- Edan SE-301 compact 3-channel ECG machine
- Edan SE-1200 Express 12-lead ECG machine
Documents and Warranty
- Edan SE-1202 ECG machine product page
- Edan SE-1202 brochure (PDF)
- Edan SE-1202 specification sheet
- Edan USA warranty
- Warranty: 2-year warranty on the main unit; 1-year warranty on accessories
Genuine Edan product, sold by The Hospital Equipment Company.
