Description
Overview

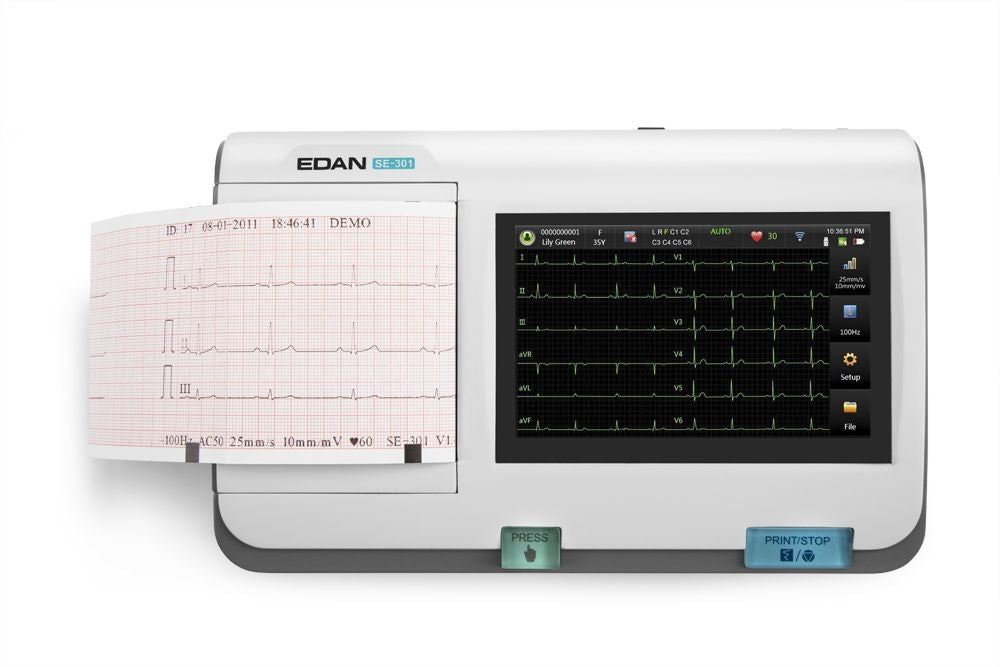

The Edan SE-301 is a compact 3-channel, 12-lead resting electrocardiograph with a 5-inch color touch screen and built-in thermal printer. It is designed for physician offices, clinics and hospital floors where a light, portable unit is needed.
Key Features
- 3-channel printout of a simultaneously acquired 12-lead ECG

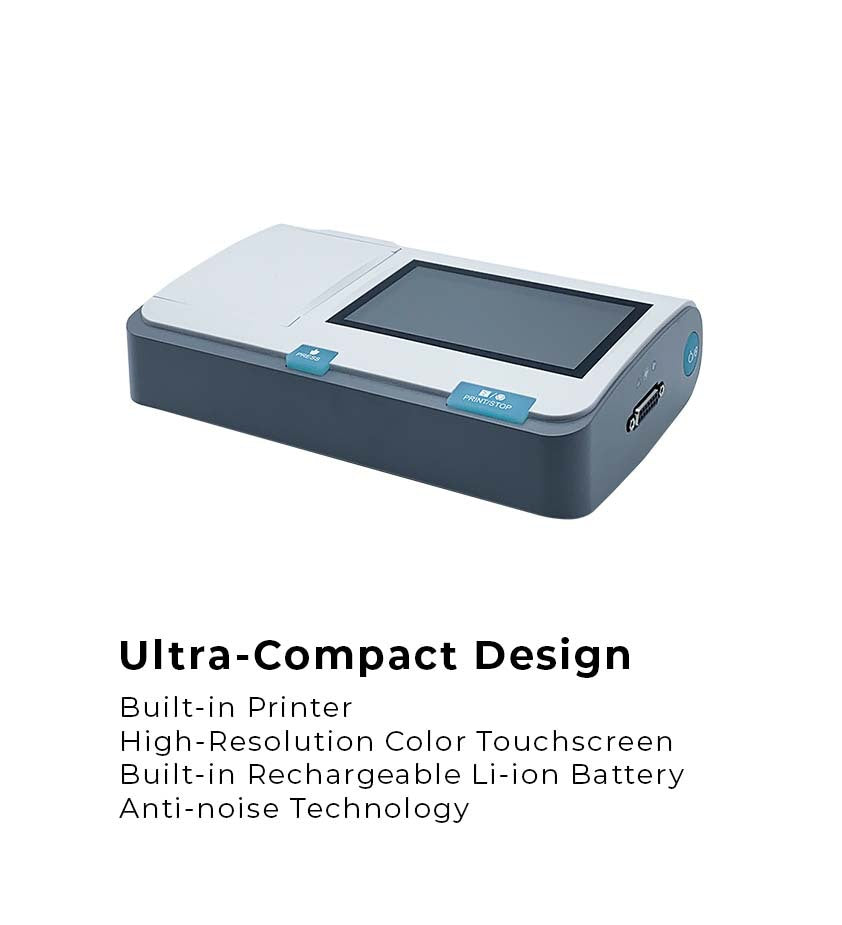

- Full touch-screen and one-button operation in a unit weighing about 2.2 lb (1 kg)
- Automatic measurement and interpretation, with color-coded signal quality indication for normal, poor or missing lead signals
- USB barcode scanner, USB external printer, USB flash drive and microSD card support
- Bi-directional communication with the Edan SE-1515 Data Management System, plus DICOM Worklist/Storage and HL7 connection to HIS
Configuration and Package Contents
- SE-301 main unit with standard accessories:
- ECG cable, 4 mm banana connector, AHA (01.57.471614)
- Adult resting tab electrodes (PT-2334)
- 10-lead universal clips (01.57.040172)
- Recording paper roll, 80 mm × 20 m (SE-3P)
- Paper roll (21.51.001340)
- Power cord, US (21.13.036384)
- Power adapter (21.21.064244)
- Rechargeable lithium battery, 2500 mAh (21.21.064149)
- Built-in Wi-Fi is available from Edan as an option; contact us if you need it
- Sold separately: Wi-Fi module, SE-1515 Data Management System software, 4G module, cart
Technical Specifications
| Display | 5" 800 × 480 color LCD touch screen |
| Leads | 12 standard leads, acquired simultaneously |
| Sampling rate | 16,000 Hz |
| A/D converter | 24-bit |
| Frequency response | 0.01–300 Hz (−3 dB) |
| CMRR | ≥140 dB |
| Heart rate range | 30–300 bpm (±1 bpm) |
| Recorder | Thermal dot-matrix; 80 mm × 20 m roll or 80 mm × 70 mm × 200-page folded paper |
| Paper speeds | 5, 6.25, 10, 12.5, 25, 50 mm/s |
| Battery | Li-ion, 14.8 V, 2500 mAh; about 5 hours continuous printing or 500 ECG reports; charge time ≤3.5 hours |
| Ports | 2 USB, 1 microSD slot, LAN |
| Report formats | PDF standard; SCP, XML and DICOM optional |
| Dimensions | 8.8 × 5.6 × 2.1 in (224 × 143 × 54 mm) |
| Weight | 2.2 lb (1 kg), excluding paper and battery |
Compatibility and Accessories
- Uses 80 mm × 20 m thermal roll (SE-3P) or 80 mm × 70 mm × 200-page folded paper
- Works with the Edan SE-1515 Data Management System (sold separately)
- Edan SE-1202 12-channel ECG machine
- Edan SE-1200 Express 12-lead ECG machine
Documents and Warranty
- Edan SE-301 ECG machine product page
- Edan SE-301 specification sheet (PDF)
- Edan SE-301 brochure (PDF)
- Edan USA warranty
- Warranty: 2-year warranty on the main unit; 1-year warranty on accessories
Genuine Edan product, sold by The Hospital Equipment Company.
