Description
Ships directly from Burton. Request current lead time and applicable contract pricing.

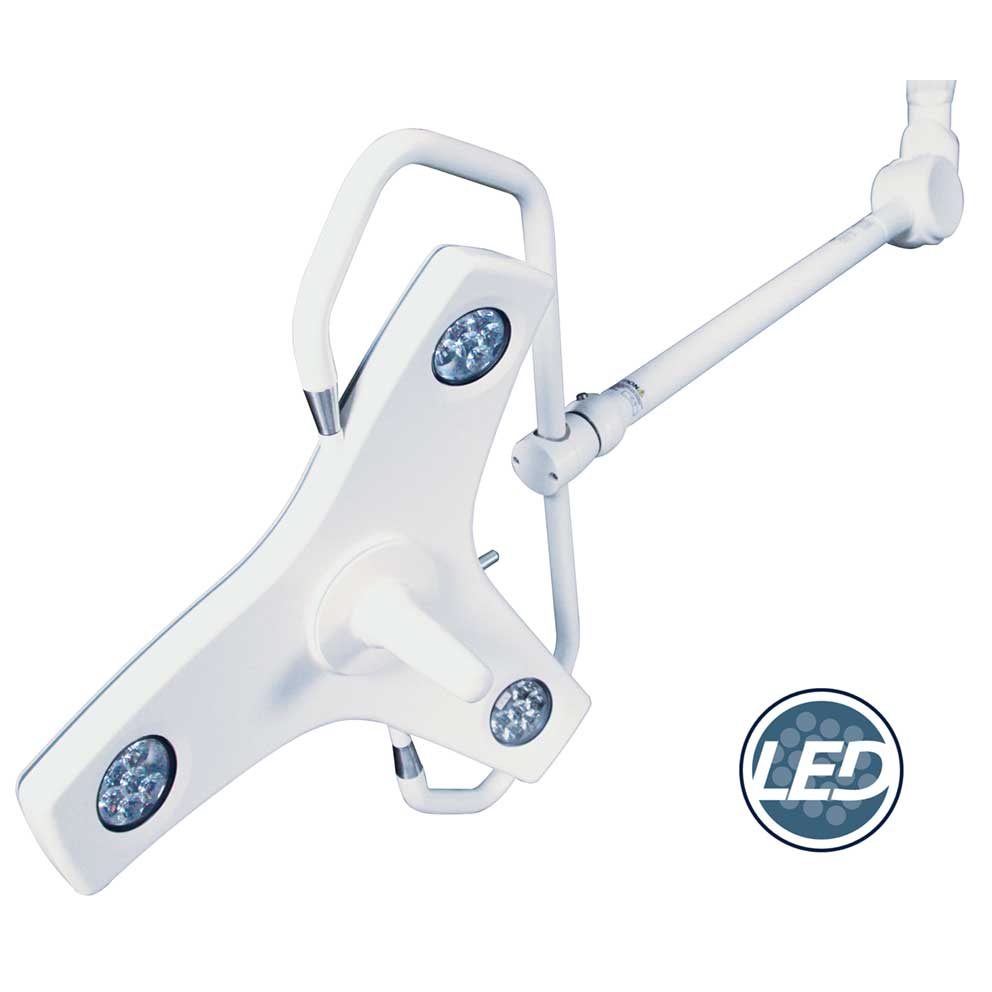

Outpatient LED is Burton's compact LED exam light for physician offices, hospitals, dermatology and animal health. It produces 90,000 lux at 24 in (61 cm) at 3700 K with a CRI of 95 and R9 >87 for accurate skin-tone rendering, using 42 W. It is offered as a floor stand, wall mount, or single/double ceiling mount with down tubes sized for 8, 9 or 10 ft ceilings.
Features
- 90,000 lux (8,361 fc) at 24 in (61 cm)
- 3700 K, CRI 95, R9 >87 for accurate skin tones
- Virtually heat-free; Burton cites 75% energy savings vs halogen
- 42 W, universal 100-240 V input
- 50,000-hour average LED life
- 37.5 in (95 cm) maximum arm reach
- Autoclavable molded positioning handle (replacement 5000464)
- 5-year limited warranty
Models
| Option | Item # |

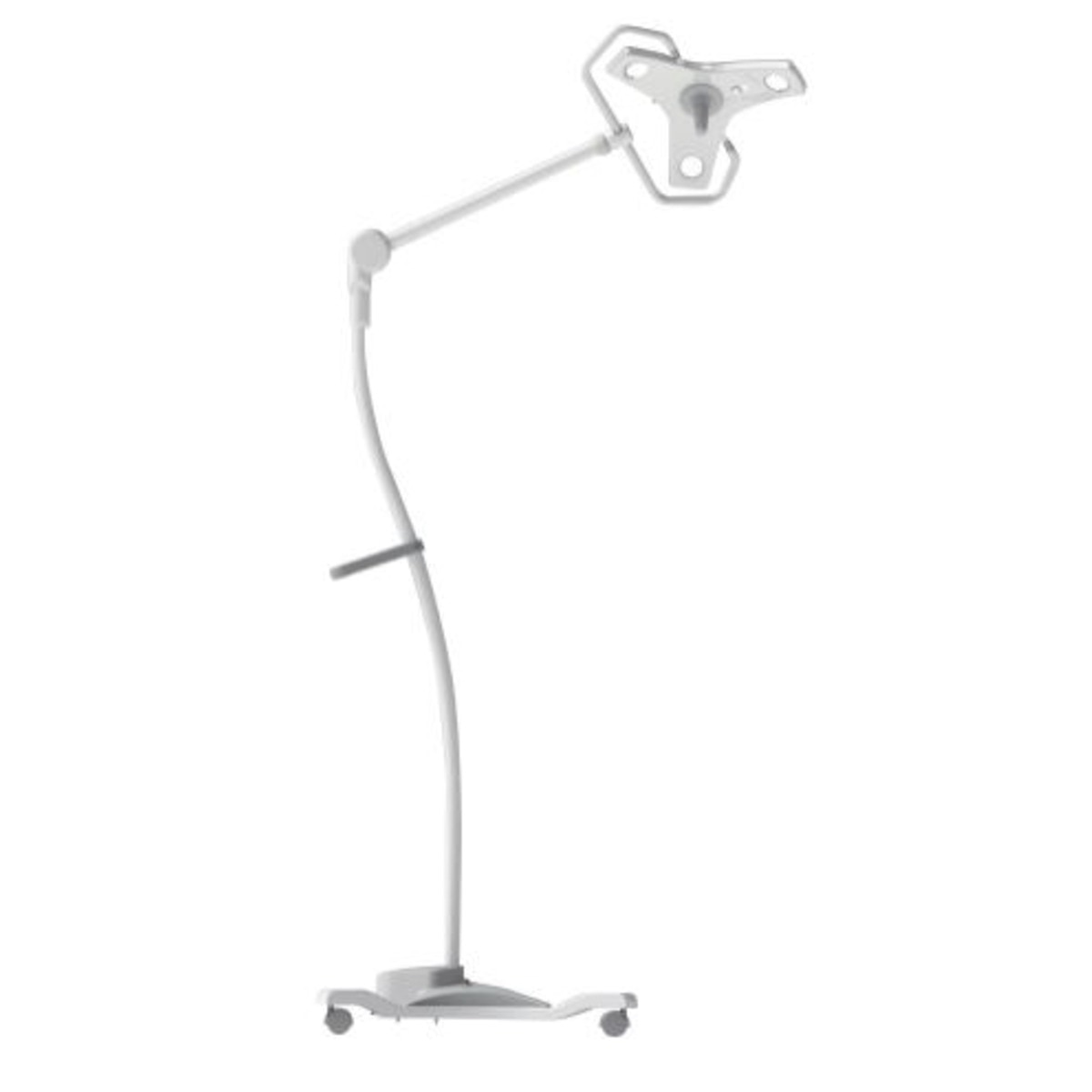

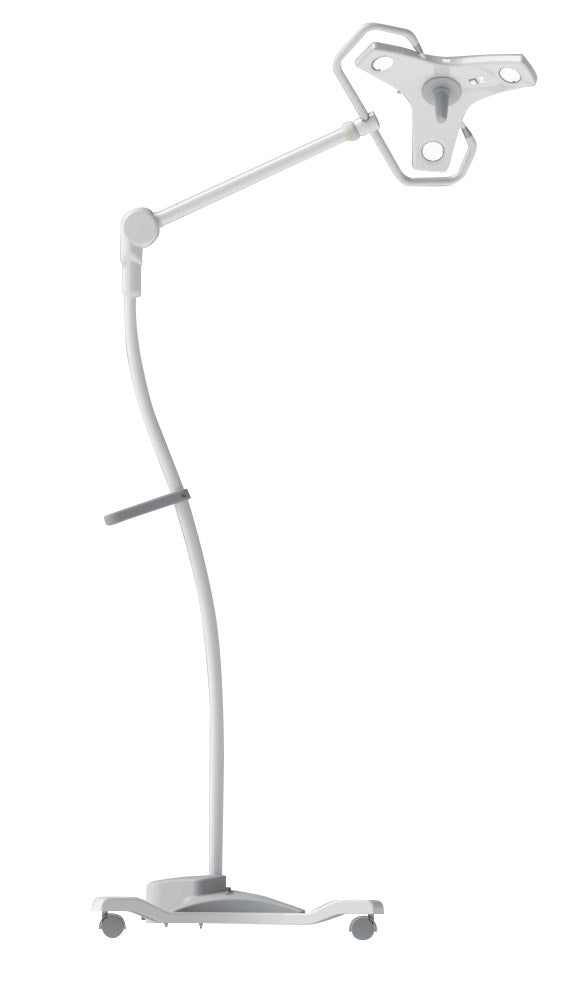

| Floor stand (OPLEDFL) | OPLEDFL |
| Wall mount (OPLEDW) | OPLEDW |

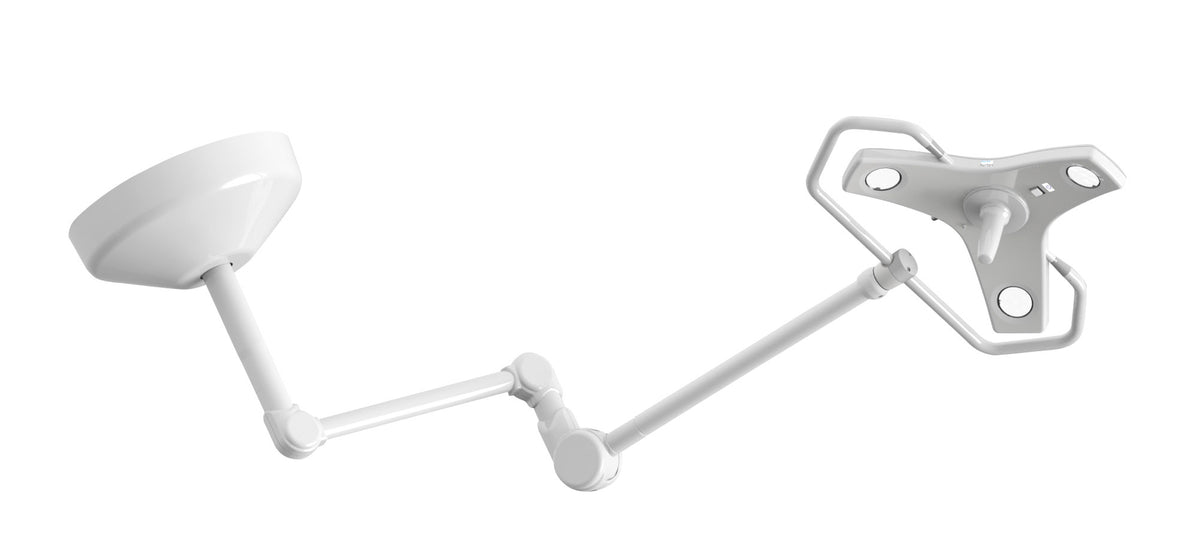

| Single ceiling / 8 ft ceiling (OPLEDSC) | OPLEDSC |
| Single ceiling / 9 ft ceiling (OPLEDSC09) | OPLEDSC09 |
| Single ceiling / 10 ft ceiling (OPLEDSC10) | OPLEDSC10 |

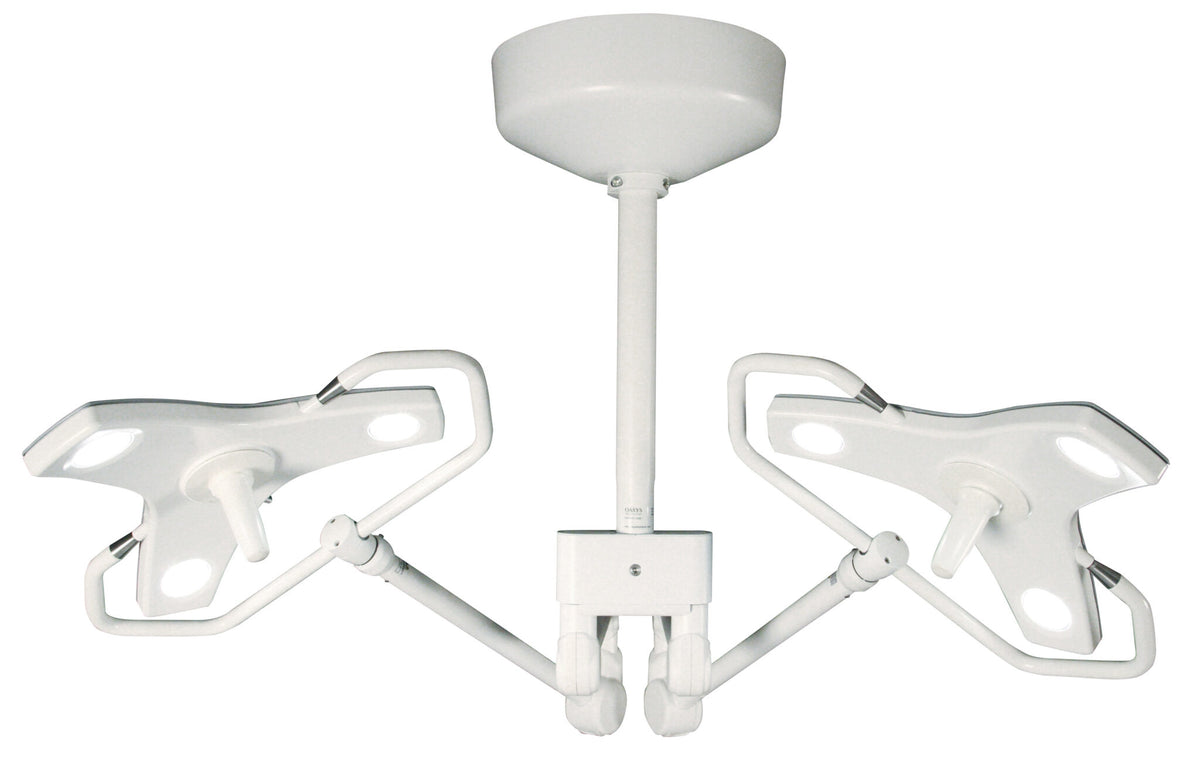

| Double ceiling / 8 ft ceiling (OPLEDDC) | OPLEDDC |
| Double ceiling / 9 ft ceiling (OPLEDDC09) | OPLEDDC09 |
| Double ceiling / 10 ft ceiling (OPLEDDC10) | OPLEDDC10 |
Compare Burton LED exam lights
| AIM LED | AIM HI LED 70 | AIM HI LED 100 | Outpatient LED | |
| Light output | 45,000 lux at 1 m | 70,000 lux at 1 m | 100,000 lux at 1 m | 90,000 lux at 24 in (61 cm) |
| Color temperature / CRI | 4,300 K / 92 | 4,300 K / >95 | 4,300 K / >95 | 3,700 K / 95 |
| Light field | 13-15 in, adjustable focus | 10 in, adjustable focus | 10 in, adjustable focus | Contact us to confirm |
| Dimming | Contact us to confirm | 3 steps (100/75/50%) | 3 steps (100/75/50%) | Contact us to confirm |
| Arm reach | 63 in | 63 in | 63 in | 37.5 in |
| Mounting | Floor, wall, single or double ceiling | Floor, wall, single or double ceiling | Floor, wall, single or double ceiling | Floor, wall, single or double ceiling, Fastrac track |
| Starting price | $3,546.48 | $3,853.08 | $4,612.00 | $3,152.52 |
Light output for the Outpatient LED is measured at 24 in, the others at 1 m (39.4 in), so the figures are not directly comparable. Warranty on all four: 5-year limited.
Specifications
| Illuminance | 90,000 lux (8,361 fc) at 24 in (61 cm) |
| Color temperature | 3700 K |
| CRI | 95; R9 >87 |
| Light source / LED life | LED; 50,000 h average |
| Power | 42 W; universal 100-240 V, 50-60 Hz |
| Arm reach | 37.5 in (95.25 cm) max |
| Mounting | Floor stand, wall, single ceiling, double ceiling; Fastrac ceiling track (6000424, ordered in addition to a ceiling model, 57 in stop-to-stop travel) |
| Down tube (single ceiling) | OPLEDSC 19 in; SC09 26-7/8 in; SC10 34-3/4 in |
| Down tube (double ceiling) | OPLEDDC 16 in; DC09 23-7/8 in; DC10 31-3/4 in |
| Certifications | AAMI ES60601-1, IEC 60601-1-2, EN/IEC 60601-2-41, CAN/CSA C22.2 No. 60601-1 |
| Warranty | 5-year limited |
| Accessories | 5000884 ceiling structure plate; 0008100PK sterile handle covers; 6000424 Fastrac ceiling mount; 5000464 replacement handle |
| Manufacturer | Burton Medical |
Included and sold separately
| Details | |
| Included | Complete light and arm system with the down tube for the ceiling height you choose: SC/DC for 8 ft, SC09/DC09 for 9 ft and SC10/DC10 for 10 ft ceilings. |
| Fastrac track | Fastrac ceiling mount (6000424) is ordered in addition to a single or double ceiling model. |
| Replacement down tubes | Outpatient LED down tubes (4000333-4000340) |
| Sold separately | Ceiling structural plate (5000884) if your ceiling needs one; sterile handle covers (0008100PK), spare handle (5000464); wall switch |
| Installation | Not included. Ceiling and wall models are hard-wired: a licensed electrical contractor makes the connection, and a wall switch (not included) must be supplied and installed by the facility. The ceiling must provide structural support for the light, designed by the building's engineer or contractor. |
Not sure which ceiling version you need? Send us your floor-to-ceiling height and we will confirm the model, down tube and parts before you order.
Resources
Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
