Description
Ships directly from Burton. Request current lead time and applicable contract pricing.

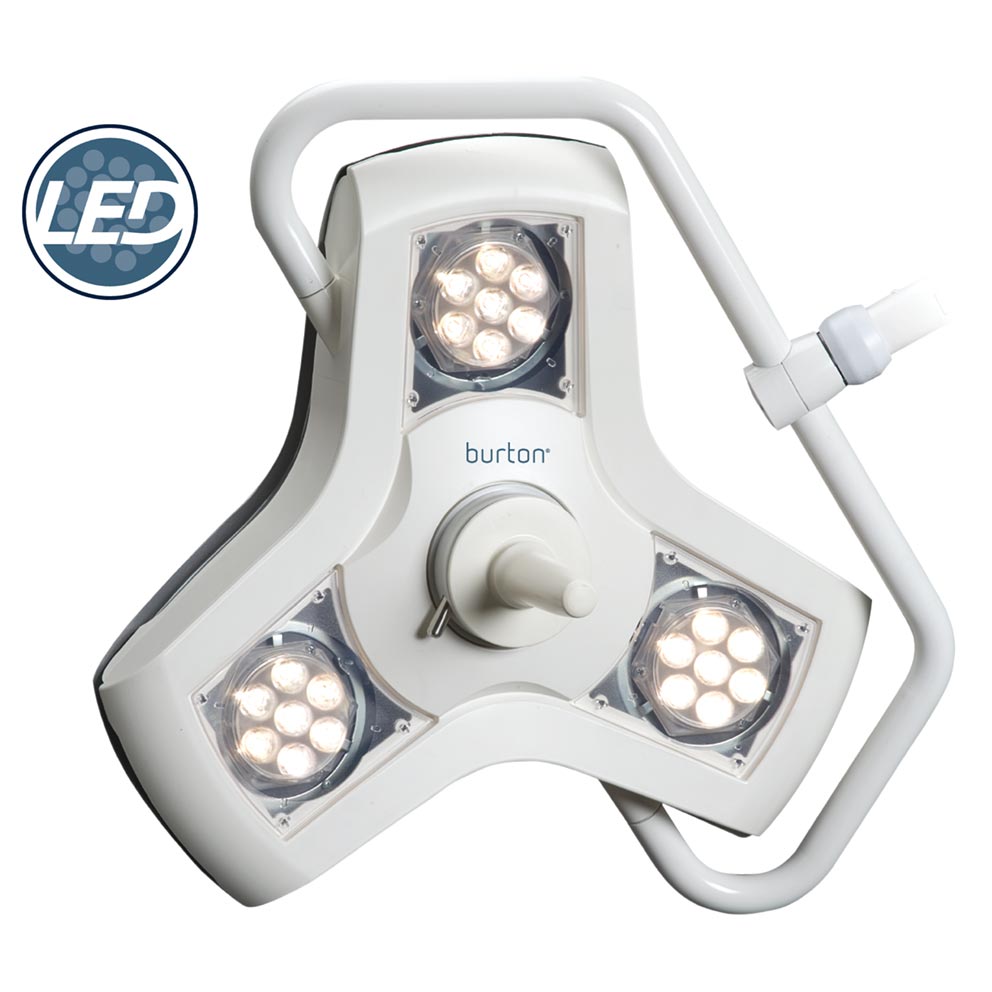

The AIM LED is a large-head LED examination and procedure light built on Burton's AIM arm and mount system. It delivers 45,000 lux at 1 meter at 4300 K with a CRI of 92, and the light pattern is adjusted with the sterilizable center handle. It is offered as a floor stand, wall mount, single ceiling or double ceiling light.
Features
- 45,000 lux at 1 m (39.7 in)
- 4300 K color temperature, CRI 92
- Adjustable focus (light size/pattern) via sterilizable center handle
- 3 LED modules, 50,000-hour rated LED life
- 84 W, universal 100-240 V input; Burton states 55% less energy than comparable models
- Assembled in USA; 5-year limited warranty
Models
| Option | Item # |

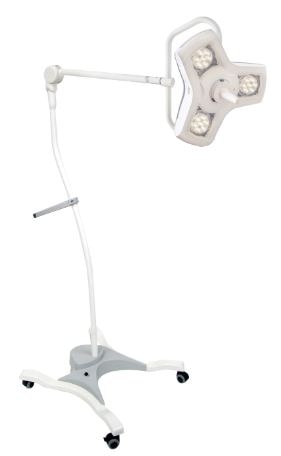

| Floor stand (ALEDFL) | ALEDFL |
| Single ceiling (ALEDSC) | ALEDSC |
| Double ceiling (ALEDDC) | ALEDDC |
| Wall mount (ALEDW) | ALEDW |
Compare Burton LED exam lights
| AIM LED | AIM HI LED 70 | AIM HI LED 100 | Outpatient LED | |
| Light output | 45,000 lux at 1 m | 70,000 lux at 1 m | 100,000 lux at 1 m | 90,000 lux at 24 in (61 cm) |
| Color temperature / CRI | 4,300 K / 92 | 4,300 K / >95 | 4,300 K / >95 | 3,700 K / 95 |
| Light field | 13-15 in, adjustable focus | 10 in, adjustable focus | 10 in, adjustable focus | Contact us to confirm |
| Dimming | Contact us to confirm | 3 steps (100/75/50%) | 3 steps (100/75/50%) | Contact us to confirm |
| Arm reach | 63 in | 63 in | 63 in | 37.5 in |
| Mounting | Floor, wall, single or double ceiling | Floor, wall, single or double ceiling | Floor, wall, single or double ceiling | Floor, wall, single or double ceiling, Fastrac track |
| Starting price | $3,546.48 | $3,853.08 | $4,612.00 | $3,152.52 |
Light output for the Outpatient LED is measured at 24 in, the others at 1 m (39.4 in), so the figures are not directly comparable. Warranty on all four: 5-year limited.
Specifications
| Illuminance | 45,000 lux at 1 m (39.7 in) |
| Color temperature | 4300 K |
| CRI | 92 |
| Light field diameter | 13-15 in (33-38 cm) |
| Depth of illumination | 54 in (137 cm) |
| Light head diameter | 20 in (51 cm) |
| Light source / LED life | 3 LED modules; 50,000 h rated |
| Power | 84 W; universal input 100-240 V |

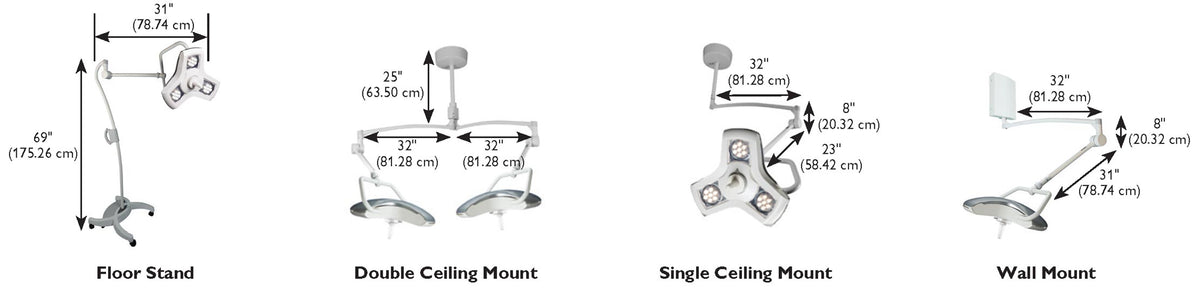

| Ceiling mount reach | Swivel radius 63 in (160 cm) max; 41 in (104 cm) vertical travel |
| Ceiling height (ceiling models) | Min 8 ft / max 12 ft (244-366 cm) |
| Mounting | Floor stand, wall, single ceiling, double ceiling |
| Certifications | UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41, CE |
| Warranty | 5-year limited |
| Accessories | 5000884 ceiling structure plate; 1017040 autoclavable handle; 0008100PK sterile handle covers 25/bx; 1017084 42 in drop tube |
| Manufacturer | Burton Medical |
Included and sold separately
| Details | |
| Included | Complete light as configured: light head, arm and ceiling, wall or floor mount. Floor stands have a power cord with a standard US plug (NEMA 5-15P). |
| Ceiling height | Ceiling models fit 8 to 12 ft ceilings; use the 42 in drop tube (1017084) for higher ceilings. |
| Sold separately | Ceiling structural plate (5000884) if your ceiling needs one; sterile handle covers (0008100PK), spare autoclavable handle (1017040); wall switch |
| Installation | Not included. Ceiling and wall models are hard-wired: a licensed electrical contractor makes the connection, and a wall switch (not included) must be supplied and installed by the facility. The ceiling must provide structural support for the light, designed by the building's engineer or contractor. |
Not sure which ceiling version you need? Send us your floor-to-ceiling height and we will confirm the model, down tube and parts before you order.
Resources
Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
