Burton AIM HI LED 70 / 100 Exam & Procedure Light

Burton MedicalSKU: ALED070FL00

Price:
Sale price$3,853.08
Shipping:

Ships from Burton Medical, typically within 1–2 business days.

Shipping is calculated at checkout.

  • Vizient & Provista contracted distributor
  • Quotes within 1 business day
  • (800) 575-2375, Mon–Fri 8–5 Pacific
PO, contract pricing & facility purchasing

Need help choosing? Request this item on our full quote form or call (800) 575-2375, Monday–Friday, 8 AM–5 PM Pacific.

Description

Ships directly from Burton. Request current lead time and applicable contract pricing.

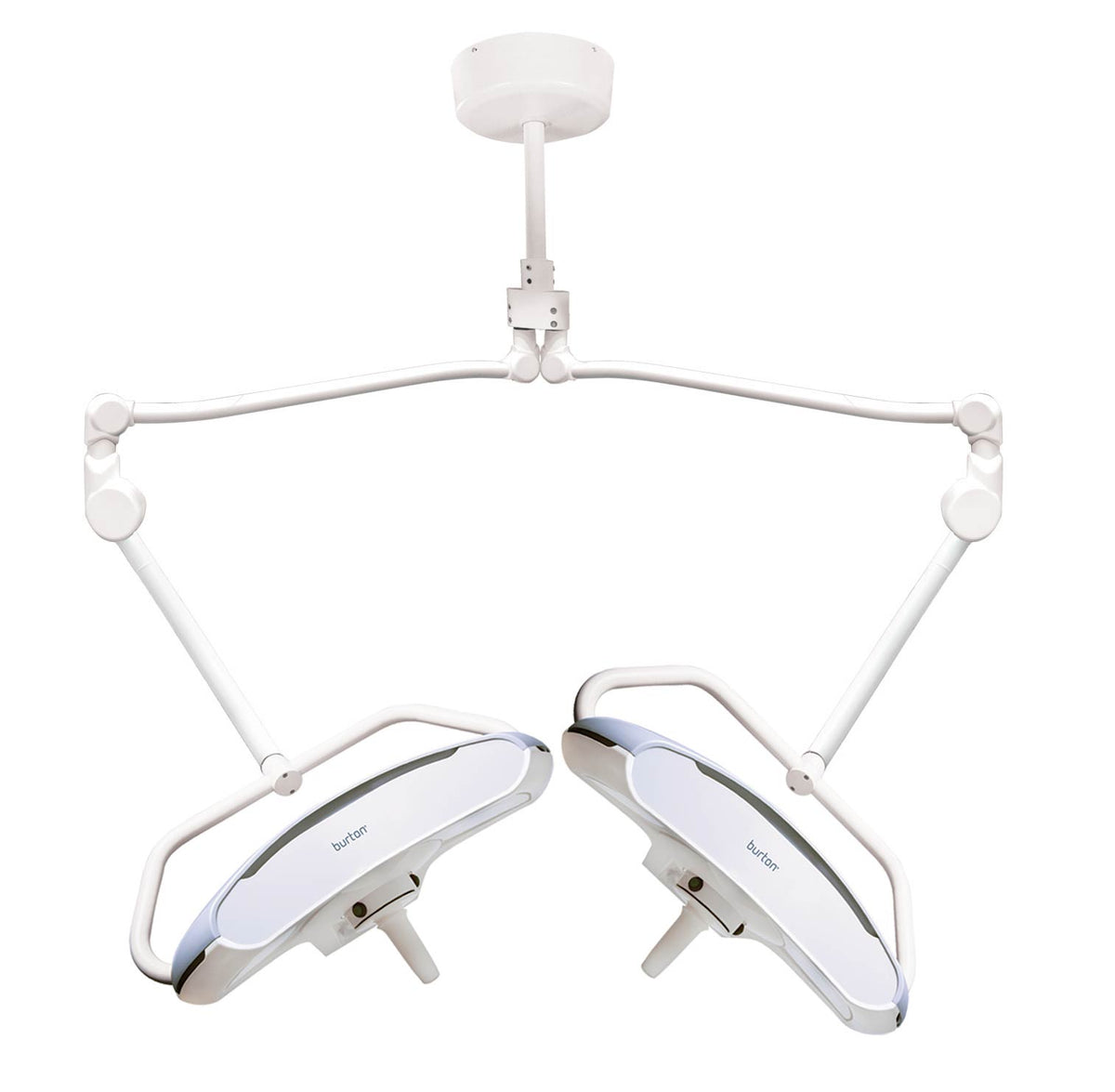

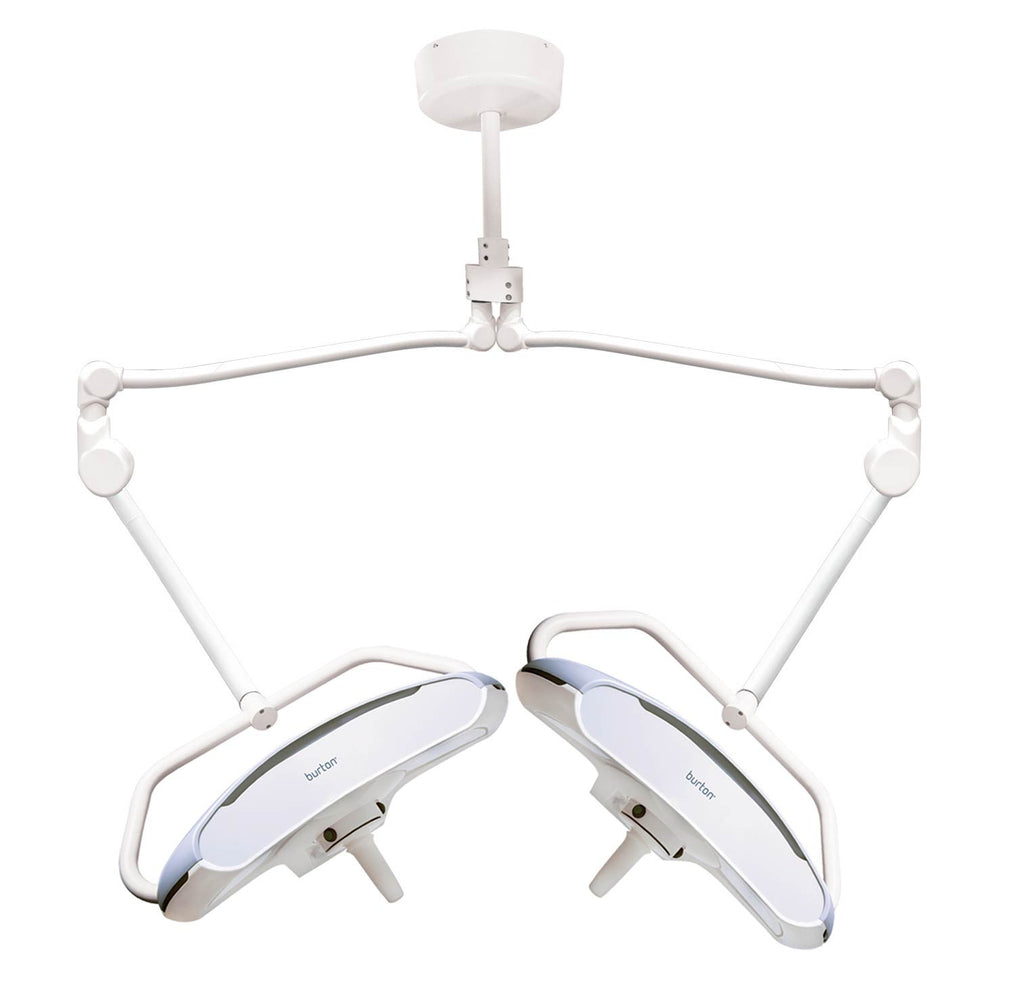

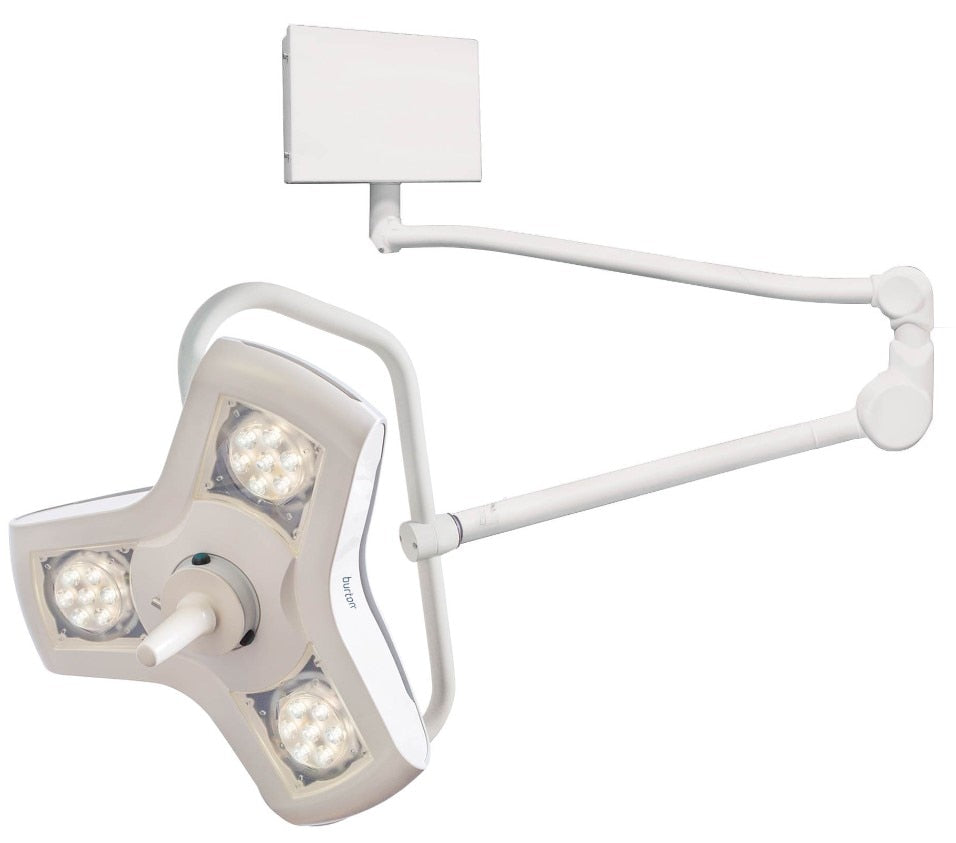

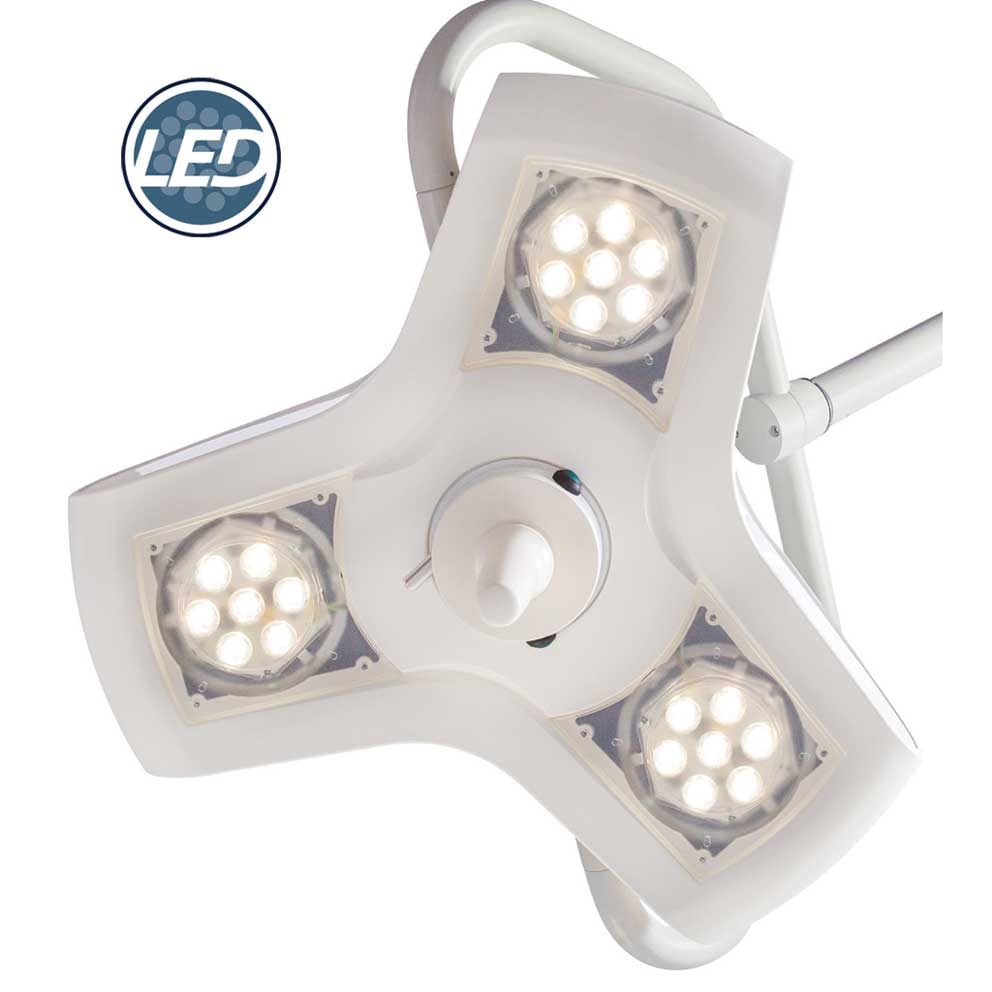

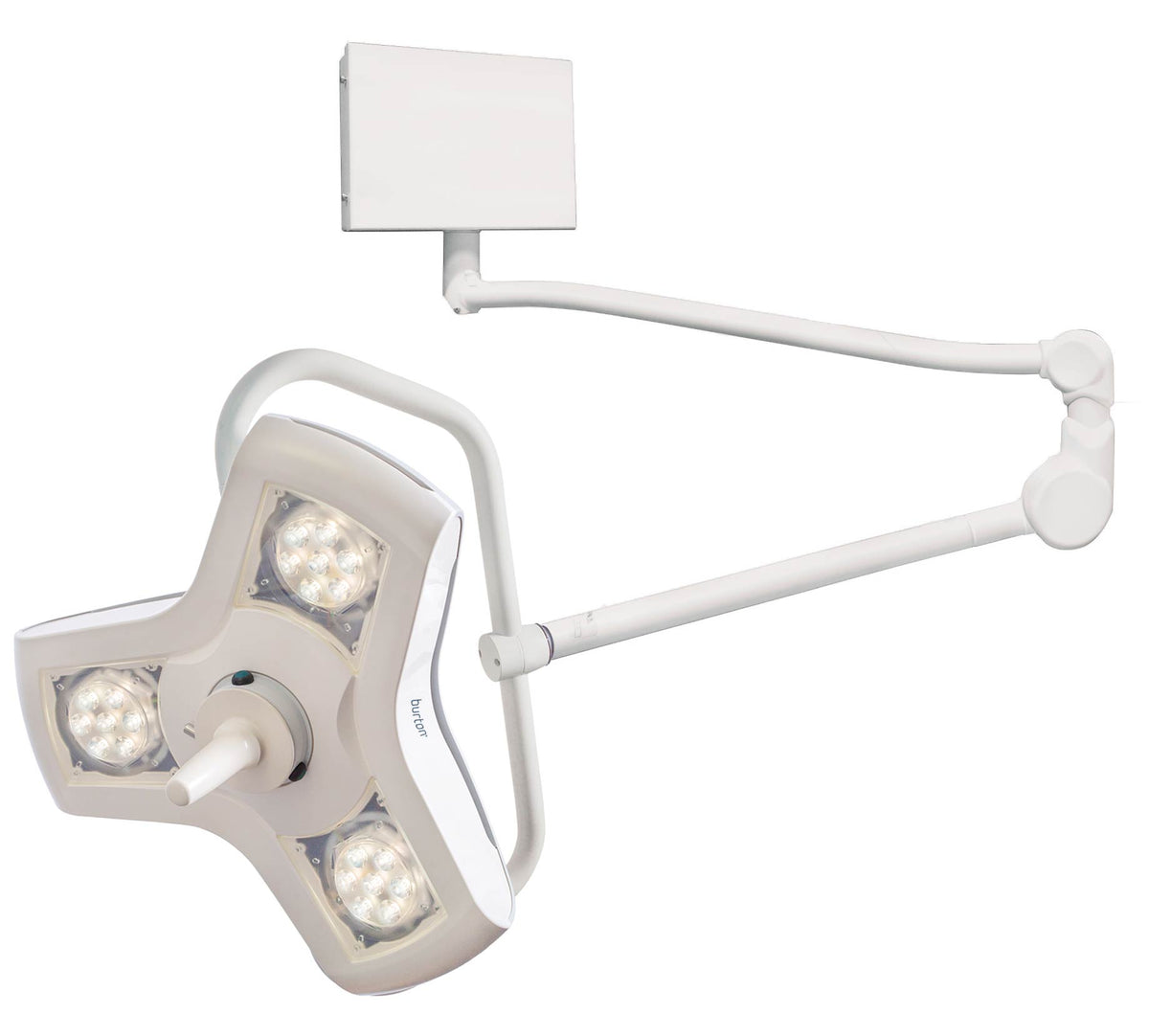

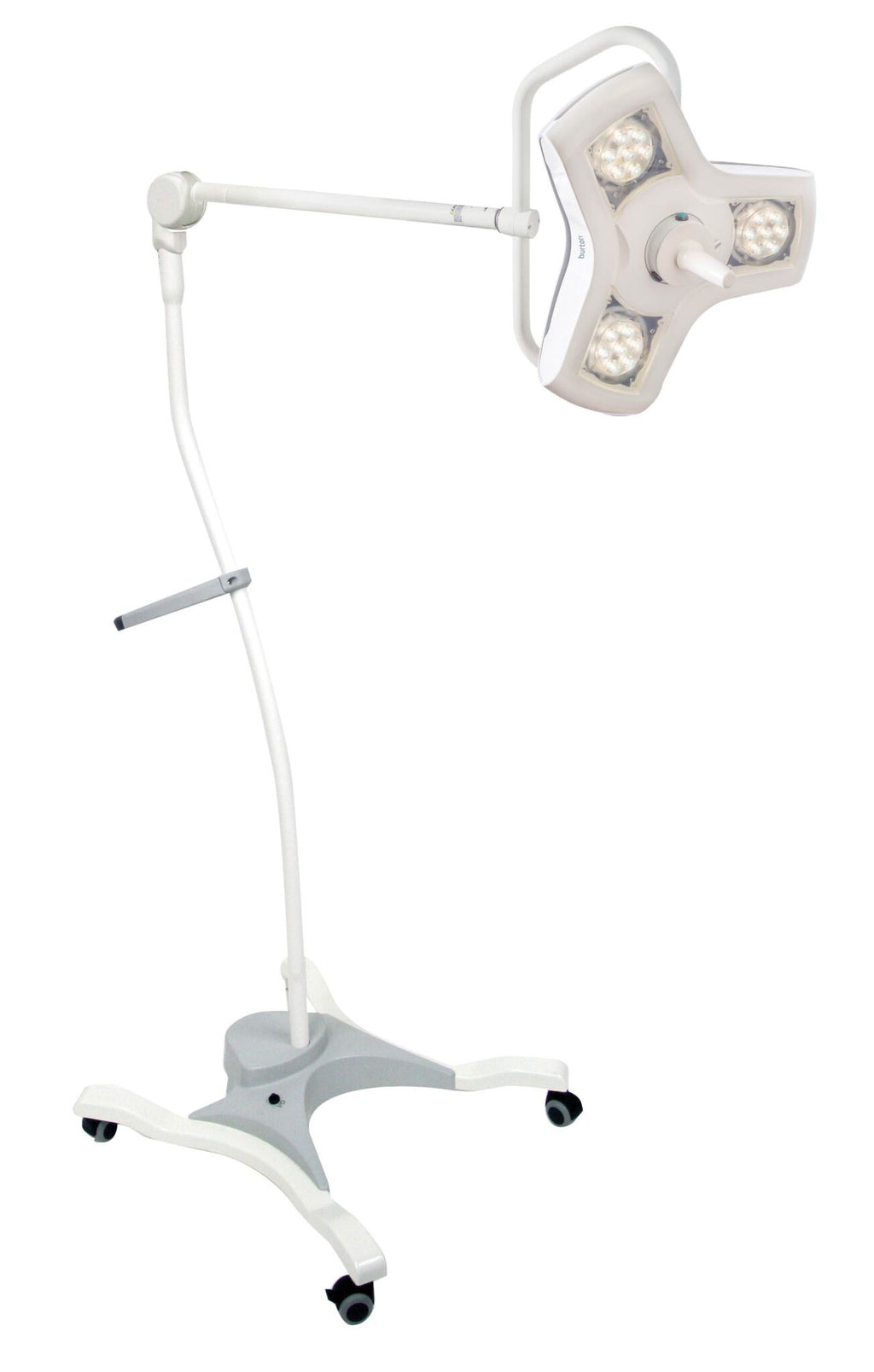

AIM HI LED is Burton's higher-output LED exam and procedure light, offered in two intensities: AIM HI 70 (70,000 lux) and AIM HI 100 (100,000 lux) at 1 meter. Three precisely positioned LED modules reduce shadows, and output is 3-step dimmable from push buttons on the handle base. It is available as a floor stand, wall, single ceiling or double ceiling light.

Features

  • AIM HI 70: 70,000 lux; AIM HI 100: 100,000 lux at 1 m
  • 4300 K color temperature, CRI >95

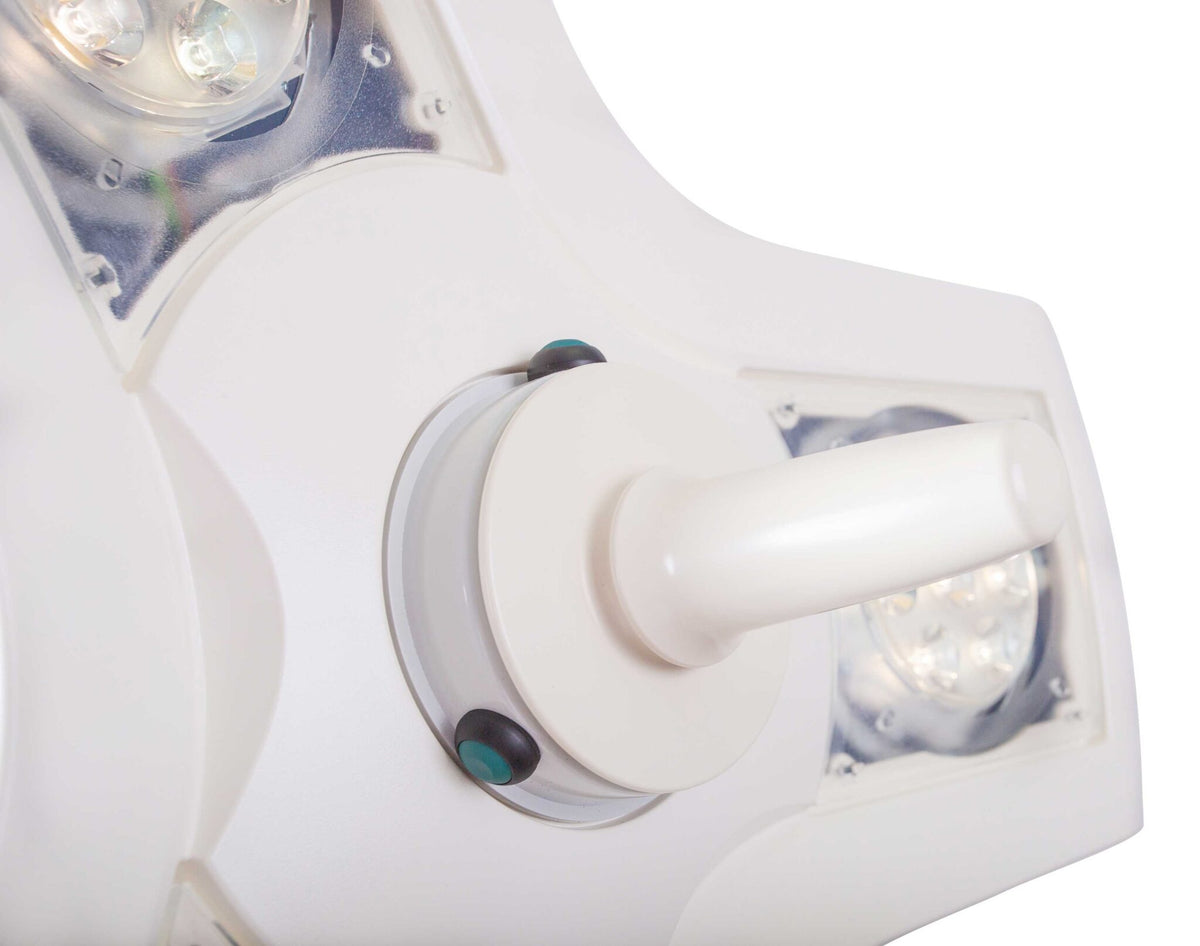

  • 3-step dimming (100% / 75% / 50%) with push-button controls
  • Focus adjusted by rotating the center handle
  • 3 LED modules, 50,000-hour rated LED life
  • Drift-free arm and mounting system, 63 in (160 cm) maximum reach
  • Assembled in USA; 5-year limited warranty

Models

Option Item #
AIM HI 70 / Floor stand ALED070FL00
AIM HI 70 / Single ceiling ALED070SC
AIM HI 70 / Double ceiling ALED070DC
AIM HI 70 / Wall ALED070W
AIM HI 100 / Floor stand ALED100FL00
AIM HI 100 / Single ceiling ALED100SC
AIM HI 100 / Double ceiling ALED100DC
AIM HI 100 / Wall ALED100W

Compare Burton LED exam lights

  AIM LED AIM HI LED 70 AIM HI LED 100 Outpatient LED
Light output 45,000 lux at 1 m 70,000 lux at 1 m 100,000 lux at 1 m 90,000 lux at 24 in (61 cm)
Color temperature / CRI 4,300 K / 92 4,300 K / >95 4,300 K / >95 3,700 K / 95
Light field 13-15 in, adjustable focus 10 in, adjustable focus 10 in, adjustable focus Contact us to confirm
Dimming Contact us to confirm 3 steps (100/75/50%) 3 steps (100/75/50%) Contact us to confirm
Arm reach 63 in 63 in 63 in 37.5 in
Mounting Floor, wall, single or double ceiling Floor, wall, single or double ceiling Floor, wall, single or double ceiling Floor, wall, single or double ceiling, Fastrac track
Starting price $3,546.48 $3,853.08 $4,612.00 $3,152.52

Light output for the Outpatient LED is measured at 24 in, the others at 1 m (39.4 in), so the figures are not directly comparable. Warranty on all four: 5-year limited.

Specifications

Illuminance AIM HI 70: 70,000 lux (6,503 fc); AIM HI 100: 100,000 lux (9,290 fc) at 1 m
Color temperature 4300 K
CRI >95
Light field (beam) diameter 10 in (approx. 25 cm)
Depth of illumination 47 in (119 cm)
Light source / LED life 3 LED modules; 50,000 h rated
Power AIM HI 70: 37 W; AIM HI 100: 45 W; universal 100-240 V, 50-60 Hz
Reach 63 in (160 cm) max
Mounting Floor stand, wall, single ceiling, double ceiling
Down tubes Field-trimmable; 1017084 42 in (10 ft ceiling), 5000085 52 in (>10 ft ceiling)
Certifications IEC 60601-1 / 60601-1-2 / 60601-2-41 / 60601-1-6
Warranty 5-year limited
Accessories 5000884 ceiling structure plate; 1017040 handle; 0008100PK sterile covers; 6000444 dimmer switch assembly (replacement part)
Manufacturer Burton Medical

Included and sold separately

  Details
Included Light head(s), spring arm(s) with mounting hardware and ceiling or wall mount with cover (Burton installation manual). Floor stands have a power cord with a standard US plug (NEMA 5-15P).
Ceiling height Standard ceiling models fit 8 to about 10 ft ceilings. For 10 to 12 ft ceilings use the 42 in down tube (1017084); for higher ceilings, the 52 in down tube (5000085).
Sold separately Ceiling structural plate (5000884) if your ceiling needs one; sterile handle covers (0008100PK), spare handle (1017040); wall switch
Installation Not included. Ceiling and wall models are hard-wired: a licensed electrical contractor makes the connection, and a wall switch (not included) must be supplied and installed by the facility. The ceiling must provide structural support for the light, designed by the building's engineer or contractor.

Not sure which ceiling version you need? Send us your floor-to-ceiling height and we will confirm the model, down tube and parts before you order.

Resources

Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.

Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
