Description

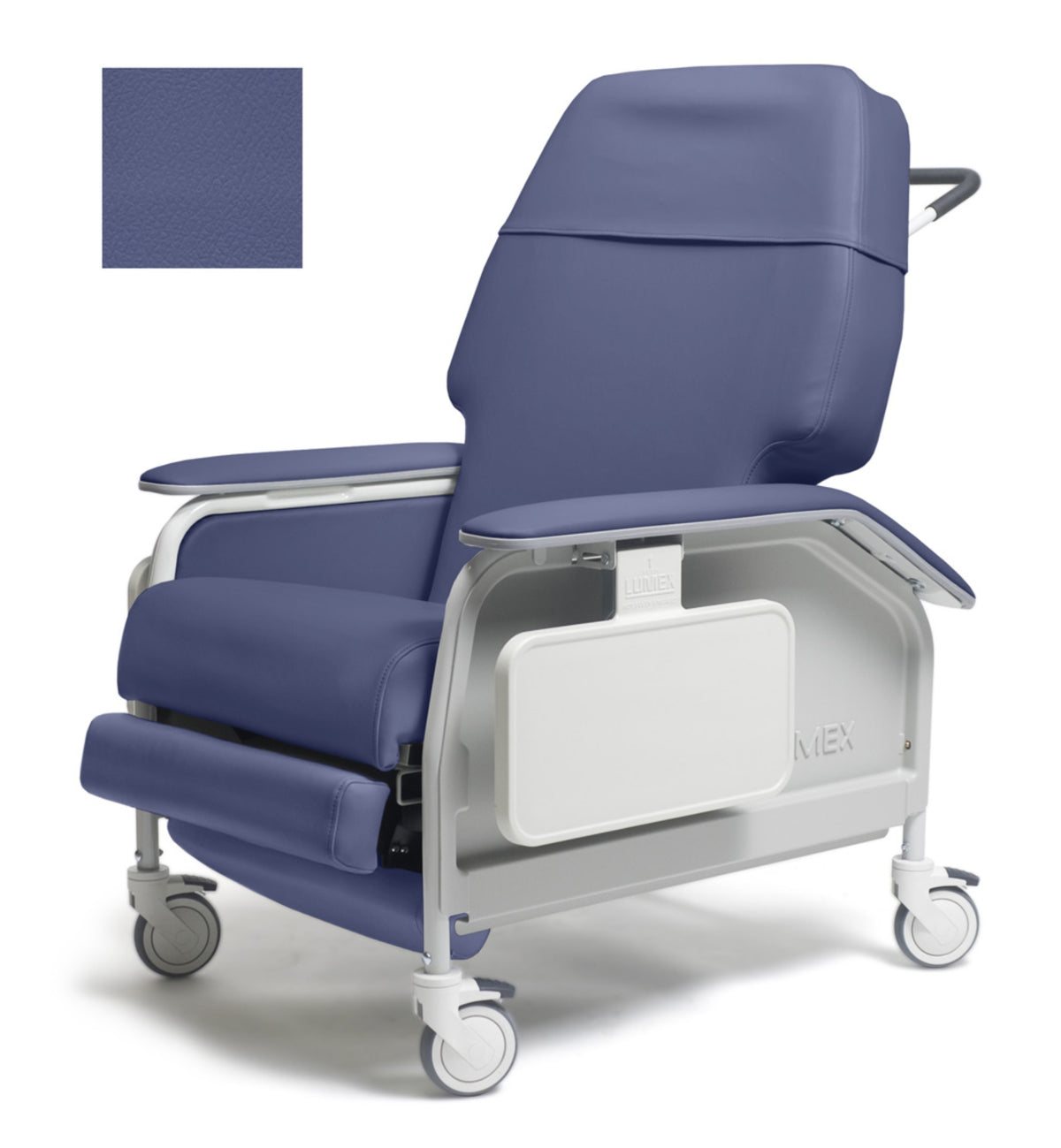

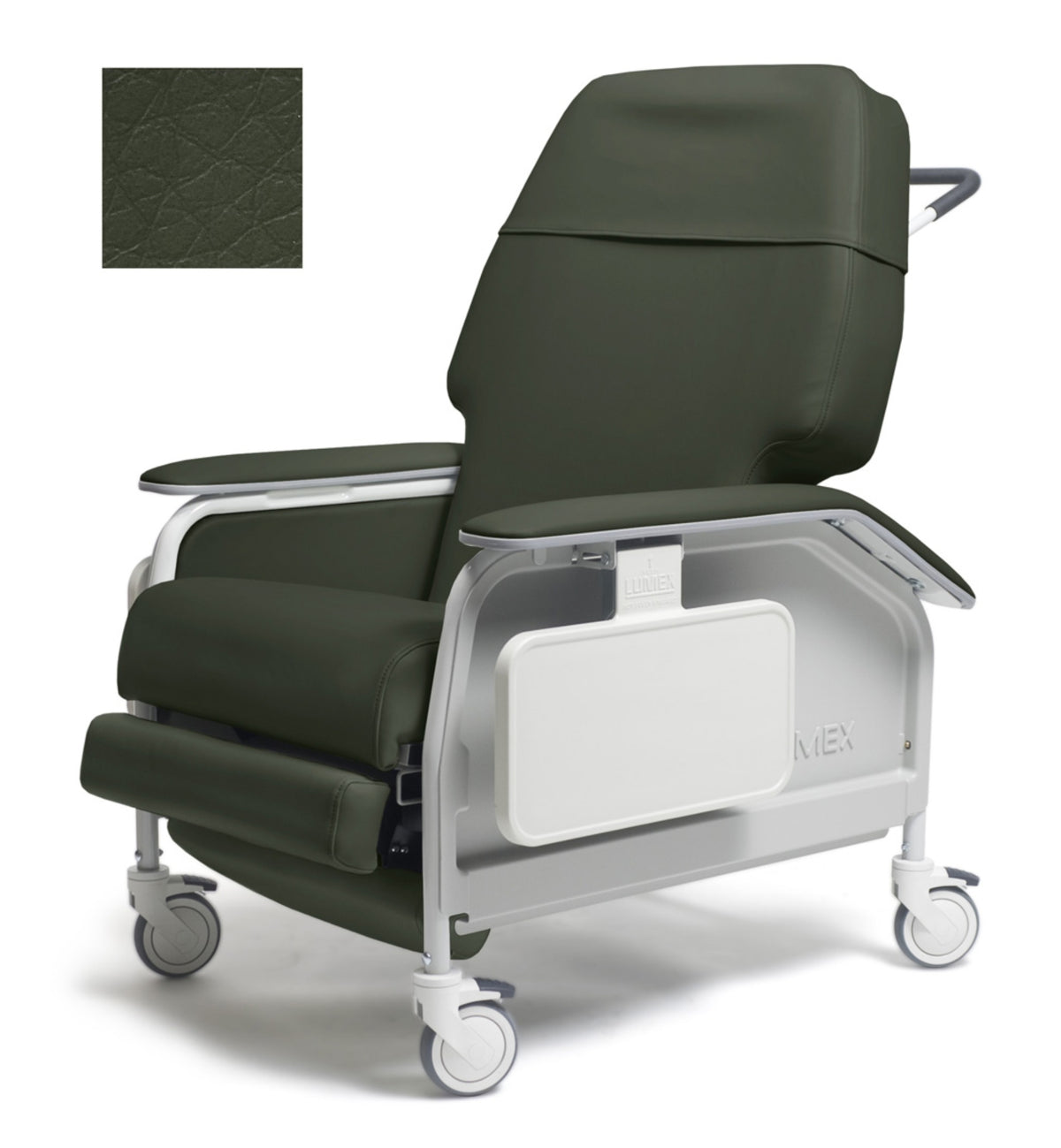

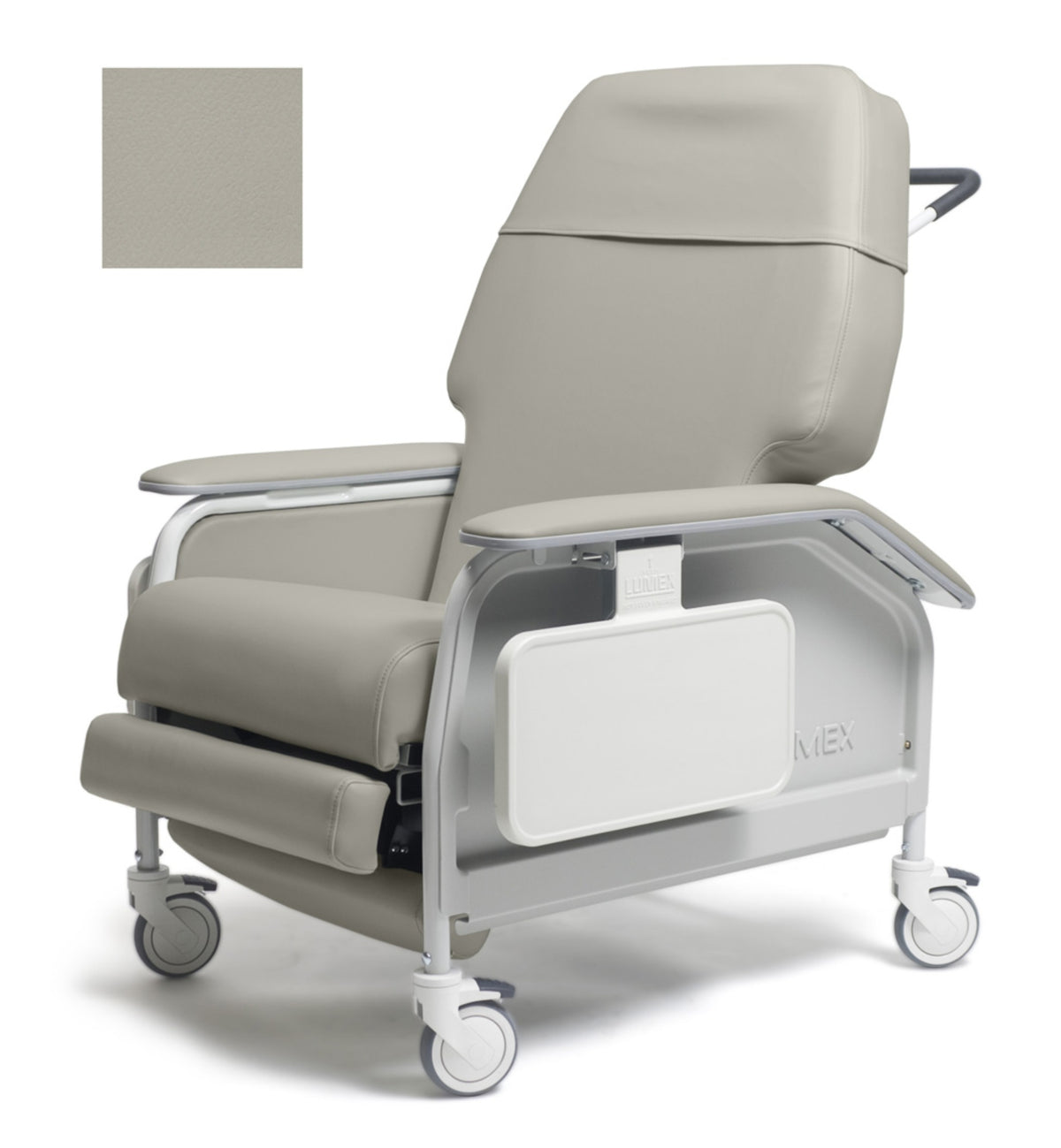

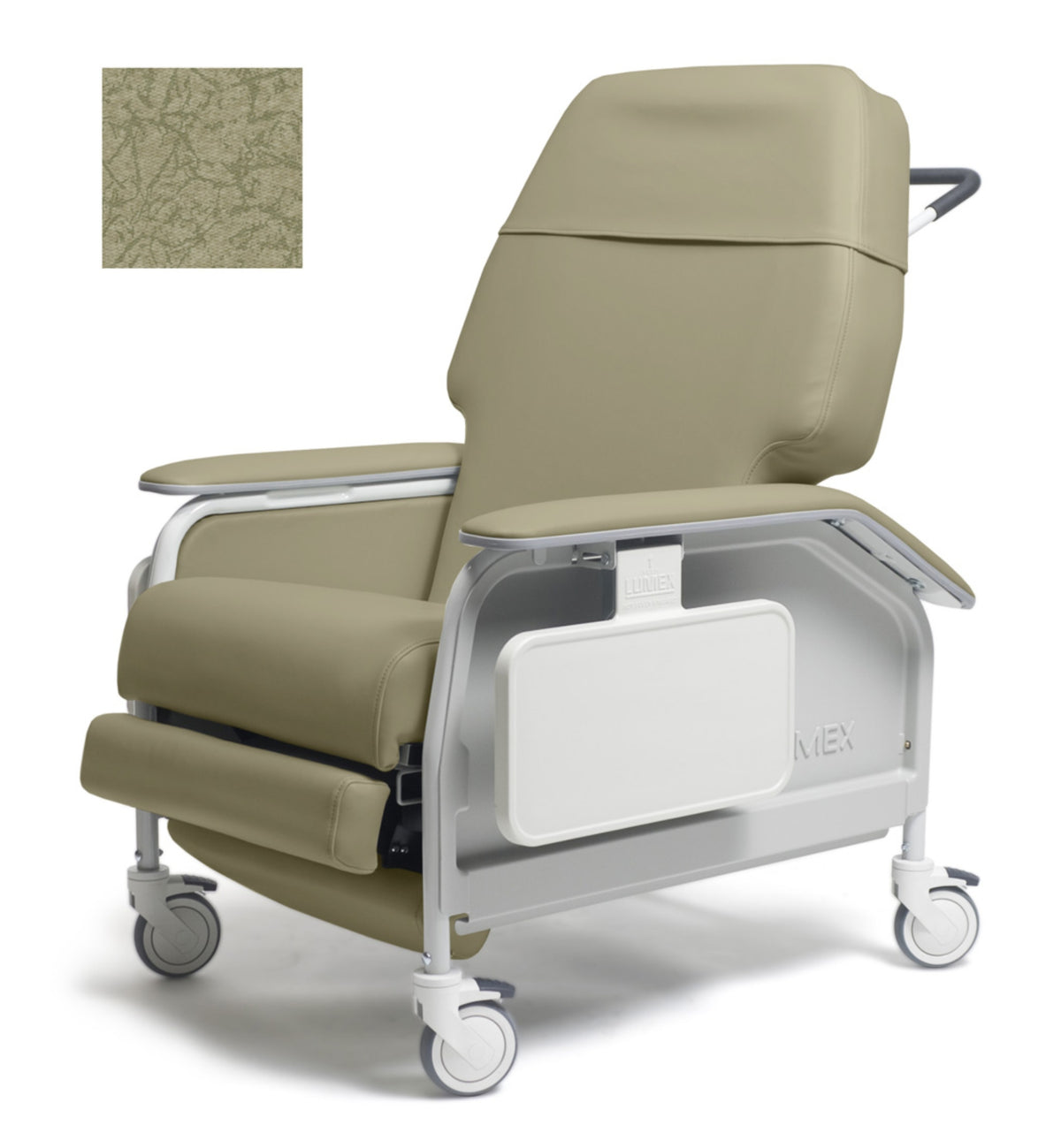

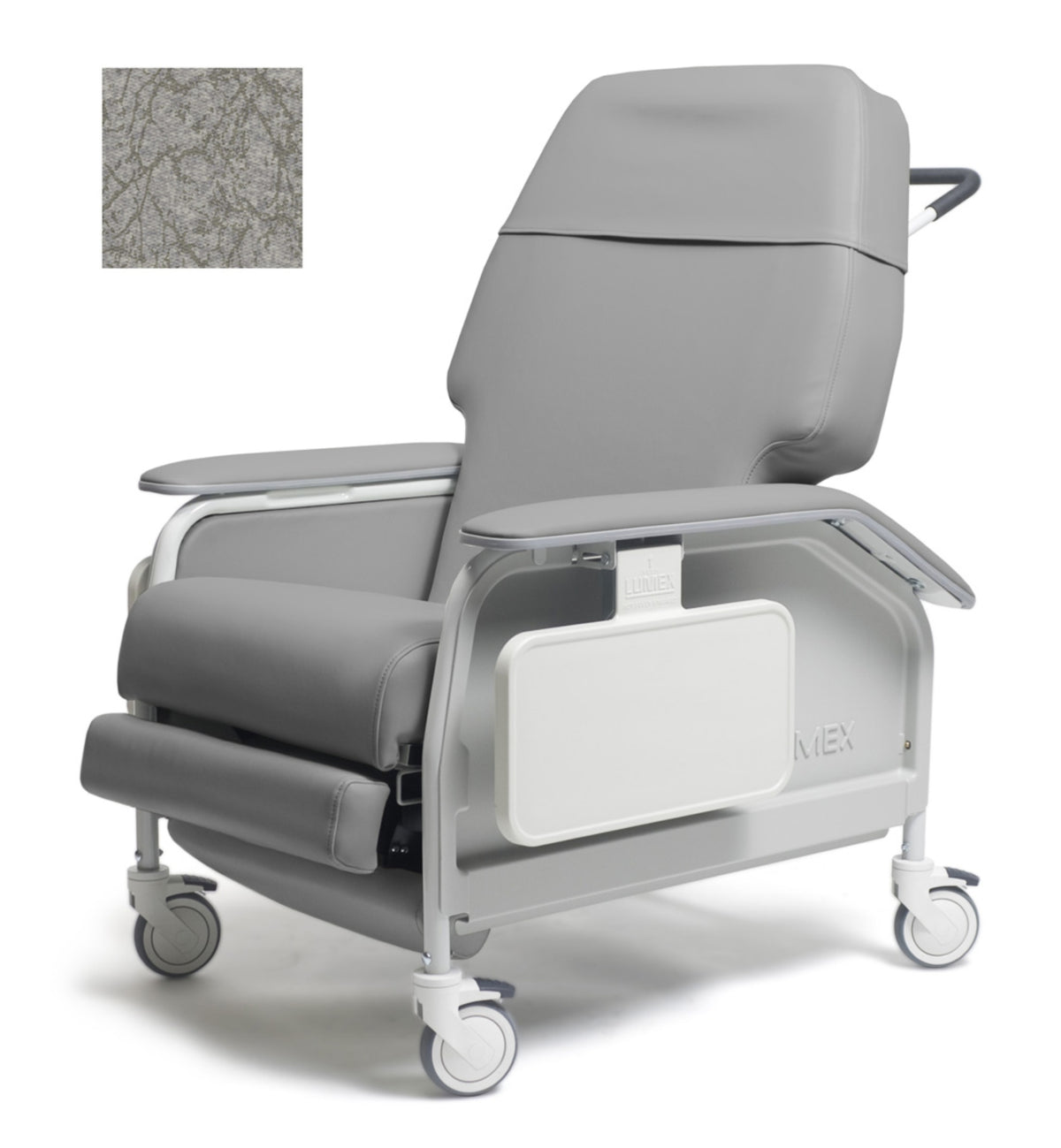

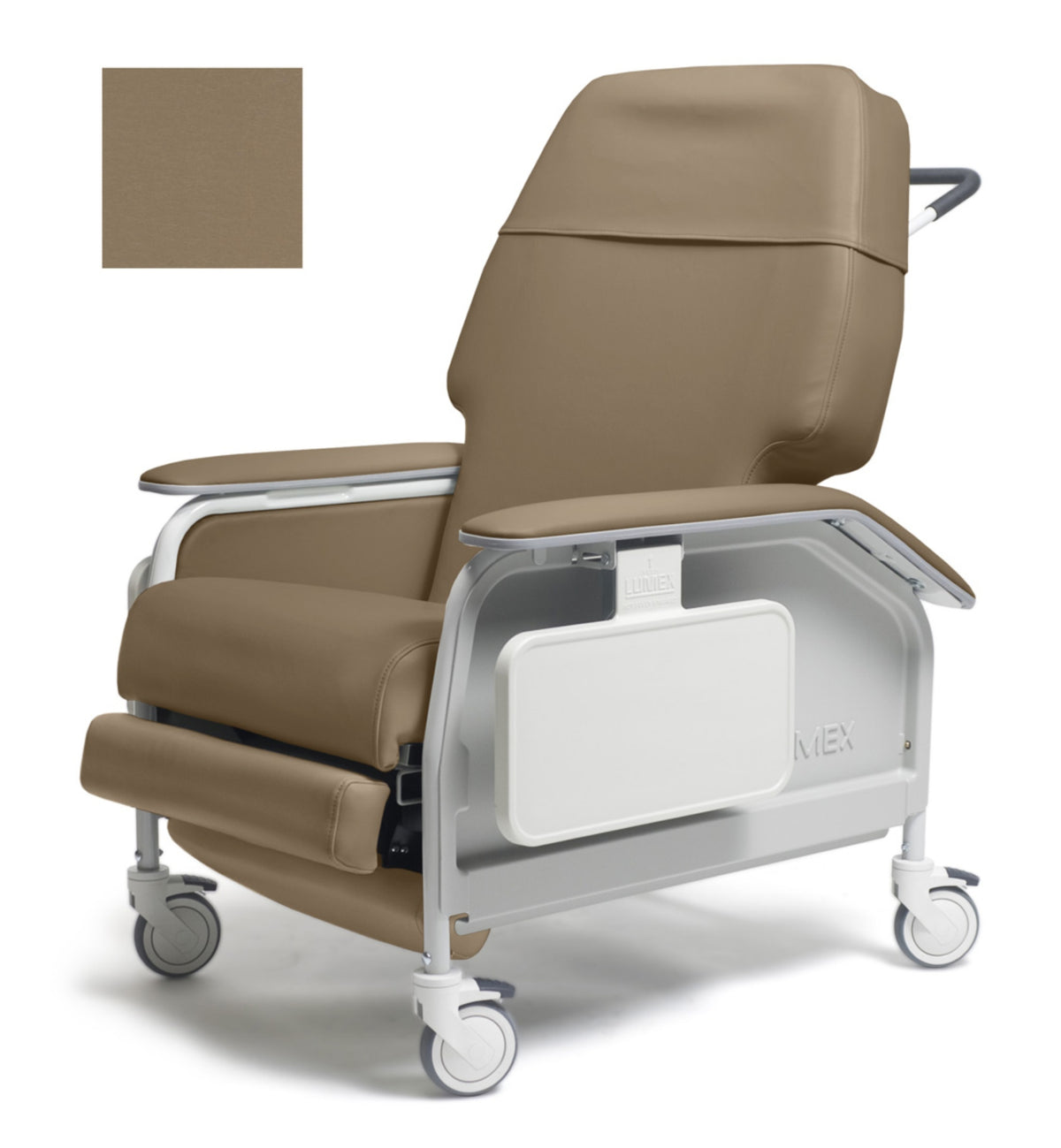

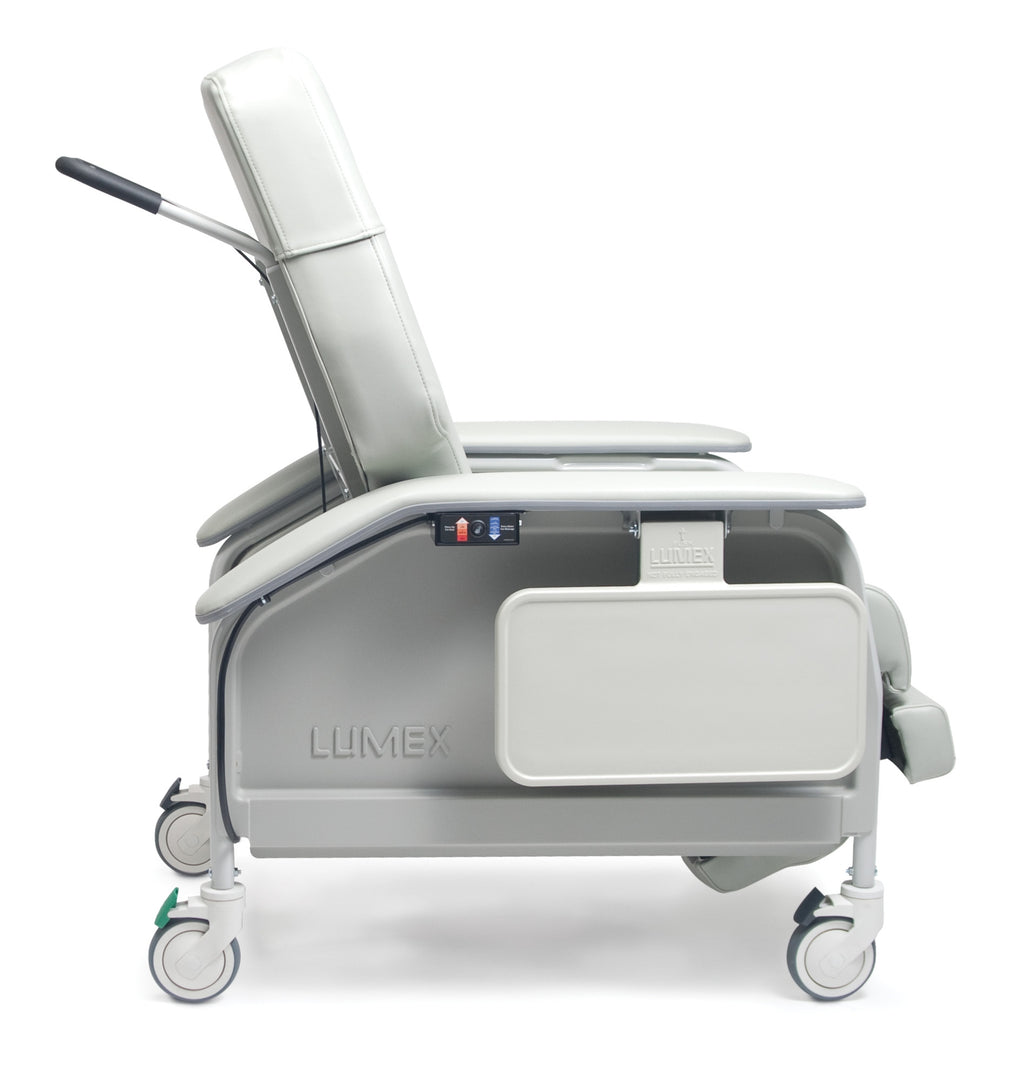

The Lumex 587W Extra-Wide Clinical Care Recliner by Graham-Field is built for clinical, acute care and bariatric settings. It has a 24" wide seat, a 450 lb capacity and dual gas cylinders for smooth movement into Trendelenburg.
Lead time: Ready for shipment within 6 weeks, per Graham-Field.
Positioning

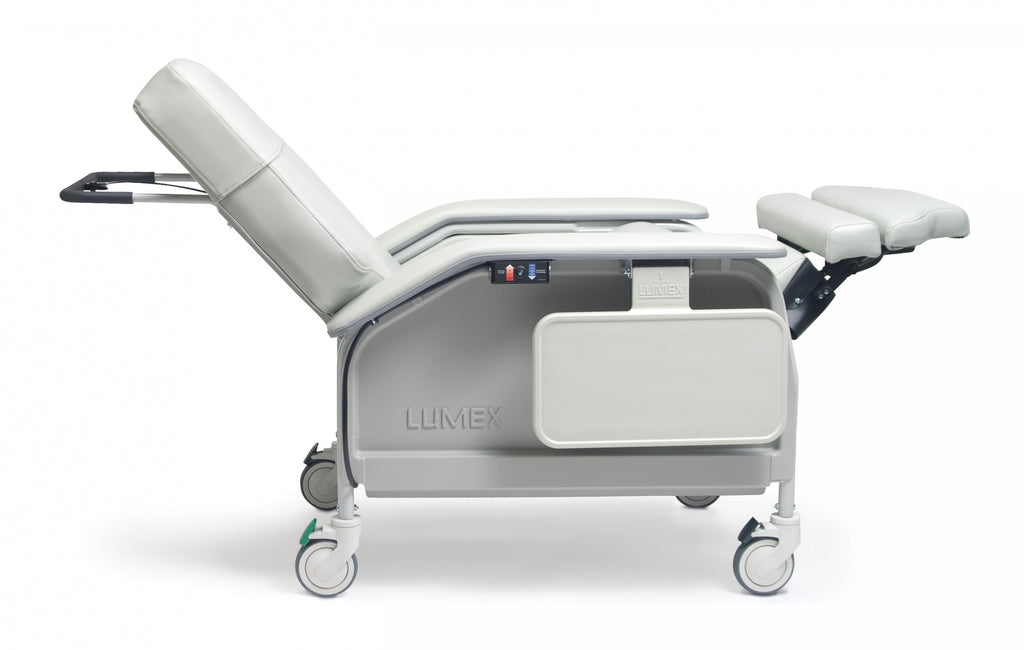

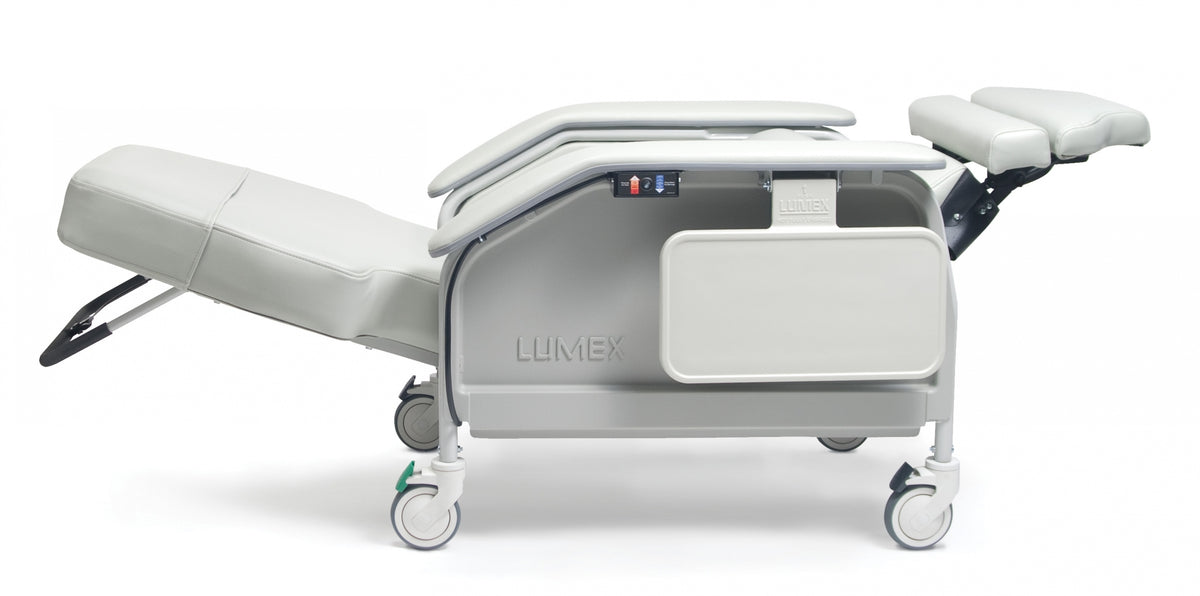

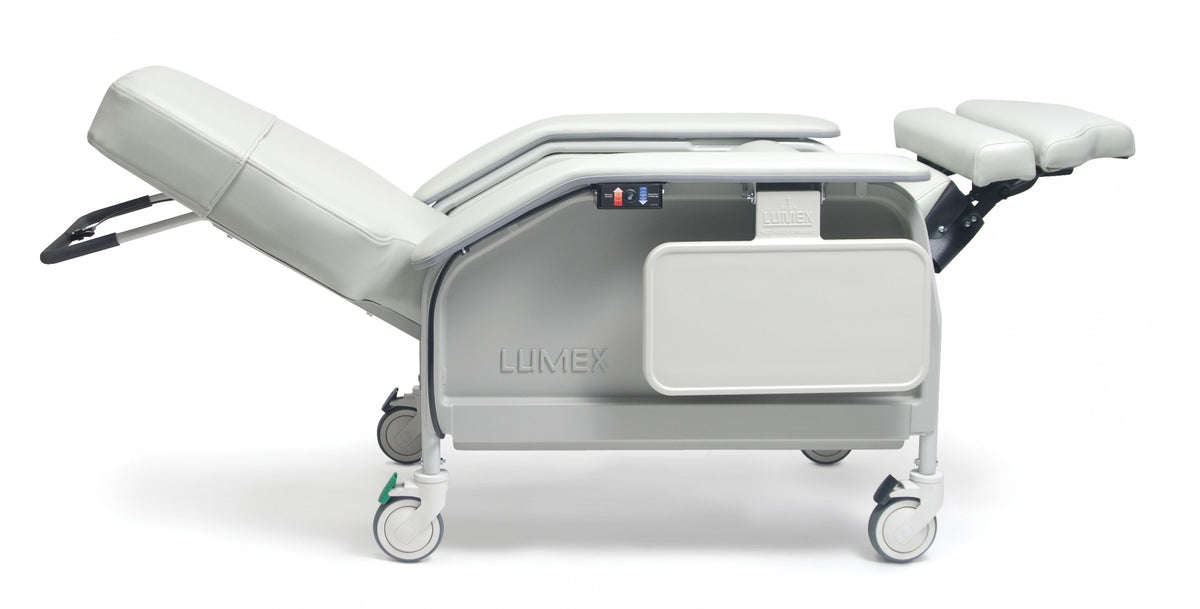

- Four positions: upright, first recline, second recline and caregiver-activated Trendelenburg.
- Dual gas cylinders for smooth movement.
- 450 lb weight capacity, evenly distributed.
Patient and Caregiver Comfort
- Extra-wide 24" seat and back.
- Higher seat and back height for caregiver comfort.
- Fold-down side tables, removable side panels and a rear push handle.
- 5" Tente swivel casters: 3 total-locking, 1 directional.
- Upholstery meets California TB 117.
Configurations
- FR587W + fabric code: Wallsaver armrest caps, no heat & massage.
- FR587W + fabric code + PA: Fully upholstered (padded) arms, no heat & massage.
- FR587WH + fabric code: Heat & massage unit, Wallsaver armrest caps.
- FR587WH + fabric code + PA: Heat & massage unit, fully upholstered (padded) arms.
Heat & Massage = Yes (an "H" after the model number) adds a 12V low-voltage heat and massage unit: 3 heat settings, 4 massage settings (gentle or firm lower back; gentle or firm upper and lower back), automatic shut-off after 1 hour of heat or 15 minutes of massage, and a caregiver-controlled selector.
Armrests: "Standard armrests" are Graham-Field's Wallsaver armrest caps. "Padded armrests" are fully upholstered arms (a "PA" suffix on the SKU).

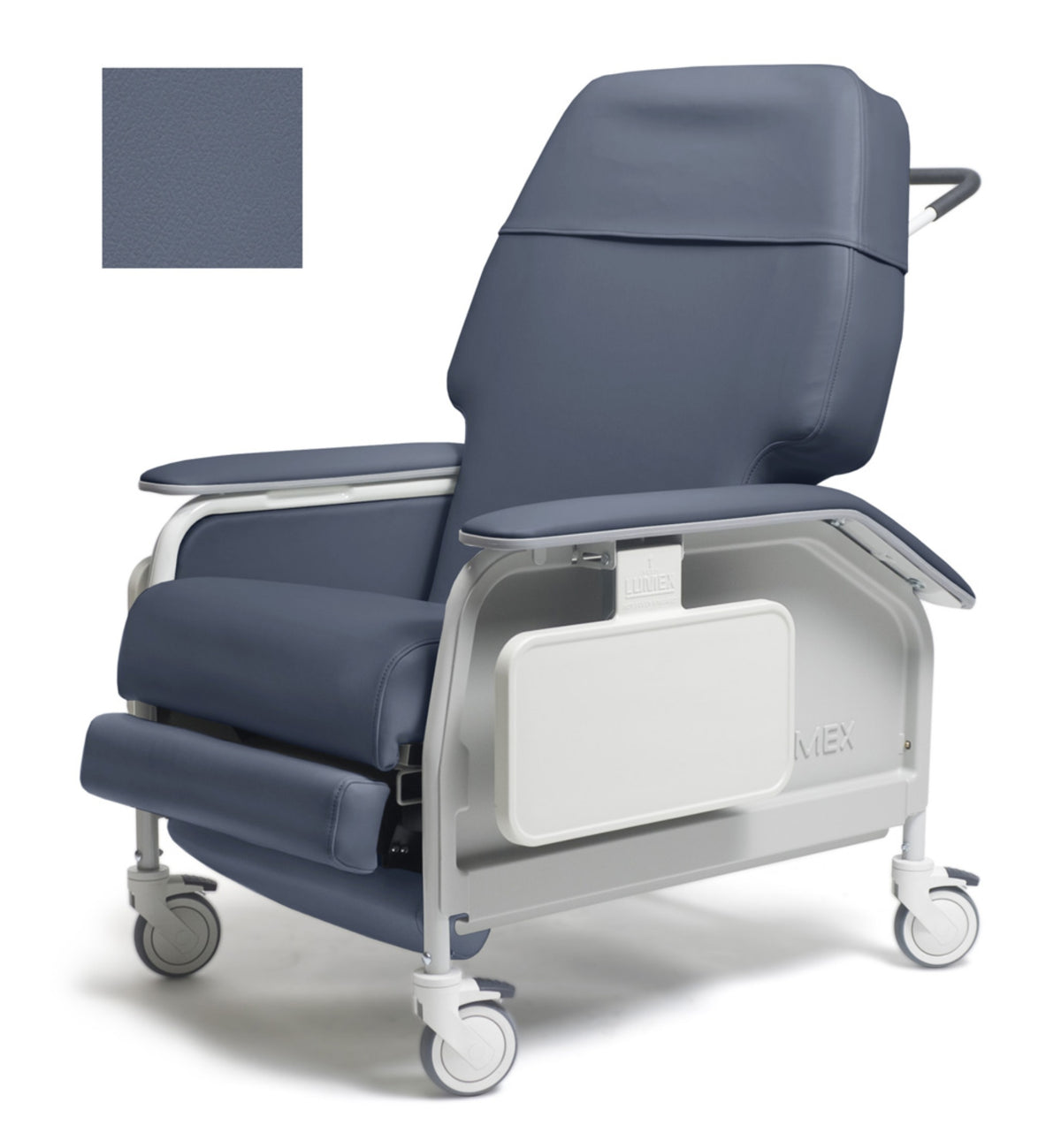

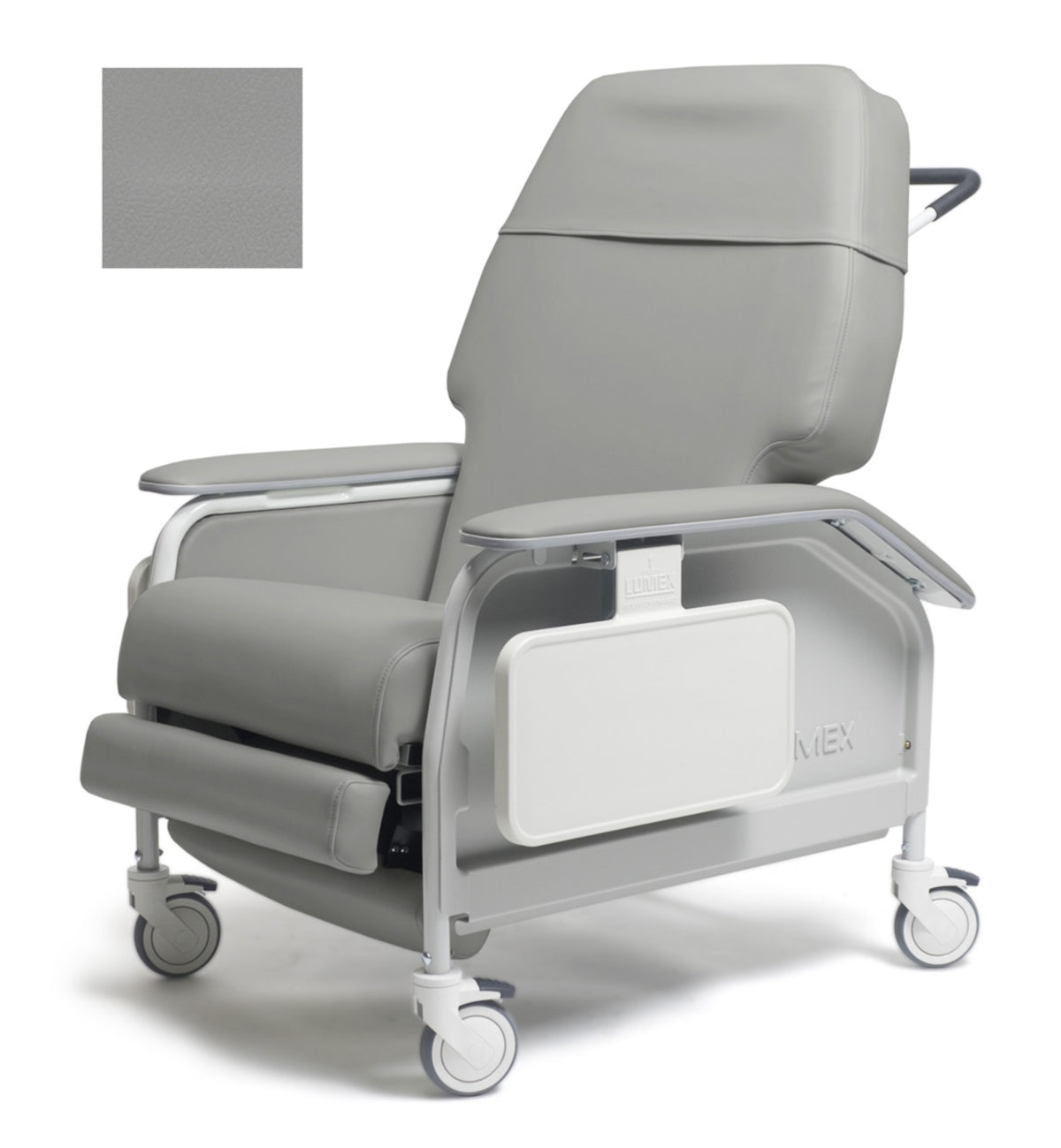

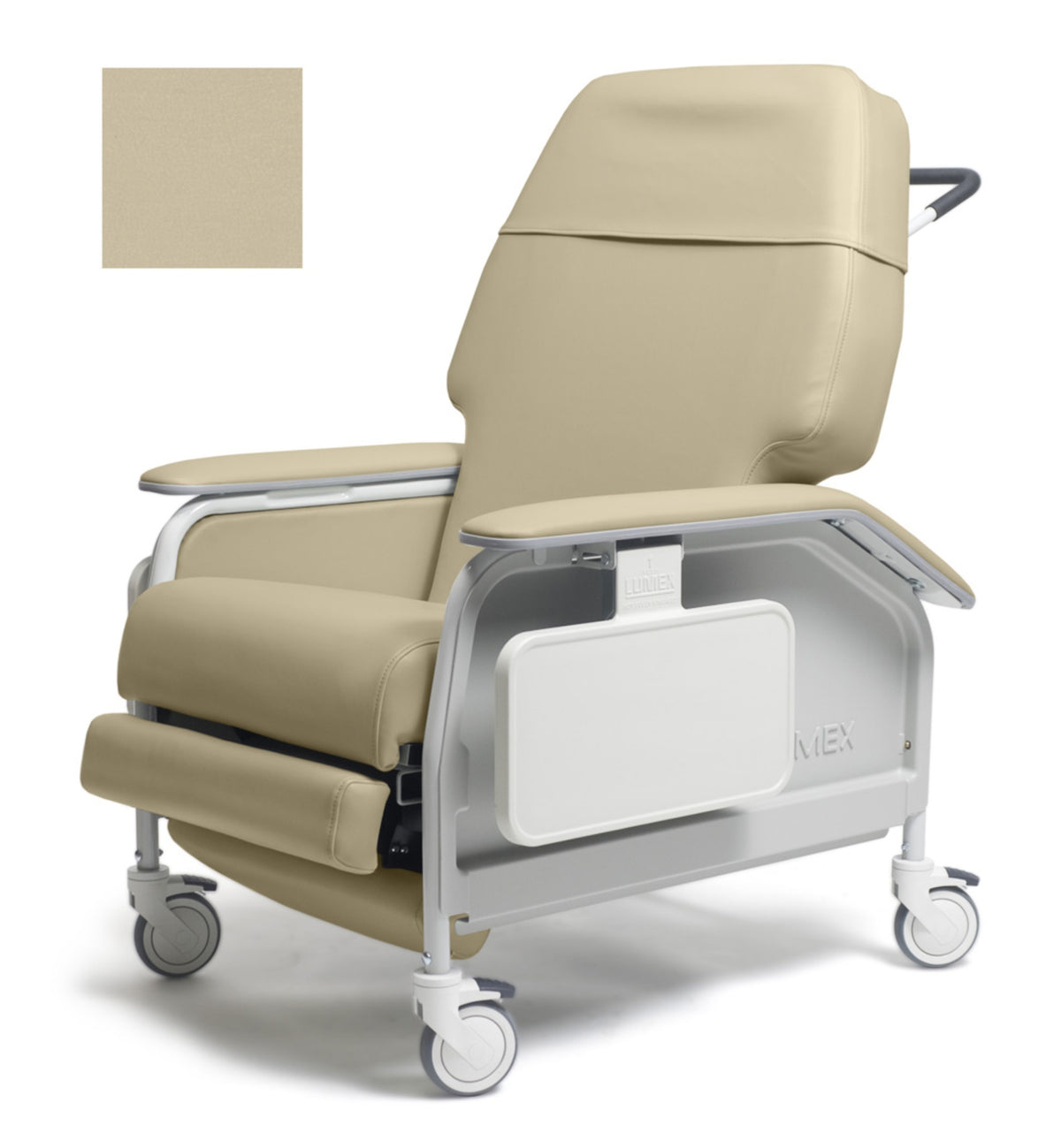

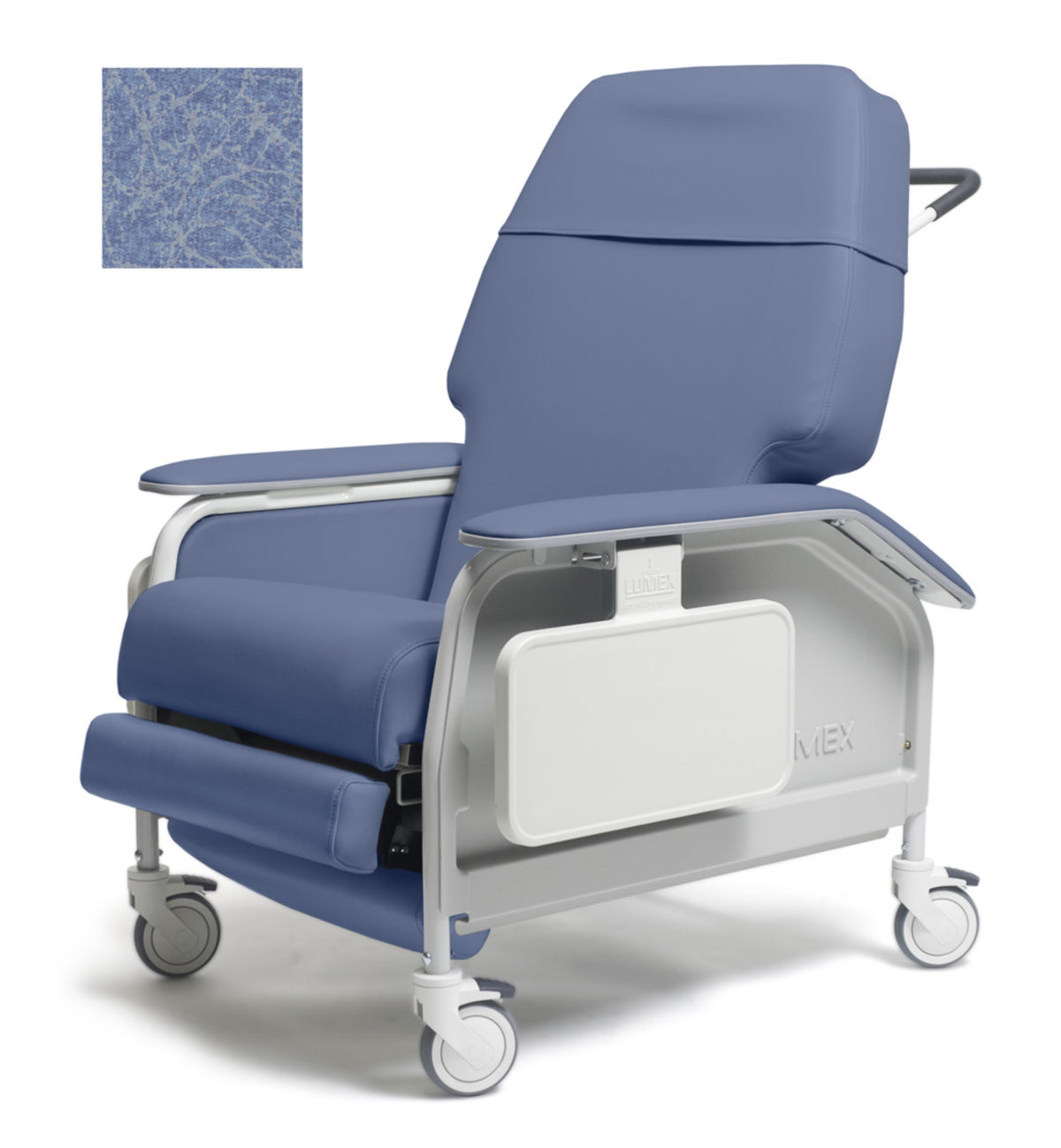

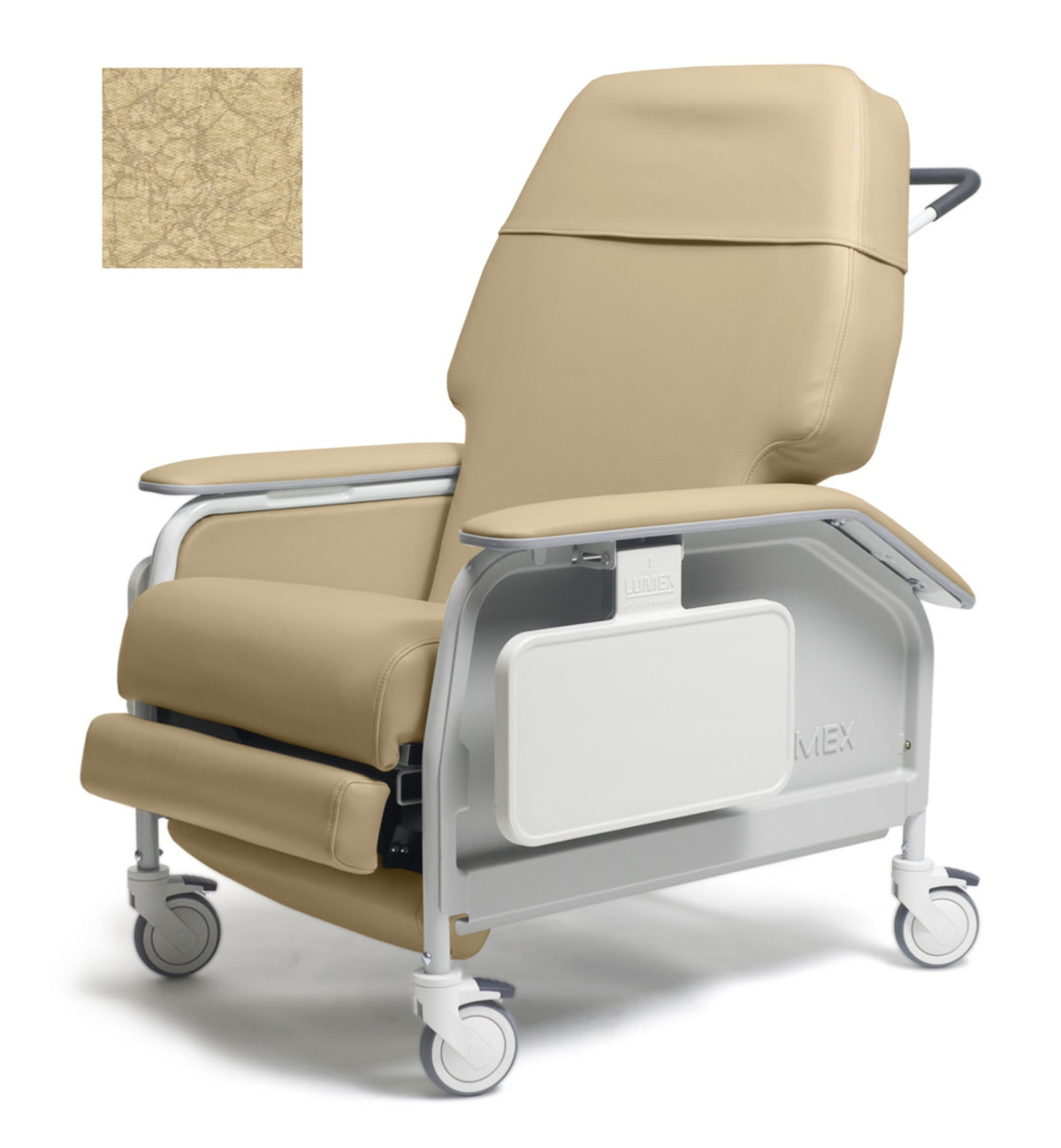

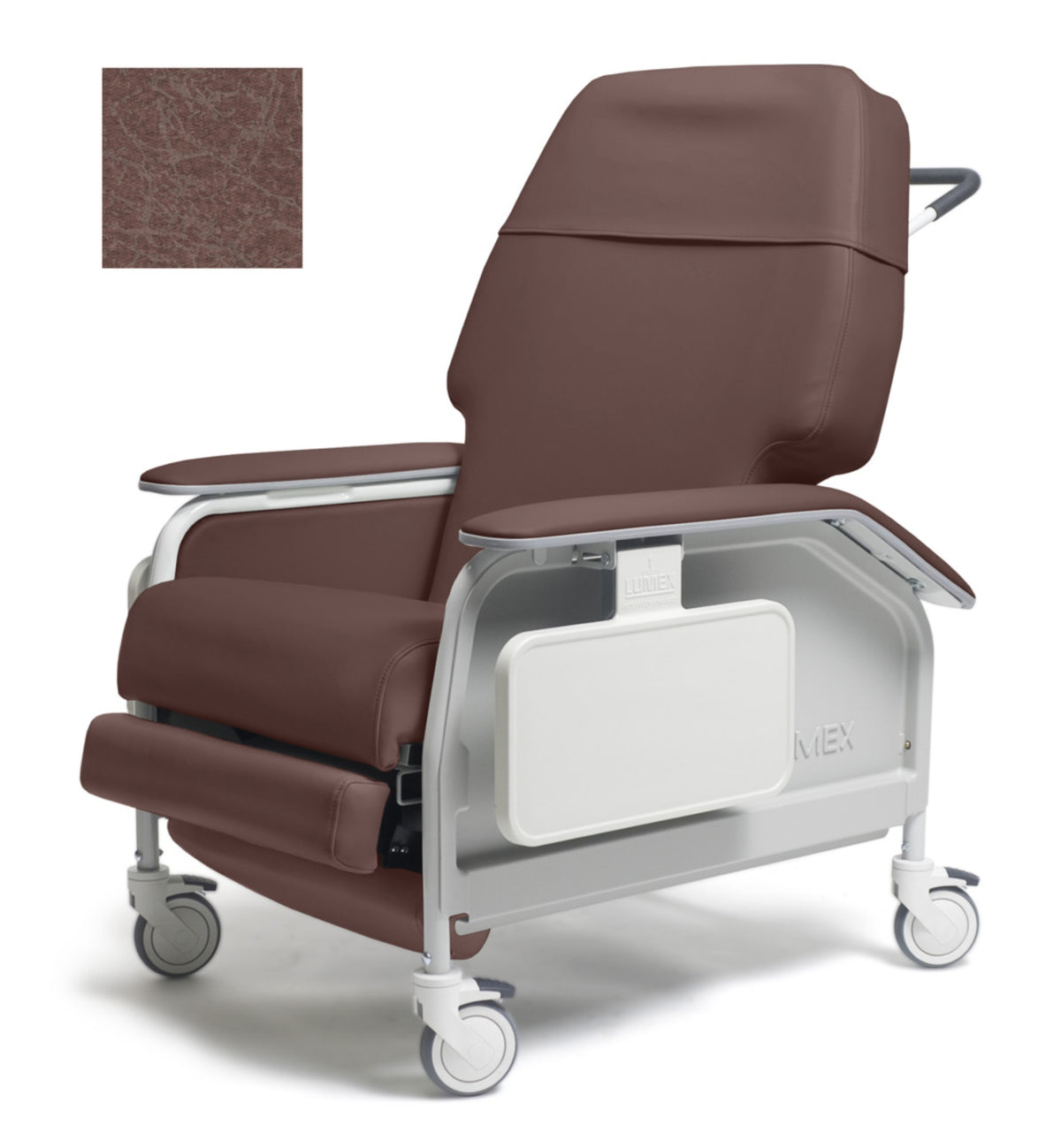

Fabric: The fabrics offered as options are the standard Lumex fabrics (Guardian, Savoy, Patriot Plus, Dolce and Renaissance collections). The number after the model code in the SKU is the fabric code (e.g. 409 = Warm Taupe, 427 = Blue Ridge). Additional Lumex fabrics and customer's own material (COM) are available by special order; see the swatches below.
Specifications
| Weight capacity | 450 lb (204.1 kg), evenly distributed |
| Overall dimensions | 33" W (53.5" with side tables up) x 45.5" D x 50" H; 78" D in Trendelenburg |
| Seat | 24" W x 20.5" D; 22" seat height |
| Back height above seat | 33.5" |
| Width between arms | 23.25" |
| Arm height from floor | 28" |
| Casters | 5" Tente swivel, 3 total-locking + 1 directional |
| Shipping weight | 138.5 lb |
| Warranty | Steel frame 10 yr; mechanical components 3 yr; heat & massage unit 2 yr; casters 1 yr; upholstered components 1 yr; replacement parts 90 days; labor not included |
Colors
Standard Lumex Fabrics (27): choose above
Additional Fabrics: special order
Additional fabrics and COM: The additional fabrics shown, and customer's own material (COM), can be ordered on request. Add the chair to your quote and note the fabric name and code, and we'll confirm availability, pricing and lead time with Graham-Field.
On-screen colors can differ from the actual material, and suppliers may change colors. Ask us for a physical sample to confirm your selection before ordering. Lumex healthcare seating swatch card (PDF)
Accessories (sold separately)
- SAFT10 Swing-Away Table: fits the 566G, 566DG, 577RG, 587W and 587WD. Swivels 360°, swings away for entry and exit, and folds to the side.
- 5782RG Universal IV Pole Holder: fits the 577RG, 566G/566DG, 587W/587WD and 565 Preferred Care recliners. Requires the 2101A IV pole (sold separately).
- 5699G 4" Extension Legs (1 pair): raise the chair 4". Fit round-tube-frame models only (566G, 577RG, 587W), not drop-arm models.
- Universal Head Pillow (FR5659 + fabric code + US): color-matched, hook-and-loop head pillow that fits all Lumex recliners.
Resources
- Graham-Field product sheet (PDF)
- Assembly and operating instructions (PDF)
- Replacement parts list (PDF)
- Lumex healthcare seating brochure (PDF)
- Lumex fabric swatch card (PDF)
- Swing-away table product sheet (PDF)
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
