Description

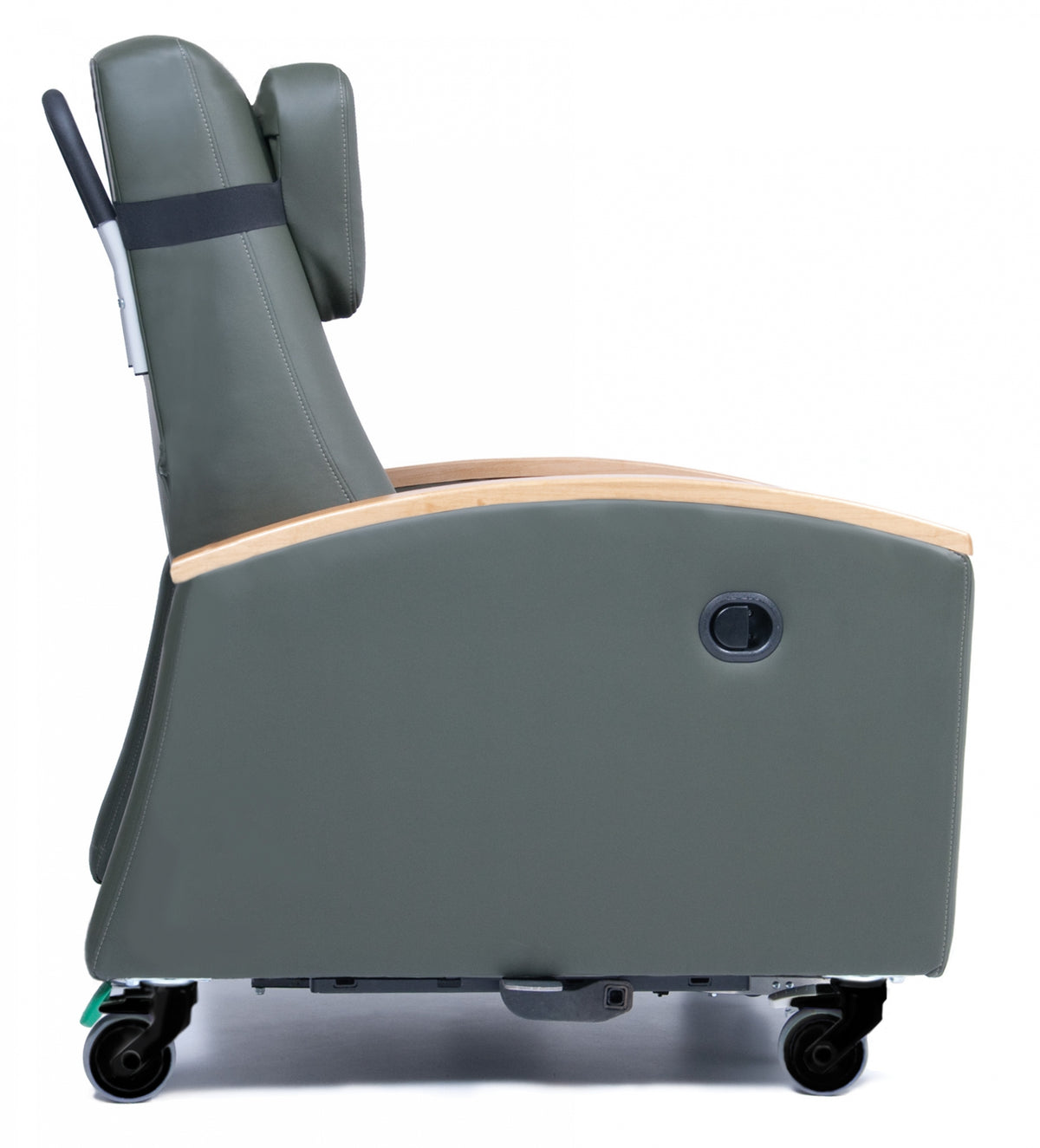

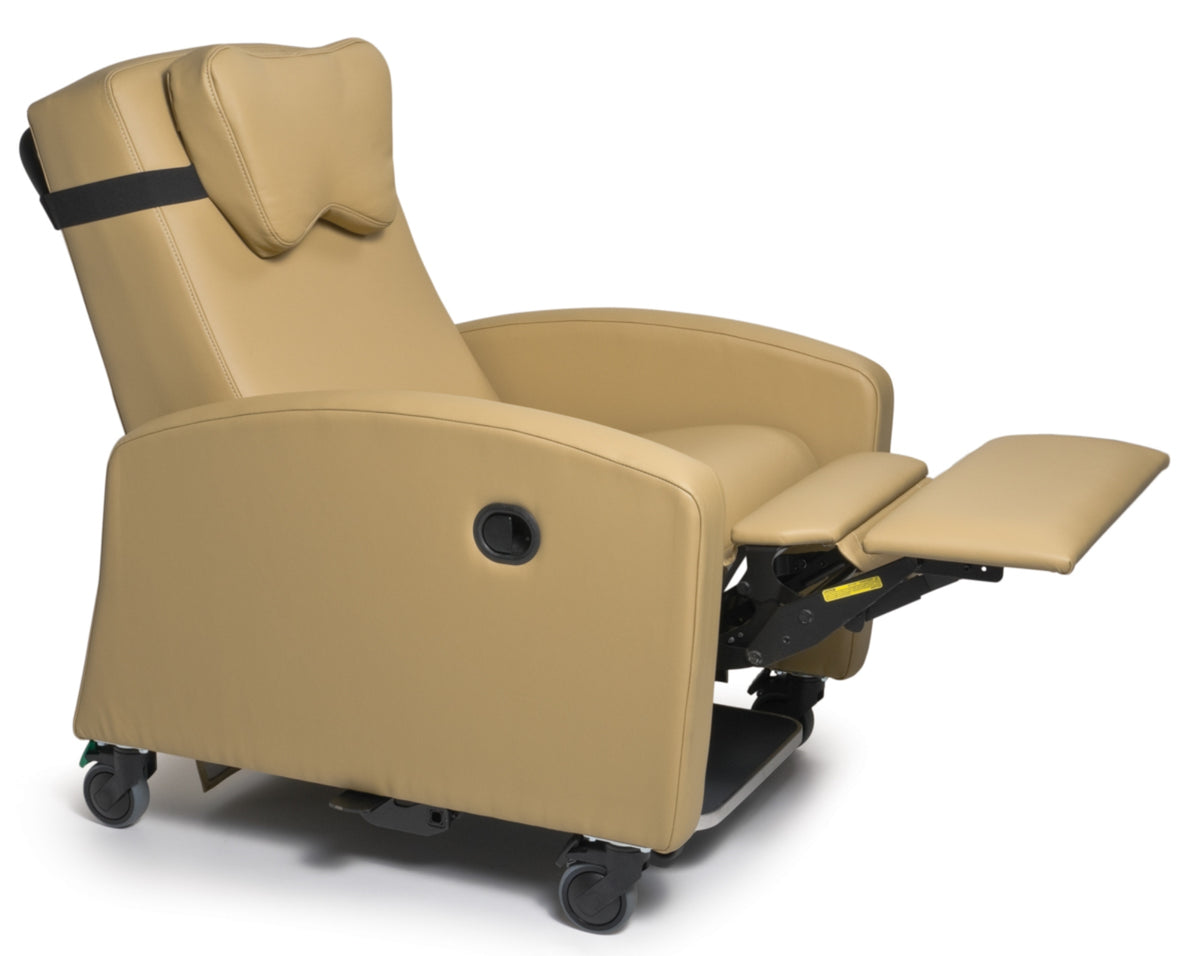

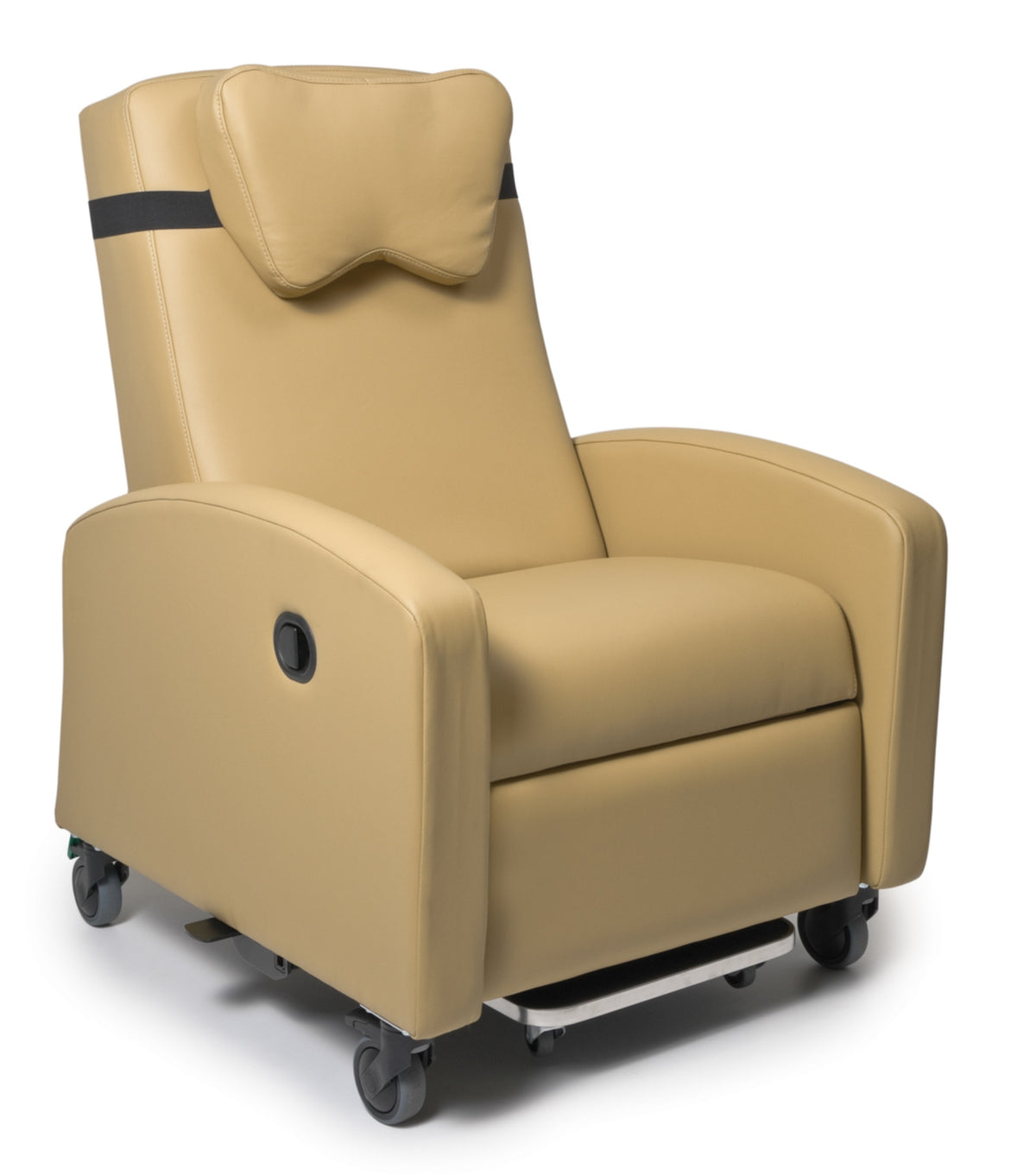

The Lumex 597 Ortho-Biotic II Recliner by Graham-Field is a premium clinical recliner with infinite recline positions for extended, clinical and acute care settings. It comes with wood arm caps or fully upholstered arms, and a headrest pillow is included.
Lead time: Ready for shipment within 6 weeks, per Graham-Field.
Positioning
- Infinite recline positions, set by the patient with a hand lever.
- Trendelenburg (shock) position activated by a caregiver foot pedal.
- Legrest operates independently.
- 350 lb weight capacity, evenly distributed.
Comfort and Convenience
- Viscoelastic memory foam in the seat and backrest.
- Headrest pillow included.

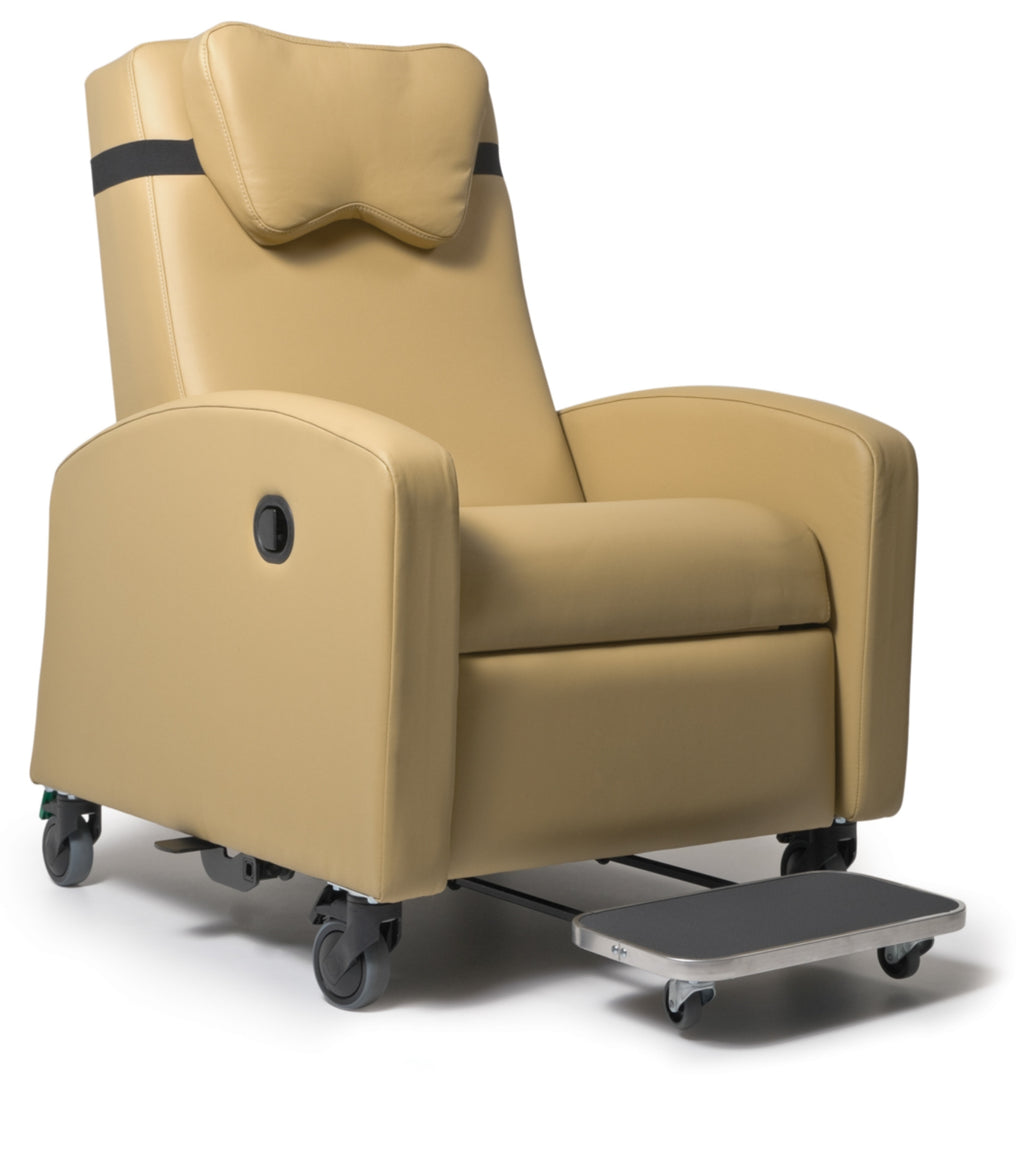

- Pullout footplate and rear push handle.
- 4" Tente swivel casters: 3 total-locking, 1 directional-locking.
- Upholstery meets CAL TB 117-2013.
Configurations

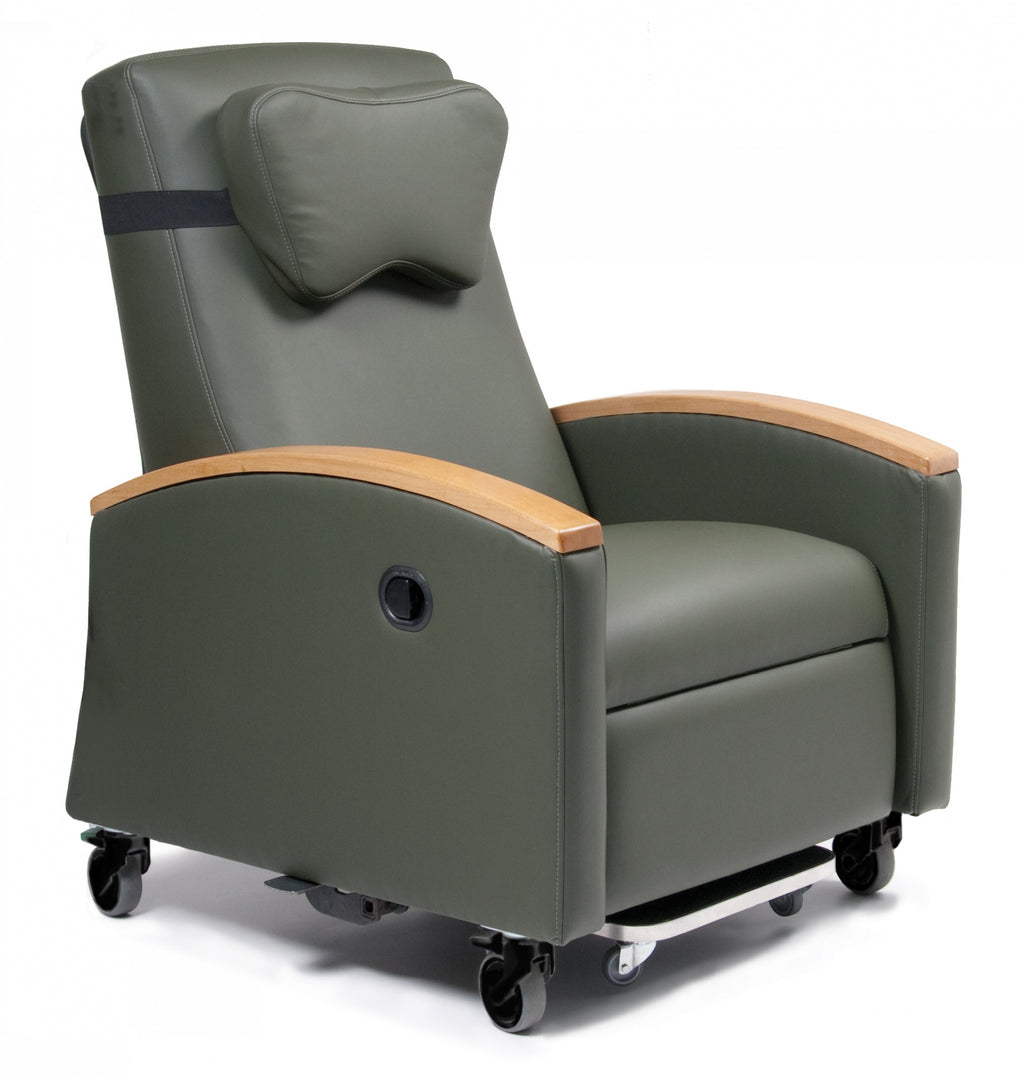

- FR597G + fabric code: Wood arm caps.
- FR597P + fabric code: Fully upholstered arms.
Fabric: The fabrics offered as options are the standard Lumex fabrics (Guardian, Savoy, Patriot Plus, Dolce and Renaissance collections). The number after the model code in the SKU is the fabric code (e.g. 409 = Warm Taupe, 427 = Blue Ridge). Additional Lumex fabrics and customer's own material (COM) are available by special order; see the swatches below.
Specifications
| Weight capacity | 350 lb (158.8 kg), evenly distributed |
| Overall width | 33" |
| Overall depth | 37" upright; 73" fully reclined |
| Overall height | 46" |
| Seat | 23" W x 20" D x 21" H |
| Width between arms | 24" |
| Arm height from floor | 26.75" |
| Arm width | 3.5" |
| Back width / height above seat | 23" / 30" |
| Back angle | 120° to 180° |
| Casters | 4" Tente swivel, 3 total-locking + 1 directional-locking |
| Upholstery | CAL TB 117-2013 |
| Warranty | Lumex healthcare seating limited warranty: welded steel frame 10 yr; mechanical components 3 yr; heat & massage unit 2 yr; casters 1 yr; upholstered components 1 yr |
Colors
Standard Lumex Fabrics (27): choose above
Additional Fabrics: special order
Additional fabrics and COM: The additional fabrics shown, and customer's own material (COM), can be ordered on request. Add the chair to your quote and note the fabric name and code, and we'll confirm availability, pricing and lead time with Graham-Field.
On-screen colors can differ from the actual material, and suppliers may change colors. Ask us for a physical sample to confirm your selection before ordering. Lumex healthcare seating swatch card (PDF)
Accessories (sold separately)
- SAFT20 Swing-Away Table: fits the 597 and 601.
Resources
- Graham-Field product sheet (PDF)
- Assembly and operating instructions (PDF)
- Replacement parts list (PDF)
- Lumex healthcare seating brochure (PDF)
- Lumex fabric swatch card (PDF)
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
