Description
The Lumex 601 Pivot-Arm Clinical Care Recliner by Graham-Field is the flagship Lumex clinical recliner. It is built for dialysis, oncology and infusion, and patient rooms, and both arms pivot outward for easier patient transfers and cleaning.
Lead time: Made to order; contact us for current lead time.
Patient Access

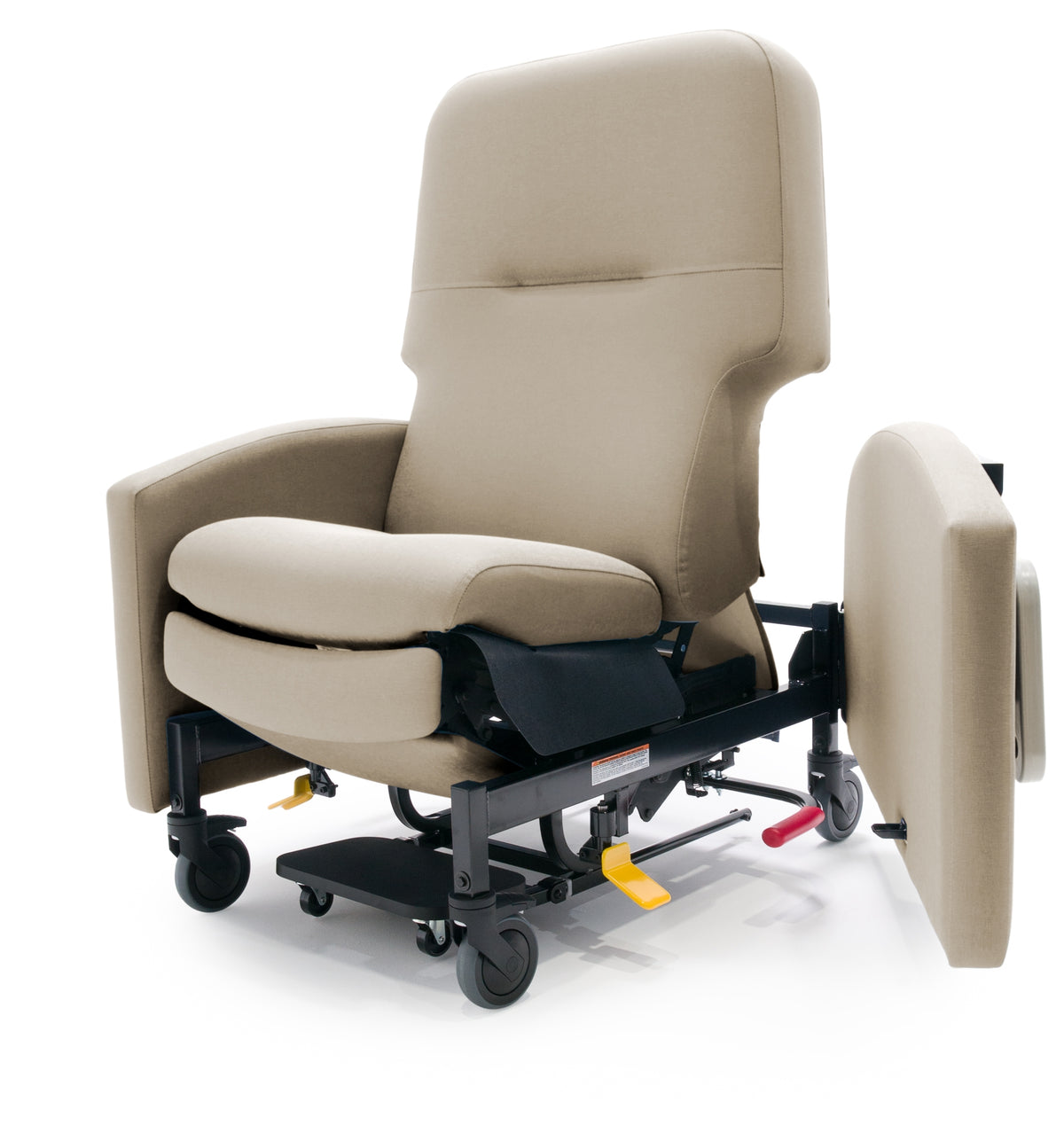

- Both arms pivot outward for patient access, transfers and cleaning.

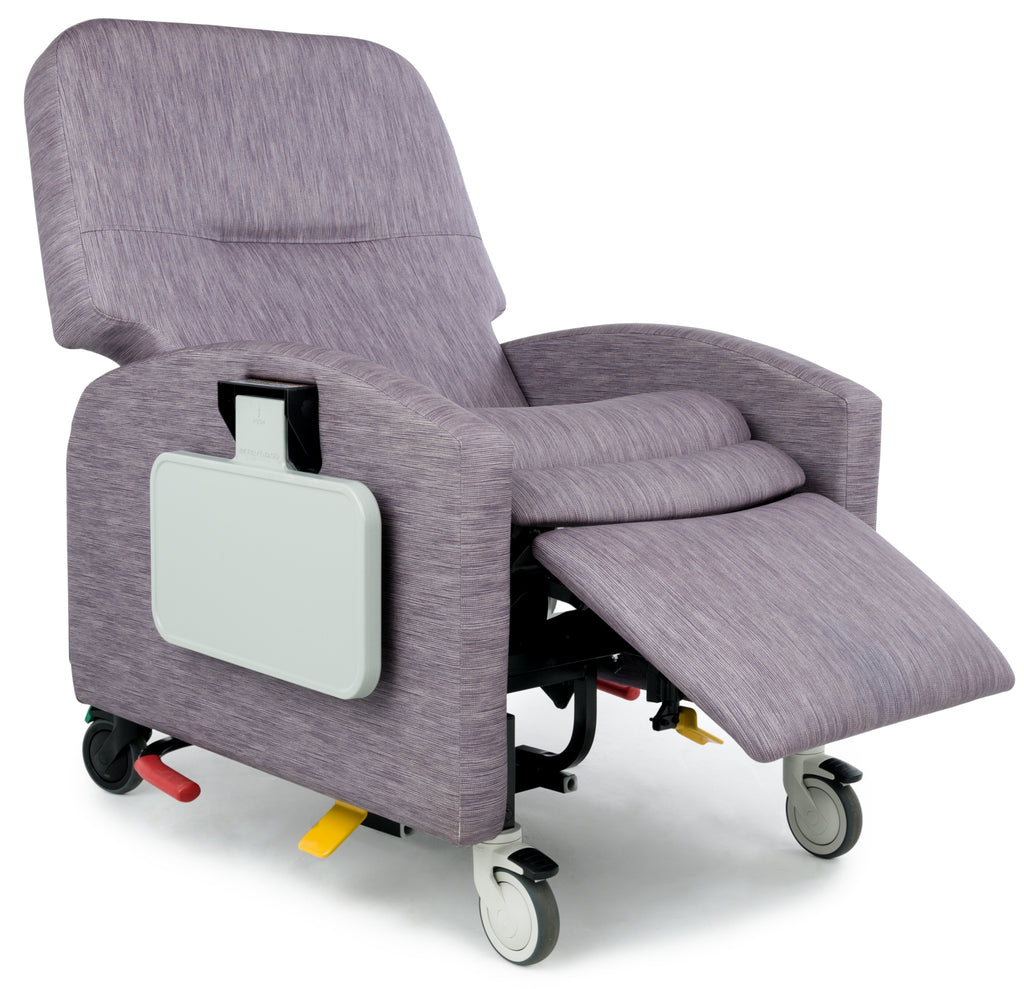

- Three positions (upright, first and second recline; back angle 120°, 135° and 160°) plus a caregiver-activated Trendelenburg position.
- 400 lb weight capacity, evenly distributed.
Comfort and Convenience
- Viscoelastic memory foam in the seat and backrest; wide, contoured seat and back.

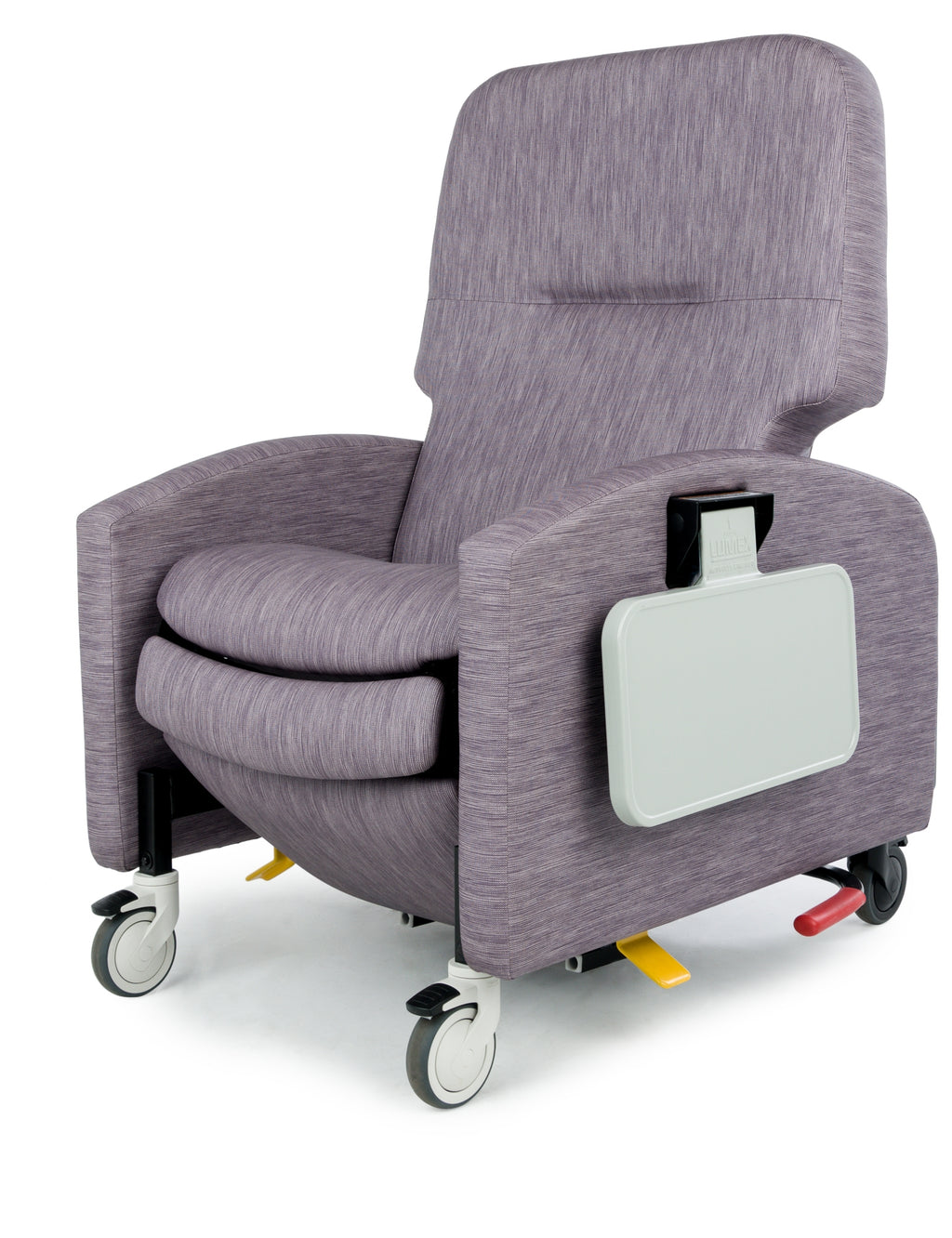

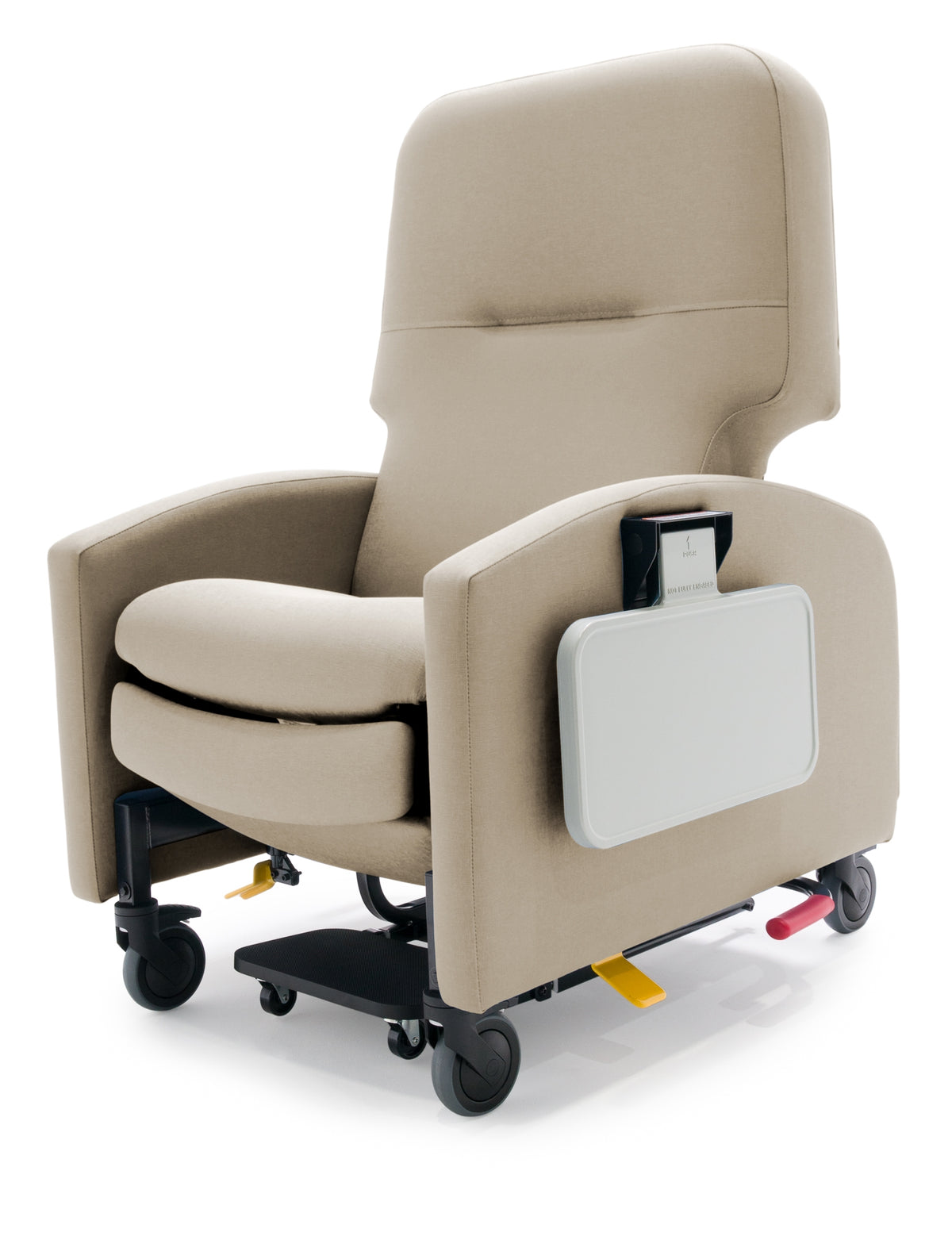

- Two self-storing fold-down side tables, a pullout footplate and a rear push handle.
- 5" Tente swivel casters: 3 total-locking, 1 directional-locking.
- Made in USA; upholstery meets CAL TB 117-2013.
Configurations
- FR601P + fabric code: Fully upholstered arms.
- FR601PH + fabric code: Fully upholstered arms with heat & massage.

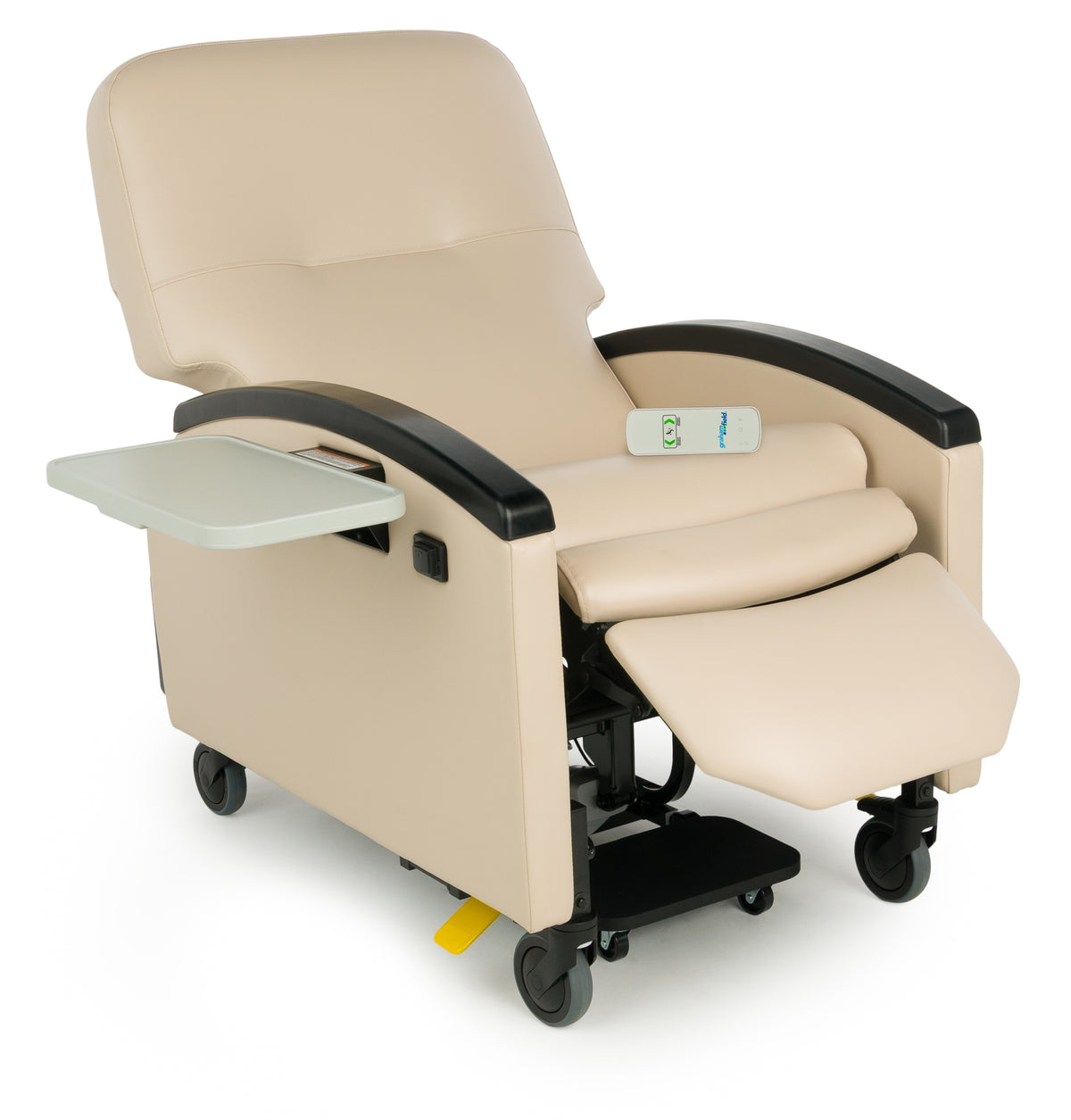

- FR601U + fabric code: Urethane armrest caps.
- FR601UH + fabric code: Urethane armrest caps with heat & massage.
Heat & Massage: an "H" after the arm code adds Graham-Field's heat and massage unit.
Arm style: "Upholstered arms" (P) are fully upholstered; "Urethane arm caps" (U) have urethane armrest caps.
Fabric: The fabrics offered as options are the standard Lumex fabrics (Guardian, Savoy, Patriot Plus, Dolce and Renaissance collections). The number after the model code in the SKU is the fabric code (e.g. 409 = Warm Taupe, 427 = Blue Ridge). Additional Lumex fabrics and customer's own material (COM) are available by special order; see the swatches below.
Specifications
| Weight capacity | 400 lb (181.4 kg), evenly distributed |
| Overall width | 34.5" (54" with side tables up) |
| Overall depth | 38" upright; 72" in Trendelenburg |
| Overall height | 51.5" |
| Seat | 22.5" W x 19" D x 22" H |
| Width between arms | 25" |
| Arm height from floor | 28.5" |
| Arm width | 3" |
| Back width / height above seat | 30.5" / 30" |
| Back angle | 120°, 135°, 160° |
| Casters | 5" Tente swivel, 3 total-locking + 1 directional-locking |
| Upholstery | CAL TB 117-2013 |
| Warranty | Lumex healthcare seating limited warranty: welded steel frame 10 yr; mechanical components 3 yr; heat & massage unit 2 yr; casters 1 yr; upholstered components 1 yr |
Colors
Standard Lumex Fabrics (27): choose above
Additional Fabrics: special order
Additional fabrics and COM: The additional fabrics shown, and customer's own material (COM), can be ordered on request. Add the chair to your quote and note the fabric name and code, and we'll confirm availability, pricing and lead time with Graham-Field.
On-screen colors can differ from the actual material, and suppliers may change colors. Ask us for a physical sample to confirm your selection before ordering. Lumex healthcare seating swatch card (PDF)
Accessories (sold separately)
- SAFT20 Swing-Away Table: fits the 601 and 597.
- 601IVMNT IV Pole Mounting Bracket: mounts behind the right arm; uses the 2101 IV pole (sold separately).
- Universal Head Pillow (FR5659 + fabric code + US): color-matched, hook-and-loop head pillow that fits all Lumex recliners.
Resources
- Graham-Field product sheet (PDF)
- Assembly and operating instructions (PDF)
- Replacement parts list (PDF)
- Lumex healthcare seating brochure (PDF)
- Lumex fabric swatch card (PDF)
- 601IVMNT IV pole mount installation (PDF)
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
