Description
Overview

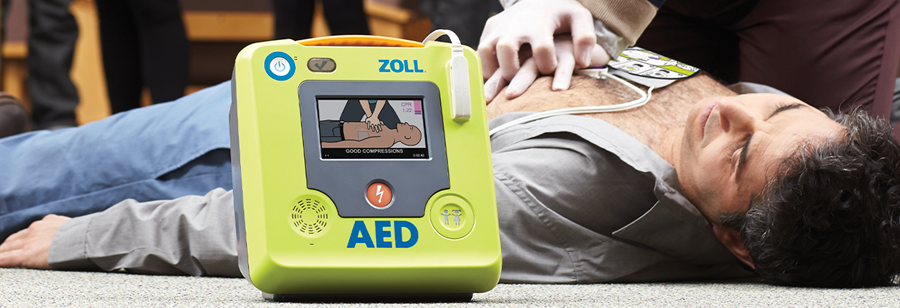

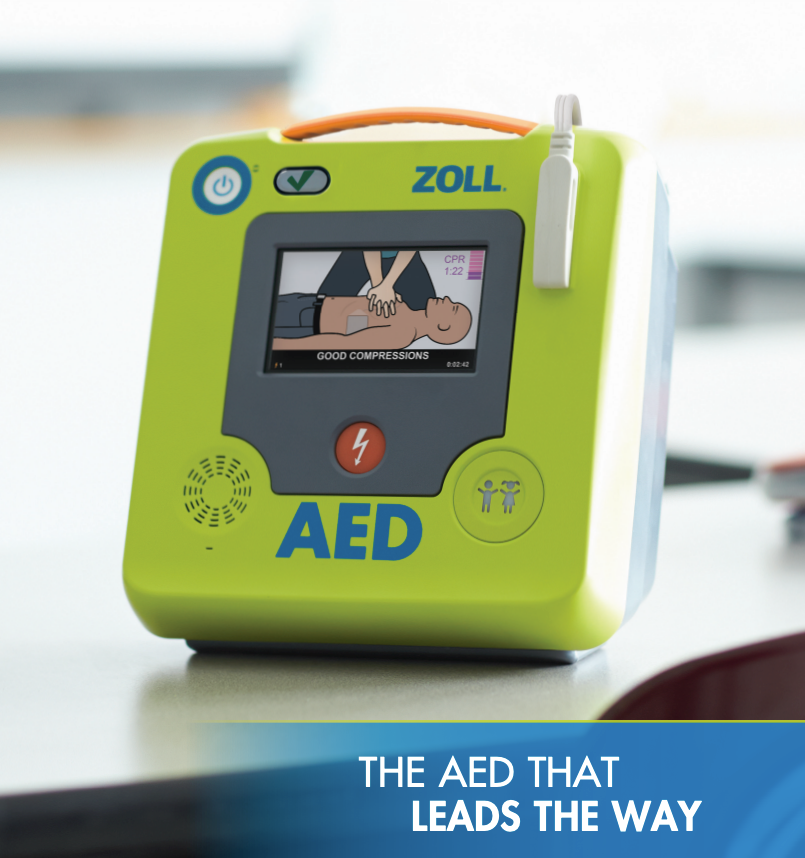

The ZOLL AED 3 Semi-Automatic (8511-001101-01) is an automated external defibrillator for public access and workplace use. Real CPR Help feedback and a full-color touchscreen guide lay and trained rescuers through a rescue. When a shock is advised, the AED charges and the rescuer delivers the shock by pressing the flashing Shock button.
Key Features

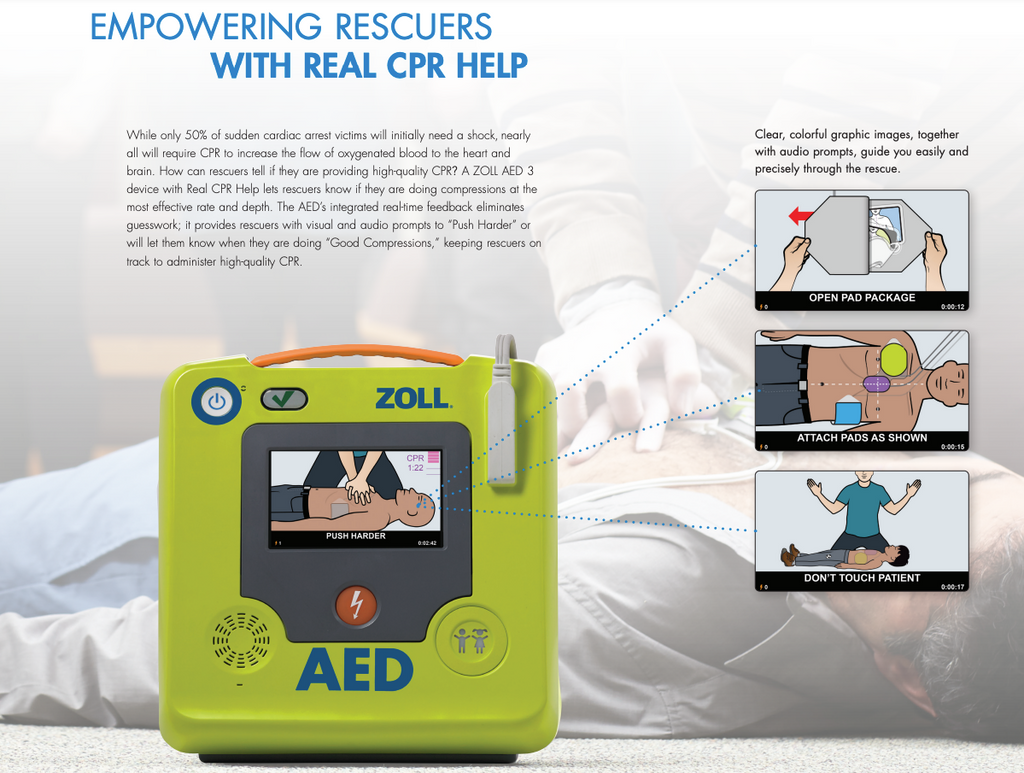

- Real CPR Help measures compression depth and rate and shows them on screen, with voice prompts such as "Push harder" and "Good compressions"; metronome set at 105 compressions per minute.
- One pad set for adults and children: CPR Uni-padz electrodes are used on both. For a child (under 8 years or under 55 lb / 25 kg), the rescuer presses the Child button, which switches to the pediatric analysis algorithm and lower energy. No separate pediatric pads are required.
- Weekly self-test, and the battery reports its remaining power status.
- Optional Wi-Fi connectivity for remote readiness reporting and email alerts; rescue data can also be retrieved by USB.
- IP55 dust and water rating and 1-meter drop test for use outside a clinical setting.
Configuration and Package Contents
- ZOLL AED 3 semi-automatic defibrillator package, part number 8511-001101-01
- ZOLL AED 3 battery pack
- One set of CPR Uni-padz electrodes (adult/child), with rescue accessories (scissors attached)
- Documentation packet
- Sold separately: wall cabinets, wall mounts and spare pads/batteries
Technical Specifications
| Operation | Semi-Automatic |
| Energy (adult) | 120 J, 150 J, 200 J (configurable) |
| Energy (child mode) | 50 J, 70 J, 85 J (configurable) |
| Charge time | Less than 10 seconds with new battery |
| Pre-shock pause | Less than 5 seconds with new battery |
| Battery | Disposable lithium manganese dioxide (ZOLL 8000-000696); 5-year standby life with weekly self-test; about 140 shocks at 200 J when new |
| CPR Uni-padz (8900-000260) | 5-year shelf life; adult and child |
| Display | Full-color LCD touchscreen |
| Ingress rating | IP55 |
| Drop test | 1 m |
| Dimensions (H x W x D) | 5.0 x 9.3 x 9.7 in (12.7 x 23.6 x 24.7 cm) |
| Weight | 5.5 lb (2.5 kg) with battery |
| Operating temperature | 32 to 122 °F (0 to 50 °C) |
Compatibility and Accessories
- Replacement electrodes: CPR Uni-padz (8900-000260), adult/child. Replacement battery: ZOLL 8000-000696. Contact us to order.
- ZOLL AED 3 standard surface-mount alarmed wall cabinet (8000-001256)
- ZOLL AED 3 small hard-shell carry case (8000-001253) or large hard-shell carry case (8000-001254)
- ZOLL AED 3 trainer (8028-000001-01) for CPR/AED training
Documents and Warranty
- ZOLL AED 3 product page
- ZOLL AED 3 specification sheet
- ZOLL AED 3 operator's guide (PDF)
- ZOLL AED 3 accessories
- ZOLL AED setup and registration
- Warranty: 6 years standard, extended 2 more years at no cost when the AED is registered with ZOLL
Compare Models
| Model | Shock delivery | Pre-shock pause |
| ZOLL AED 3 Semi-Automatic (8511-001101-01) | Rescuer presses the flashing Shock button | Less than 5 seconds |
| ZOLL AED 3 Fully Automatic (8511-001102-01) | AED delivers the shock after a stand-clear countdown | Less than 8 seconds (includes countdown) |
Genuine ZOLL product, sold by The Hospital Equipment Company.
