Description

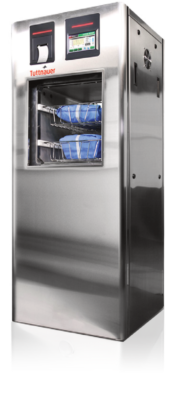

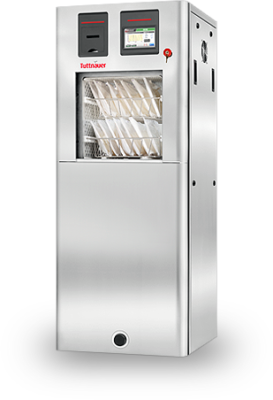

The Tuttnauer PlazMax is a low-temperature hydrogen peroxide plasma sterilizer for heat- and moisture-sensitive instruments, including hollow and lumened devices and endoscopes. Using vaporized hydrogen peroxide (VHP), it sterilizes in cycles of roughly 32 to 48 minutes and leaves only water and oxygen as byproducts, making it a practical alternative to steam for delicate devices in surgical centers, hospitals and veterinary practices.
Key Features
- Low-temperature vaporized hydrogen peroxide sterilization; byproducts are water and oxygen
- Three cycles: Normal for non-hollow loads, Advanced for hollow loads, and Endoscope
- Built-in penetration and leakage test cycles
- Aviation-grade aluminum chamber
- Multi-color LCD touchscreen with multiple user access levels
- Cycle data via USB, Ethernet and built-in thermal printer
- Manual or vertical sliding door, in single- or double-door (pass-through) configurations
Specifications
| Specification | P50 | P110 | P160 |
|---|---|---|---|
| Chamber Volume | 47 L | 109 L | 162 L |
| Baskets (W x D) | 1 (15.7" x 23.6") | 2 (15.7" x 23.6") | 2 (15.7" x 35.4") |
| External Dimensions, Single Door (W x H x D) | 27.6" x 60.1" x 28.7" | 27.6" x 69.6" x 28.7" | 27.6" x 69.6" x 40.5" |
| Electrical | 230V, 3-phase, 50-60 Hz, 3100W, 13.5A | 230V, 3-phase, 50-60 Hz, 4300W, 18.7A | 230V, 3-phase, 50-60 Hz, 4300W, 18.7A |
| Normal Cycle | 35 min | 39 min | 43 min |
| Advanced Cycle (hollow loads) | 40 min | 44 min | 48 min |
| Endoscope Cycle | 32 min | 37 min | 41 min |
Model Options
Choose the chamber size to suit your volume. The P50 (47 L) is a compact single-basket unit. The P110 (109 L) uses the same footprint as the P50 with a taller chamber and two baskets. The P160 (162 L) uses two deeper baskets for the highest throughput. All three models share the same 27.6" width and 230V 3-phase power requirement.

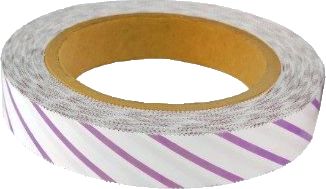

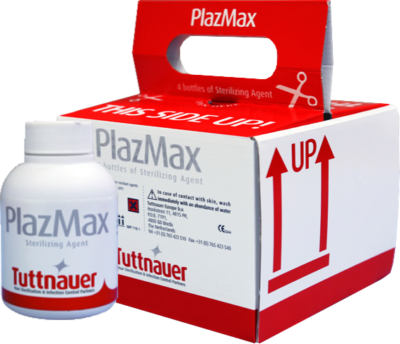

Recommended accessories
