Description

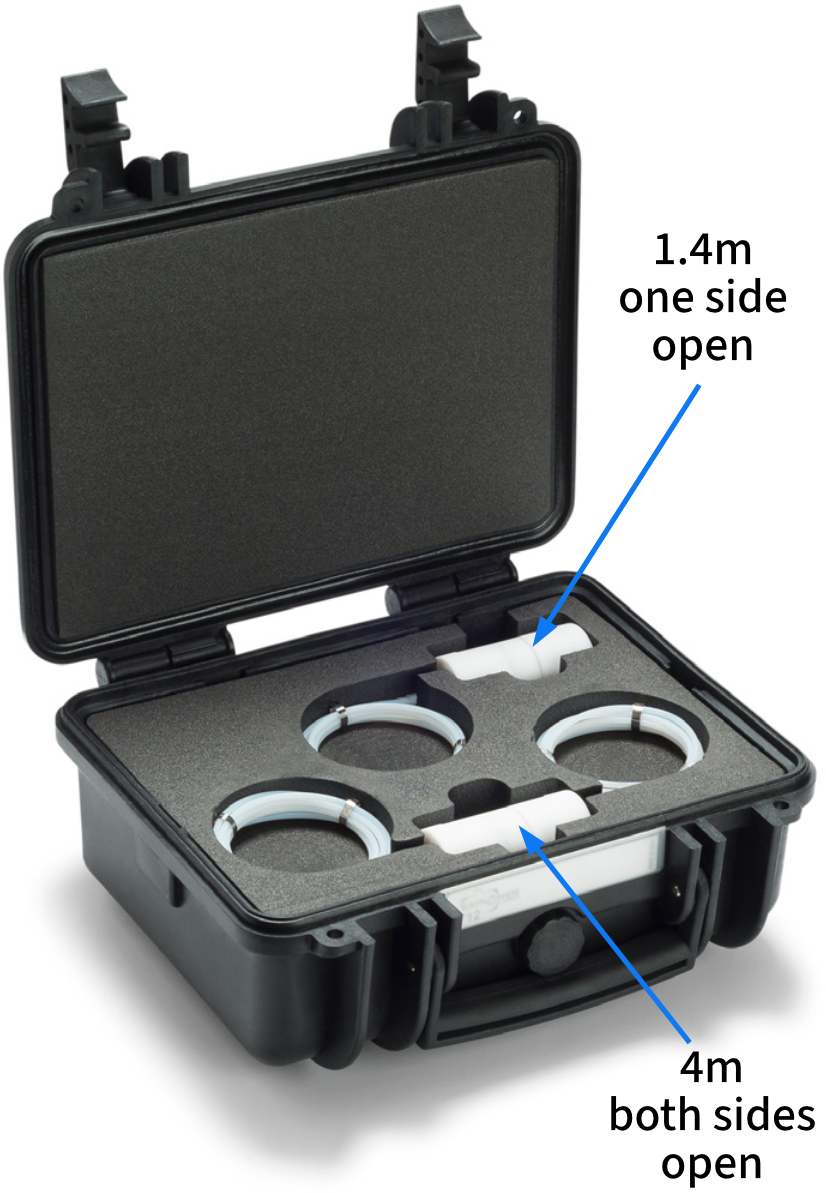

The Tuttnauer PLZ094-0048 PCD Lumen Kit is a Process Challenge Device used to validate sterilization of hollow and lumened instruments in the PlazMax hydrogen peroxide plasma sterilizer. Its long, narrow lumens are designed to be harder to penetrate than typical loads, confirming full exposure to the vaporized hydrogen peroxide sterilant when used with chemical or biological indicators.
Key Features
- Process Challenge Device for hollow-instrument validation
- Lumens designed to be more challenging than typical loads
- Confirms full exposure to vaporized hydrogen peroxide
- Accepts chemical indicators for every-cycle penetration checks
- Accepts biological indicators for scheduled testing per facility policy
Specifications
| Catalog Number | PLZ094-0048 |
| Lumen Diameter | 1 mm |
| Lumen Configurations | 4 m (both ends open); 1.4 m (one end open) |
| Indicator Use | Chemical and biological indicators for H2O2 plasma |
Compatibility
Designed for Tuttnauer PlazMax low-temperature plasma sterilizers (P50, P110 and P160). Use with H2O2 plasma chemical indicator strips and self-contained biological indicators rated for VHP processes.
