Welch Allyn Scale-Tronix 5002 Mobile Stand-On Scale – lb/kg, Data Port, Battery (5002-XX-X)
Roll over image to zoom in Click on image to zoom
Welch Allyn Scale-Tronix 5002 Mobile Stand-On Scale – lb/kg, Data Port, Battery (5002-XX-X)

Welch Allyn Scale-Tronix 5002 Mobile Stand-On Scale – lb/kg, Data Port, Battery (5002-XX-X)

Welch AllynSKU: 5002-XX-X
Price:
$5,080.00
Shipping:

Ships from Welch Allyn. Most items typically ship within 1 business day after order processing. Availability and delivery time vary.

  • Vizient & Provista contracted distributor
  • Quotes within 1 business day
  • (800) 575-2375, Mon–Fri 8–5 Pacific
PO, contract pricing & facility purchasing

Need help choosing? Request this item on our full quote form or call (800) 575-2375, Monday–Friday, 8 AM–5 PM Pacific.

Description

Overview

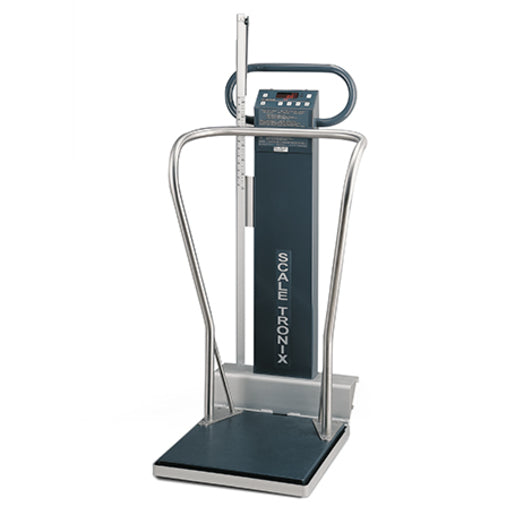

The Welch Allyn Scale-Tronix 5002 is a mobile stand-on scale with a heavy-duty stainless steel handrail, built for high-traffic hospital and clinic areas. It weighs patients up to 880 lb (400 kg) and rolls between rooms on rubber wheels. This configuration reads lb/kg, has an RS-232 data port and runs on battery power.

Key Features

  • Low-profile platform and stainless steel handrail designed to help reduce fall risk
  • Weighs patients one after another without re-zeroing, and returns to zero automatically
  • Weight recall and reweigh while the patient is still on the scale
  • RS-232 data port sends weights to a computer or record system
  • Low-battery indicator, and an audible signal when a reading is stored

Configuration and Package Contents

  • Part number: 5002-XX-X
  • Units: lb/kg
  • Output: data port (RS-232)
  • Power: battery (6 D-size alkaline batteries)
  • Height gauge, printer and power adapter sold separately

Technical Specifications

Capacity 880 lb (400 kg)
Resolution 0.1 lb (100 g)
Platform 18 in W x 19.5 in D x 1.5 in H (45.72 x 49.53 x 3.81 cm)
Overall dimensions 22 in W x 28 in D x 60 in H (55.88 x 71.12 x 152.4 cm)
Shipping weight 61 lb (27.7 kg), approximate
Display Digital LED, lb and kg
Power 6 D-size alkaline batteries
Interface RS-232 data port
Warranty 1 year

Compatibility and Accessories

  • Scale-Tronix wall mounted height gauge (845010W)
  • Integrated height gauge 845010 (in/cm) or 845010M (metric): contact us to order
  • Printer 50231 with thermal paper 23709 (box of 15 rolls): contact us to order
  • Power adapter 845233 (UL/CSA, hospital-grade plug): contact us to order

Documents and Warranty

Compare Models

Model Type Capacity Options
5002-XX-X (this listing) Mobile stand-on with handrail 880 lb (400 kg) Data port, battery
5122-X-X Low-profile stand-on 660 lb (300 kg) Battery
5702-XX-X Mobile bariatric 1000 lb Battery
6002-XX-X Wheelchair 880 lb (400 kg) Data port, battery

Genuine Welch Allyn product, sold by The Hospital Equipment Company.
