Description
Overview

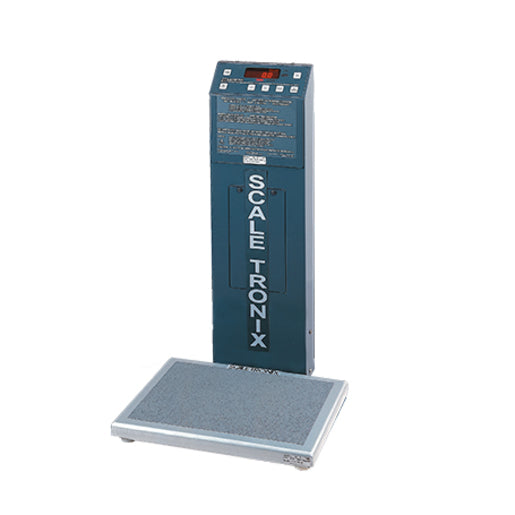

The Welch Allyn Scale-Tronix 5122 is a low-profile stand-on scale for patient weighing in clinics and physician offices. It weighs patients up to 660 lb (300 kg) on a 1.5 in high platform and runs on D-cell batteries, so it can sit anywhere without an outlet. This is the standard-weight (lb/kg) battery version.
Key Features
- 1.5 in low-profile platform is easy for patients to step onto
- LB and KG buttons switch units at the scale, with an indicator light showing the active unit
- RECALL shows the last stored weight and REWEIGH retakes it without starting over
- Large, bright LED display that is easy to read from standing height
- Turns itself off after 45 seconds idle on battery and shows LO BATT when batteries run down
Configuration and Package Contents
- Part number: 5122-X-X
- Units: lb/kg (standard weight); a kg-only version (5122-K) is also made
- Power: 6 D-size alkaline batteries
- Power adapter (341001) sold separately
- No printer or data port option on the 5122
Technical Specifications
| Capacity | 660 lb (300 kg) |
| Resolution | 0.1 lb (100 g), factory default |
| Platform | 16 in x 14 in x 1.5 in |
| Display | LED, lb or kg |
| Power | 6 D-size alkaline batteries; optional adapter 100-240V AC in, 12V DC out |
| Auto-off | 45 seconds of non-use on battery |
| Warranty | 1 year |
Compatibility and Accessories
- Scale-Tronix wall mounted height gauge (845010W), listed by Welch Allyn as the height gauge for the 5122
- Power adapter 341001: contact us to order
Documents and Warranty
- Welch Allyn Masted Scales Directions for Use, models 5002, 5122, 5702, 6002 (PDF)
- Warranty: 1 year from the date of retail purchase (Welch Allyn)
Compare Models
| Model | Type | Capacity | Options |
| 5122-X-X (this listing) | Low-profile stand-on | 660 lb (300 kg) | Battery |
| 5002-XX-X | Mobile stand-on with handrail | 880 lb (400 kg) | Data port, battery |
| 5702-XX-X | Mobile bariatric | 1000 lb | Battery |
| 6002-XX-X | Wheelchair | 880 lb (400 kg) | Data port, battery |
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
