Description

The Ritter 228 meets the 2024 US Access Board standard with a 17" low seat height. See what the standard requires →

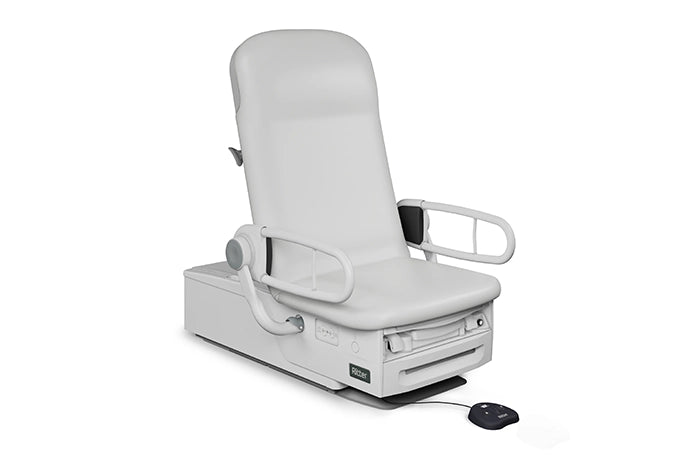

The Ritter 228 is a barrier-free power exam chair that lowers to 17" so patients can transfer from a wheelchair safely and with dignity, then rises to 37" for a comfortable exam height. Its 28"-wide transfer surface and compact base make it a cost-effective way to add compliant exam capacity to your facility.
Patient Accessibility
- 17" low / 37" high seat height, meeting the 2024 US Access Board Standards for Accessible Medical Diagnostic Equipment.
- 28" wide compliant transfer surface.
- Patient Support Rails and Articulating Knee Crutches provide the transfer and leg supports the standard calls for.
Configurations
- #228-001: Base Chair.
- #228-002: Includes Heated Drawer, Pelvic Tilt and Hospital-Grade Receptacles.
- #228-003: Includes Clean-Assist Roller System, Heated Drawer, Pelvic Tilt and Hospital-Grade Receptacles.
Need a powered backrest? See the Ritter 229.
Colors
Standard Upholstery Colors
UltraFree* Upholstery Colors
*Ultraleather® by Ultrafabrics®
On-screen colors can differ from the actual material, and suppliers may change colors. Ask us for a physical sample to confirm your selection before ordering. Midmark upholstery color guide (PDF)
Accessories
View all Ritter 228 accessories →
Technical Specifications
| Patient weight capacity | 500 lb (227 kg) |
| Seat height | 17" low / 37" high |
| Upholstery top | 28" W x 60" L |
| Length, footrest extended | 76" |

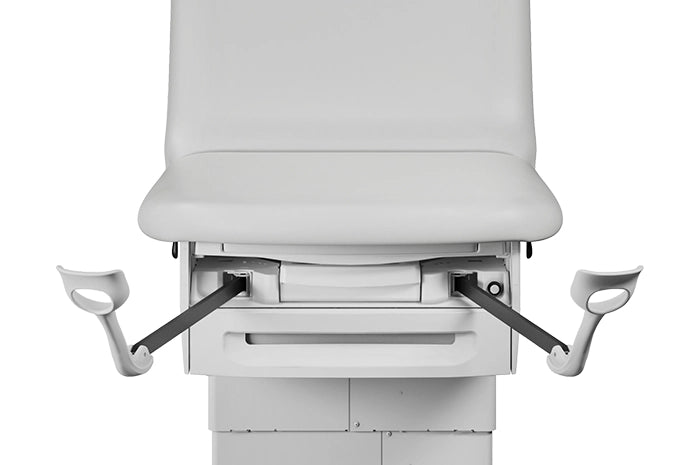

| Pelvic tilt | 5.2° (228-002, 228-003) |
| Heated drawer | 92°F–112°F (228-002, 228-003) |
| Paper roll | 24" wide x 3.56" dia. |
| Electrical | 115 VAC, 60 Hz; 9 A (228-001), 11.5 A (228-002, 228-003) |
| Chair / shipping weight | 435 lb / 470 lb |
Resources
- Ritter 228 + 229 brochure (PDF)
- Midmark upholstery color guide (PDF)
- US Access Board standards brief (PDF)
- Patient Support Rails brochure (PDF)
Pricing: Contract and volume pricing available, including Vizient and Provista. Add the chair to your quote with your upholstery color and any upgrades or accessories and we'll get back to you with pricing and lead time.
Compare the Midmark 626, Ritter 228 and Ritter 229 →
Your selected configuration
Our chair quotes include standard upholstery in your selected color. Optional upgrades and accessories are quoted separately.



Upholstery Top Upgrade (optional)
Patient Support Rails
Patient Support Rails+
Articulating Knee Crutch Kit
Assist Arms
Thick Footrest Pad
Stainless Steel Treatment Pan
