Description
Overview

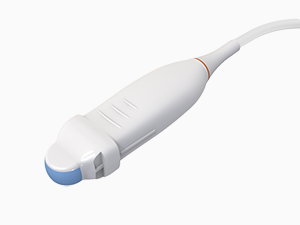

The Edan C611-2 is a micro-convex array transducer for the Edan DUS 60 digital ultrasound system. It is used for pediatric and pediatric cardiac imaging.
Key Features
- Micro-convex array for pediatric imaging
- 5-8 MHz (-6 dB) bandwidth
- Covers pediatric and pediatric cardiac applications
Configuration and Package Contents
- One Edan C611-2 transducer
- Ultrasound system sold separately
Technical Specifications
| Model | C611-2 |
| Type | Micro-convex array |
| Bandwidth | 5-8 MHz (-6 dB); 3.5-12 MHz (-20 dB) |
| Applications | Pediatric, pediatric cardiac |
Compatibility and Accessories
- Edan DUS 60 digital ultrasound system
- Edan DUS 60 digital ultrasound system
- Edan C361-2 convex array transducer for DUS 60
- Edan L743-2 linear array transducer for DUS 60
- Edan MT-805 mobile trolley for the DUS 60
Documents and Warranty
Compare Models
| Model | Type | Bandwidth (-6 dB) | Applications |
| C361-2 | Convex array | 2-6 MHz | Abdomen, OB, gynecology, urology |
| L743-2 | Linear array | 5-10 MHz | Small parts, vascular, MSK |
| C611-2 | Micro-convex array | 5-8 MHz | Pediatric, pediatric cardiac |
| E611-2 | Transvaginal (endocavity) | 5-8 MHz | OB, gynecology, urology |
Genuine Edan product, sold by The Hospital Equipment Company.
