Description

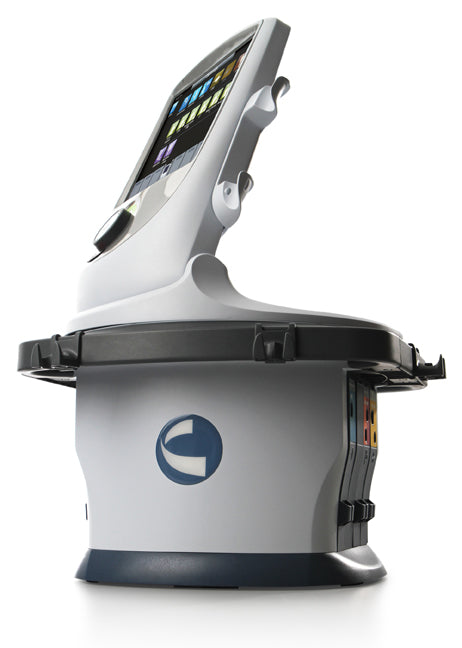

The Chattanooga Vectra Neo is a configurable, multimodality clinical therapy platform built around a touchscreen base unit that accepts up to five plug-and-play therapy modules. Clinics start with the base unit (6000) and add 2- or 4-channel electrical stimulation, sEMG biofeedback/EMG-triggered stim, therapeutic ultrasound and Class 3B laser modules as needed, in a tabletop or cart configuration. Clinical Protocol Setup (CPS) and a built-in anatomical/pathology library simplify treatment selection and patient education.
Features
- Plug-and-play modular design - up to 5 therapy modules
- Touchscreen with intuitive graphic user interface
- Clinical Protocol Setup (CPS) with up to 100 protocol options
- Anatomical reference library, including pathologies
- 12 electrotherapy waveforms, including HAN TENS
- User-defined menus, customized treatment protocols and advanced patient reporting
- High-speed USB port
- Integrated ultrasound and laser applicator cradles; lead wire management
- Screen maneuverability; integrated base with handles
- Cart or tabletop configuration; multi-patient versatility
Specifications
| Modalities (with modules) | 2- and 4-channel electrical stimulation, therapeutic ultrasound, sEMG biofeedback, EMG-triggered stim, Class 3B laser |
|---|---|
| Electrotherapy waveforms | IFC (4-pole), Premodulated IFC (2-pole), VMS, VMS Burst, VMS FR, TENS asymmetrical biphasic, TENS symmetrical biphasic, Microcurrent, Han (HAN TENS), High Voltage Pulsed Current (HVPC), DC, Russian |
| Ultrasound (70002 module) | 1 MHz and 3.3 MHz (+/-5%); duty cycles 10%, 20%, 50%, continuous; 0-2.5 W/cm2 |
| Laser (70005 module) | Class 3B, 670-950 nm, 100-1,440 mW (applicator dependent) |
| Module capacity | Up to 5 modules |
| Base unit (head at 45 deg, tabletop) | 15.89 W x 15.89 D x 22.05 H in; 20.7 lb |

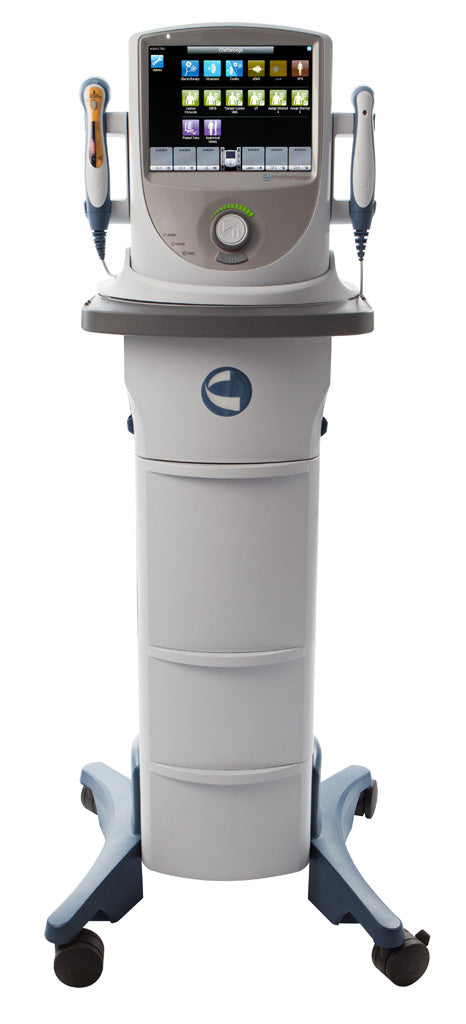

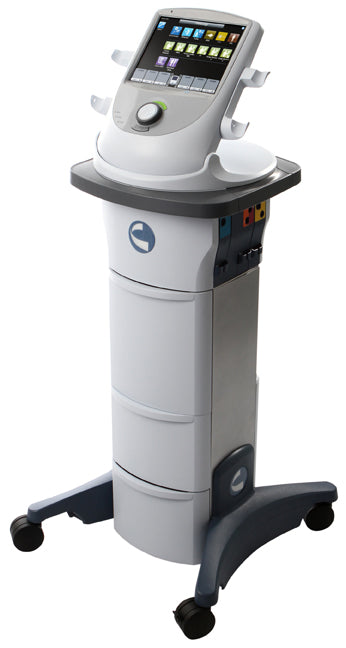

| With cart, head at 90 deg | 23.94 W x 26.19 D x 52.85 H in; 48.9 lb |
| Module | 11.12 W x 6.34 D x 1.43 H in; 1 lb |
| Input power | 100-240 V AC, 50/60 Hz |
| Electrical class | Class I |
What's Included
- Vectra Neo base unit with touchscreen display
- User manual and user manual on CD
- Therapy modules, applicators and cart are sold separately
Compatibility & Related Parts
Configure with Vectra Neo modules: stim Ch 1/2 (70000), stim Ch 3/4 (70003), stim Ch 1/2 + sEMG (70004), ultrasound (70002), laser (70005); therapy cart (70001); patient remote (70008); leadwire kits (70010-70014).
Genuine Chattanooga product, sold by The Hospital Equipment Company.
