Description

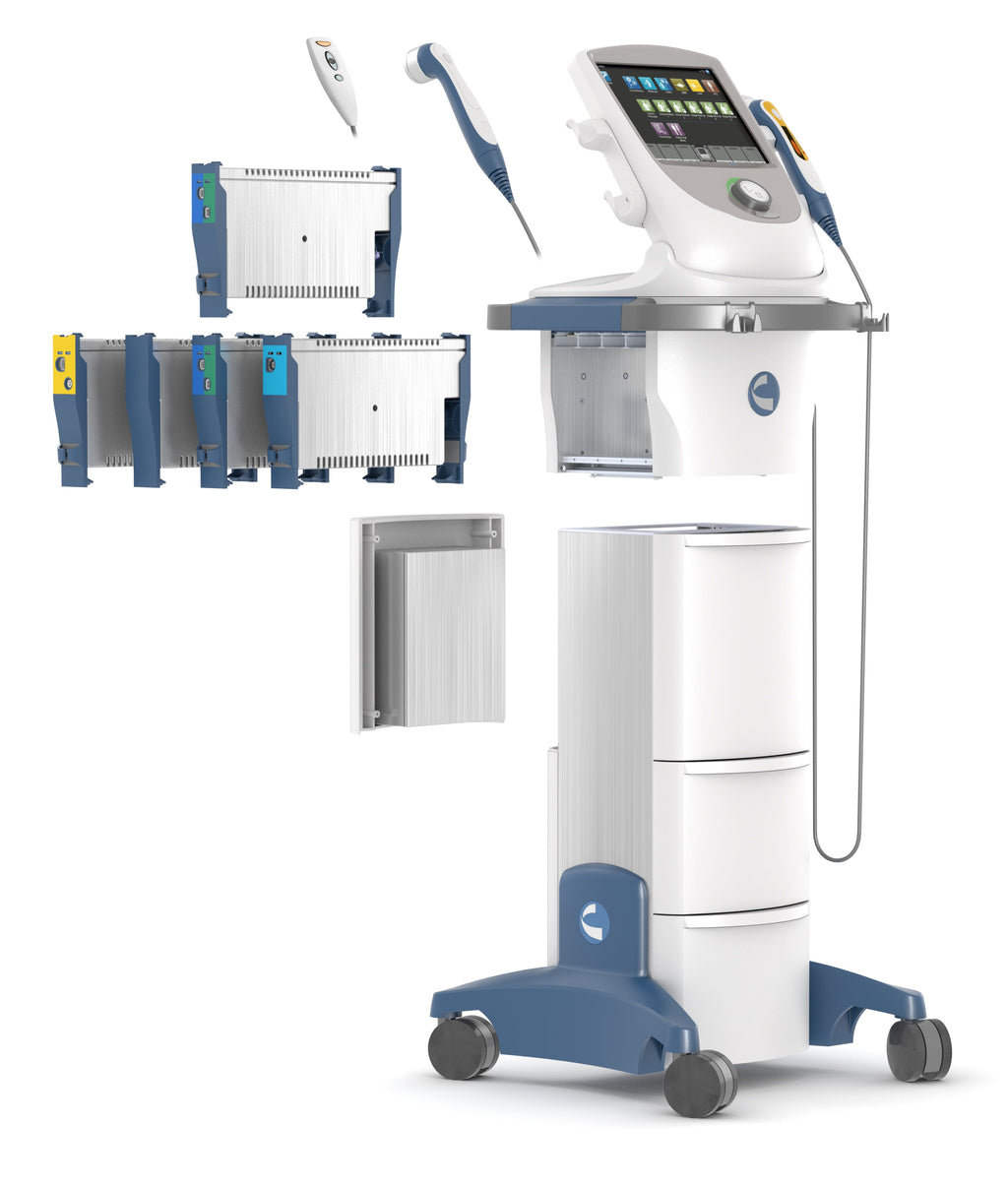

Plug-and-play therapy modules for the Chattanooga Vectra Neo base unit (6000). Each module slides into the Neo and adds a modality - two channels of electrical stimulation, stimulation plus sEMG biofeedback, therapeutic ultrasound or Class 3B laser - so clinics can build exactly the system they need and expand later. Up to five modules can be installed.
Features

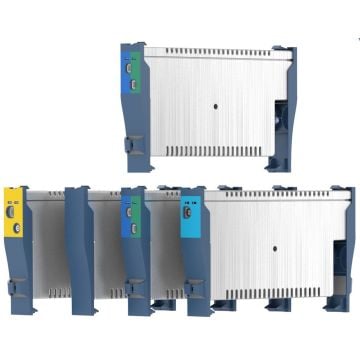

- 70000 Channel 1/2 Stimulation Module: 2 channels of electrotherapy with all 12 Neo waveforms (IFC, premodulated IFC, VMS, VMS Burst, VMS FR, TENS asym/sym, Microcurrent, Han, HVPC, DC, Russian)
- 70003 Channel 3/4 Stimulation Module: adds channels 3 and 4 for 4-channel electrotherapy, same waveforms
- 70004 sEMG + Channel 1/2 Stimulation Module: 2-channel stim plus surface EMG biofeedback and EMG-triggered stimulation (use instead of 70000)
- 70002 Ultrasound Module: dual-frequency 1 MHz / 3.3 MHz ultrasound; works with 1, 2, 5 and 10 cm2 applicators (sold separately); combination therapy with stim
- 70005 Laser Module: Class 3B low-level laser, 670-950 nm, 100-1,440 mW depending on applicator (applicators sold separately)

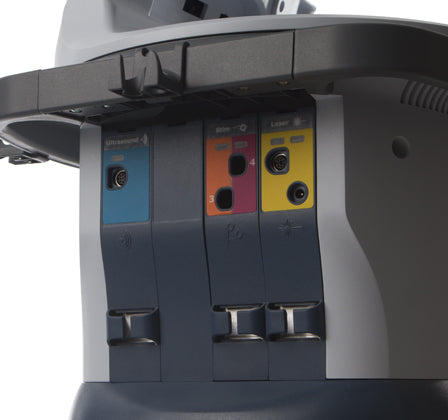

- Plug-and-play installation; Neo base holds up to 5 modules
- Stimulation current limit 200 mA (except HVPC)
Available Part Numbers
| Part # | Module |
|---|---|
| 70000 | Stim Channels 1 & 2 |
| 70003 | Stim Channels 3 & 4 |
| 70004 | Stim Channels 1 & 2 + sEMG |
| 70002 | Ultrasound |
| 70005 | Laser |
Specifications
| Module dimensions / weight | 11.12 W x 6.34 D x 1.43 H in; 1 lb |
|---|---|
| Stim waveforms | IFC (4-pole), Premodulated IFC (2-pole), VMS, VMS Burst, VMS FR, TENS asymmetrical biphasic, TENS symmetrical biphasic, Microcurrent, Han (HAN TENS), High Voltage Pulsed Current (HVPC), DC, Russian |
| Ultrasound frequencies | 1 MHz +/-5%, 3.3 MHz +/-5% |
| Ultrasound duty cycles | 10%, 20%, 50%, continuous; pulse repetition 100 Hz |
| Ultrasound output | 0-2.5 W/cm2; 10 cm2: 0-15 W @1 MHz / 0-10 W @3.3 MHz; 5 cm2: 0-6 W; 2 cm2: 0-3 W; 1 cm2: 0-1.5 W @3.3 MHz |
| Ultrasound treatment time | 1-30 min; head warming 29.4-43.3 C; applicator IPX7 |
| Laser | Class 3B; 670-950 nm; 8-10,000 Hz and continuous; 100-1,440 mW |
What's Included
- 70000: module, user manual + CD, Dura-Stick Plus 2in round electrodes (2 packs of 4), Stim Ch 1/2 leadwire kit 70010
- 70003: module, user manual + CD, Dura-Stick Plus electrodes (2 packs of 4), Stim Ch 3/4 leadwire kit 70011
- 70004: module, user manual + CD, Dura-Stick Plus electrodes (2 packs of 4), leadwire kit 70010 and Stim Ch 1/2 + EMG leadwire kit 70014
- 70002: module, ultrasound user manual + CD (applicator sold separately)
- 70005: module, user manual + CD, Patient Remote/Laser Interrupt Switch 70008, laser protection glasses 27525 (applicator sold separately)
Compatibility & Related Parts
For the Chattanooga Vectra Neo base unit (6000). Related: Vectra Neo cart (70001), leadwire kits (70010-70014), patient remote (70008).
Genuine Chattanooga product, sold by The Hospital Equipment Company.
