Overview
The ZOLL Powerheart G5 Fully Automatic AED (G5A-80C-S) is an automated external defibrillator for public access, workplace and school use. Its RescueCoach voice and text prompts go at the rescuer's pace and guide each step of a rescue. When a shock is needed, the AED delivers it without the rescuer pressing a button.

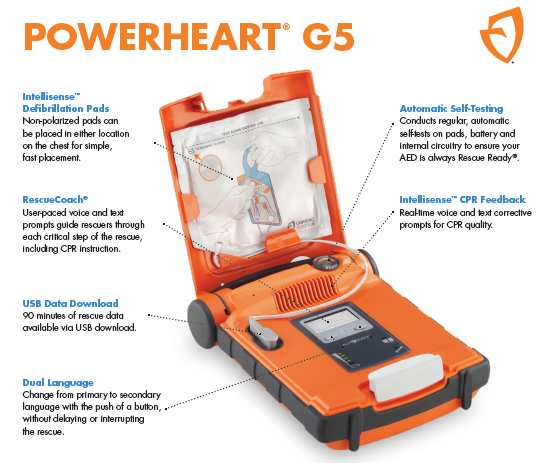

Key Features
- Intellisense CPR feedback monitors compression rate and depth and gives corrective prompts. The included ICPR adult pads provide the feedback; replacement pads are XELAED002.
- Dual-language operation: one button switches prompts to the second language during a rescue.
- Automatic self-tests check the battery, pads and internal circuitry, and the Rescue Ready indicator shows whether the AED is ready.
- Pediatric use: with Intellisense pediatric pads (XELAED003, sold separately), energy is reduced for patients 8 years or younger or under 55 lb (25 kg). Pediatric pads are not to be pre-connected.
- Stores 90 minutes of rescue data, which can be retrieved by USB.
Configuration and Package Contents
- ZOLL Powerheart G5 fully automatic dual-language AED (G5A-80C-S)
- Intellisense battery
- Intellisense ICPR adult defibrillation pads with CPR feedback
- Standard carry sleeve
- AED Manager software and USB cable
- Sold separately: pediatric pads (XELAED003), spare pads and batteries, wall cabinets
Technical Specifications
| Operation | Fully Automatic |
| Energy (adult pads) | Escalating, 95 J to 354 J |
| Energy (pediatric pads) | Escalating, 22 J to 82 J |
| Analysis to ready-to-shock | 15 seconds typical (45 seconds max) with fully charged battery |
| Battery | Intellisense lithium battery (XBTAED001), non-rechargeable; 4-year standby life; 4-year operational replacement guarantee from installation; shelf life up to 5 years from manufacture; about 420 shocks at 354 J |
| Pads | Intellisense non-polarized pads (adult XELAED001, adult with CPR feedback XELAED002, pediatric XELAED003); 2-year shelf life |
| Rescue data storage | 90 minutes, retrievable by USB |
| Ingress rating | IP55 |
| Dimensions (H x W x D) | 3.4 x 9.0 x 11.8 in (9 x 23 x 30 cm) |
| Weight | 5.7 lb (2.6 kg) with battery and pads |
| Operating temperature | 32 to 122 °F (0 to 50 °C) |
Compatibility and Accessories
- ZOLL Powerheart G5 Intellisense lithium replacement battery
- Replacement pads: Intellisense adult XELAED001, adult with CPR feedback XELAED002, pediatric XELAED003. Contact us to order.
- ZOLL Powerheart surface-mount AED wall cabinet with alarm, strobe and security (50-00392-30)
- Powerheart G5 AED trainer with ICPR adult training pads (190-5020-002) or trainer with adult training pads (190-5020-001)
Documents and Warranty
- ZOLL Powerheart G5 product page
- Powerheart G5 operator's manual (PDF)
- Powerheart G5 specification sheet
- ZOLL AED setup and registration
- Warranty: 6 years standard, extended 2 more years at no cost when the AED is registered with ZOLL
Compare Models
| Model | Shock delivery |
| Powerheart G5 Semi-Automatic (G5S-80C-S) | Rescuer presses the Shock button |
| Powerheart G5 Fully Automatic (G5A-80C-S) | AED delivers the shock without a button press |
Genuine ZOLL (Powerheart) product, sold by The Hospital Equipment Company.
