Description

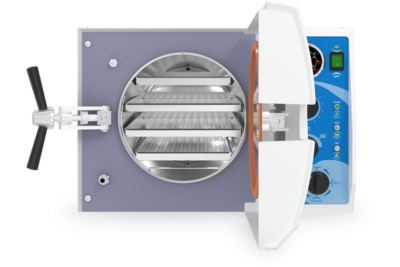

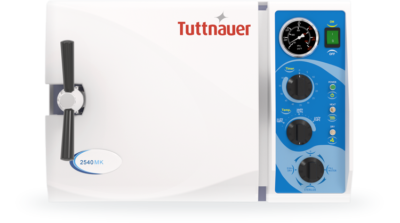

The Tuttnauer 2540MK Kwiklave manual autoclave is the quick-cycle version of the popular 2540, built for the most demanding high-volume practices. Running on 230V power, this tabletop steam sterilizer reduces heat-up time while keeping the full 10" x 19" (23-liter) load capacity, with an 11-minute hot-start cycle.
Key Features
- Quick-cycle 230V design: 11 min hot start, 21 min cold start
- Safe-locking door with a double safety mechanism
- Intuitive, color-coded control panel
- Front drain valve for quick and easy reservoir drainage
- Long-life electropolished chamber and door
- Dual safety thermostat and automatic shut-off for overheating protection
Specifications
| Chamber size | 10" x 19" |
| Chamber volume | 23 liters / 6 gallons |
| External dimensions | 21.5" x 20" x 14.4" |
| Shipping weight | 85 lbs (39 kg) |
| Electrical | 230V, 50/60Hz, 2200W, 10A |
| Tray capacity | 4 trays (16.3" x 6.7" x 0.8") |
| Cassette capacity | 3 full and 3 half cassettes |
| Standard cycle time | 11 min hot start / 21 min cold start |
| Warranty | 1 year parts and labor |
| Standards | ASME, UL/EN 61010-1, FDA, ISO 13485:2003, ISO 9001:2000 |
Requires a 230V electrical circuit.
Ideal For
High-volume medical, dental and veterinary practices with 230V service that need fast turnaround between patients. You get the same chamber size, trays and cassette capacity as the 2540M, with shorter heat-up and cycle times.
