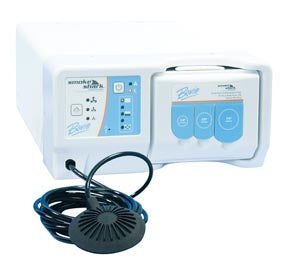

Bovie Smoke Shark II Surgical Smoke Evacuator — SE02 (120V or 220V)

The Bovie Smoke Shark II is a compact, quiet surgical smoke evacuator built for skin and aesthetic centers, med spas, physician offices, clinics and ASCs. It captures plume from any electrosurgical generator, laser or other advanced-energy device through a 4-stage ULPA filter that removes 99.999% of particles 0.1–0.2 µm, and it ships ready to use with a 35-hour filter and pneumatic footswitch.

Features

• 4-stage SF35 filter (pre-filter, ULPA, activated carbon, post-filter), 99.999% efficient at 0.1–0.2 µm
• Covered 3-port filter accepts 1/4" (6.4 mm), 3/8" (9.5 mm) and 7/8" (22 mm) tubing — use a pencil, wand or speculum line
• Three flow settings with variable control; 1000 W motor, 25.69 kPa static suction
• Automatic filter-life indicator: about 35 h on low, 24 h on medium, 18 h on high
• LED display shows filter status, flow and when service is needed
• Quiet operation: 55 dBA maximum
• Hands-free start with the included footswitch, or add the Smart Shark Remote Activator (SERS2) to start automatically when CUT/COAG is pressed
• Works with all electrosurgical generators, plus laser and other advanced-energy plume
• UL listed and CE marked, fuse protected

What's in the box

• Smoke Shark II unit and power cord
• User's guide (MC-23088)
• Pneumatic Footswitch (FSSEP) (1)
• 35-Hour Filter for Smoke Shark II (SF35) (1)

Specifications

Typical setups

• Skin & aesthetic centers, med spas and dermatology: laser resurfacing, hair removal and other laser treatments with Tube 7/8" x 6 ft with Wand Tip, Non-Sterile (SETW) or Laser-Resistant Wand 7/8" x 8" (SELW) on the Arm Stand (SEAS); electrosurgical excisions with the Orca Smoke Evacuation Pencil, 10 ft (ISEP1000); add the Smart Shark Remote Activator (SERS2) so the evacuator starts with the generator
• Electrosurgery: Tube 7/8" x 6 ft, Non-Sterile (786T) or Tube 7/8" x 6 ft with Wand Tip, Non-Sterile (SETW), with Arm Stand (SEAS)
• Pencil evacuation: Orca Smoke Evacuation Pencil, 10 ft (ISEP1000), Pencil Adapter with 3/8" x 4 ft Hose + 7/8" x 6 ft Tube (SEPAT) or Tubing 7/8" x 6 ft Reduced to 3/8" (ValleyLab/IEC) (SEVL) (ValleyLab/IEC pencils)
• OB/GYN: Tube 7/8" x 6 ft, Non-Sterile (786T) or Reducer Fitting 7/8" to 1/4" x 24" (SERF) / Reducer Fitting, Sterile (SERFS)
• Laser: Tube 7/8" x 6 ft, Non-Sterile (786T) and Tube 7/8" x 6 ft with Wand Tip, Non-Sterile (SETW) or Laser-Resistant Wand 7/8" x 8" (SELW), with Arm Stand (SEAS)

Replacement filter & accessories

• 35-Hour Filter for Smoke Shark II (SF35) — replacement filter
• Smart Shark Remote Activator (SERS2) — automatic activation
• Pneumatic Footswitch (FSSEP) — spare footswitch
• Tube 7/8" x 6 ft, Sterile (786TS) and Tube 7/8" x 6 ft with Wand Tip, Sterile (SETWS) — sterile tubing options

Documents

• Smoke Shark II operating manual (PDF)
• Bovie product catalog (PDF)

Why evacuate surgical smoke?

Surgical plume from electrosurgery and lasers can carry particulates, gases and biological material. The ACS, SAGES and AORN all recommend smoke evacuation, and an estimated 500,000 healthcare workers are exposed to surgical smoke each year. See which states now require it →
