Description
Overview

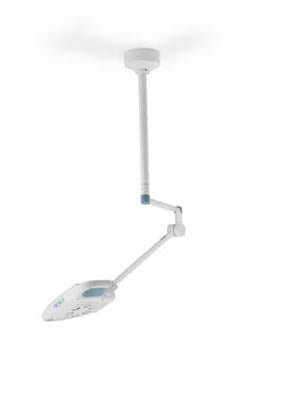

The Welch Allyn Green Series 900 (GS 900) is a six-LED procedure light for procedure rooms, minor surgery and urgent care. This configuration (44900-C) comes with a ceiling mount, keeping the floor clear around the procedure table.
Key Features
- Six white LEDs rated for 50,000 hours.
- Touchless on/off control with dimming: high setting gives 100,000 lux and low setting 75,000 lux at 24 in.
- 9–11 in (23–28 cm) spot at the 24–40 in working distance, with 5,500 K color temperature.
- Up to 37.4 in (95 cm) of vertical travel at the luminaire.
- Optional disposable sheaths (52630) are available.
Configuration and Package Contents
- Configuration 44900-C: GS 900 luminaire with ceiling mount
- Ceiling mount swing/extension arms with hardware kit, operating manual and installation instructions
- Spacer tube with drilling template
- The external transformer shown in the wiring instructions is not supplied.
- Installation must be done by a qualified technician or electrician. The ceiling structure must be checked and certified by a structural engineer for the arm load (spring arm torque up to 30 Nm).
Technical Specifications
| Illuminance, high | 100,000 lux (9,290 fc) at 24 in; 55,000 lux (5,109 fc) at 40 in |
| Illuminance, low | 75,000 lux (6,967 fc) at 24 in; 40,000 lux (3,716 fc) at 40 in |
| Working distance | 24–40 in (61–100 cm) |
| Spot size | 9–11 in (23–28 cm) |
| Color temperature | 5,500 K |
| Light source | 6 white LEDs, 50,000-hour life |
| Input power | 100–240 V~, 50–60 Hz, 1.00 A max; 8 ft (2.5 m) 3-wire grounded cord |
| Luminaire (H x W x D) | 13.74 x 18.03 x 4.02 in (34.9 x 45.8 x 10.2 cm) |
| Ceiling to luminaire center | 68.9 in (175 cm) |
| Vertical travel | Up to 37.4 in (95 cm) |
| Ceiling height | Spacer tube fits 8–10 ft ceilings; it ships set for 10 ft and can be cut down for 8 ft |
| Weight | 24.50 lb (11.11 kg) |
Compatibility and Accessories
- Welch Allyn GS 600/900 disposable sheaths, 100/box, 5 boxes/case (52630)
- GS 900 Procedure Light, wall mount (44900-W) for wall installation
- GS 900 Procedure Light, mobile stand (44900) for a movable light
Documents and Warranty
- GS 900 Procedure Light cut sheet (PDF)
- Welch Allyn Green Series medical exam lighting brochure (PDF)
- GS 900 ceiling mount assembly guide (PDF)
- Ondal wall/ceiling mount installation instructions for GS 900 (PDF)
- GS 900 product document (PDF)
- Warranty: 5-year limited
Compare Models
| Model | Mounting |
| GS 900, ceiling mount (44900-C) | Ceiling |
| GS 900, wall mount (44900-W) | Wall |
| GS 900, mobile stand (44900) | Mobile stand |
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
