Description
Overview

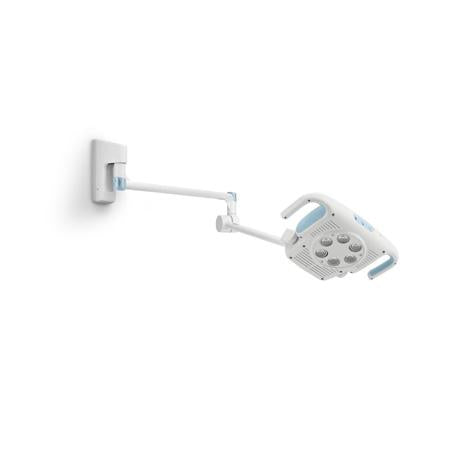

The Welch Allyn Green Series 900 (GS 900) is a six-LED procedure light for ambulatory care centers, ER and ICU, OB/GYN, labor and delivery, outpatient facilities and urgent care. This configuration (44900-W) comes with a wall mount that keeps the floor clear.
Key Features
- Six 5,500 K white LEDs give bright, uniform illumination of the procedure field.
- Touchless on/off with dimming keeps the user from touching the housing during a procedure.
- 9–11 in (23–28 cm) spot over a 24–40 in working distance suits minor surgery and larger fields.
- 50,000-hour LED life and lower energy use than halogen, with no bulbs to replace.
Configuration and Package Contents
- Part number 44900-W: GS 900 Procedure Light with wall mount (spring arm and extension arm, wall bearing and mounting parts).
- Wall anchors are not included. For lightweight walls, Welch Allyn recommends a counter-plate, which is not supplied.
- Installation must be done by a hospital technician or other qualified person. The wall structure must be checked and certified by a structural engineer for the arm load (spring arm torque up to 39 Nm).
- Disposable sheaths (52630) sold separately.
Technical Specifications
| Illuminance, high | 100,000 lux (9,290 fc) at 24 in; 55,000 lux (5,109 fc) at 40 in |
| Illuminance, low | 75,000 lux (6,967 fc) at 24 in; 40,000 lux (3,716 fc) at 40 in |
| Working distance | 24–40 in (61–100 cm) |
| Spot size | 9–11 in (23–28 cm) |
| Color temperature | 5,500 K |
| Light source | 6 white LEDs, 50,000-hour life |
| Electrical | 100–240 V~, 50–60 Hz, 1.00 A max |
| Power cord | 8 ft (2.5 m), 3-wire grounded, #18 AWG |
| Luminaire (H x W x D) | 13.74 x 18.03 x 4.02 in (34.9 x 45.8 x 10.2 cm) |
| Vertical travel | 37.4 in (95 cm) |
| Wall to luminaire center | 68.9 in (175 cm) |
| Weight | 17.90 lb (8.12 kg) |
| Warranty | 5-year limited |
Compatibility and Accessories
- Disposable sheaths: Welch Allyn GS 600/900 Disposable Sheath, 5 boxes/case (52630)
- Service part: Welch Allyn Green Series 900 Rectifier Board Assembly (404564)
Documents and Warranty
- Green Series 900 Procedure Light product sheet (PDF)
- Green Series Medical Exam Lighting brochure (PDF)
- Green Series 900 product page (Baxter catalog)
- Warranty: 5-year limited (Welch Allyn GS 900 product sheet).
Compare Models
| GS 900 with mobile stand (44900) | Rolls between rooms; 68.9 in (175 cm) stand height; 44.85 lb (20.34 kg). |
| GS 900 with wall mount (44900-W) | Fixed wall installation; 68.9 in (175 cm) wall to luminaire center; 17.90 lb (8.12 kg). |
| GS 900 with ceiling mount (44900-C) | Ceiling installation, keeps floor clear; 24.50 lb (11.11 kg). |
| GS 600 Minor Procedure Light (44600) | Three LEDs, 75,000 lux at 12 in, 12–20 in working distance, lower cost for exam and minor procedures. |
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
