Description
Overview

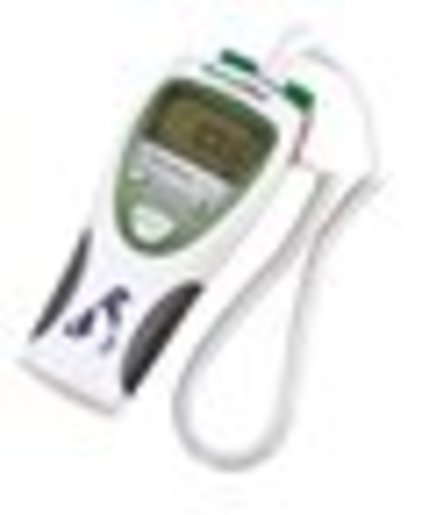

The Welch Allyn SureTemp Plus 690 (01690-201V) is a handheld electronic thermometer offered to veterinarians, supplied with a rectal probe on a 4 ft cord and a rectal probe well. It takes a rectal temperature in about 10 to 13 seconds and uses standard SureTemp disposable probe covers.
Key Features
- Rectal reading in about 10 to 13 seconds
- Interchangeable rectal probe and well help reduce the risk of cross-contamination
- Push-button probe cover ejection, with storage for 25 probe covers on the unit
- Recall button shows the last temperature; C/F button switches between Celsius and Fahrenheit
- Large LCD, rubberized grips and a battery-life indicator
Configuration and Package Contents
- Part number: 01690-201V
- SureTemp Plus 690 thermometer
- Rectal probe with 4 ft cord
- Rectal probe well
- Wall mount not included (the wall-mount version with 9 ft cord is 01690-301V)
- Probe covers sold separately
- US only
Technical Specifications
| Rectal measurement time | About 10 to 13 seconds |
| Patient temperature range | 80°F to 110°F (26.7°C to 43.3°C) |
| Calibration accuracy | ±0.2°F (±0.1°C), Monitor mode |
| Operating temperature | 50°F to 104°F (10°C to 40°C) |
| Power | 3 AA 1.5 V batteries |
| Battery life | About 6,000 temperatures |
| Dimensions | 8.46 x 3.18 x 2.43 in |
| Weight | 12.6 oz (357 g) |
| Probe cord | 4 ft |
Compatibility and Accessories
- SureTemp disposable probe covers, 7,500/case (05031-750)
- SureTemp probe covers 05031-101 (case of 1,000, 25 per box): contact us to order
- Wall-mount version 01690-301V (9 ft cord, wall mount with storage for 50 more probe covers): contact us to order
Documents and Warranty
- Welch Allyn SureTemp Plus 690 for veterinarians, spec sheet with ordering information (PDF)
- Welch Allyn Animal Health product catalog (PDF)
- SureTemp Plus 690 and 692 service manual (PDF)
- Warranty: 2-year limited on the instrument, 1-year limited on the probe, 90-day limited on the probe well (Welch Allyn)
Compare Models
- 01690-201V (this listing): veterinary, rectal probe, 4 ft cord
- 01690-201: rectal probe and well
- 01690-400: wall mount, oral probe and well
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
