Description

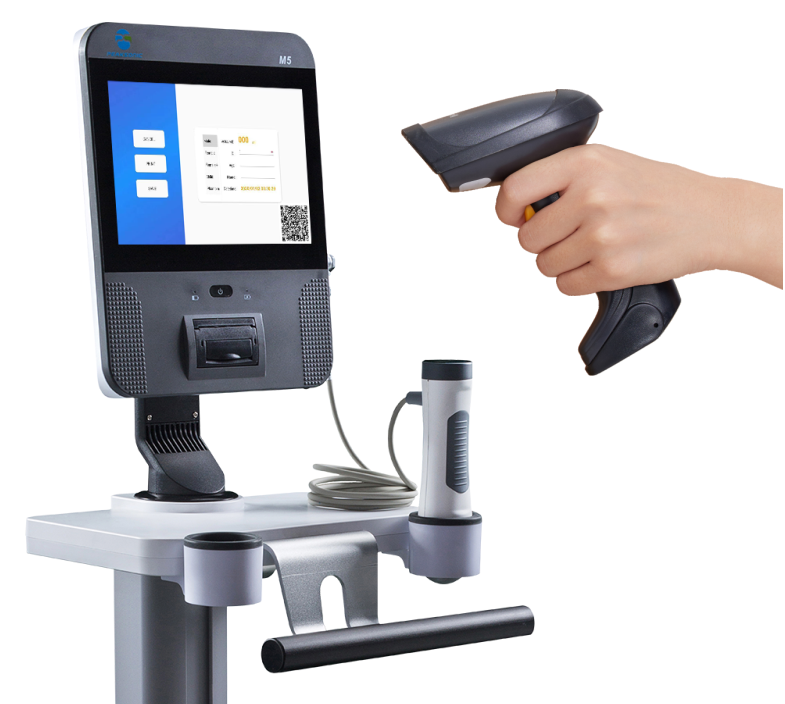

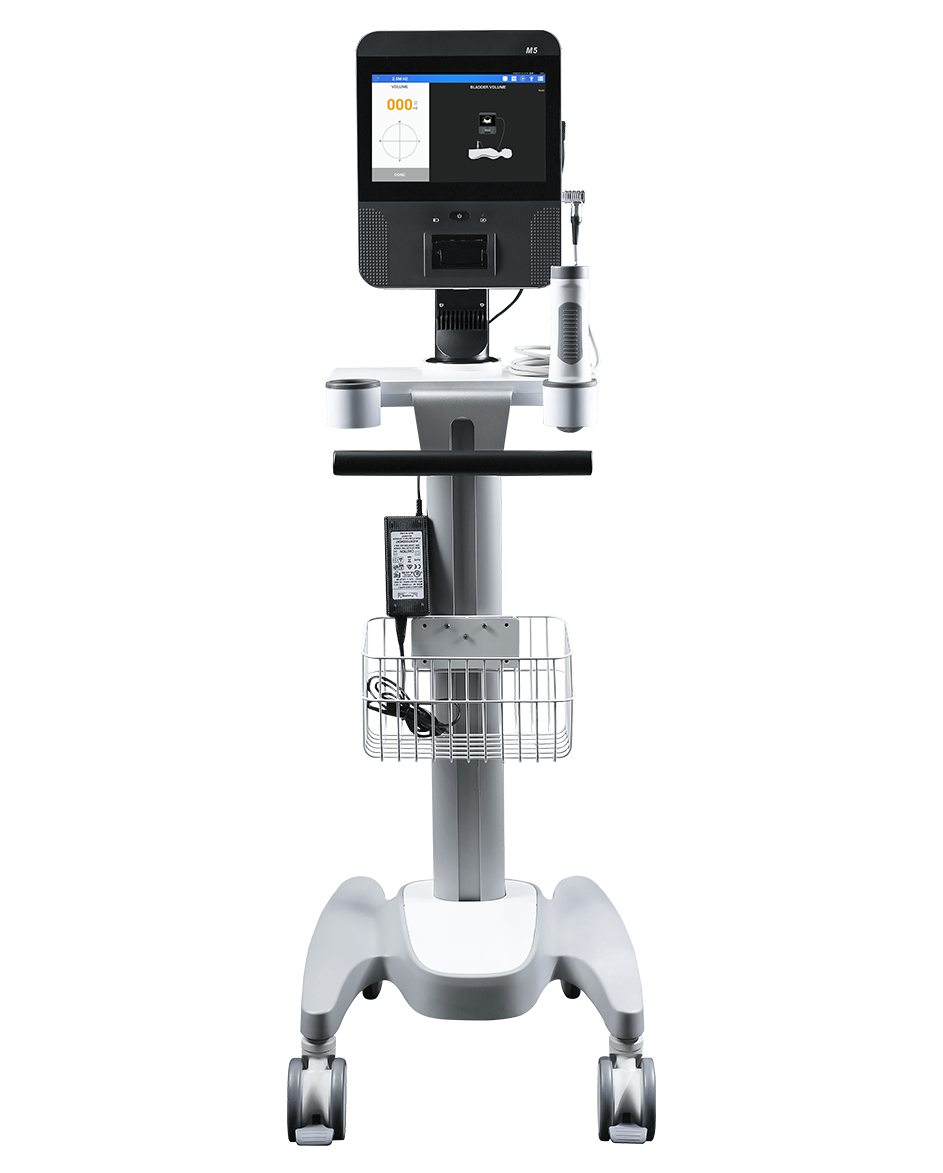

The MDPro M5 Bladder Scanner is a cart-based bladder scanner with a touchscreen display and a built-in thermal printer. It ships with a wired probe that carries its own second display screen, plus a rolling medical stand, so clinicians can scan, read and print results at the bedside. The M5 succeeds the MDPro MD5 in the MDPro bladder scanner line.
Key Features
- Bladder volume and wall thickness: Measures both bladder volume and bladder wall thickness.
- ±7% accuracy: No annual calibration required.
- Pubic bone interference indicator: Helps the operator recognize when the pubic bone is affecting the scan.
- Automatic patient type selection.
- Touchscreen display on the main unit, plus a second display screen on the probe.
- Built-in thermal printer for hard-copy results.
Specifications
- Accuracy: ±7%
- Calibration: No annual calibration required
- Measurements: Bladder volume, bladder wall thickness
- Battery: Li-ion, 11.1V, 3200 mAh
- Printer: Built-in thermal printer
What's Included
- M5 main unit with touchscreen display
- Built-in thermal printer (8628.2100801)
- M5 bladder scanner probe (wired, with viewing screen)
- Thermal paper for MDPro bladder scanners (BS.Paper)
- Charging cord (8628.0204901)
- Battery, 3200 mAh 11.1V (8628.17007)
- Charging base (8628.17008)
- M5 rolling stand with lower basket and probe holders
- 50 ml bottle of ultrasound gel
Related Part Numbers
- M5_Probe – M5 bladder scanner probe with viewing screen
- M5_Battery – M5 Li-ion battery (11.1V 3200 mAh)
- M5_Charger – Power cord for M5 charger (connects directly to the battery)
- BS.Paper – Thermal paper for MDPro bladder scanners, 57 mm x 5 m, pack of 5 rolls
- M5_EXT – Extended warranty, 1 additional year (up to 3 additional years available)
- M5_ext5year – M5 bladder scanner with extended warranty for 5 years total coverage
- M5_Loaner – Loaner program for the M5 during repairs
- MD5 – Previous-generation MDPro bladder scanner
Genuine MDPro product, sold by The Hospital Equipment Company.
