Description
Overview

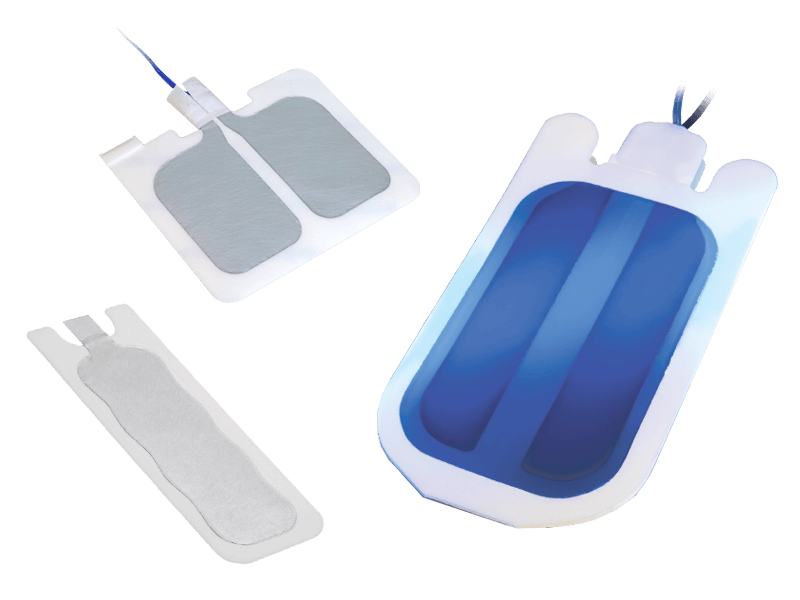

The ConMed MacroLyte premie single-foil dispersive electrode is a single-use electrosurgical patient return pad for patients <5 kg. MacroLyte is ConMed’s cost-effective dispersive electrode line, and this version comes with a 10 ft (3.05 m) cable already attached.
Key Features
- Adhesive hydrogel holds the pad in place on the patient’s skin
- Thin foam backing conforms to the body for consistent skin contact
- Scalloped edges help the pad follow body contours
- Single-use pad, so there is no cleaning or reprocessing between patients
Configuration and Package Contents
- ConMed catalog # 440-2400
- Premie, single-foil pad, for patients <5 kg
- Pre-attached 10 ft (3.05 m) cable
- Sold by the case: 40 electrodes per case (10 per box, 1 per package)
- Single use
Technical Specifications
| Catalog number | 440-2400 |
| Product line | MacroLyte |
| Patient size | Premie |
| Foil configuration | Single |
| Patient weight | <5 kg |
| Cable | 10 ft (3.05 m), pre-attached |
| Packaging | 40/case, 10/box, 1/package |
| Use | Single use |
Compatibility and Accessories
- Cable is pre-attached; no separate grounding pad cable is needed
- ConMed MacroLyte adult single dispersive electrode, no cable (400-2349)
- ConMed SureFit dual dispersive electrode, 10 ft cable (410-2000)
- ConMed ThermoGard adult dual dispersive electrode, 10 ft cable (51-7310)
Documents and Warranty
- ConMed MacroLyte, SureFit and ThermoGard dispersive electrodes product page
- ConMed SureFit and MacroLyte dispersive electrodes brochure (PDF)
Compare Models
| Model | Type | Patient weight | Cable | Per case |
| 400-2349 | Adult single | >15 kg | None (reusable cable T229) | 100 (50/box) |
| 400-2100 | Adult single | >15 kg | 10 ft (3.05 m), pre-attached | 100 (25/box) |
| 425-2200 | Pediatric single | 5–15 kg | 10 ft (3.05 m), pre-attached | 100 (25/box) |
| 425-2508 | Pediatric dual | 5–15 kg | 10 ft (3.05 m), pre-attached | 100 (25/box) |
| 450-2300 | Infant single | Contact us to confirm | 10 ft (3.05 m), pre-attached | 60 (15/box) |
| 440-2400 | Premie single | <5 kg | 10 ft (3.05 m), pre-attached | 40 (10/box) |
Genuine ConMed product, sold by The Hospital Equipment Company.
