Description
Certified ADA Compliant: Corada Platinum Certified
The 2622KL meets the MDE standards for both wheelchair scales (32" x 40" platform, 2" edge protection, 1:8 slope) and stand-on scales (slip-resistant platform, handrail within 34" to 38"). Health o meter Professional is the only manufacturer with a full portfolio of independently certified ADA compliant scales. Certified is not the same as "ADA-friendly," and that difference matters in audits, inspections and accreditation reviews.
U.S. Access Board MDE standards: key deadlines
- New equipment bought since July 8, 2024 (HHS-funded providers) or October 8, 2024 (state and local governments) must meet the standards until the facility reaches its required share.
- By July 8, 2026 (HHS) and August 9, 2026 (DOJ), each facility needs at least one accessible exam table or chair and one accessible weight scale.
- Ongoing, at least 10% of each type of equipment, and no fewer than one unit, must be accessible (20% for mobility-focused rehabilitation facilities).
Learn more about the MDE standards | Shop all ADA compliant scales

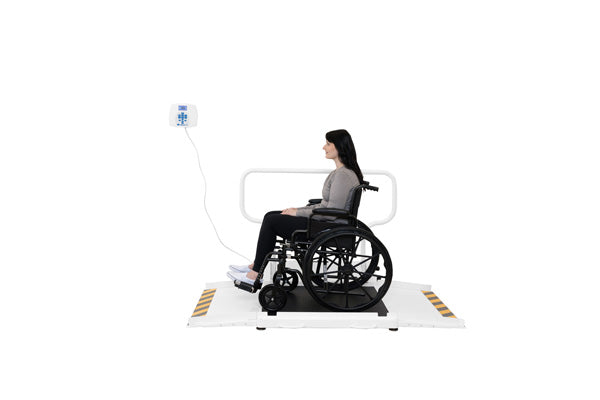

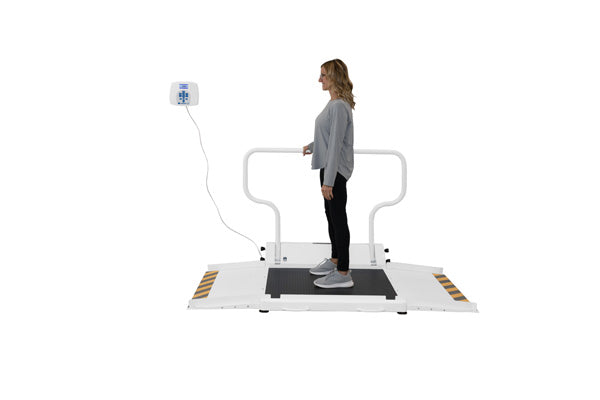

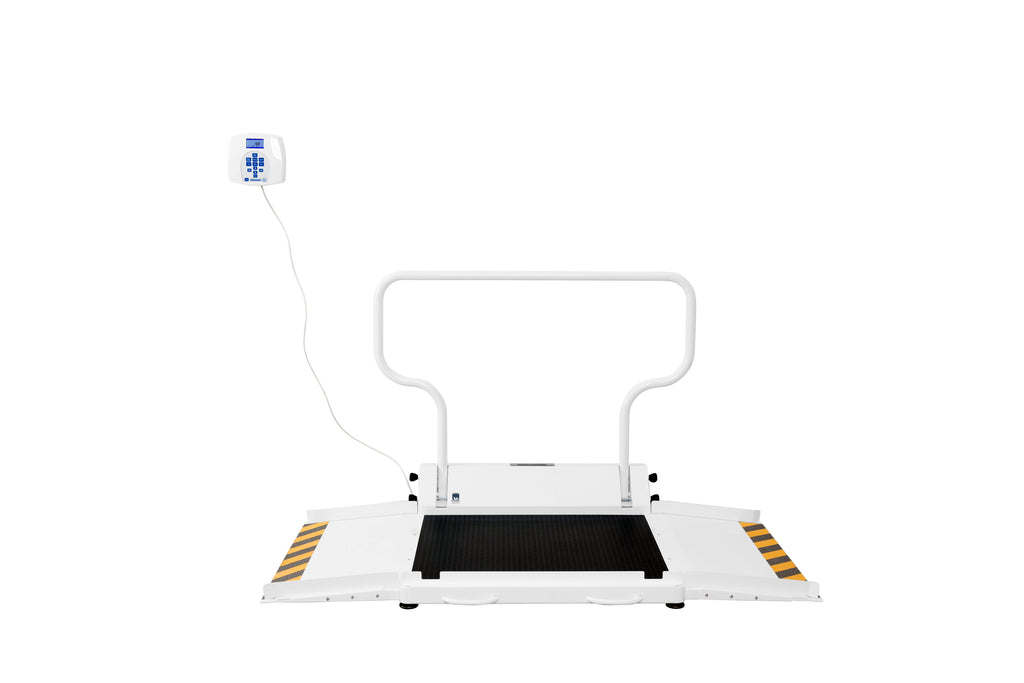

The Health o meter 2622KL is a newer ADA-compliant scale that weighs both wheelchair users and standing patients, combining the extra-large 40" x 32.25" dual-ramp platform of the 2620KL with an extended antimicrobial handrail and a wall-mountable display. It has a 1000 lb (454 kg) capacity, is Platinum certified by Corada, and folds on built-in casters for storage.
Features
- ADA compliant for both wheelchair and stand-on weighing; Platinum certified by Corada
- 1000 lb / 454 kg capacity with 0.2 lb / 0.1 kg resolution
- Extra-large 40" x 32.25" low-profile platform with 2" edge protection
- Dual ramps with 1:8 slope and anti-slip caution tape
- Extended handrail (about 37.5" high) for standing-patient stability
- Antimicrobial keypad and handrail
- Display head can be wall-mounted for flexible positioning

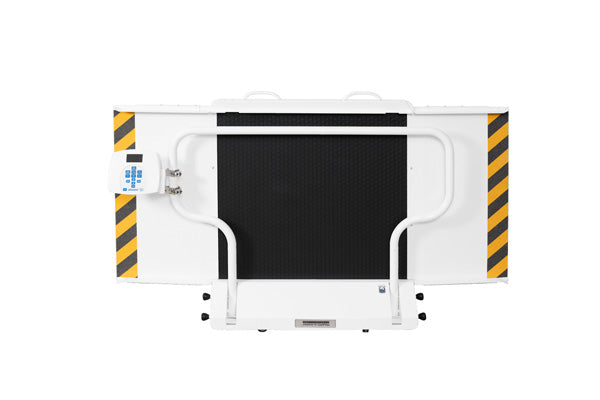

- Foldable platform with 4 wheels (2 casters)
- EMR connectivity via USB or optional Pelstar wireless
Available Part Numbers
| Part # | Units |
|---|---|
| 2622KL | lb/kg |
| 2622KG | kg only |
Specifications
| Capacity | 1000 lb / 454 kg |
|---|---|
| Resolution | 0.2 lb / 0.1 kg |
| Display | 2.75" x 1.5" high-contrast color TFT-LCD, 3/8" digits |
| Platform Size | 40" W x 32.25" D x 1.875" H (1016 x 819 x 48 mm) |
| Ramps | Dual, each 32.25" x 16" (819 x 406 mm), 1:8 slope |
| Edge Guard | 40" W x 0.125" D x 2" H |
| Handrail Height | 37.5" (952 mm) |
| Operating Footprint | 71.5" W x 45.125" D x 39.5" H (1816 x 1147 x 1003 mm) |
| Folded Footprint | 71.5" W x 9.5" D x 44" H (1816 x 241 x 1118 mm) |
| Product Weight | 126 lb / 57 kg |
| Power | 100-240V adapter (ADPT30) included; 6 D batteries not included |
| Connectivity | USB; optional Pelstar wireless |
| Portability | 4 wheels (2 casters) |
| Functions | LB/KG conversion, LB/KG lock-out, BMI, zero, tare, pre-tare, hold/release, reweigh, recall, auto zero, auto off, time/date, variable auto-off time, audible/mute sound option, parent/child weighing, Everlock |
| Certifications | ADA compliant, Corada Platinum |
| Warranty | 2-year limited manufacturer warranty |
What's Included
- ADA wheelchair/stand-on scale with dual ramps, handrail and edge guards
- Display head (wall-mountable)
- 100-240V power adapter (ADPT30)
Extended Warranty
Add Health o meter ScaleSurance to extend coverage by two years; see the ScaleSurance Extended Warranty listing for the matching part number.
Genuine Health o meter Professional product, sold by The Hospital Equipment Company.
