Description
Overview

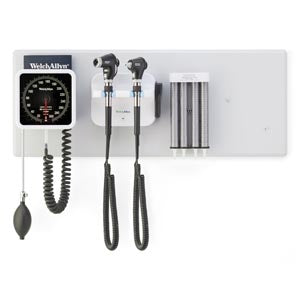

The Welch Allyn Green Series 777 Integrated Wall System mounts powered physical exam instruments on the exam-room wall so they are charged, organized and ready for every patient. This configuration (777-PM3WAX-US) combines the PanOptic Plus ophthalmoscope and MacroView Plus otoscope for iExaminer with a wall aneroid blood pressure gauge and an ear specula dispenser. Welch Allyn lists it as the premium replacement for the legacy 77792-M wall system.
Key Features
- PanOptic Plus ophthalmoscope with Quick Eye alignment technology gives a wide view of the fundus and helps locate the optic disc quickly.
- MacroView Plus LED otoscope for iExaminer gives a bright white view of the ear canal and can capture images with a smartphone and the iExaminer SmartBracket.
- Wall aneroid sphygmomanometer for manual blood pressure readings at the same station.
- LumiView clear single-use ear specula are dispensed fresh for each exam, which reduces cross-contamination risk.
- Handle-activated power: lifting a handle from its cradle turns that instrument on and returning it turns it off, which saves energy and lamp life.
- Handle-based rheostats adjust light intensity with one hand.
- Modular coiled cords, 12 ft extended, built for daily exam-room use.
Configuration and Package Contents
- Part number 777-PM3WAX-US.
- Includes: PanOptic Plus LED ophthalmoscope, MacroView Plus LED otoscope for iExaminer, blood pressure aneroid, ear specula dispenser, on the GS 777 integrated wall system.
- iExaminer SmartBracket sold separately.
- US configuration.
Technical Specifications
| Instrument power | Powers Welch Allyn 3.5 V instruments; one instrument powered at a time |
| Electrical input | 100–240 V AC, 50–60 Hz |
| Output | 5 V DC |
| Coiled cords | 12 ft extended |
| Operating environment | 59–104 °F (15–40 °C), 15–95% relative humidity |
| Materials | ABS and elastomer rubber, non-latex |
| Safety class | Class II, intermittent operation |
| Installed size | 30.00 in W x 11.75 in H |
Compatibility and Accessories
- Replacement heads: PanOptic Plus Ophthalmoscope, head only (118-3-US) and MacroView Plus Otoscope for iExaminer, head only (238-3)
- Smartphone imaging: iExaminer SmartBracket (11840-IEX-US)
- Ear specula: LumiView Clear Ear Specula, adult 4.25 mm (52434-CLR-1) and pediatric 2.75 mm (52432-CLR-1)
- Replacement aneroid: Welch Allyn 767 Wall Aneroid Sphygmomanometer, adult cuff (7670-01)
- Power cord kit: Green Series 777 Wall System Power Cord, US (PWCD-GS777-B)
Documents and Warranty
- Welch Allyn GS 777 Wall Transformer instructions for use (PDF)
- Green Series 777 Integrated Wall Systems and Transformers flyer (PDF)
- Green Series 777 Integrated Wall System product page (Baxter)
- Welch Allyn notice listing 777-PM3WAX-US contents (PDF)
- Warranty: the GS 777 wall transformer carries a 5-year limited warranty (GS 777 IFU). Instrument heads are covered by their own Welch Allyn warranties.
Compare Models
| Model | Instrument heads | Wall components |
| 777-PM2XXX-US | PanOptic Basic + MacroView Basic | Transformer only |
| 777-PM2WCX-US | PanOptic Basic + MacroView Basic | Mounting location for Connex Spot Monitor or Spot 4400 (monitor sold separately) |
| 777-PM2WAX-US | PanOptic Basic + MacroView Basic | Wall aneroid blood pressure, ear specula dispenser |
| 777-PM3XXX-US | PanOptic Plus + MacroView Plus for iExaminer | Transformer only, iExaminer SmartBracket |
| 777-PM3WXX-US | PanOptic Plus + MacroView Plus for iExaminer | Ear specula dispenser |
| 777-PM3WAX-US (this listing) | PanOptic Plus + MacroView Plus for iExaminer | Wall aneroid blood pressure, ear specula dispenser |
| 777-PM3WXS-US | PanOptic Plus + MacroView Plus for iExaminer | SureTemp Plus thermometer |
| 777-PM3WCX-US | PanOptic Plus + MacroView Plus for iExaminer | Mounting location for Connex Spot Monitor or Spot 4400 (monitor sold separately), ear specula dispenser |
| 777-SM2XXX | Coaxial LED ophthalmoscope + MacroView Basic | Transformer only |
| 77710 | None (order heads separately) | Transformer only |
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
