Description
Overview

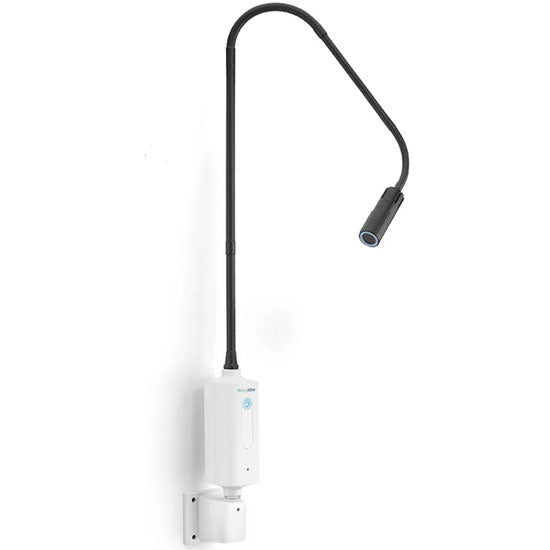

The Welch Allyn Green Series Exam Light IV is a single-LED exam light on a long, flexible light pipe for the physician's office, hospital and specialist's office. This configuration (48810) comes with a table/wall mount for fixed installation beside the exam table.
Key Features
- One white LED rated for 50,000 hours, so there are no bulbs to replace.
- Focusing sleeve adjusts the sharp-edged spot from 4 to 10 in at the 16 in working distance, from a tight spot to a wide field.
- 5,500 K white light at 20,000 lux (1,858 fc) for accurate tissue color.
- Long, flexible light pipe positions the light where it is needed and stays put.
Configuration and Package Contents
- Part number 48810: GS Exam Light IV with table/wall mount.
- The mount must be securely anchored to the wall or table before the light is attached.
- Sold separately: mobile stand (48950), 12 in wall mount extension (44215), Midmark exam-table adapter plate (48956), disposable sheaths (52640).
Technical Specifications
| Illuminance | 20,000 lux (1,858 fc) |
| Working distance | 16 in (40 cm) |
| Spot size | Adjustable, 4–10 in (10–25 cm) at 16 in |
| Color temperature | 5,500 K |
| Light source | 1 white LED, 50,000-hour life |
| Electrical | 100–240 V~, 50–60 Hz, 0.30 A max |
| Power cord | 8 ft (2.5 m), 3-wire grounded |
| Total height (wall mount) | 47.24 in (120 cm) |
| Mount to luminaire center | 49.61 in (126 cm) |
| Weight | 5.30 lb (2.40 kg) |
| Operating temperature | 50–95 °F (10–35 °C) |
| Warranty | 5-year limited |
Compatibility and Accessories
- Mobile stand: Welch Allyn Green Series Mobile Stand for GS Exam Light IV (48950)
- Replacement mount: Welch Allyn Green Series Table/Wall Mount (48955)
- Replacement focusing sleeve: Welch Allyn GS Exam Light IV Focusing Sleeve (48805)
- Disposable sheaths: Welch Allyn disposable sheaths, 25/box, 5 boxes/case (52640)
Documents and Warranty
- Green Series Medical Exam Lighting brochure (PDF)
- Green Series Exam Light IV product page (Baxter catalog)
- Warranty: 5-year limited (Welch Allyn Green Series lighting brochure).
Compare Models
| GS Exam Light IV (48810) | 1 LED, 16 in working distance, adjustable 4–10 in spot, flexible light pipe. |
| GS 300 General Exam Light, table/wall (44410) | 1 LED, 12–20 in working distance. |
| GS 600 Minor Procedure Light, table/wall (44610) | 3 LEDs, 75,000 lux at 12 in, for minor procedures. |
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
