Description
Overview
The Welch Allyn Green Series 600 (GS 600) is a three-LED minor procedure and exam light for primary care, outpatient facilities, emergency rooms, dermatology and urgent care.

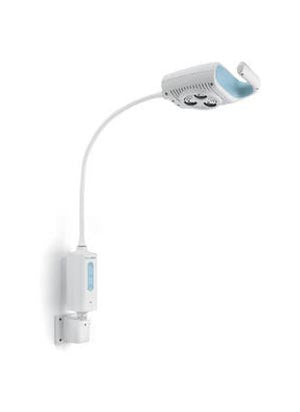

This configuration (44610) comes with a table/wall mount for fixed installation beside the exam table or procedure chair.
Key Features
- Three white LEDs give brighter, whiter light than halogen with low heat output, so the field stays comfortable for patient and clinician.
- Touchless on/off with dimming lets the user switch and adjust the light without touching the housing.
- Wide head gives an even 6–7 in (15–18 cm) spot across the 12–20 in working distance.
- 50,000-hour LED life and lower energy use mean no bulbs to stock or replace.
Configuration and Package Contents
- Part number 44610: GS 600 Minor Procedure Light with table/wall mount.
- The mount must be securely anchored to the wall or table before the light is attached.
- Sold separately: 12 in wall mount extension (44215), 36 in Heavy Duty/Tall Mobile Stand (48960), disposable sheaths (52630).
Technical Specifications
| Illuminance, high | 75,000 lux (6,967 fc) at 12 in; 40,000 lux (3,716 fc) at 20 in |
| Illuminance, low | 55,000 lux (5,109 fc) at 12 in; 30,000 lux (2,787 fc) at 20 in |
| Working distance | 12–20 in (30.5–50 cm) |
| Spot size | 6–7 in (15–18 cm) |
| Color temperature | 5,500 K |
| Light source | 3 white LEDs, 50,000-hour life |
| Electrical | 100–240 V~, 50–60 Hz, 0.65 A max |
| Power cord | 8 ft (2.5 m), 3-wire grounded, #18 AWG |
| Luminaire (H x W x D) | 13.58 x 7.56 x 3.39 in (34.5 x 19.2 x 8.6 cm) |
| Control box (H x W x D) | 10.83 x 3.94 x 3.15 in (27.5 x 10.0 x 8.0 cm) |
| Mount/stand to luminaire center | 31.1 in (79 cm) |
| Total height (wall mount) | 33.27 in (84.5 cm) |
| Weight | 6.45 lb (2.93 kg) |
| Warranty | 5-year limited |
Compatibility and Accessories
- Disposable sheaths: Welch Allyn GS 600/900 Disposable Sheath, 5 boxes/case (52630)
- Taller stand option: Welch Allyn Green Series Heavy Duty/Tall Mobile Stand, 36 in (48960)
- Replacement mount: Welch Allyn Green Series Table/Wall Mount (48955)
Documents and Warranty
- Green Series 600 Minor Procedure Light cut sheet (PDF)
- Green Series Medical Exam Lighting brochure (PDF)
- Green Series 600 product page (Baxter catalog)
- Warranty: 5-year limited (Welch Allyn Green Series lighting brochure).
Compare Models
| GS 600 with mobile stand (44600) | Standard 24 in (61 cm) mobile stand, 58.66 in (149 cm) total height, 17.35 lb (7.87 kg). Moves between rooms. |
| GS 600 with table/wall mount (44610) | Fixed table or wall installation, 33.27 in (84.5 cm) total height, 6.45 lb (2.93 kg). Can be paired with the 36 in Heavy Duty/Tall Mobile Stand (48960). |
| GS 900 Procedure Light (44900) | Six LEDs, 100,000 lux at 24 in, 24–40 in working distance, for larger procedure fields. |
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
