Description
Overview
The Welch Allyn Green Series 600 (GS 600) is a three-LED minor procedure and exam light for primary care, outpatient facilities, emergency rooms, dermatology and urgent care.
This configuration (44600) ships on the standard 24 in (61 cm) mobile stand, so one light can be rolled between exam and procedure rooms.
Key Features
- Three white LEDs give brighter, whiter light than halogen with low heat output, so the field stays comfortable for patient and clinician.

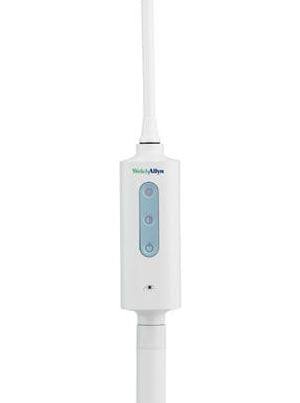

- Touchless on/off with dimming lets the user switch and adjust the light without touching the housing.
- Wide head gives an even 6–7 in (15–18 cm) spot across the 12–20 in working distance.
- 50,000-hour LED life and lower energy use mean no bulbs to stock or replace.
Configuration and Package Contents
- Part number 44600: GS 600 Minor Procedure Light with mobile stand.
- Ships with the standard 24 in (61 cm) mobile stand (20.87 in / 53 cm base diameter).
- For the 36 in Heavy Duty/Tall Mobile Stand (48960), order the table/wall-mount version (44610) and add 48960.
- Disposable sheaths (52630) sold separately.
Technical Specifications
| Illuminance, high | 75,000 lux (6,967 fc) at 12 in; 40,000 lux (3,716 fc) at 20 in |
| Illuminance, low | 55,000 lux (5,109 fc) at 12 in; 30,000 lux (2,787 fc) at 20 in |
| Working distance | 12–20 in (30.5–50 cm) |
| Spot size | 6–7 in (15–18 cm) |
| Color temperature | 5,500 K |
| Light source | 3 white LEDs, 50,000-hour life |
| Electrical | 100–240 V~, 50–60 Hz, 0.65 A max |
| Power cord | 8 ft (2.5 m), 3-wire grounded, #18 AWG |
| Luminaire (H x W x D) | 13.58 x 7.56 x 3.39 in (34.5 x 19.2 x 8.6 cm) |
| Control box (H x W x D) | 10.83 x 3.94 x 3.15 in (27.5 x 10.0 x 8.0 cm) |
| Mount/stand to luminaire center | 31.1 in (79 cm) |
| Mobile stand | 24.02 in (61 cm) high, 20.87 in (53 cm) base diameter |
| Total height | 58.66 in (149.0 cm) |
| Weight | 17.35 lb (7.87 kg) |
| Warranty | 5-year limited |
Compatibility and Accessories
- Disposable sheaths: Welch Allyn GS 600/900 Disposable Sheath, 5 boxes/case (52630)
- Taller stand option: Welch Allyn Green Series Heavy Duty/Tall Mobile Stand, 36 in (48960)
Documents and Warranty
- Green Series 600 Minor Procedure Light cut sheet (PDF)
- Green Series Medical Exam Lighting brochure (PDF)
- Green Series 600 product page (Baxter catalog)
- Warranty: 5-year limited (Welch Allyn Green Series lighting brochure).
Compare Models
| GS 600 with mobile stand (44600) | Standard 24 in (61 cm) mobile stand, 58.66 in (149 cm) total height, 17.35 lb (7.87 kg). Moves between rooms. |
| GS 600 with table/wall mount (44610) | Fixed table or wall installation, 33.27 in (84.5 cm) total height, 6.45 lb (2.93 kg). Can be paired with the 36 in Heavy Duty/Tall Mobile Stand (48960). |
| GS 900 Procedure Light (44900) | Six LEDs, 100,000 lux at 24 in, 24–40 in working distance, for larger procedure fields. |
Genuine Welch Allyn product, sold by The Hospital Equipment Company.
