Description

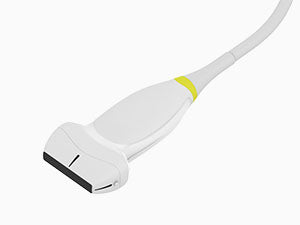

The Edan L12-5Q is a 38 mm, 128-element linear array transducer for the Edan Acclarix AX series diagnostic ultrasound systems. It is designed for high-frequency superficial imaging in small parts, peripheral vascular and musculoskeletal exams.
Key Features
- Linear array, 128 elements on a 38 mm footprint.
- 5-12 MHz bandwidth (-6 dB) for superficial imaging.
- Clinical applications: Small parts, peripheral vascular, musculoskeletal.
- Biopsy guide support with optional in-plane and out-of-plane needle guide brackets.
Specifications
- Transducer type: Linear array
- Footprint: 38 mm
- Elements: 128
- Bandwidth: 3-13 MHz (-20 dB); 5-12 MHz (-6 dB)
- Display depth: up to 11 cm
- Max PW velocity (±60°): 4.7 m/s
- Cable length: 2 m
- Biopsy guide: Yes (BGK-002: 38°, 46°, 58°, 14G-23G; BGK-003: 1.0 / 1.5 / 2.0 cm, 21G)
Compatibility
- Edan Acclarix AX2
- Edan Acclarix AX3
- Edan Acclarix LX9
What's Included
- One (1) Edan L12-5Q linear array transducer
Related Part Numbers
- 02.01.215192 – Needle guide bracket BGK-002 for L12-5Q (in-plane)
- 02.01.215193 – Needle guide bracket BGK-003 for L12-5Q (out-of-plane)
- 02.01.210407 – Needle guide bracket BGK-L40UB for L12-5Q
- L17-7HQ, L17-7SQ – Edan Acclarix high-frequency linear array transducers
- C5-2Q, P5-1Q, E8-4Q, MC8-4Q – Other Edan Acclarix AX series transducers
Genuine Edan product, sold by The Hospital Equipment Company.
