Description
Detecto Solace series in-floor dialysis scales are flush-mounted platform scales that let patients roll or walk directly onto the weighing surface, eliminating tripping hazards and ramps. Their 1,000 lb capacity accommodates walkers, wheelchairs and dialysis chairs, making them a dependable dialysis scale for dialysis centers and hospitals.

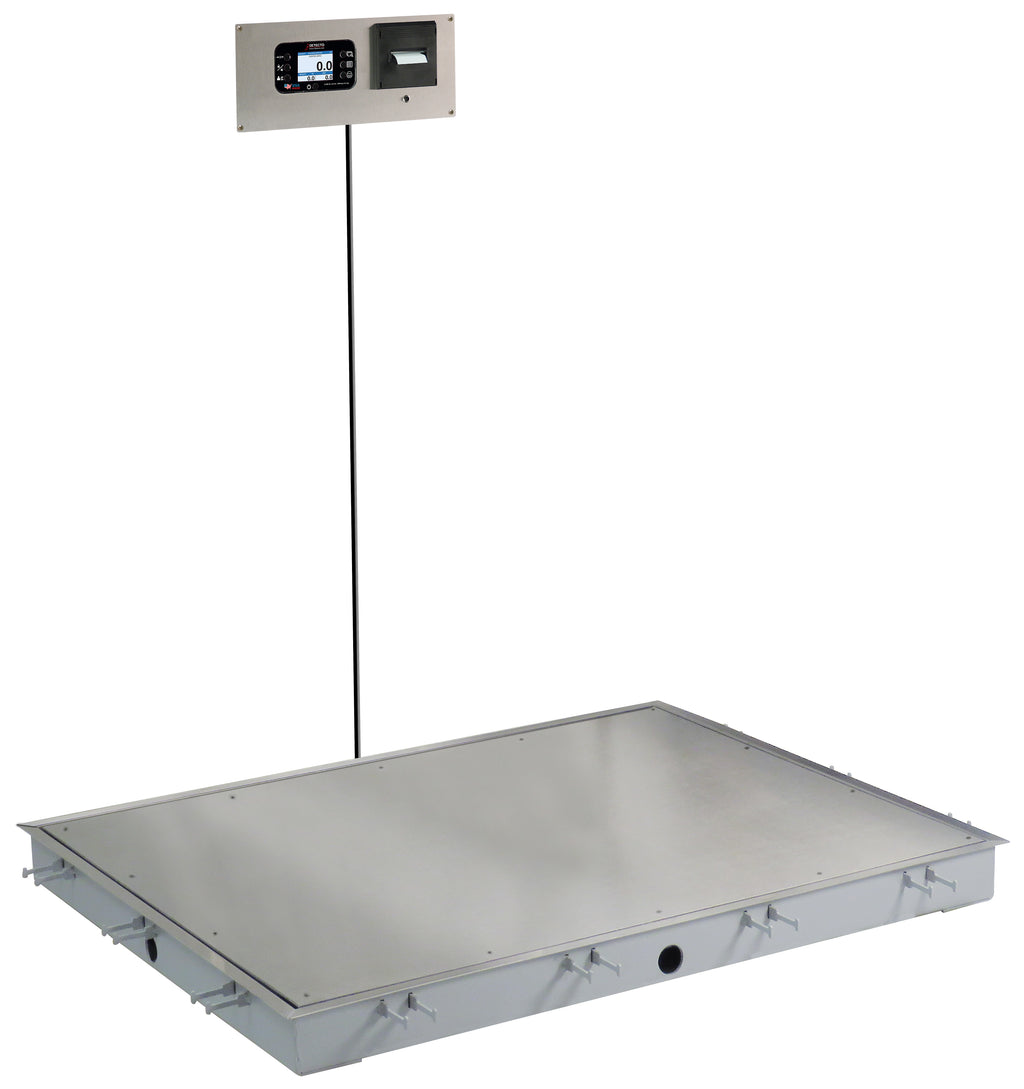

Each scale includes a stainless steel deck, pit frame, trim ring and interface cable to the recessed wall-mount model 855 touchscreen indicator.
Key Features
- 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity

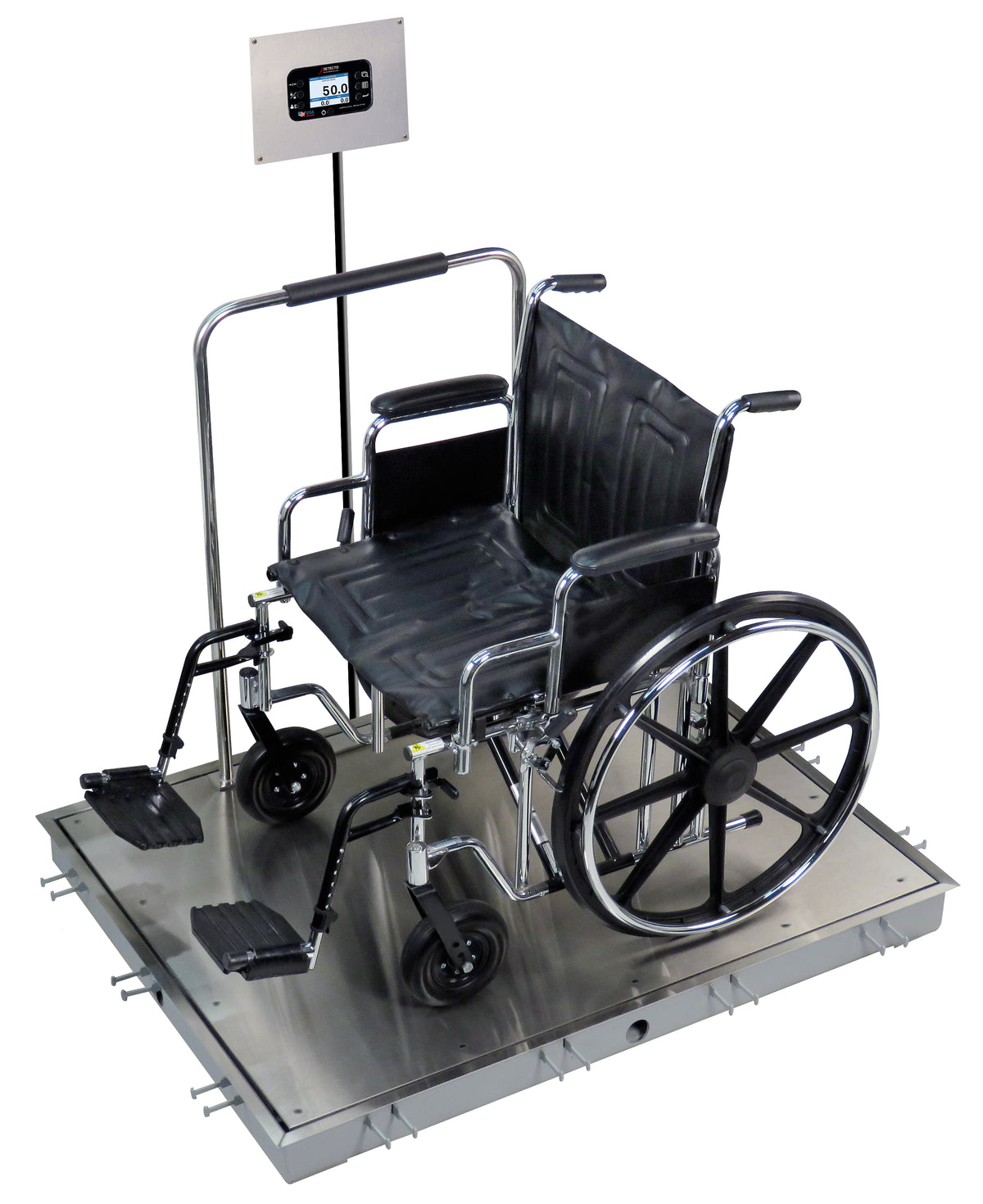

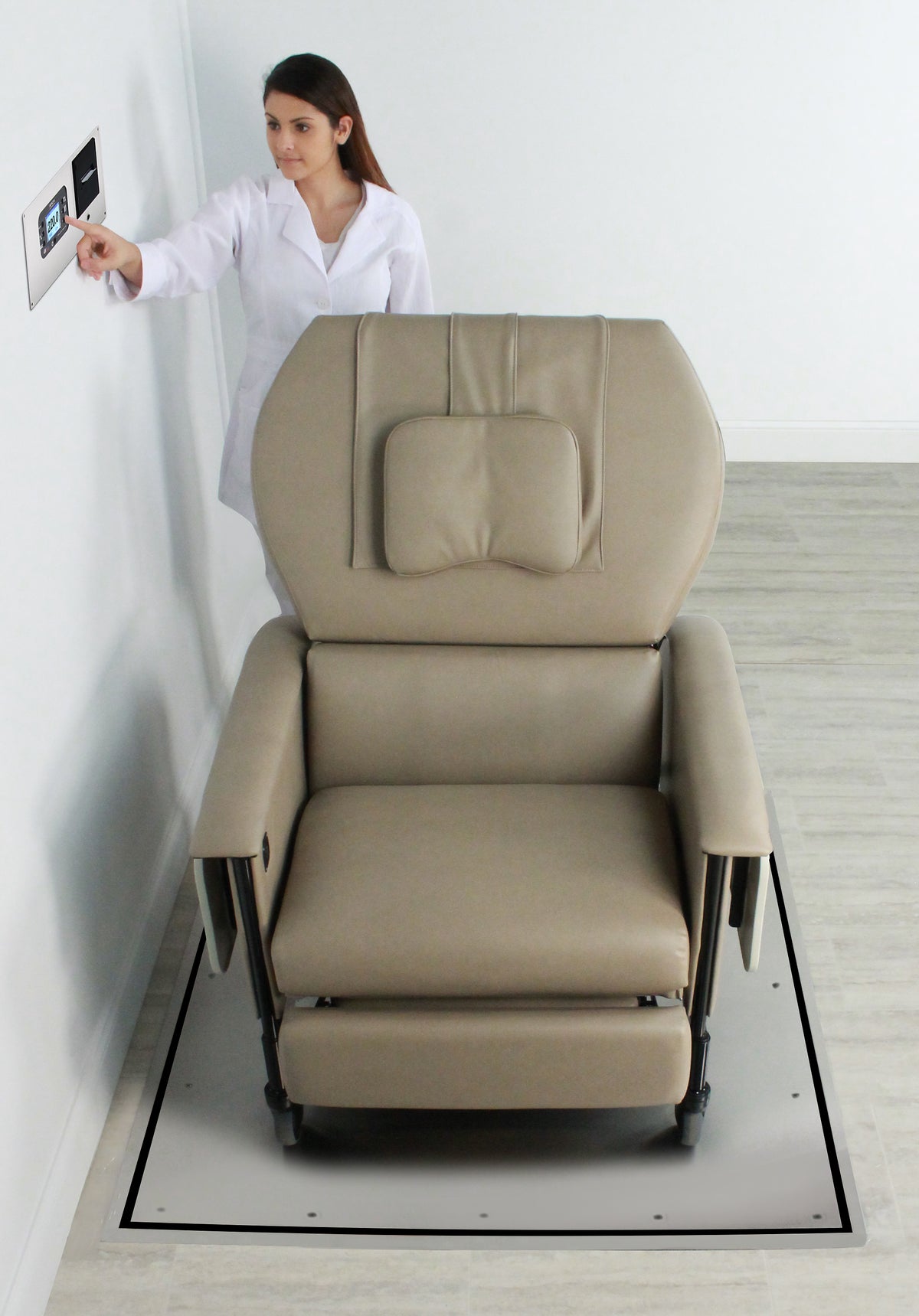

- Flush-mounted with the floor for wheelchair and dialysis chair access
- Anti-corrosion stainless steel weighing platform
- Pit frame and trim ring included

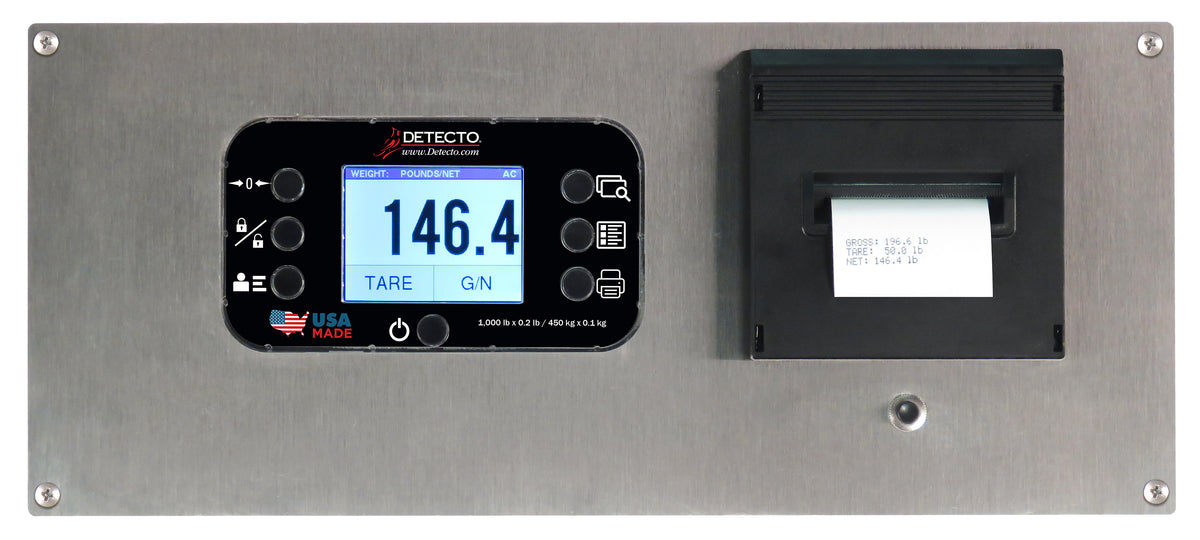

- Recessed-mount model 855 full-color touchscreen indicator with stainless steel cover plate
- 6 x 4 ft and 7.5 x 4 ft platforms accommodate stretchers
Specifications
| Capacity | 1,000 lb x 0.2 lb / 450 kg x 0.1 kg |
|---|---|
| Platform | Anti-corrosion stainless steel deck |
| Indicator | Model 855 recessed wall-mount, 3.2 in diagonal full-color TFT, 320 x 240 |
| Readouts | Weight 5 digit, 0.9 in (23 mm); height and BMI 0.35 in (9 mm) |
| Keypad | 7 buttons: Power, Zero, Lock/Release, ID, Cycle Display Mode, Menu, Print |
| Power | 110-240 V AC universal switching power supply |
| Operating Temperature | 14 to 104 °F / -10 to +40 °C |
| Approvals | OIML |
| Country of Origin | United States |
Options
- Deck Size: Seven sizes from 36 x 32 in to 90 x 48 in; Detecto notes the 72 x 48 in and 90 x 48 in decks accommodate stretchers.

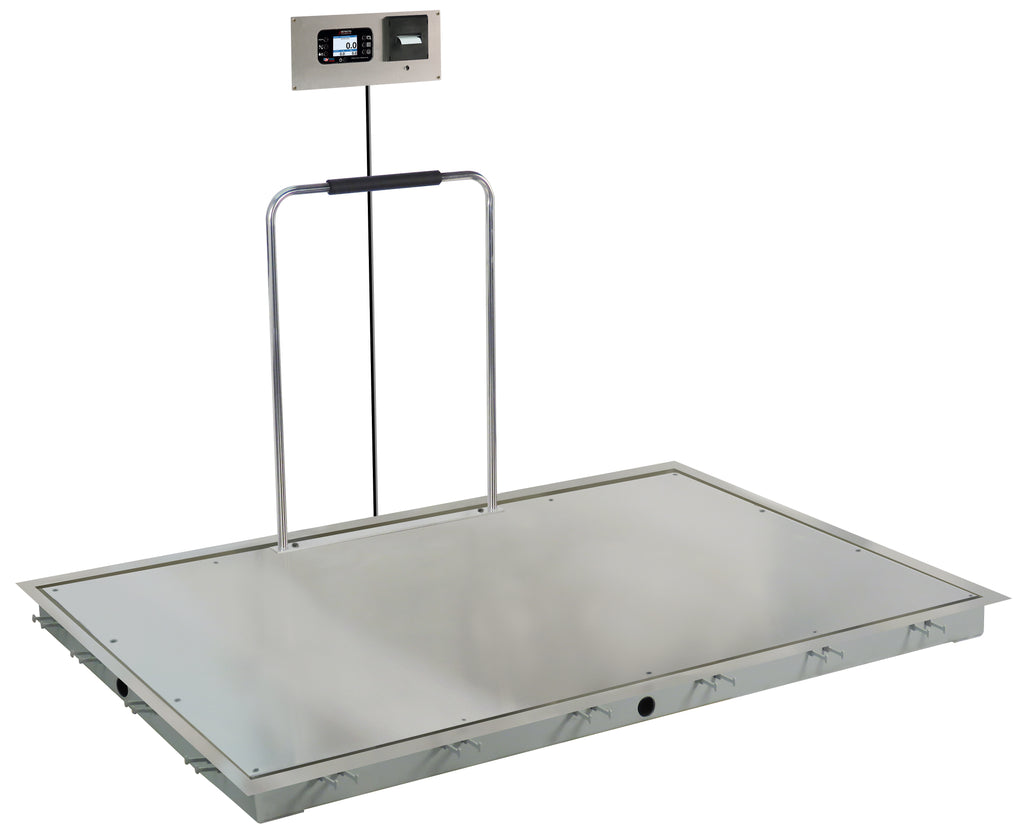

- Hand Rail: Models with H in the part number include a wraparound tubular handrail with padded handgrip for patient support.
- Printer: 855RMP models add an integrated thermal ticket printer for patient weight records; 855RM models omit the printer.
Installation
These scales are installed in a recessed concrete pit. Detecto's owner's manual specifies pit dimensions for each deck size, a smooth and level pit floor, minimum 3,000 psi concrete and a conduit trench to the wall-mount indicator, so floor preparation must be planned before delivery.
