Description

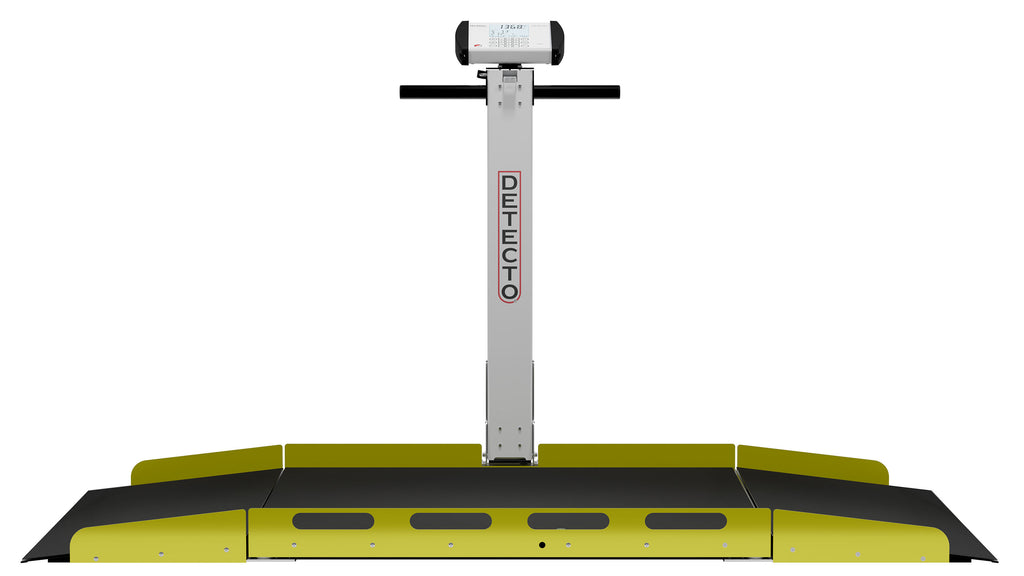

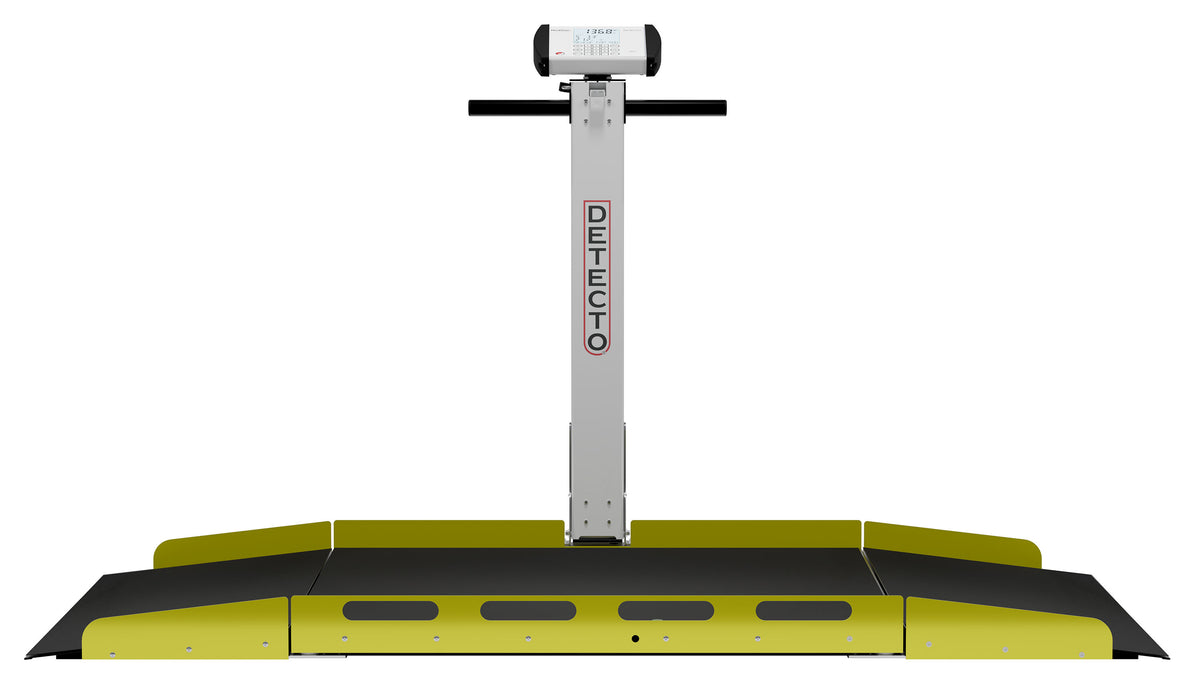

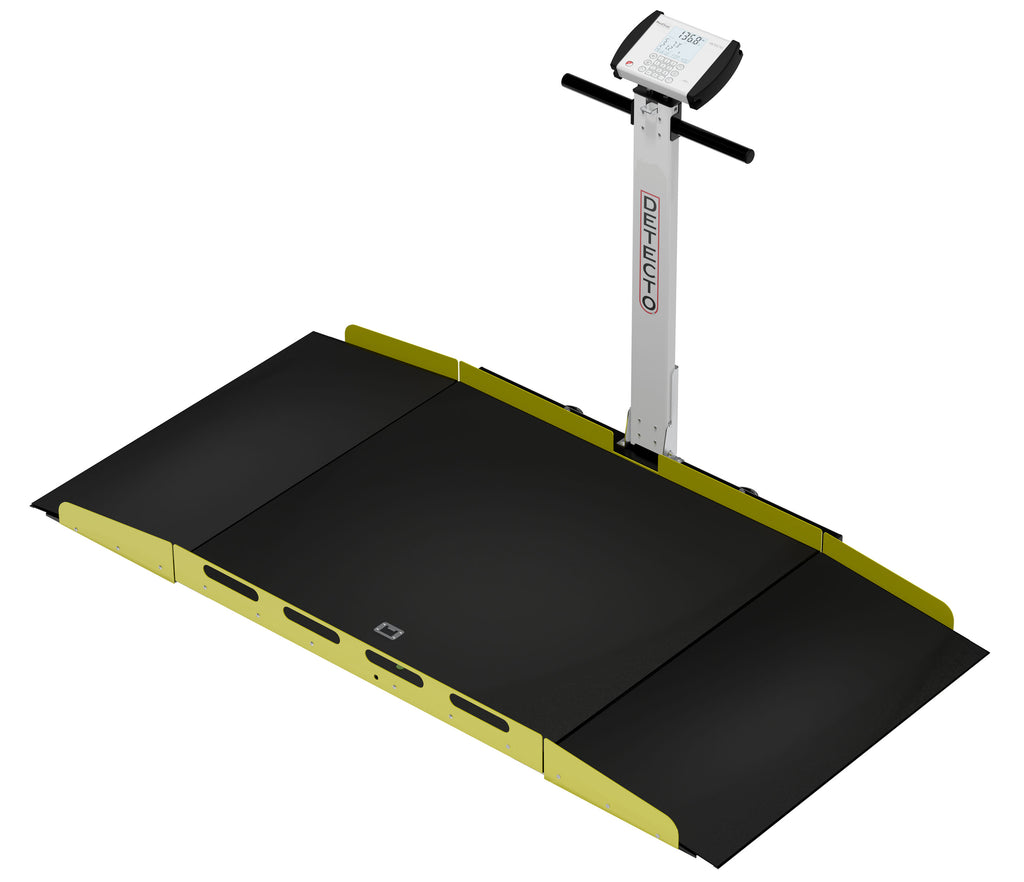

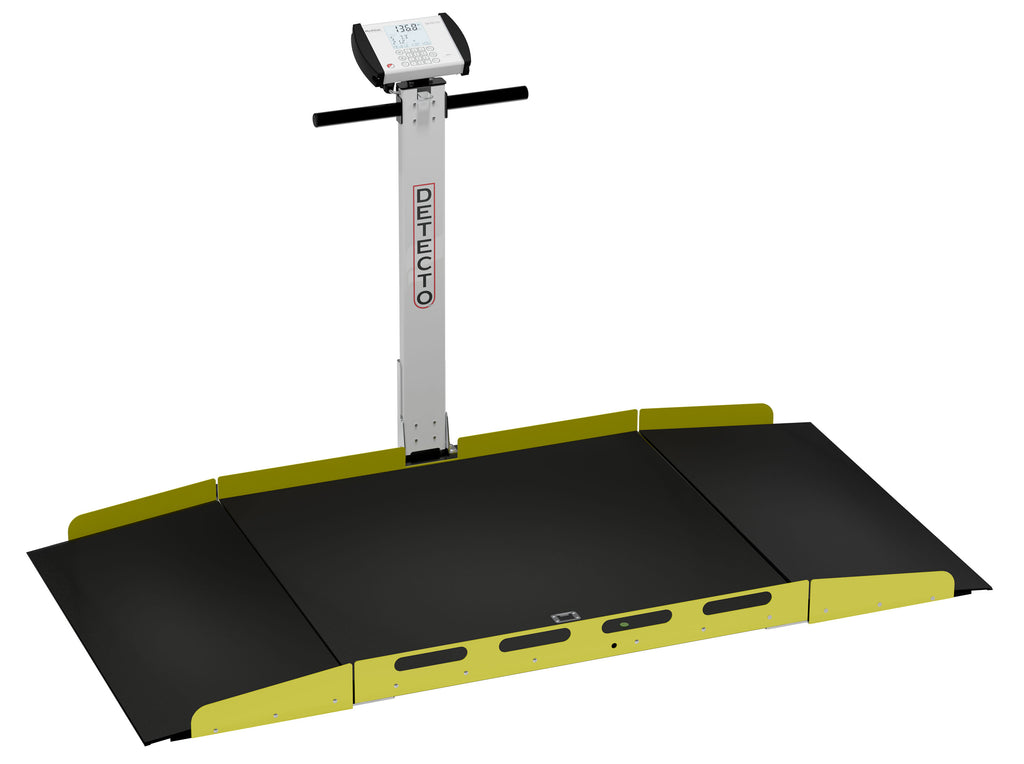

ADA Compliant Wheelchair Scale
Detecto designed the 7150-AC to meet the U.S. Access Board Medical Diagnostic Equipment (MDE) standards for wheelchair scales. It has a 40" platform length, integrated edge protection and 1:8 shallow-angle ramps. Compliance is stated by the manufacturer; the 7150-AC is not third-party certified.
U.S. Access Board MDE standards: key deadlines
- New equipment bought since July 8, 2024 (HHS-funded providers) or October 8, 2024 (state and local governments) must meet the standards until the facility reaches its required share.
- By July 8, 2026 (HHS) and August 9, 2026 (DOJ), each facility needs at least one accessible exam table or chair and one accessible weight scale.
- Ongoing, at least 10% of each type of equipment, and no fewer than one unit, must be accessible (20% for mobility-focused rehabilitation facilities).
Learn more about the MDE standards | Shop all ADA compliant scales

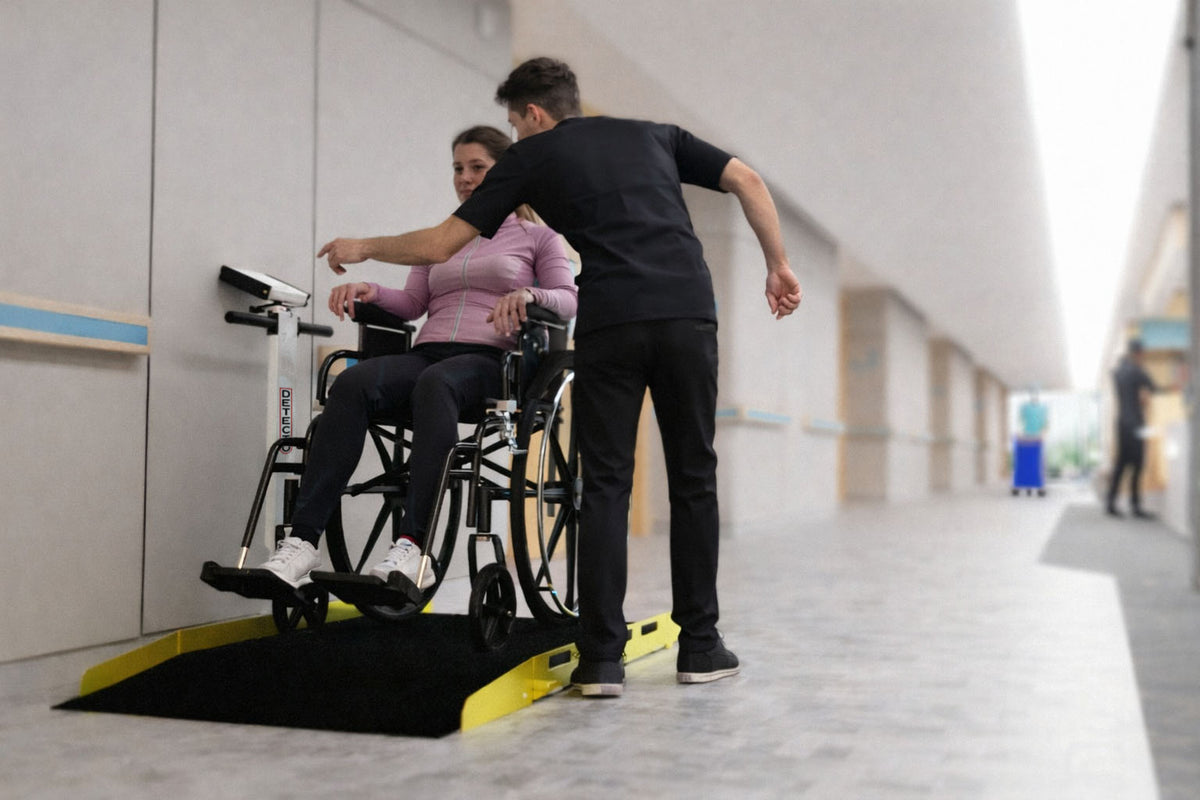

The Detecto 7150-AC ADA wheelchair scale is engineered for facilities that need enhanced wheelchair accessibility and patient safety. A 40 in platform, shallow 1:8 ramps and integrated side guide rails make wheelchair weighing easier, while the 1,000 lb / 450 kg capacity and NTEP certified accuracy suit hospitals, clinics, dialysis centers and long-term care.

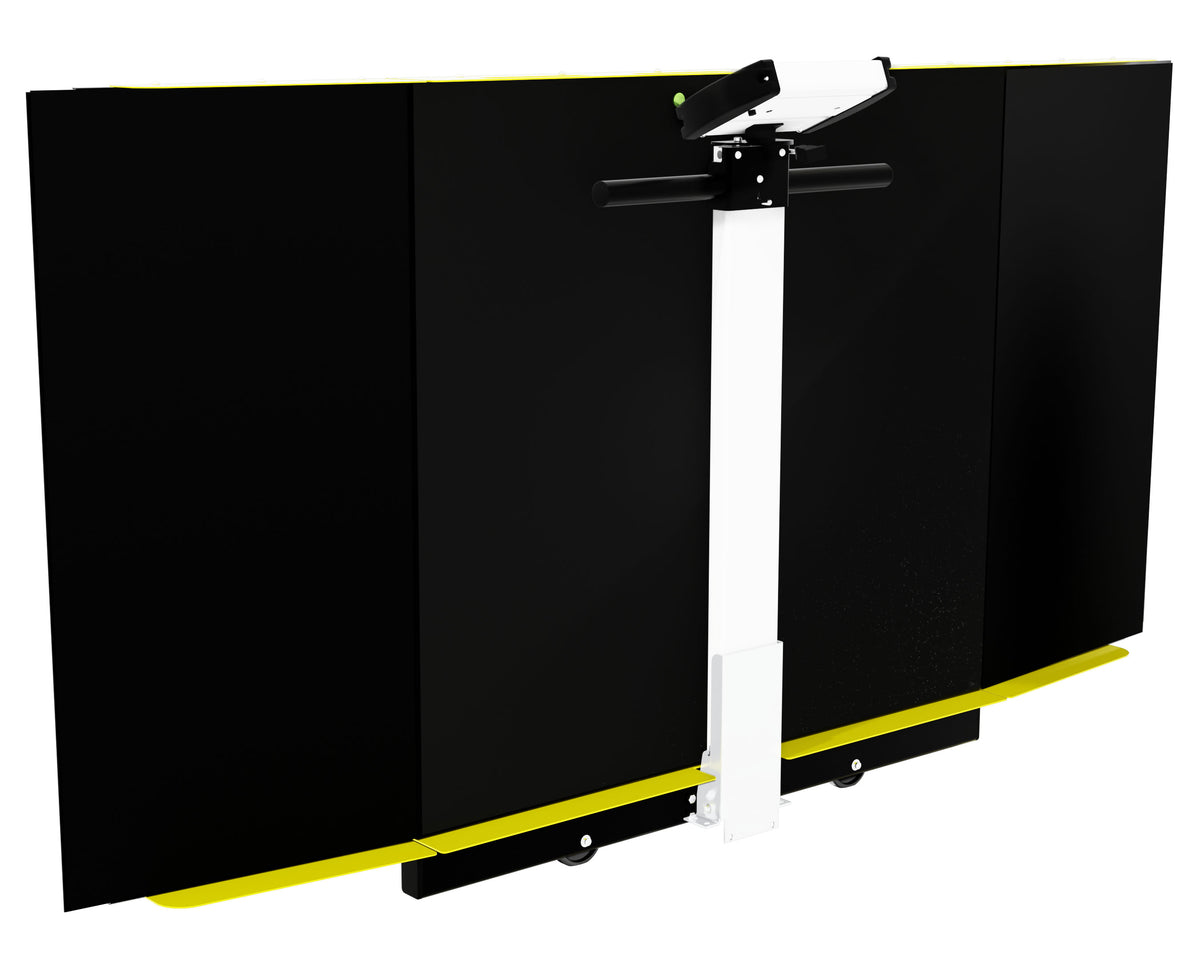

The frame folds to an 11.4 in depth and ships 90% assembled.
Key Features
- ADA-focused design: 40 in platform, 1:8 shallow-angle floor-resting ramps and side guide rails
- 1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity, NTEP certified
- Single-pass weighing with pushbutton tare and BMI calculation
- Low-profile 2 in high platform
- Foldable frame, collapsible column and two integral wheels
- EMR/EHR ready with RS232 serial and USB
Specifications
| Capacity | 1,000 lb x 0.2 lb / 450 kg x 0.1 kg |
| Resolution | 5,000 divisions max |
| Platform | 40 in x 36 in x 2.2 in |
| Ramps | 36 in x 17.4 in |
| Overall Dimensions | 75 in W x 45 in H x 40 in D; 11.4 in folded depth |
| Display | 3.5 in x 3 in LCD, 7/8 in 5-digit weight digits; 19-key keypad |
| Power | AC adapter (included) or 6 C batteries |
| Connectivity | RS232 serial, USB |
| Net / Shipping Weight | 143 lb / 65 kg; 190 lb / 86 kg |
| Certification | NTEP |
