Description

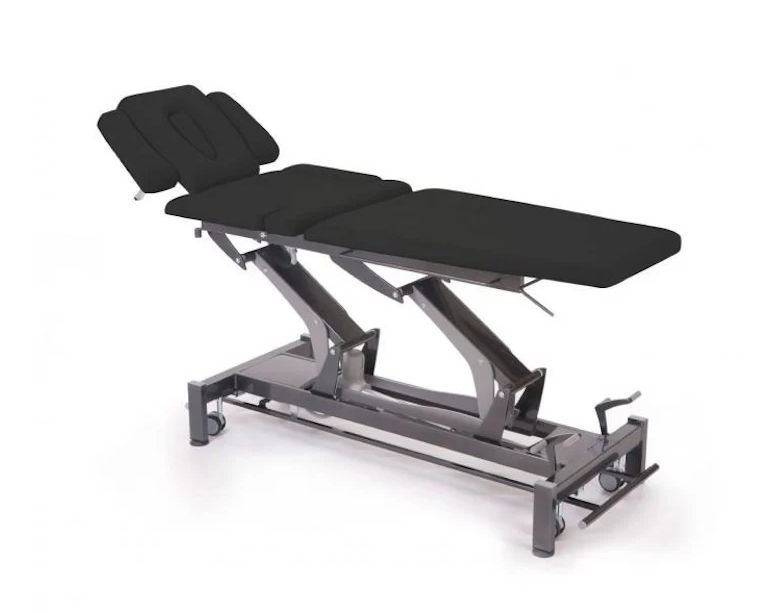

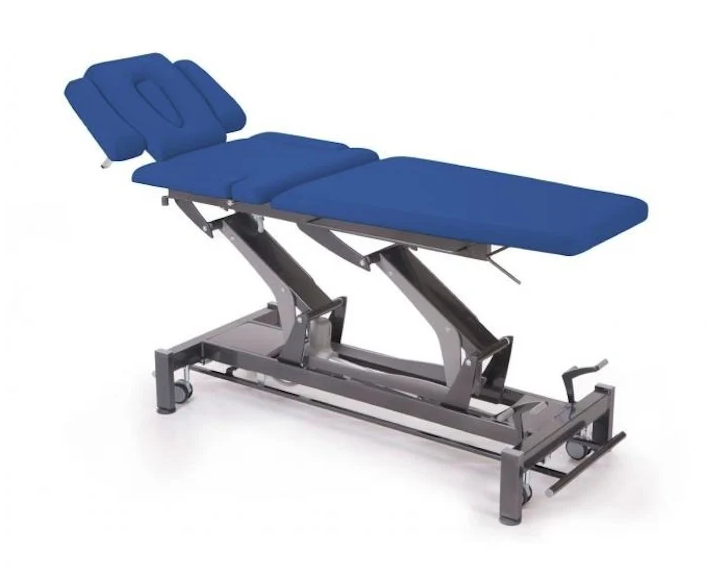

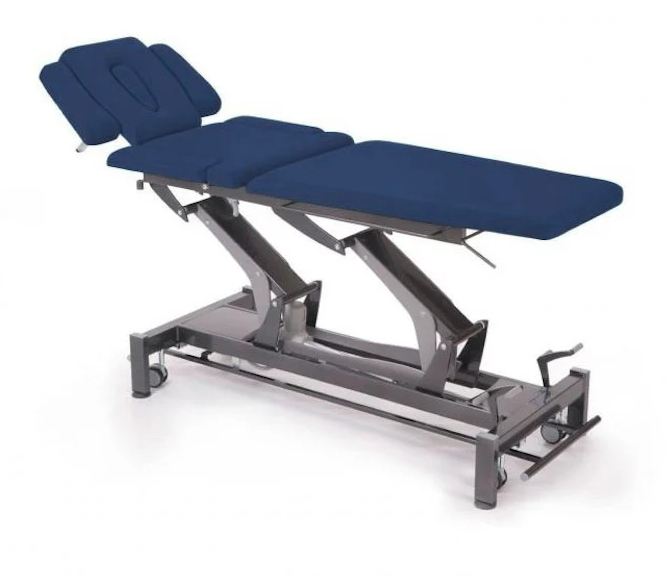

The Chattanooga Montane Andes 7 Section Table is a heavy-duty electric high-low treatment table built on a robust steel frame, with a boomerang mechanism for smooth vertical lift. Fold-down head and chest segments, an adjustable head support and a face hole make it suitable for physical therapy, chest physiotherapy, massage and rehabilitation. It comes in a standard 25 in. width or a wide 30 in. Postural Flex model with a motorized middle section for postural drainage positioning.
Features
- 7-section design with fold-down segments in head and chest sections
- Electric height adjustment from 19 in. to 40 in. for easy, safe patient transfers
- 360-degree accessible foot switch
- Adjustable head support with positive and negative inclinations
- Motorized adjustable middle section on Postural Flex (postural drainage) models
- Face hole with removable cushion
- Side brackets for stabilizing belts
- 4 castors with one-movement wheel engagement system
- Robust steel frame with boomerang lift mechanism
- Lifting capacity up to 500 lb (wide model)
Available Part Numbers
| Part # | Model | Color |
|---|---|---|
| 3571101US | Standard | Beige |
| 3571102US | Standard | Blue |
| 3571103US | Standard | Navy Blue |
| 3571106US | Standard | Gray |
| 3571107US | Standard | Graphite Gray |
| 3571108US | Standard | Black |
| 3571119US | Standard | Imperial Blue |
| 3573101XLUS | Wide with Postural Flex | Beige |
| 3573102XLUS | Wide with Postural Flex | Blue |
| 3573103XLUS | Wide with Postural Flex | Navy Blue |
| 3573106XLUS | Wide with Postural Flex | Gray |
| 3573107XLUS | Wide with Postural Flex | Graphite Gray |
| 3573108XLUS | Wide with Postural Flex | Black |
| 3573119XLUS | Wide with Postural Flex | Imperial Blue |
Specifications
| Sections | 7 |
|---|---|
| Dimensions - Standard | 79 in. L x 25 in. W |
| Dimensions - Wide | 79 in. L x 30 in. W |
| Shipping Dimensions | Standard 86.6 x 33.5 x 31.5 in. |
| Table Weight | Standard 274 lb (shipping 330 lb); Wide 285 lb (shipping 341 lb) |
| Lifting Capacity | Standard 440 lb; Wide 500 lb |
| Height Range | 19-40 in. |
| Postural Drainage (PD) / Postural Flex | Motorized adjustable middle section;, the head section tilts 40 deg up / 70 deg down and the tail section inclines up to 85 deg for therapeutic (e.g. chest physiotherapy) positioning |
| Power | 120V/60Hz (US models) |
| Standby Consumption | 3.5 W |
| Electrical Class | Class II, Type B |
| Castors | 4 wheels |
What's Included
- Montane Andes 7 Section table with electric lift
- 360-degree foot switch
- Face hole cushion
- 4 castors
- User manual
Genuine Chattanooga product, sold by The Hospital Equipment Company.
