Description

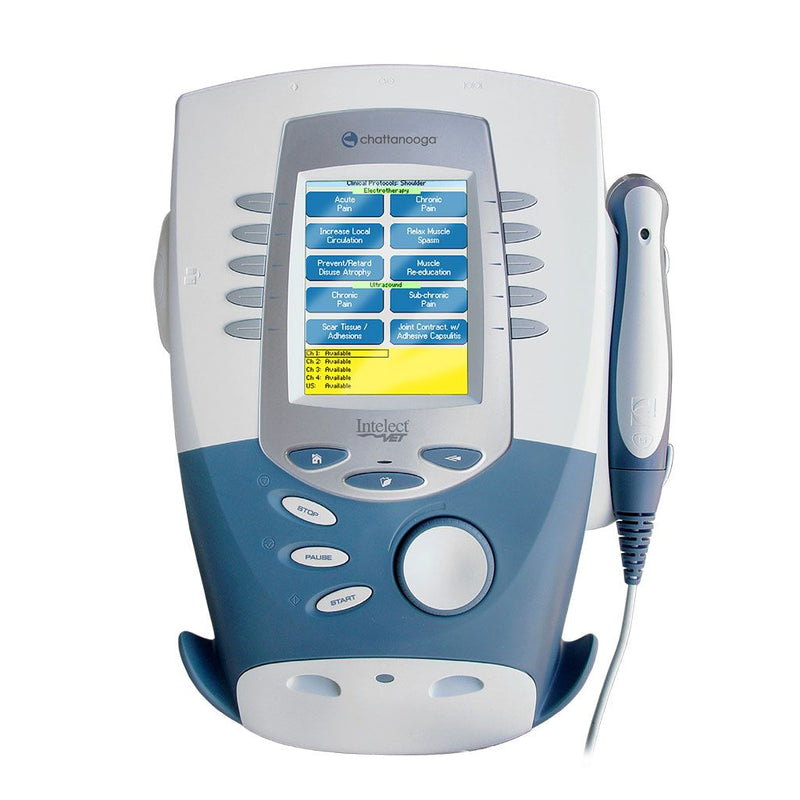

The Chattanooga Intelect Vet is a veterinary physical therapy system for dogs, horses and other animals. It combines electrical stimulation, ultrasound and combination therapy in one compact unit, with laser therapy available as an option. The 2756K package has two independent electrotherapy channels. The 2843 package is the 4-channel combo configuration, which adds the Channel 3/4 stim module.
Features
- Four modalities in one system: electrical stimulation, ultrasound, combination (stim + ultrasound) and optional laser
- Two independent electrotherapy channels, expandable to four with the Channel 3/4 module
- Five clinical waveforms including Interferential, Russian, VMS and High Voltage Pulsed Current (plus iontophoresis
- Dual-frequency ultrasound 1 and 3 MHz, pulsed or continuous
- Multiple sound-head sizes (1, 2, 5, 10 cm2)
- High-resolution full-colour LCD display
- Over 100 pre-loaded clinical protocols plus user-defined protocols

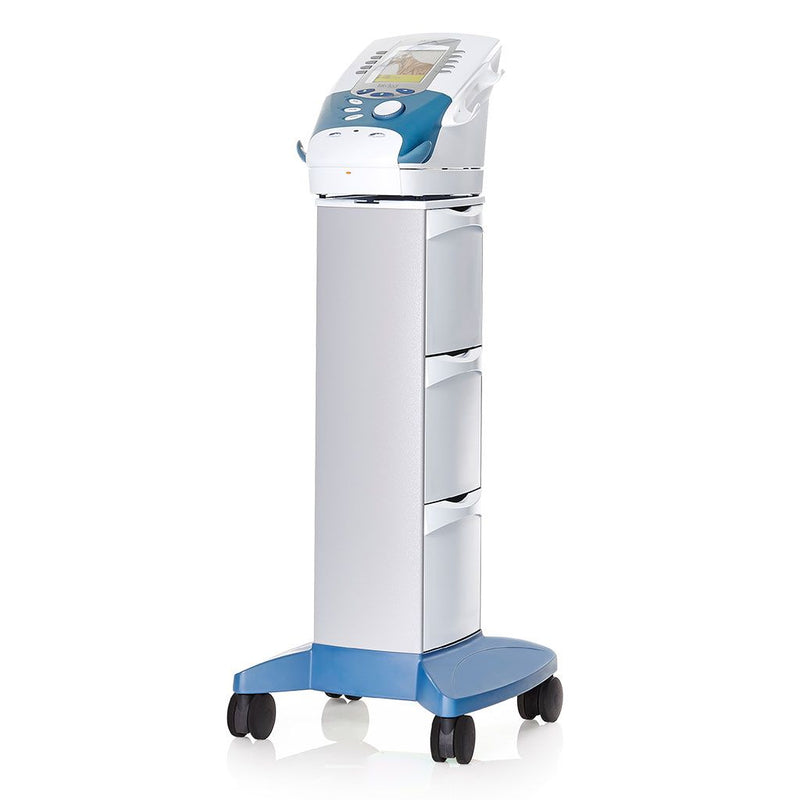

- Optional battery module, laser module (2766) and therapy cart (2775ASY)
Available Part Numbers
| Part # | Configuration |
|---|---|
| 2756K | 2-Channel Combo |
| 2843 | 4-Channel Combo |
Specifications
| Ultrasound frequencies | 1 MHz and 3 MHz |
|---|---|
| Channels | 2 (2756K); 4 with Channel 3/4 module (2843) |
| Power | 100-240 VAC, 50-60 Hz |
| Weight | 7 lb (3.2 kg) |
| Dimensions | 13" x 9.4" x 11.4" (33 x 24 x 29 cm) |
| Safety class | Class I, Electrotherapy Type BF, Ultrasound Type B |
What's Included
- Intelect Vet unit
- 5 cm2 ultrasound applicator
- Patient data cards (5-pack)
- Dura-Stick Plus 5 cm round electrodes
- User manual (CD)
Genuine Chattanooga product, sold by The Hospital Equipment Company.
