Description

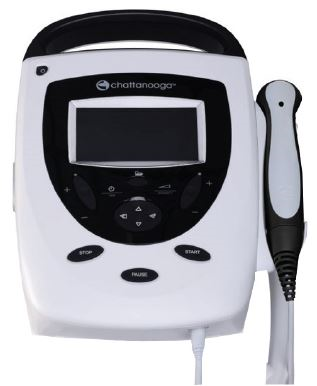

The Chattanooga Intelect Transport 2 is the current lightweight, battery-capable portable therapy system for clinic use or on the go, and it can be used with or without an optional magnetic cart. The 4782 Ultrasound model provides dual-frequency (1 / 3.3 MHz) therapeutic ultrasound. The 4738 Combo adds two channels of electrotherapy with five waveforms, including Chattanooga's proprietary VMS.
Features
- 4782 Ultrasound: dual-frequency ultrasound (1 MHz or 3.3 MHz), pulsed or continuous
- 4738 Combo: 2-channel electrotherapy plus ultrasound, usable separately or in combination
- Five electrotherapy waveforms on Combo: VMS, Interferential, Premodulated, High Volt, Russian
- Proprietary VMS waveform for stronger muscle contractions with less neural fatigue
- Ultrasound coupling detection: beeps and pauses the timer when the applicator loses contact
- Interchangeable pre-calibrated applicators: 2, 5 and 10 cm2
- Extended battery life for all-day portable use
- Faster screen refresh and more responsive keypad
- Optional cart with tool-free magnetic attachment
- User memory for up to 15 custom protocols
Available Part Numbers
| Part # | Configuration |
|---|---|
| 4782 | Ultrasound |
| 4738 | Combo |
Specifications
| Ultrasound frequencies | 1 MHz and 3.3 MHz |
|---|---|
| Duty cycles | 10%, 20%, 50%, Continuous |
| Pulse repetition rate | 100 Hz |
| Electrotherapy (4738) | 2 channels; VMS, IFC, Premodulated, High Volt, Russian |
| Power | 100-240 VAC, 50/60 Hz, 1.0 A; rechargeable battery (14-1086, sold separately) |
| Weight | 4782: 4.2 lb (1.9 kg); 4738: 4.9 lb (2.2 kg) |
| Dimensions | 13.6" L x 9.8" W x 4.7" H (34.6 x 25 x 12 cm) |
| Shipping weight | 8.5 lb (3.9 kg) |
| Safety class | Class 1, Electrotherapy Type BF, Ultrasound Type B |
| Warranty | 2 years on unit, 1 year on ultrasound applicator |
What's Included
- 4782: ultrasound device (47397), mains power cord (14679), user manual (48384), 5 cm2 ultrasound applicator (47335)
- 4738: combo device (48200), mains power cord (14679), user manual (48384), 5 cm2 ultrasound applicator (47335), leadwire assembly ch.1 (40-0097) and ch.2 (40-0098), Dura-Stick Plus 2" round electrodes (42192, 4-pack)
- Optional: therapy cart 15-1136, battery 14-1086, carry bag 15-3210
Compatibility & Related Parts
Accessories: ultrasound applicators 2 cm² (47334), 5 cm² (47335), 10 cm² (47336); carrying bag (15-3210).
Genuine Chattanooga product, sold by The Hospital Equipment Company.
