Description

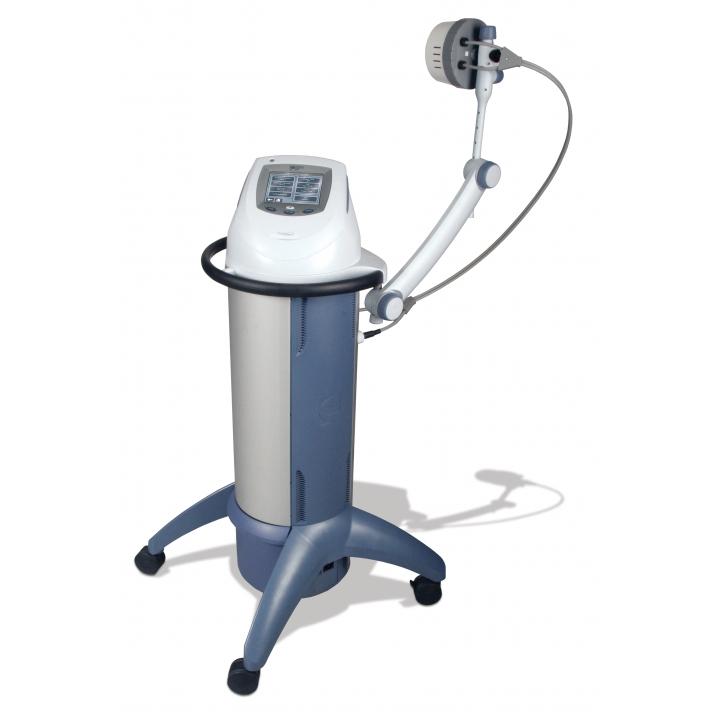

The Chattanooga Intelect SWD100 is a clinical shortwave diathermy system that delivers deep-tissue heating at 27.12 MHz, in continuous or pulsed mode. It can use inductive (drum/monode) or capacitive electrodes. A full-colour swivel touchscreen holds 90+ clinical protocols and on-board education, and automatic resonance tuning simplifies setup.
Features
- 27.12 MHz shortwave diathermy, continuous (100 W) or pulsed (200 W peak)
- Full-colour LCD touchscreen that swivels 360 degrees
- Inductive and capacitive field applications
- Automatic resonance tuning with two output channels
- Over 90 on-board clinical protocols plus 200 user-defined protocol slots
- On-board clinical resources with anatomical graphics
- Multi-jointed adjustable electrode arm
- Patient safety switch
Specifications
| Frequency | 27.12 MHz |
|---|---|
| Output | 100 W continuous; 200 W peak pulsed |
| Pulse width | 20-400 microseconds |
| Pulse rate | 10-800 Hz |
| Treatment time | 1-60 min |
| Power | 100-240 VAC, 50-60 Hz |
| Dimensions | 24" W x 12" D x 45.5" H (61 x 30.5 x 115.5 cm) |
| Weight | 60 lb (27 kg) |
| Safety class | Class B |
| Warranty | 2 years |
What's Included

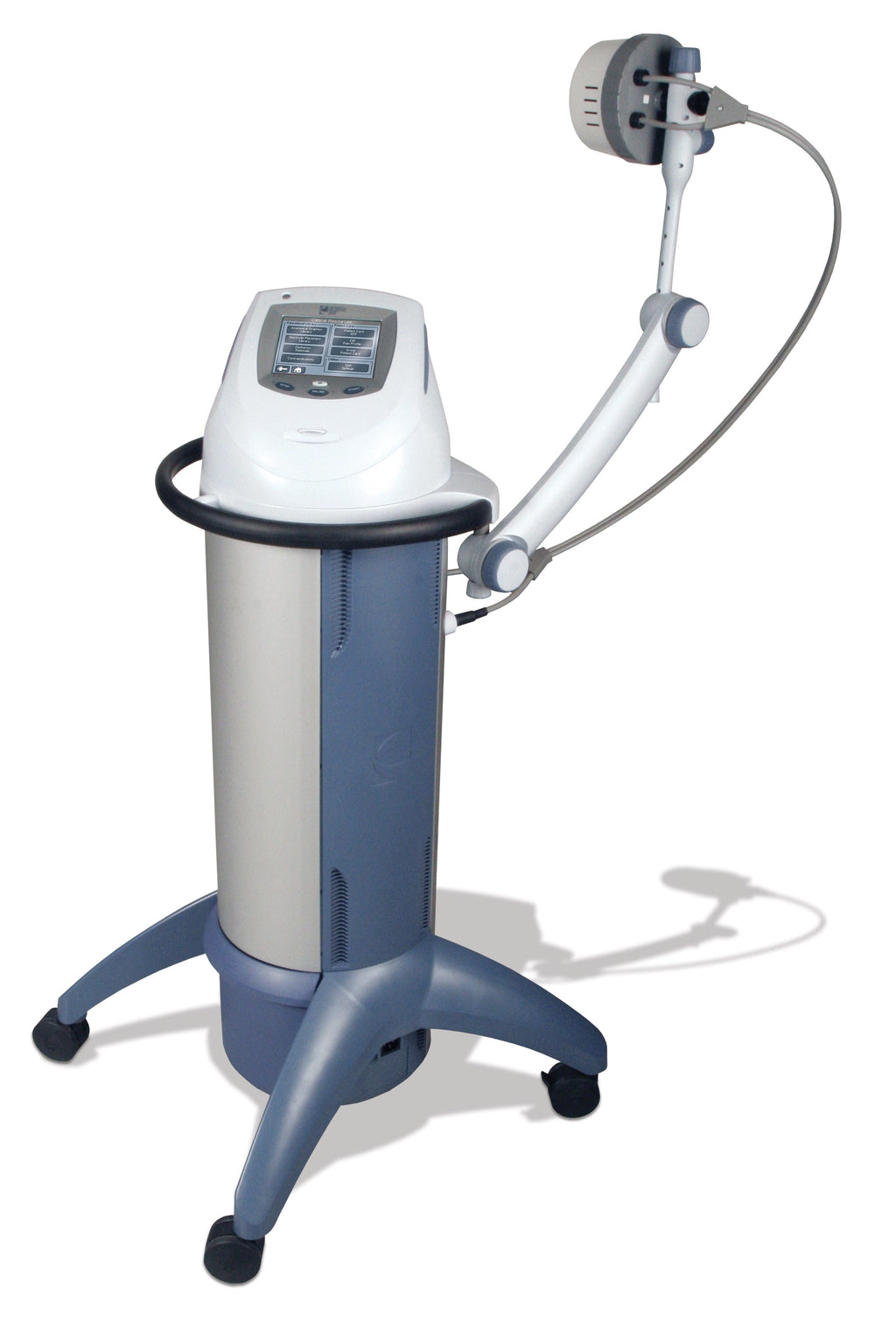

- Intelect SWD100 unit (1600 package)
- Inductive drum (Monode)
- Connection cable
- Electrode arm
- Indicator tube
- Operating manual (CD)
Genuine Chattanooga product, sold by The Hospital Equipment Company.
