Description

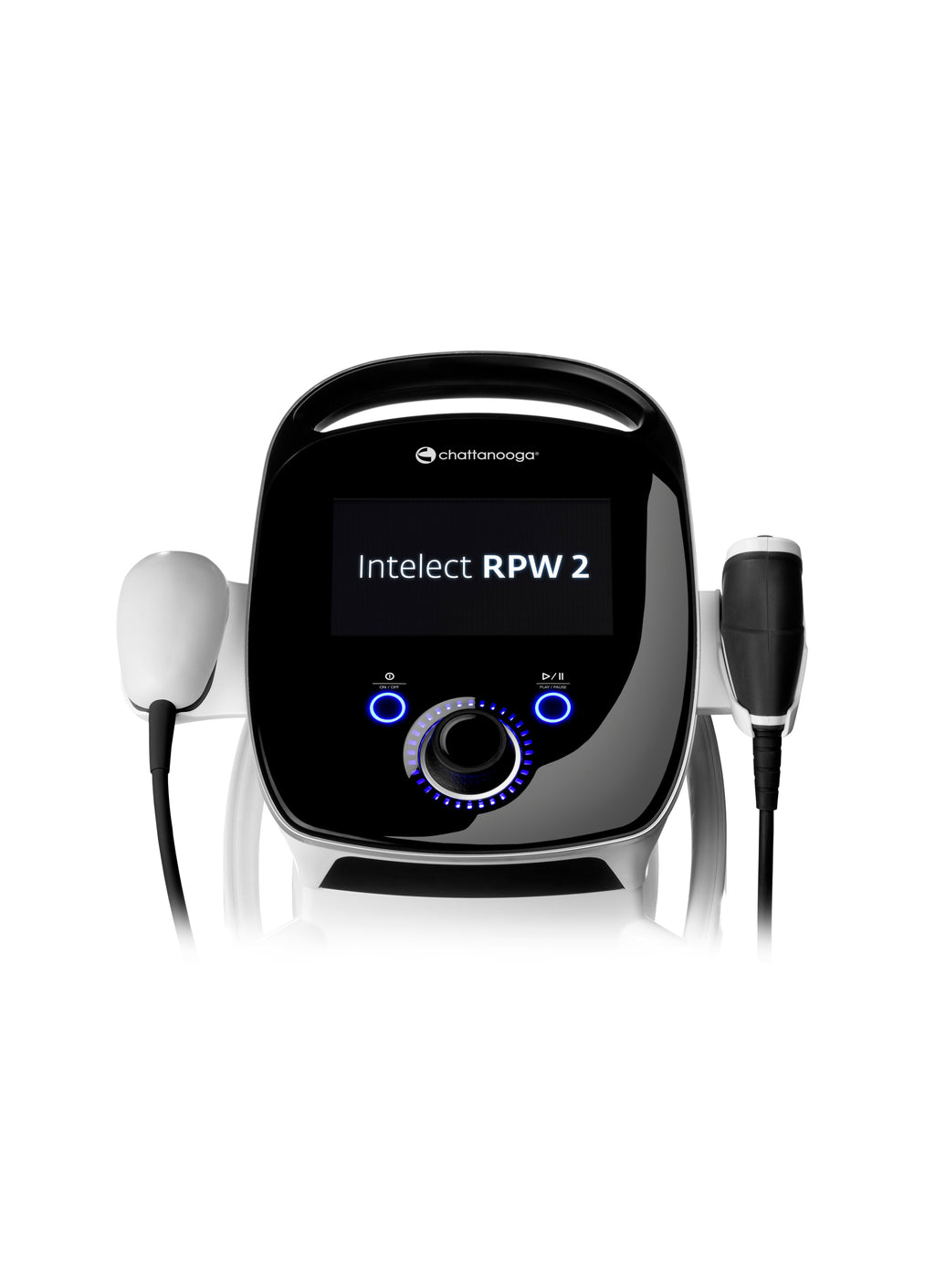

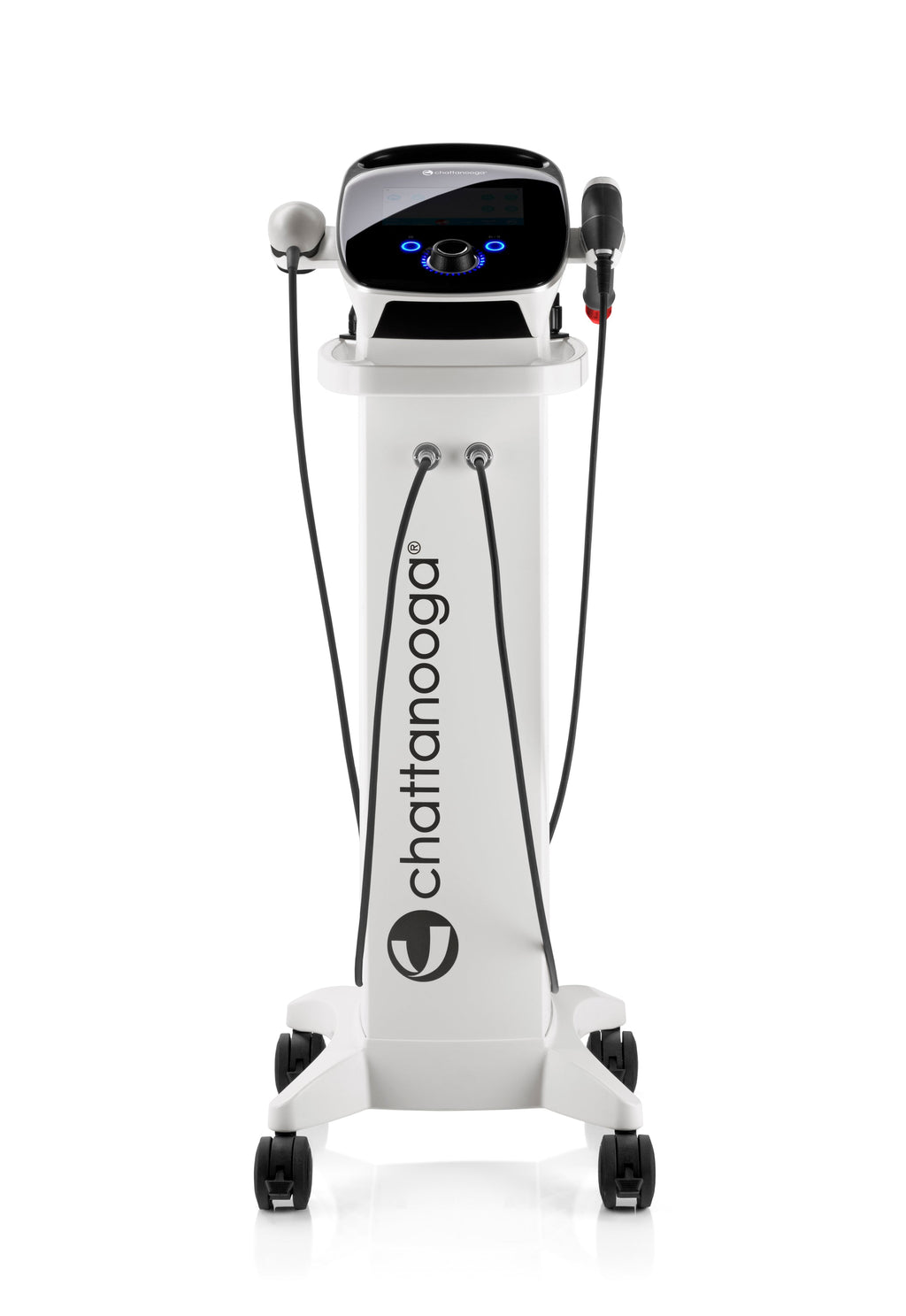

The Chattanooga Intelect RPW 2 is a next-generation radial pressure wave (shockwave) system for treating pain and orthopedic conditions from surface tissue to hard-to-reach pathologies such as tendinopathies and trigger points. It pairs the ergonomic Falcon handpiece and Comfort Mode with a 7-inch touchscreen, an on-board clinical library and the Intelect Connect app.
Features
- Radial Pressure Wave (RPW) technology, 0.3-5.0 bar in 0.1 bar steps

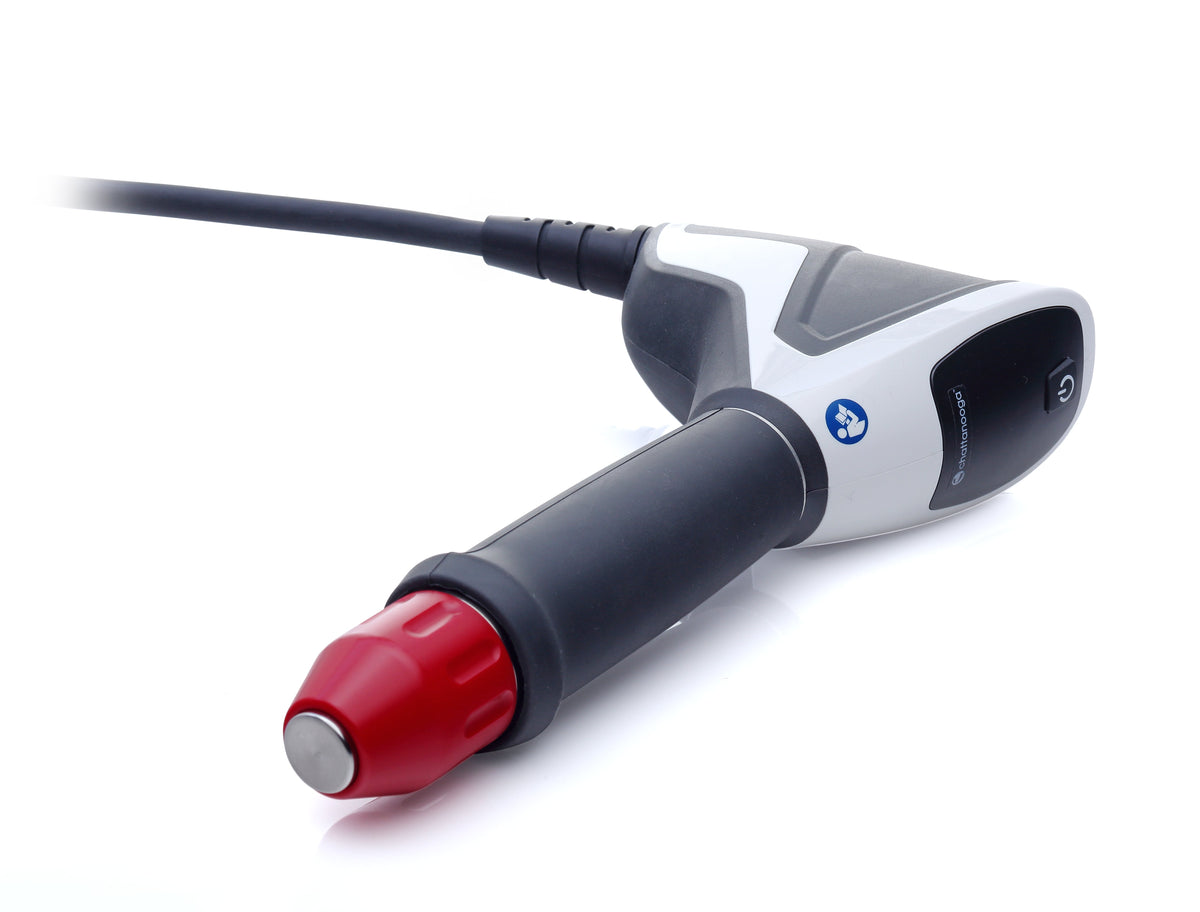

- Ergonomic Falcon handpiece, 1-21 Hz
- Comfort Mode automatically ramps energy up for patient comfort
- 21 interchangeable transmitter attachments available
- 7" high-resolution capacitive touchscreen (800 x 480) with clinical protocol library and anatomical visuals
- Intelect Connect app for transferring patient data to PC/devices; Bluetooth
- Single-pulse or continuous modes
- Optional V-ACTOR handpiece (1-50 Hz)
Specifications
| Pressure | 0.3-5.0 bar (0.1 bar increments) |
|---|---|
| Frequency | 1-21 Hz (Falcon); 1-50 Hz (V-ACTOR, optional) |
| Pulse width | approx. 6-12 ms |
| Display | 7" capacitive touchscreen, 800 x 480 |
| Power | 120 V AC, 50-60 Hz, 350 VA |
| Dimensions | 16.15" W x 16.54" H x 43.31" D |
| Weight | 66.14 lb |
What's Included
- Intelect RPW 2 control unit (120V)
- Falcon handpiece with revision kit (short staff)
- Ro40 Beam D-Actor transmitter (15 mm)
- D20-S Standard D-Actor transmitter (20 mm)
- Conductor transmission gel, 8.5 oz (250 ml)
- Power cord
- USB drive
Genuine Chattanooga product, sold by The Hospital Equipment Company.
