Description

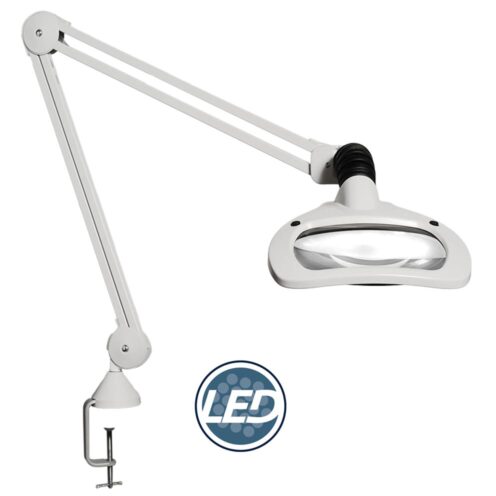

The Wave LED Magnifier is an illuminated magnifier with a 6.75" x 4.5" rectangular glass lens (3.5 diopter, 1.88X) and LEDs on both sides for shadow-free or directional (3-D) lighting. It ships with a table edge clamp; a weighted rolling floor stand and a surface-mount bracket are sold separately.
Features
- 3.5 diopter (1.88X) rectangular 6.75" x 4.5" white crown optical glass lens, 11" focal length
- 4,600 lux, 4,000 K, CRI 80
- Light from both sides (shadow-free) or one side (3-D effect)
- Step dimming 0-50-100%; 9/4-hour auto shut-off timer
- 45" heavy-duty spring-balanced three-pivot K-arm
- Steel arm, die-cast aluminum shade
- Optional 4, 6 and 10 diopter lenses (WML4DS/WML6DS/WML10DS)
Models
| Option | Item # |

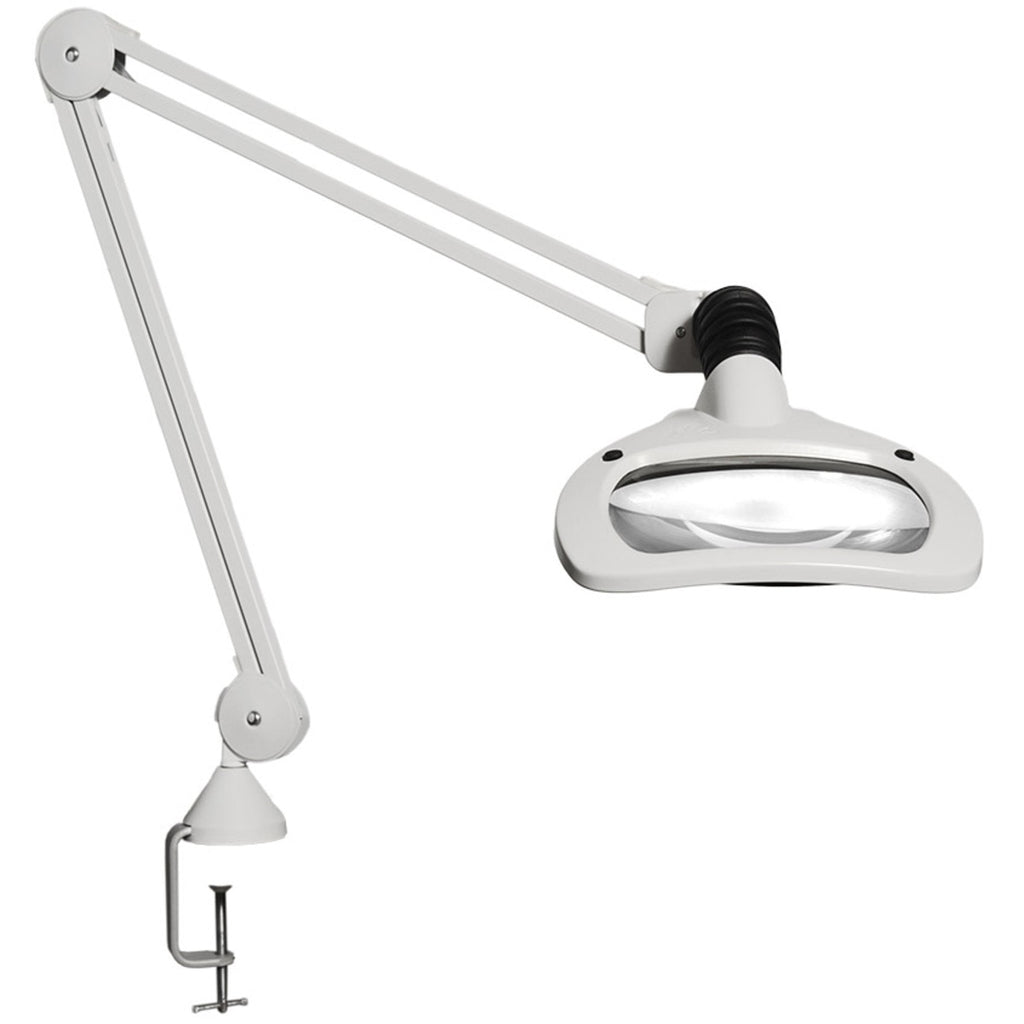

| Magnifier with table edge clamp (WML35W45EC120) | WML35W45EC120 |

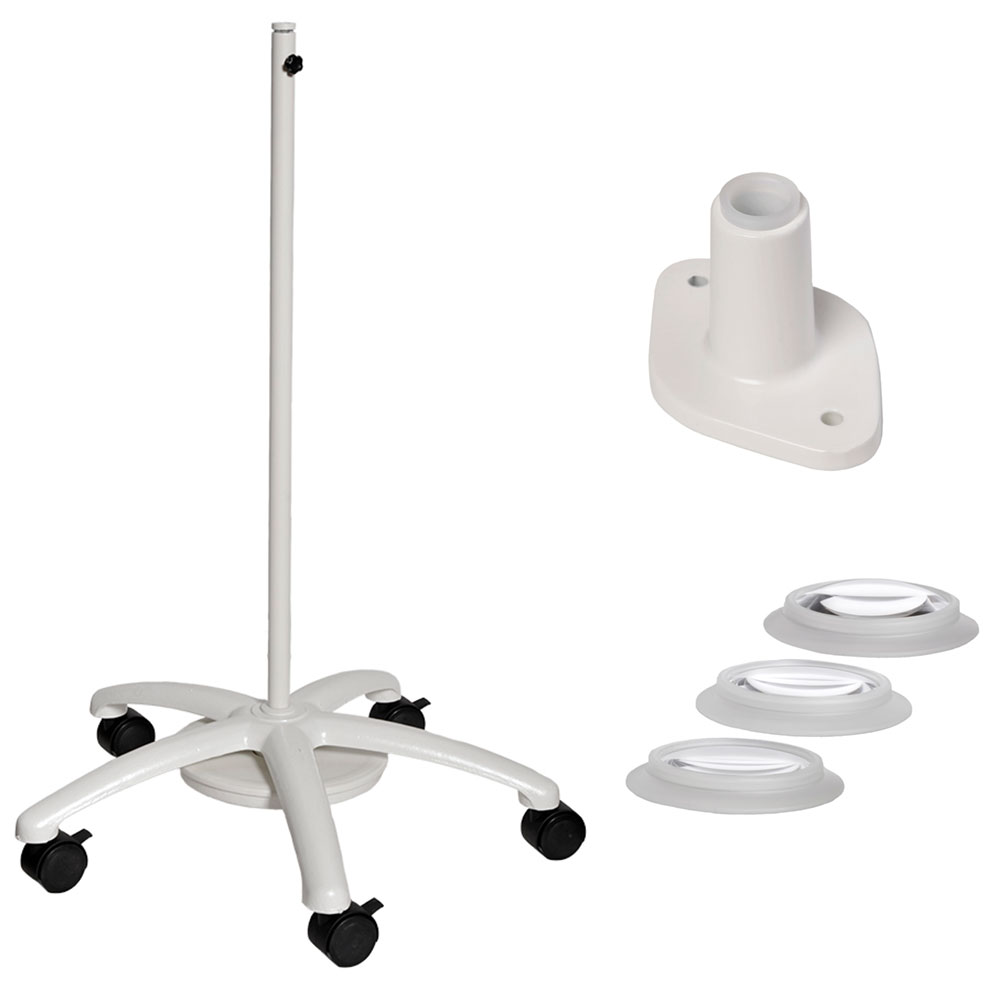

| Weighted floor stand (accessory) (WMLWFS) | WMLWFS |
| Surface mount bracket (accessory) (WMLSMB) | WMLSMB |
Specifications
| Illuminance | 4,600 lux (typical) |
| Color temperature | 4,000 K |
| CRI | 80 |
| Optics | 3.5 diopter (1.88X); 6.75 x 4.5 in glass lens; 11" focal length |
| Light source / LED life | LED, 50,000-hour average |
| Power | 15 W; universal 100-240V 50/60 Hz |
| Arm | 45" three-pivot K-arm |
| Mounting | Edge clamp (included), weighted floor stand (WMLWFS), surface mount (WMLSMB) |
| Warranty | 5-year limited |
| Manufacturer | Burton Medical |
Resources
Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
