Burton APEX LED Surgical Light, Single or Dual Head (AP130 / AP160)

Burton MedicalSKU: AP130A01

Price:
Sale price$9,105.60
Shipping:

Ships from Burton Medical, typically within 1–2 business days.

Ships by LTL freight, calculated at checkout; liftgate and inside delivery available on request.

  • Vizient & Provista contracted distributor
  • Quotes within 1 business day
  • (800) 575-2375, Mon–Fri 8–5 Pacific
PO, contract pricing & facility purchasing

Need help choosing? Request this item on our full quote form or call (800) 575-2375, Monday–Friday, 8 AM–5 PM Pacific.

Description

Ships directly from Burton. Request current lead time and applicable contract pricing.

APEX LED is Burton's compact, lightweight ceiling-mounted surgical light with a tri-lobe LED head designed for shadow reduction. It comes in two output levels (AP130: 130,000 lux; AP160: 160,000 lux), each with 5 dimming levels, focusing and an endo mode. Lights are configured by arm length, down-tube length (short or long, by ceiling height) and single or dual head.

Features

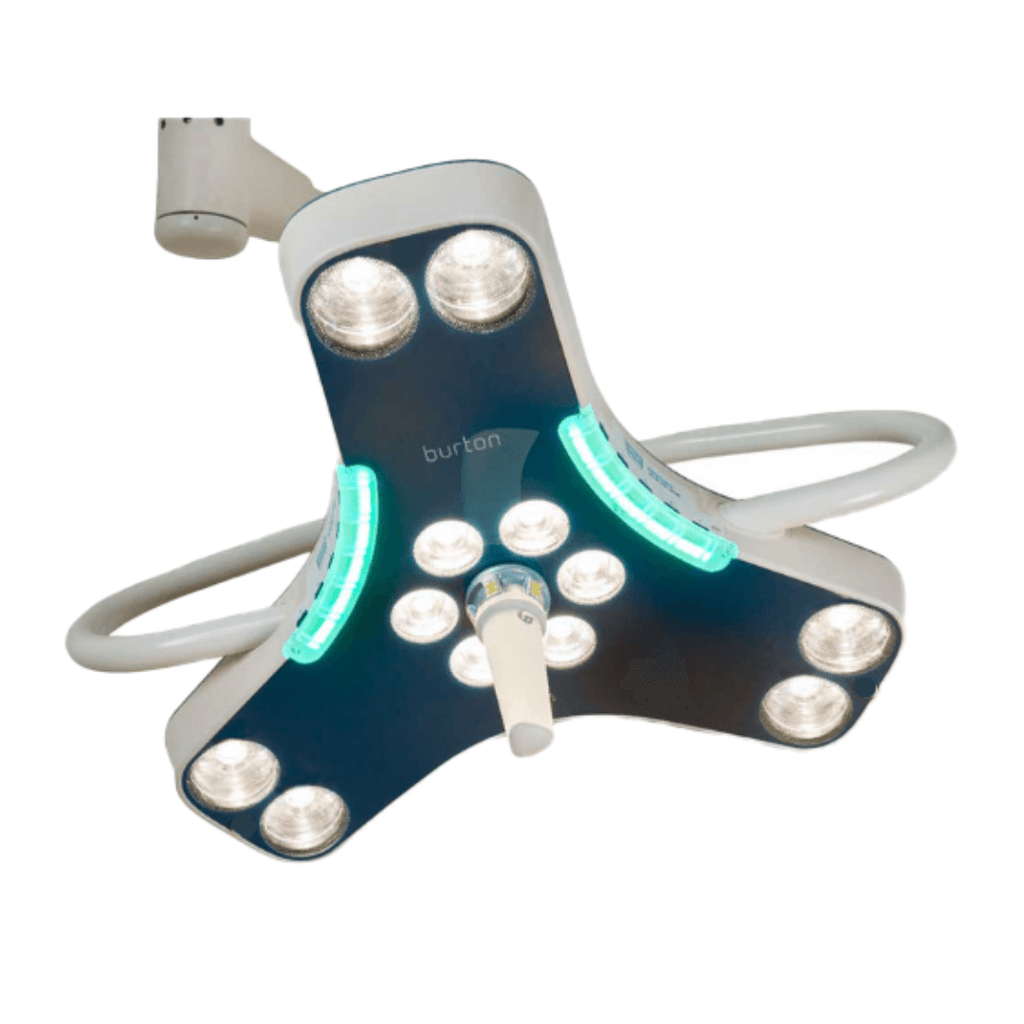

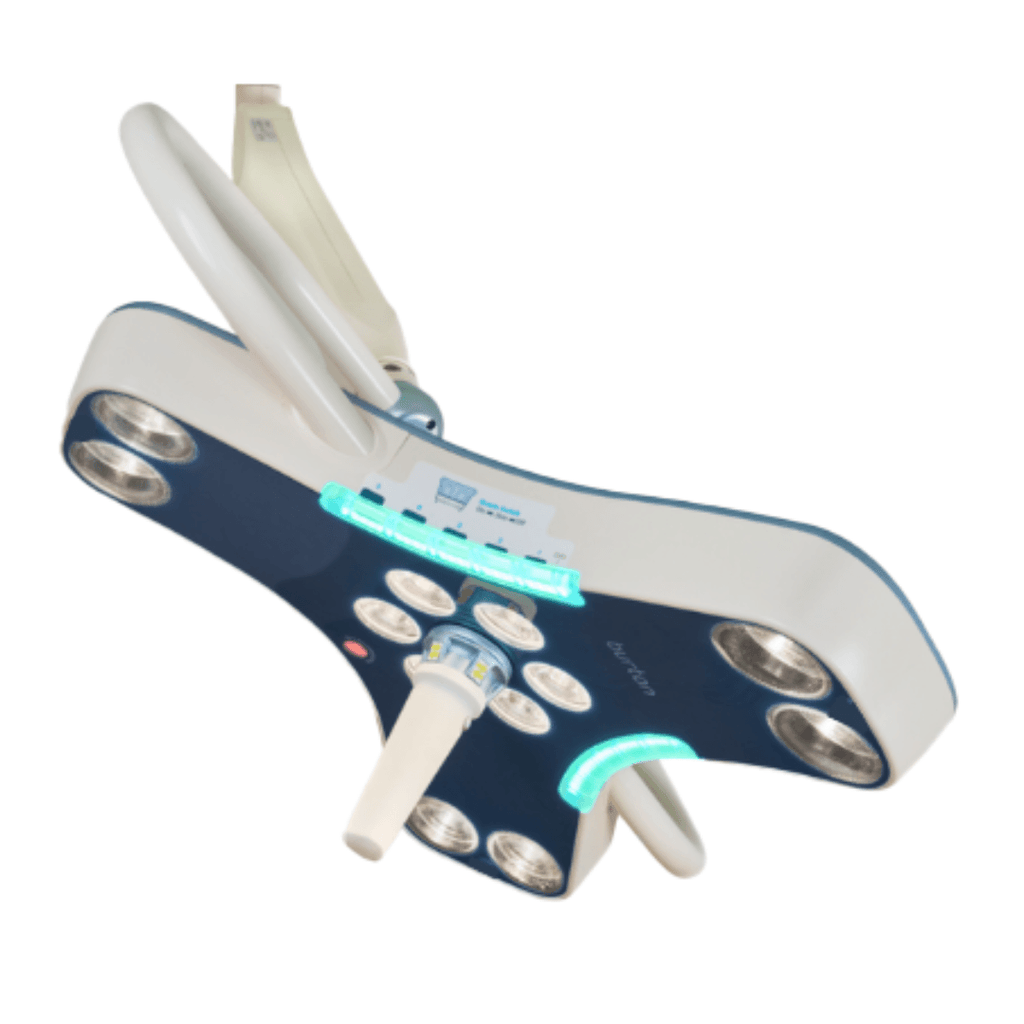

  • Tri-lobe LED head optics for shadow reduction
  • AP130: 130,000 lux max; AP160: 160,000 lux max, 5 dimming levels
  • CRI >97
  • Focusing and endo mode

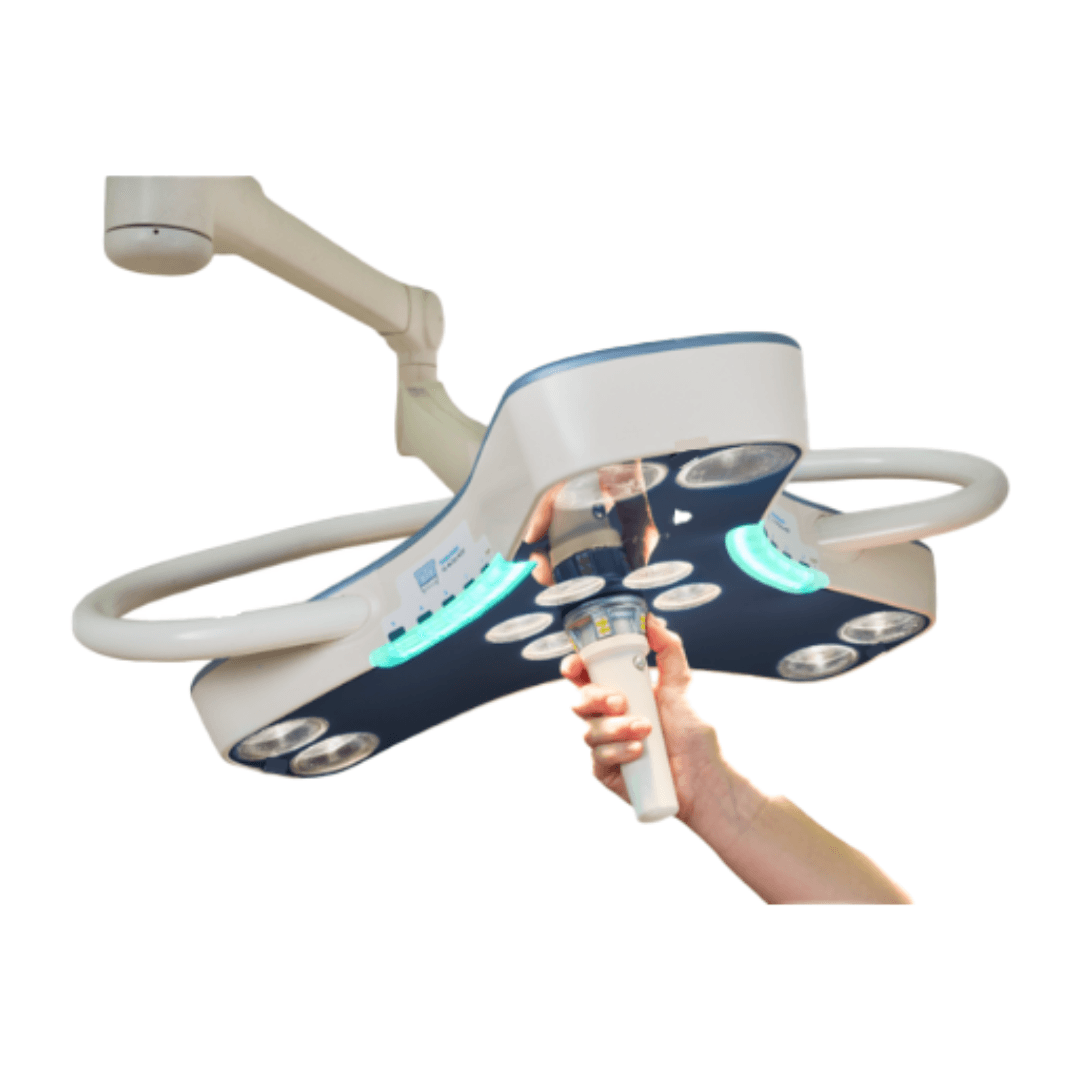

  • Spring-balanced arm with 13 lb (5.9 kg), 22 in (56 cm) light head
  • Reduced surface area and seamless construction for cleaning
  • LED service life >50,000 hours; IP42
  • 5-year limited warranty

Models

Option Item #
AP130 (130,000 lux) / Single head, 700 mm arm / Short (about 8.5 ft ceiling) AP130A01
AP130 (130,000 lux) / Single head, 850 mm arm / Short (about 8.5 ft ceiling) AP130B01
AP130 (130,000 lux) / Single head, 1000 mm arm / Short (about 8.5 ft ceiling) AP130C01
AP130 (130,000 lux) / Single head, 700 mm arm / Long (9-10 ft ceiling) AP130A02
AP130 (130,000 lux) / Single head, 850 mm arm / Long (9-10 ft ceiling) AP130B02
AP130 (130,000 lux) / Single head, 1000 mm arm / Long (9-10 ft ceiling) AP130C02
AP160 (160,000 lux) / Single head, 700 mm arm / Short (about 8.5 ft ceiling) AP160A01
AP160 (160,000 lux) / Single head, 850 mm arm / Short (about 8.5 ft ceiling) AP160B01
AP160 (160,000 lux) / Single head, 1000 mm arm / Short (about 8.5 ft ceiling) AP160C01
AP160 (160,000 lux) / Single head, 700 mm arm / Long (9-10 ft ceiling) AP160A02
AP160 (160,000 lux) / Single head, 850 mm arm / Long (9-10 ft ceiling) AP160B02
AP160 (160,000 lux) / Single head, 1000 mm arm / Long (9-10 ft ceiling) AP160C02
AP130 (130,000 lux) / Dual head, 850 + 1000 mm arms / Short (about 8.5 ft ceiling) AP130B03
AP130 (130,000 lux) / Dual head, 850 + 1000 mm arms / Long (9-10 ft ceiling) AP130B22
AP130 (130,000 lux) / Dual head, 700 + 850 mm arms / Short (about 8.5 ft ceiling) AP130A03
AP130 (130,000 lux) / Dual head, 700 + 850 mm arms / Long (9-10 ft ceiling) AP130A22
AP160 (160,000 lux) / Dual head, 850 + 1000 mm arms / Short (about 8.5 ft ceiling) AP160B03
AP160 (160,000 lux) / Dual head, 850 + 1000 mm arms / Long (9-10 ft ceiling) AP160B22
AP160 (160,000 lux) / Dual head, 700 + 850 mm arms / Short (about 8.5 ft ceiling) AP160A03
AP160 (160,000 lux) / Dual head, 700 + 850 mm arms / Long (9-10 ft ceiling) AP160A22

Specifications

Illuminance AP130: 130,000 lux; AP160: 160,000 lux (max)
Dimming AP130: 90k/100k/110k/120k/130k lux; AP160: 100k/115k/130k/140k/160k lux
Color temperature 4300 K
CRI >97
Light field diameter 9.5 in (24 cm) D10; D50/D10 >0.53
Depth of illumination 47 in (119 cm)
Light head 22 in (56 cm) diameter, 13 lb (5.9 kg)
Light source / LED life 12 LED modules (6 LEDs each); >50,000 h
Power 80 W (single ceiling)
Vertical adjustment 45° to 75°

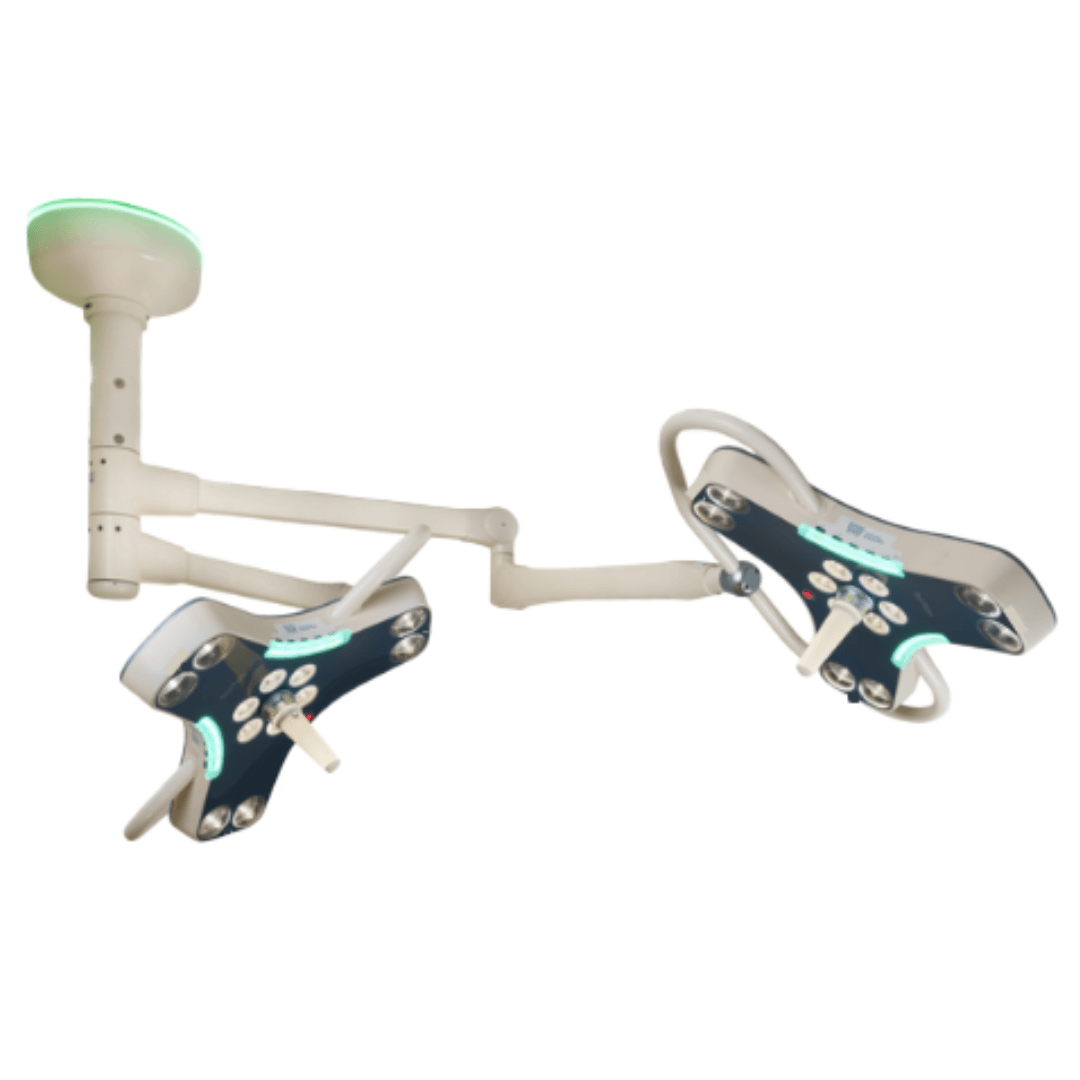

Mounting Single or dual ceiling
Down tube / ceiling height Short (01/03) = 12 in / 300 mm, preferred ceiling 8.5 ft; Long (02/22) = 20 in / 500 mm, preferred ceiling 9-10 ft
IP rating IP42
Certifications FDA registered, ISO 13485, UL/IEC 60601-1, EN/IEC 60601-2-41, CAN/CSA C22.2, CE
Warranty 5-year limited
Accessories 5000884 ceiling structure plate; 5000810 APEX LED handle; 5000839PK APEX LED sterile handle covers
Manufacturer Burton Medical

Included and sold separately

  Details
Included Light head(s), arm(s) and ceiling mount with the down tube set by the model: Short (01/03) 12 in for about 8.5 ft ceilings, Long (02/22) 20 in for 9 to 10 ft ceilings.
Sold separately Ceiling structural plate (5000884) if your ceiling needs one; APEX LED handle (5000810) and APEX LED sterile handle covers (5000839PK), available by quote; wall switch
Installation Not included. Ceiling and wall models are hard-wired: a licensed electrical contractor makes the connection, and a wall switch (not included) must be supplied and installed by the facility. The ceiling must provide structural support for the light, designed by the building's engineer or contractor.

Not sure which ceiling version you need? Send us your floor-to-ceiling height and we will confirm the model, down tube and parts before you order.

Resources

Shipping: Ships direct from Burton Medical in Addison, IL (FOB factory). Shipping is calculated at checkout; items over 100 lb ship by LTL freight. Contact us for freight to Alaska, Hawaii or outside the contiguous US.

Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
