Description
Factory- and field-installed kits and accessories for Brewer's FLEX™ High-Low PLUS (5700PLUS–5801PLUS) and Access® High-Low PLUS (6000PLUS–6801PLUS) power exam tables. Factory-installed items must be ordered with the table; field-installed kits can be added later.
Compatibility
- Stirrup, ComfortGrip™ assist handle and Mayo pass-through work surface kits fit the FLEX PLUS only. The Access High-Low PLUS already includes all three.
- Stirrup kits are for 5700PLUS and 5800PLUS; stirrups are standard on 5701PLUS and 5801PLUS.
- EasyGlide™ mobility, drawer dividers, IV/light brackets and knee crutch parts fit both FLEX PLUS and Access High-Low PLUS.
- The footrest pad fits all Brewer exam tables.
- Electrical outlet 101800 is for the Access High-Low PLUS 6001PLUS only, plant installed, and must be ordered with the table.
Knee Crutch Setup

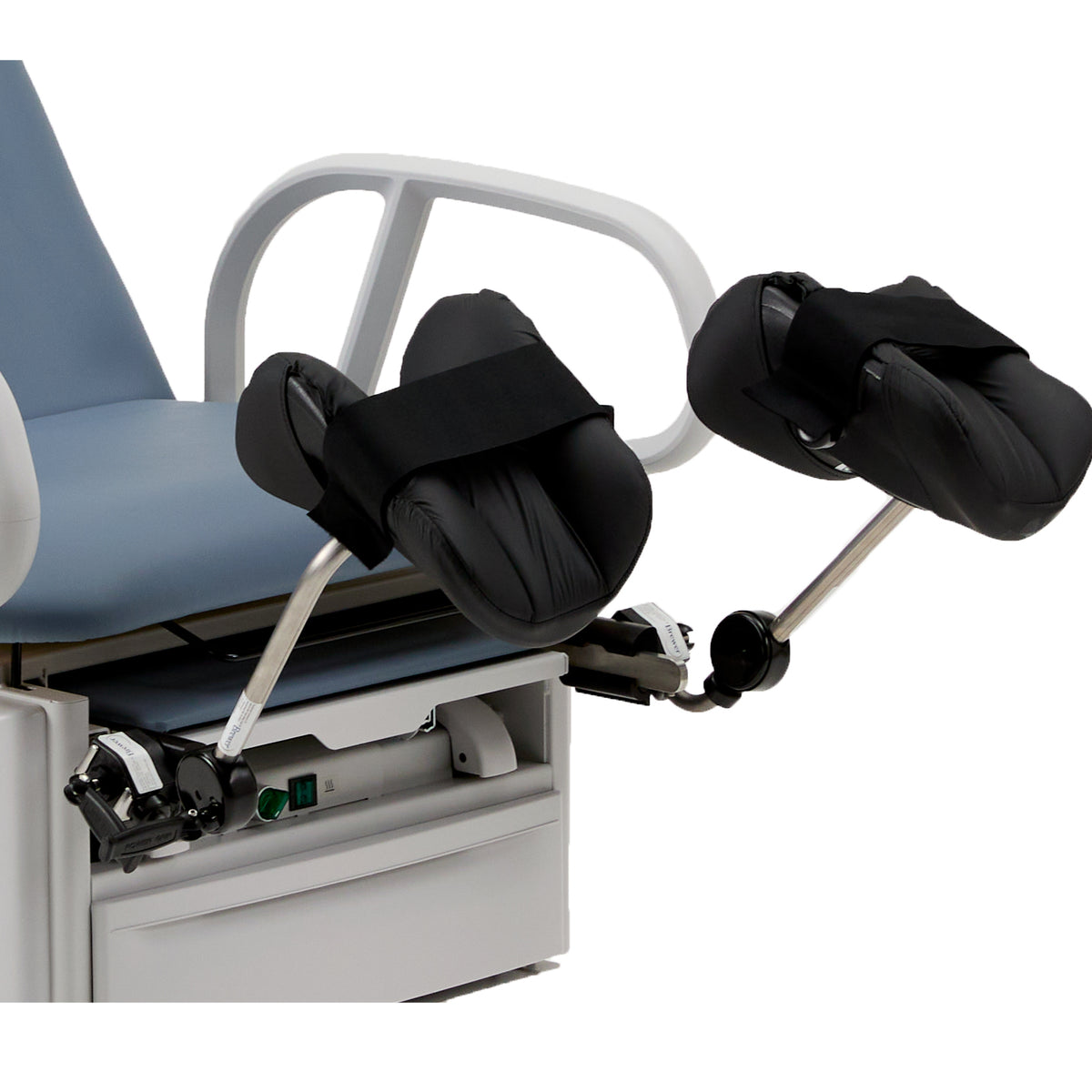

- Articulating knee crutches (99504) on a FLEX PLUS or Access High-Low PLUS need one support adaptor kit (100540 factory installed or 100550 field installed) and two universal socket clamps (99502).
Models
| Item # | Description and fit |
| 2102894PLUS | Stirrups, set of 2, factory installed. FLEX 5700PLUS/5800PLUS. |
| 2102898PLUS | Stirrups, set of 2, field installed. FLEX 5700PLUS/5800PLUS. |

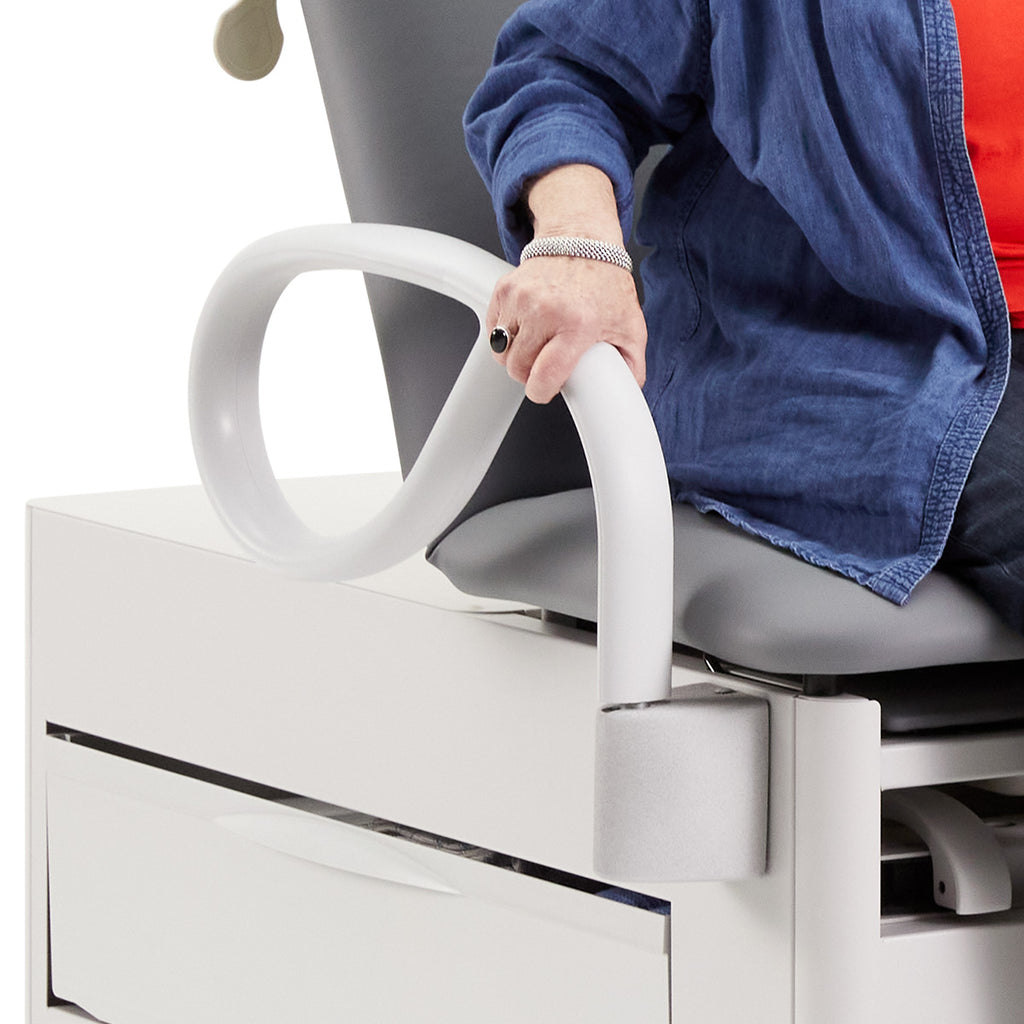

| 2102891PLUS | ComfortGrip patient assist handles, set of 2, factory installed. FLEX PLUS. |
| 2102895PLUS | ComfortGrip patient assist handles, set of 2, field installed. FLEX PLUS. |
| 2102892PLUS | Mayo pass-through work surface, factory installed. FLEX PLUS. |
| 2102896PLUS | Mayo pass-through work surface, field installed. FLEX PLUS. |

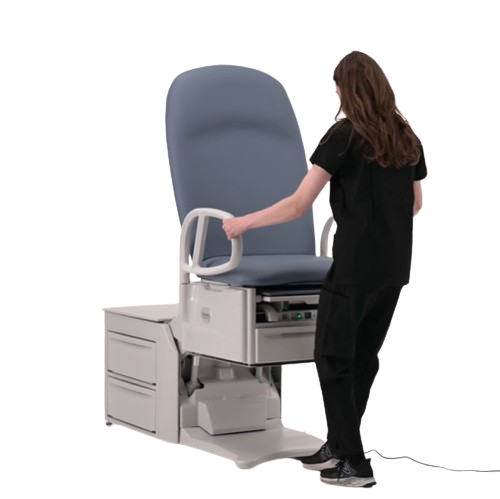

| 3500687PLUS | EasyGlide one-touch mobility system, factory installed. FLEX PLUS and Access High-Low PLUS. |
| 100407PLUS | Front drawer dividers. FLEX PLUS and Access High-Low PLUS. |
| 102031PLUS | Welch Allyn® IV/exam-light bracket, factory installed. FLEX PLUS and Access High-Low PLUS. |
| 102032PLUS | Welch Allyn IV/exam-light bracket, field installed. FLEX PLUS and Access High-Low PLUS. |

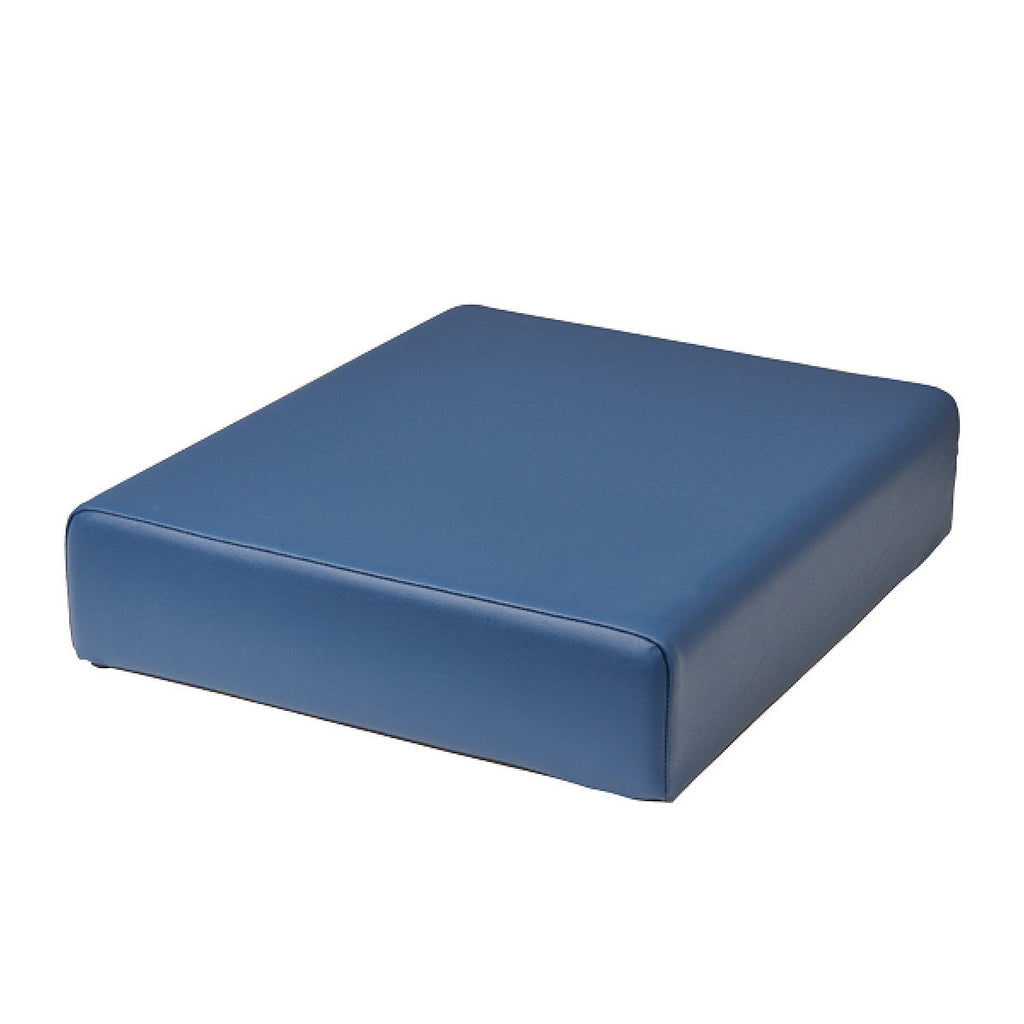

| 3500077 | Footrest pad: high-density foam, non-skid bottom, zip cover. All Brewer exam tables. |
| 99504 | Deluxe articulating knee crutches, pair. Requires 100540 or 100550 and two 99502. |
| 100540 | Knee crutch support adapters (two), factory installed. |
| 100550 | Knee crutch support adapters (two), field installed. |
| 99502 | Universal socket clamp, one. Order two for knee crutches. |
| 99505 | Stainless steel treatment pan. Listed on the FLEX PLUS data sheet. |
| 101800 | Electrical outlet option for Access High-Low PLUS 6001PLUS, plant installed, oriented to patient's left. |
Specifications
| ComfortGrip assist handles | Rated 100 lb (Access High-Low PLUS operator manual) |
| Mayo pass-through work surface | Rated 15 lb (Access High-Low PLUS operator manual) |
| Footrest pad | High-density foam, non-skid bottom, zip cover |
| Installation | Factory-installed items ship with a new table; field kits install on site |
Resources
- Brewer FLEX High-Low PLUS product page
- FLEX PLUS data sheet (PDF)
- Access High-Low PLUS data sheet (PDF)
- FLEX installation and operation manual (PDF)
- Brewer medical catalog (PDF)
Shipping: Ships direct from Brewer in Menomonee Falls, WI (FOB Menomonee Falls, WI). Larger items ship dock-to-dock by freight; liftgate and other special delivery services are extra. Free dock-to-dock freight on orders of $10,000+ in Brewer tables or $5,000+ in other Brewer products (continental US).
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
