Description

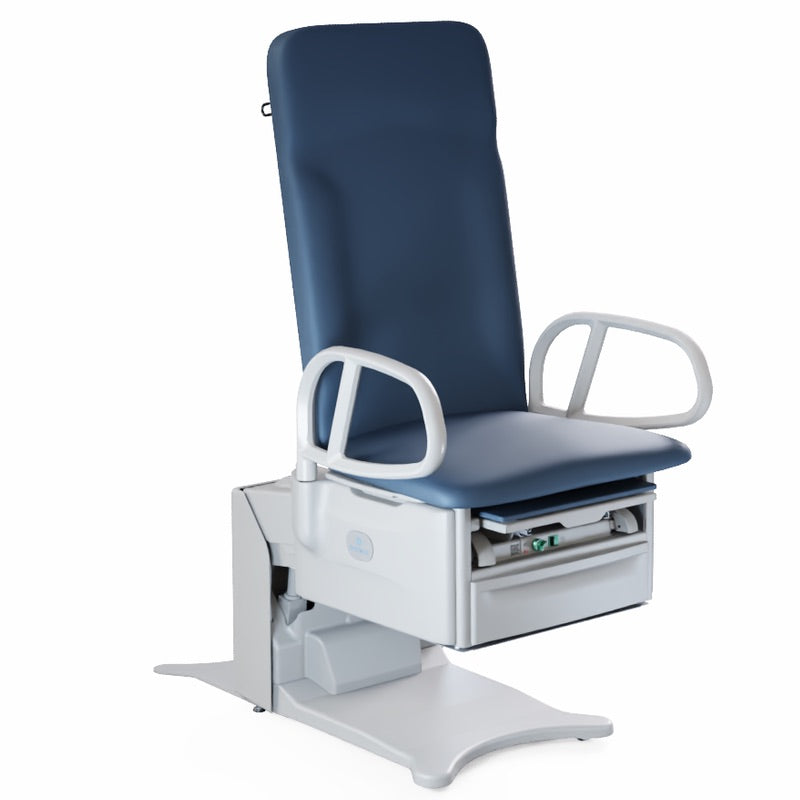

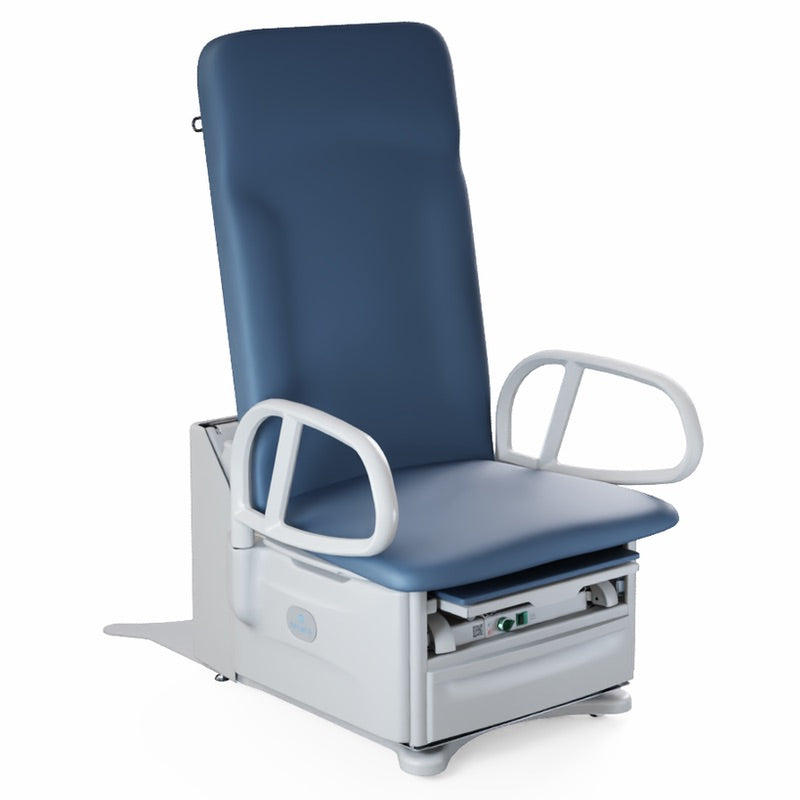

The Brewer FLEX™ High-Low PLUS is a power high-low exam table with a 700 lb weight capacity on every model. It lowers to an ADA-compliant 18" for wheelchair transfers and raises to 37" for the exam. Choose a pneumatic or power backrest, with or without Brewer's women's health package (stirrups, pelvic tilt, front drawer warmer and hospital-grade outlet).
Patient Access and Safety
- Power height adjustment from 18" to 37" (45.7–94 cm); both heights ADA compliant.
- 700 lb (317 kg) weight capacity on all four models.
- Foot control standard.
- Anti-tamper on/off switch, safety zones that stop table movement, and safe low-voltage actuators.
Exam Room Features

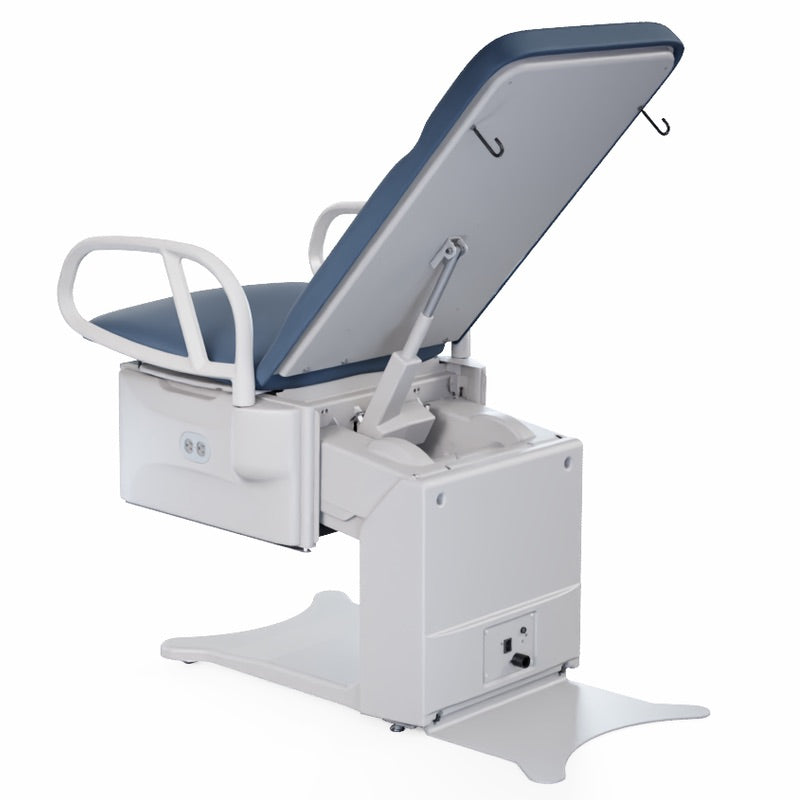

- Pneumatic backrest on 5700PLUS/5701PLUS; power backrest with return-to-chair on 5800PLUS/5801PLUS.

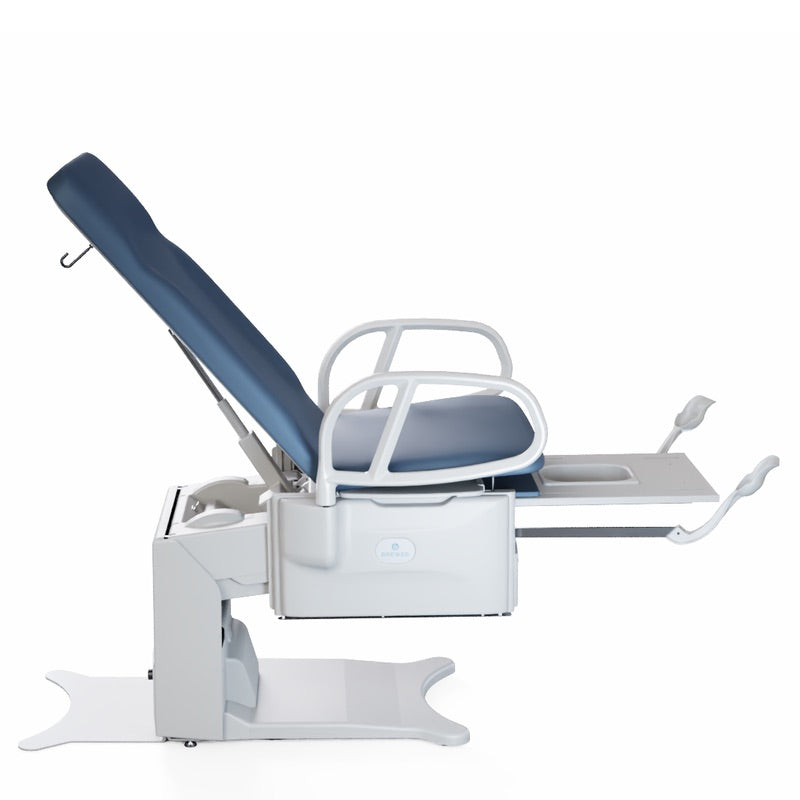

- 5701PLUS and 5801PLUS add ergonomic adjustable stirrups, pelvic tilt, a 60 W front drawer warmer and a hospital-grade outlet.

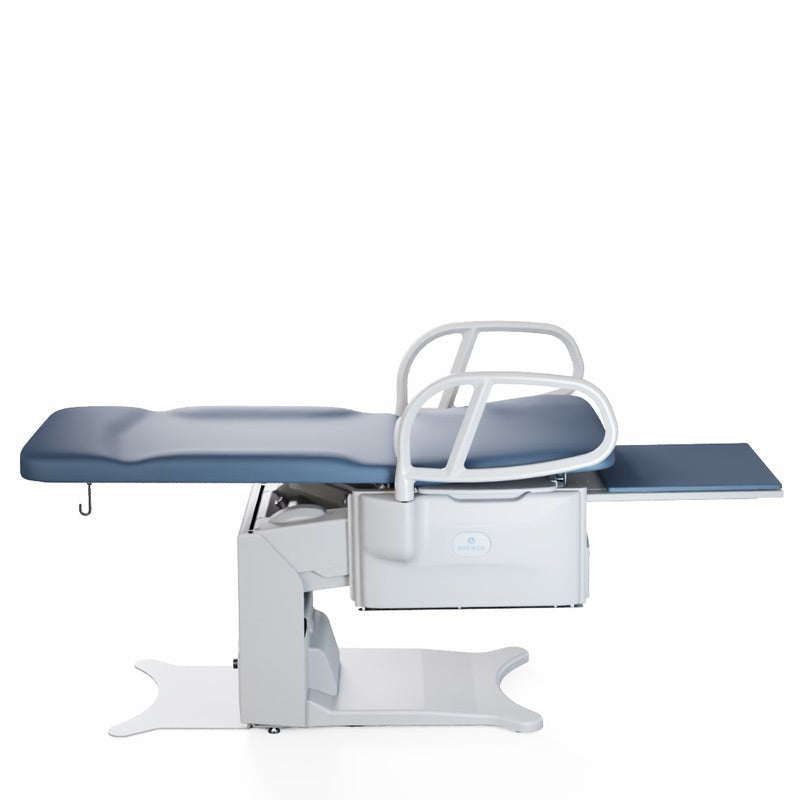

- SafeGlide™ slide-out leg extension (18"); table length extends from 60" to 78".

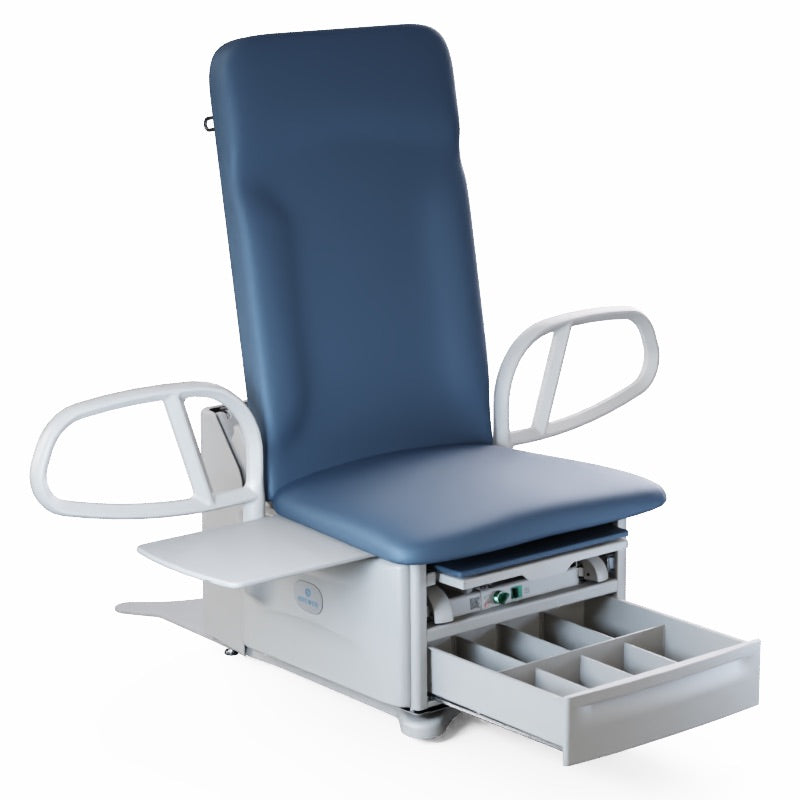

- Front storage drawer 19.75" x 19.25" x 4"; paper roll holder takes 18" and 21" rolls.
- Seamless, multi-density upholstery, 28" wide, easy to clean.
Options
- Stirrups for 5700PLUS/5800PLUS (factory or field installed).
- ComfortGrip™ patient assist handles and Mayo pass-through work surface (factory or field installed).
- EasyGlide™ mobility system, drawer dividers, Welch Allyn® IV/exam-light bracket, footrest pad and articulating knee crutches.
- These are listed separately with our FLEX PLUS and Access High-Low PLUS accessories.
Models
| Model | Includes |
| 5700PLUS | Pneumatic (manual) back. Stirrups, pelvic tilt, drawer warmer and outlet not included. |
| 5701PLUS | Pneumatic (manual) back, stirrups, pelvic tilt, front drawer warmer and hospital-grade outlet. |
| 5800PLUS | Power back with return-to-chair. Stirrups, pelvic tilt, drawer warmer and outlet not included. |
| 5801PLUS | Power back with return-to-chair, stirrups, pelvic tilt, front drawer warmer and hospital-grade outlet. |
Specifications
| Weight capacity | 700 lb (317 kg) |
| Height range | 18"–37" (45.7–94 cm) |
| Length | 60", extends to 78" with leg extension (152.4–198.1 cm) |
| Upholstery width | 28" (71.1 cm) |
| Leg extension | SafeGlide, 18" (45.7 cm); leg support rated 50 lb |
| Back range | 0° to 80° ±5° |
| Pelvic tilt | 5701PLUS/5801PLUS only; up to 6° per data sheet |
| Front drawer | 19.75" x 19.25" x 4" |
| Drawer warmer | 60 W (5701PLUS/5801PLUS) |
| Electrical | 115 VAC, 60 Hz |
| Duty cycle | 10% (2 min on / 18 min off) |
| Table weight | 330 lb |
| Certifications | UL 60601-1; CAN-CSA C22.2 No. 601.1 |
| Warranty | 5 years |
| Made in | USA |
Upholstery Colors

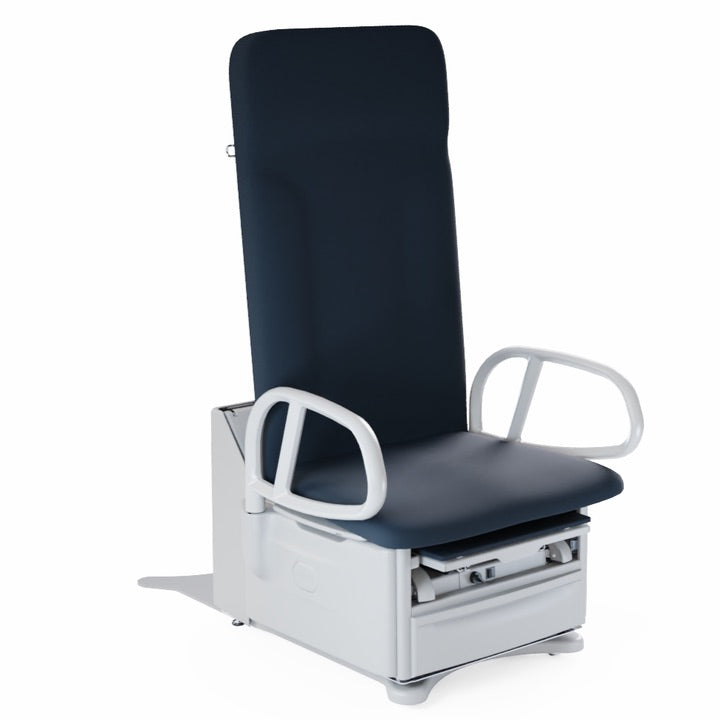

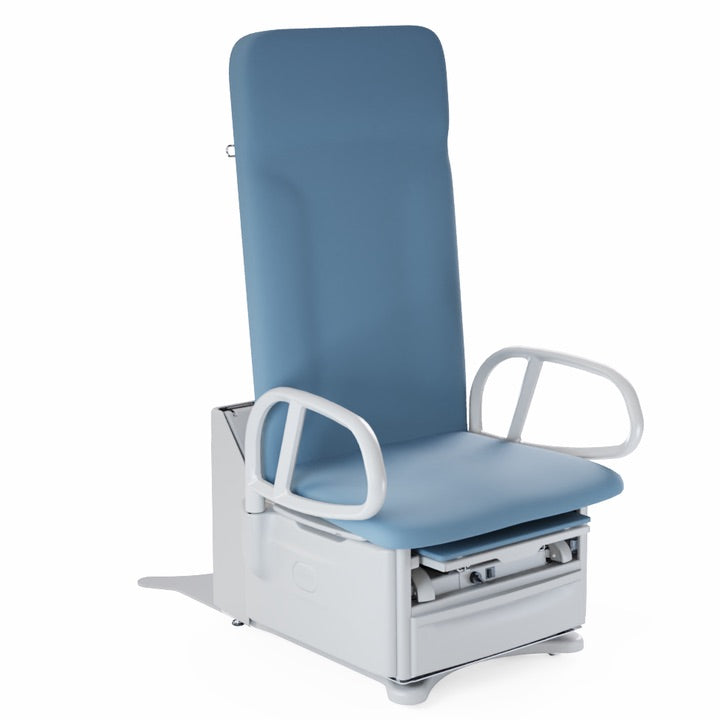

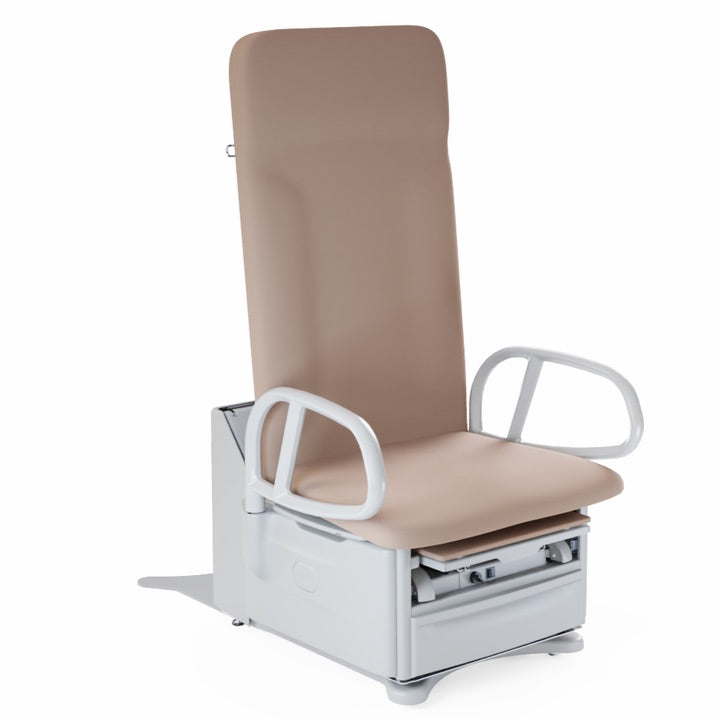

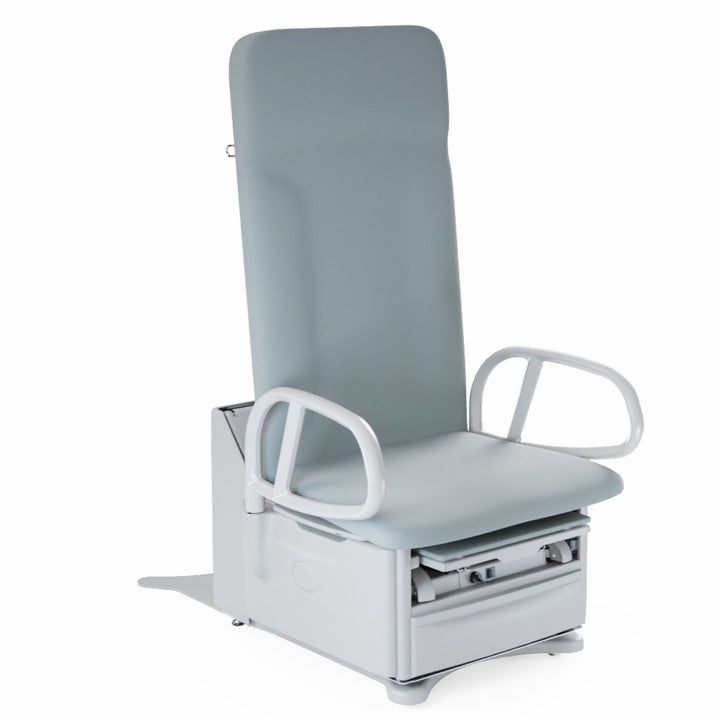

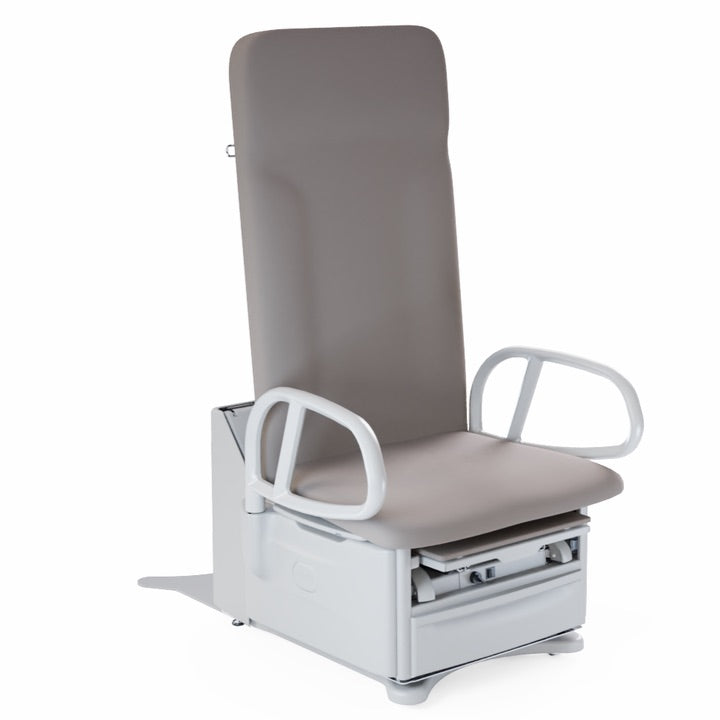

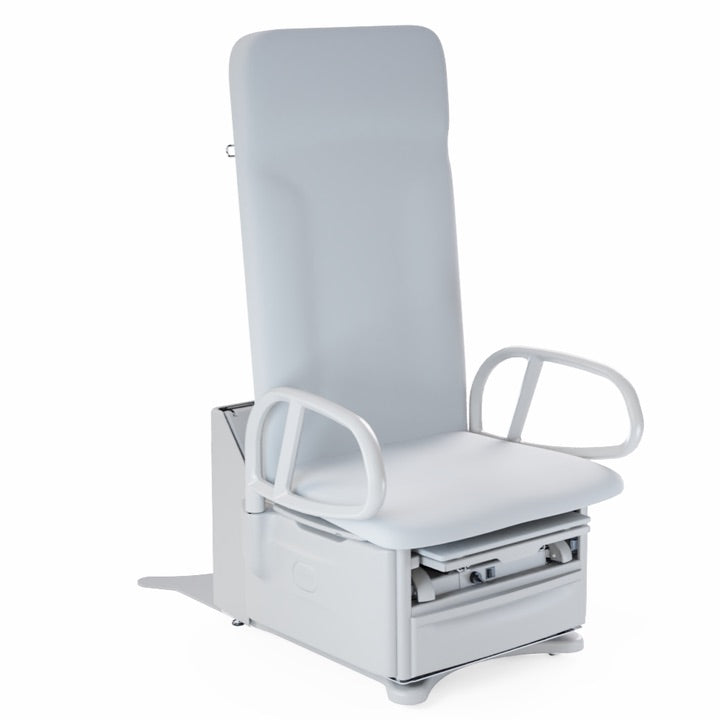

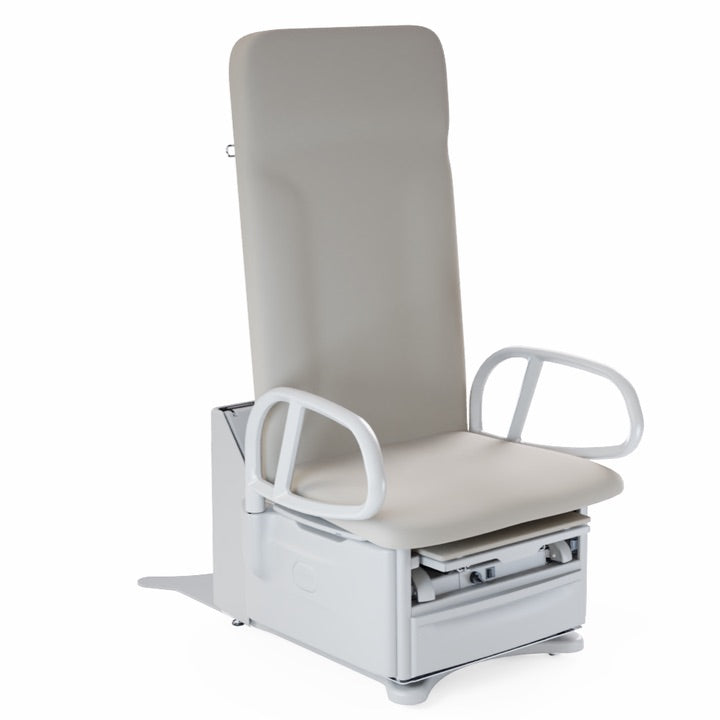

Standard PLUS Model Colors (15): choose above
PLUS model tables are offered in these 15 colors. Special-order colors are available on request; add the table to your quote and tell us what you need.
On-screen colors can differ from the actual upholstery. Ask us for a physical swatch to confirm your selection before ordering. Brewer medical color chart
Other Brewer upholstery colors and special-order colors are available on request; ask us for a quote.
