Description

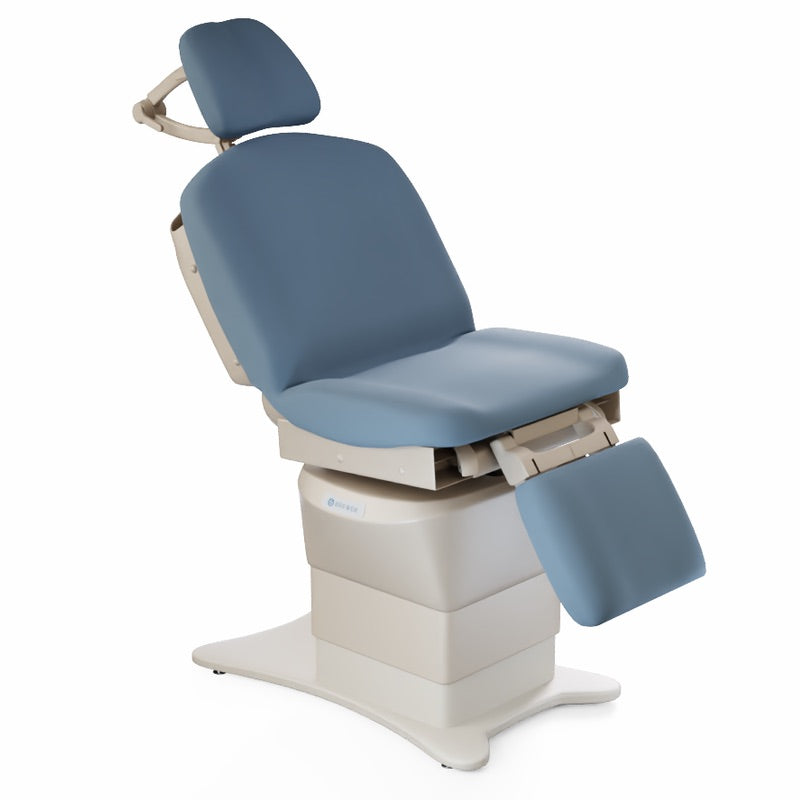

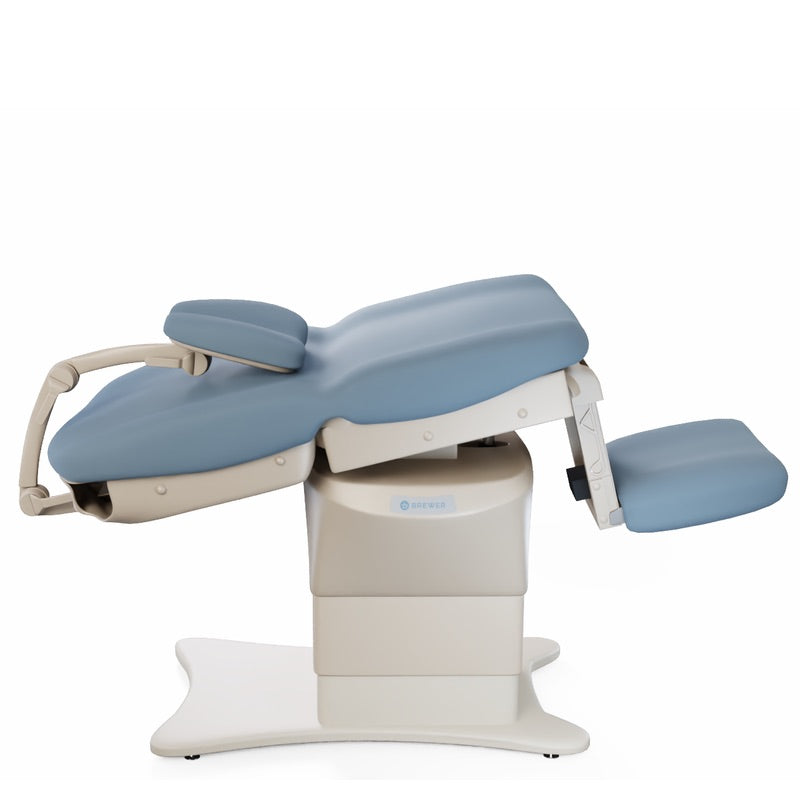

The Brewer Assist™ is an infinitely adjustable power procedure table that moves from a 19" ADA-compliant seat height for wheelchair transfers up to 40", with up to 30° Trendelenburg tilt for lithotomy, proctology and other procedures. The AssistPRO™ (7500) adds a hand pendant and four programmable preferred positions.
Positioning
- Power height 19"–40" (48.3–101.6 cm); the 19" low height supports lateral wheelchair transfers.

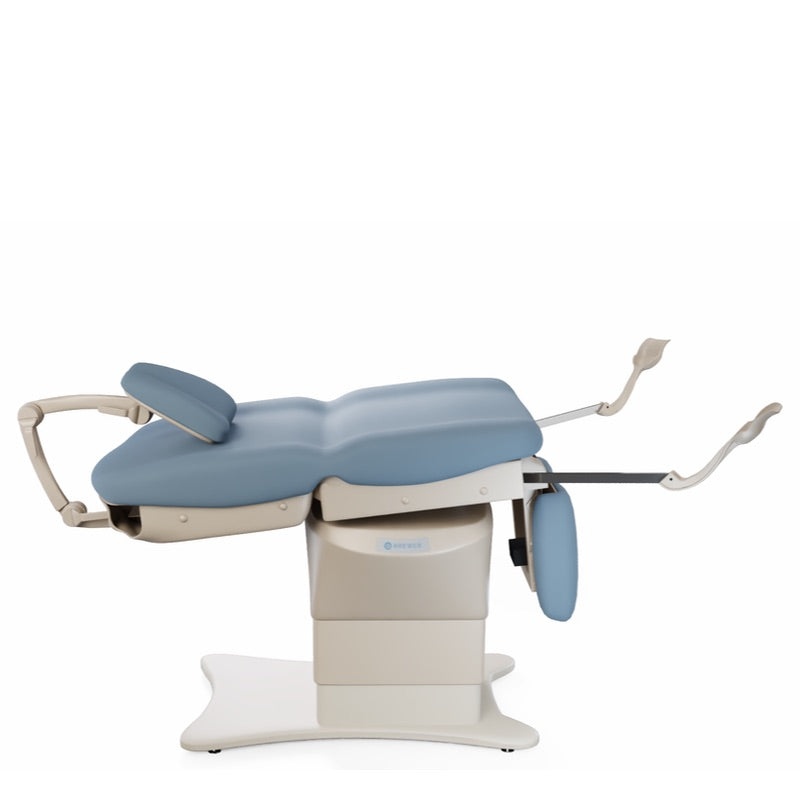

- Tilt / Trendelenburg up to 30°; back 0°–85°; powered leg section 0°–90°.

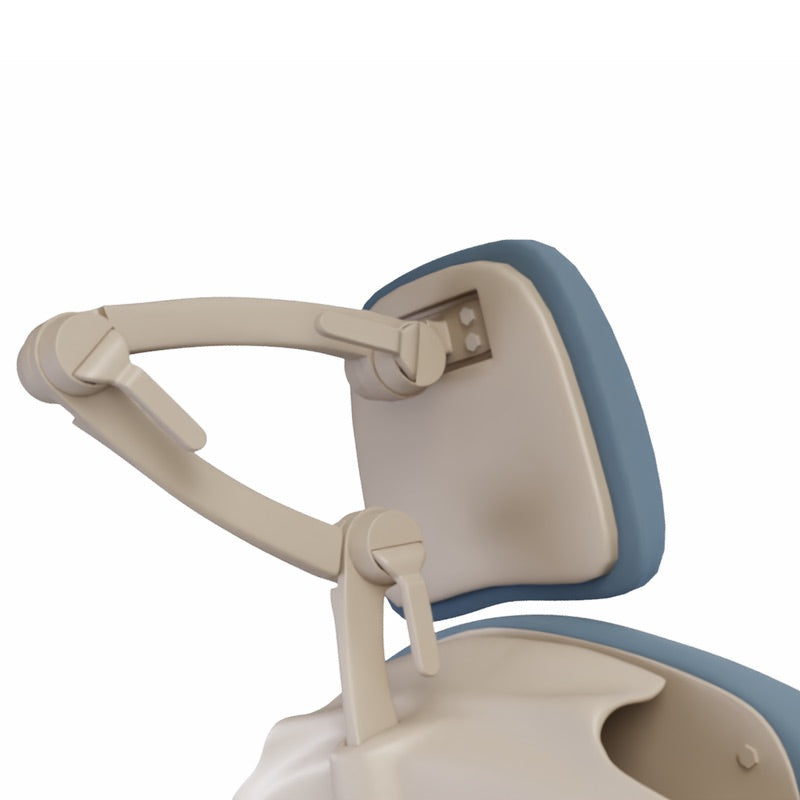

- Adjustable three-point pivot headrest; leg rest extends an additional 5".
- Ergonomic adjustable stirrups and foot control standard.
AssistPRO Programmable Control
- Hand pendant and foot control both included on the 7500.
- Four programmable preferred positions with auto-run toggle.
- A hand pendant can be added to the 7000 as an accessory (99500).
Safety and Construction
- 450 lb (204 kg) weight capacity.
- Safety release actuators and safe extra-low-voltage actuators.
- Seamless, multi-density bolstered upholstery in 12 standard colors or 5 premium plush colors.
- Slide-through paper holder accepts 18" or 21" rolls.
Models
| Model | Includes |
| Assist 7000 | Foot control, stirrups. SKUs 7000-21 to 7000-32 (standard colors) and 7000-50 to 7000-55 (premium plush colors). |
| AssistPRO 7500 | Foot control and hand pendant, four programmable positions, stirrups. SKUs 7500-21 to 7500-32 (standard colors) and 7500-50 to 7500-55 (premium plush colors). |
Specifications
| Weight capacity | 450 lb (204 kg) |
| Height range | 19"–40" (48.3–101.6 cm) |

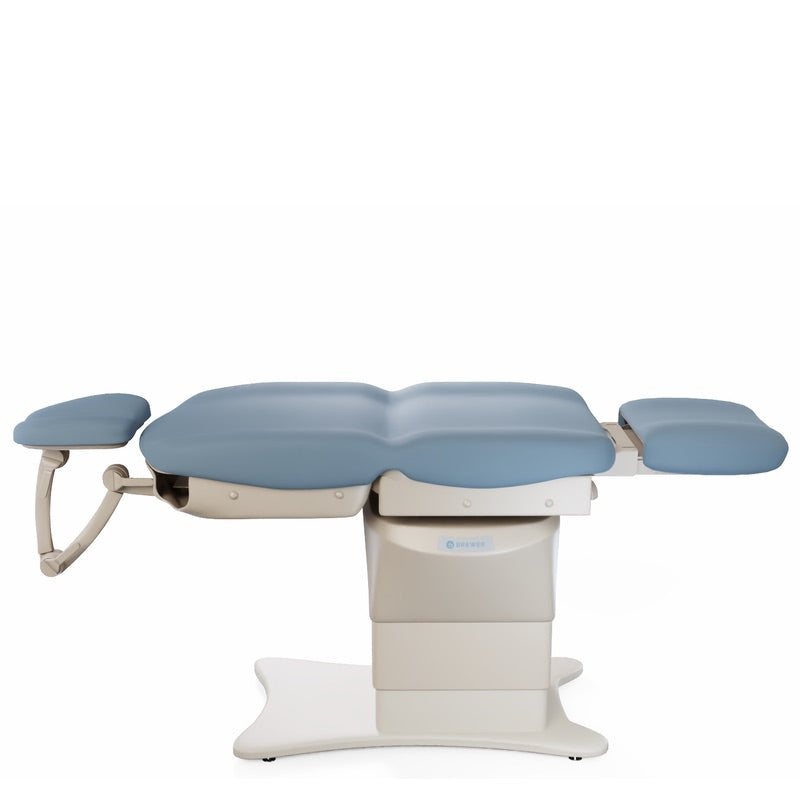

| Length, flat | 69" (175.3 cm) |
| Length, extended | 80" with headrest and leg rest extended |
| Length, upright | 40" (101.6 cm) |
| Width | 28" (71.1 cm) |
| Headrest | 13" x 11"; rated 100 lb |
| Tilt | Up to 30° (Trendelenburg) |
| Back range | 0° to 85° ±5° |
| Leg section range | 0° to 90° |
| Base | 24" W x 36" L (61 x 91.4 cm) |
| Electrical | 115 VAC, 60 Hz, 5.8 A max |
| Duty cycle | 10% (2 min on / 18 min off) |
| Table weight | 550 lb |
| Certifications | UL 60601-1; CAN-CSA C22.2 No. 601.1 |
| Warranty | 3 years |
| Made in | USA |

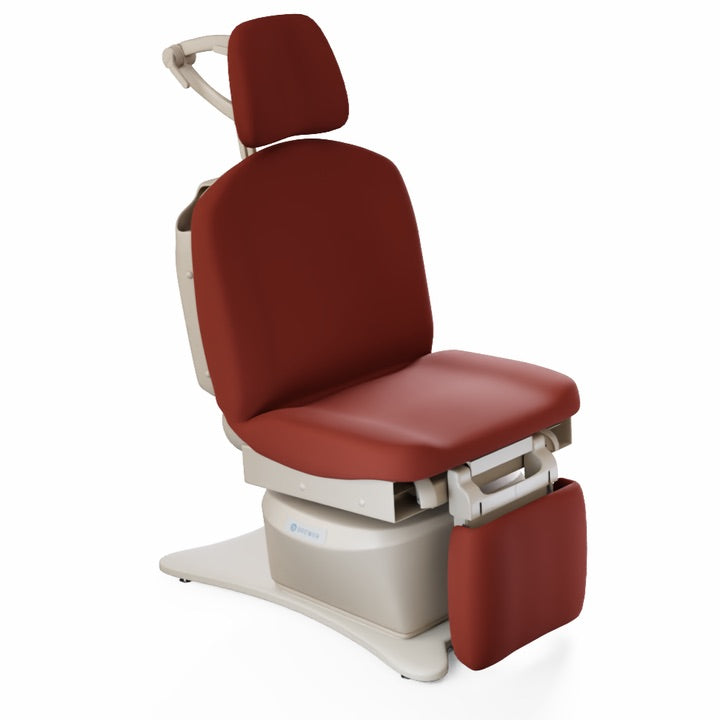

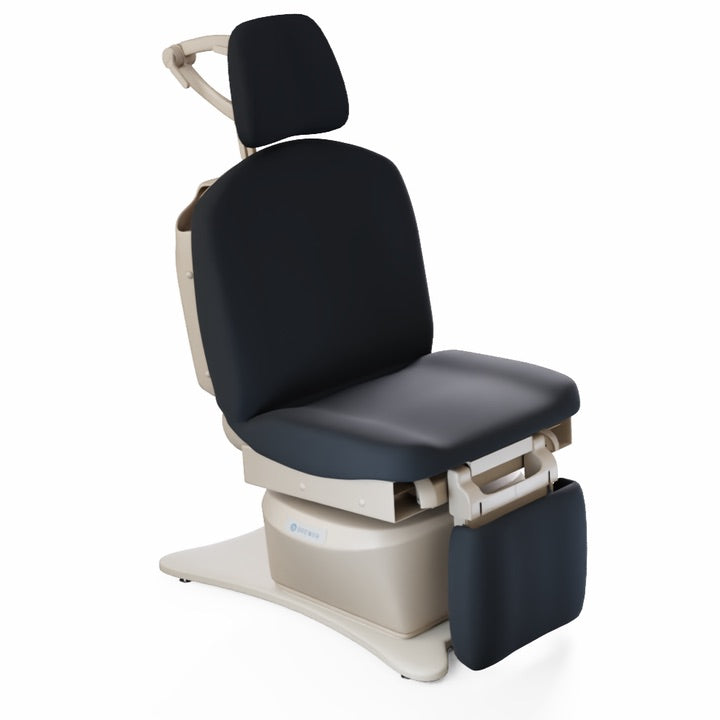

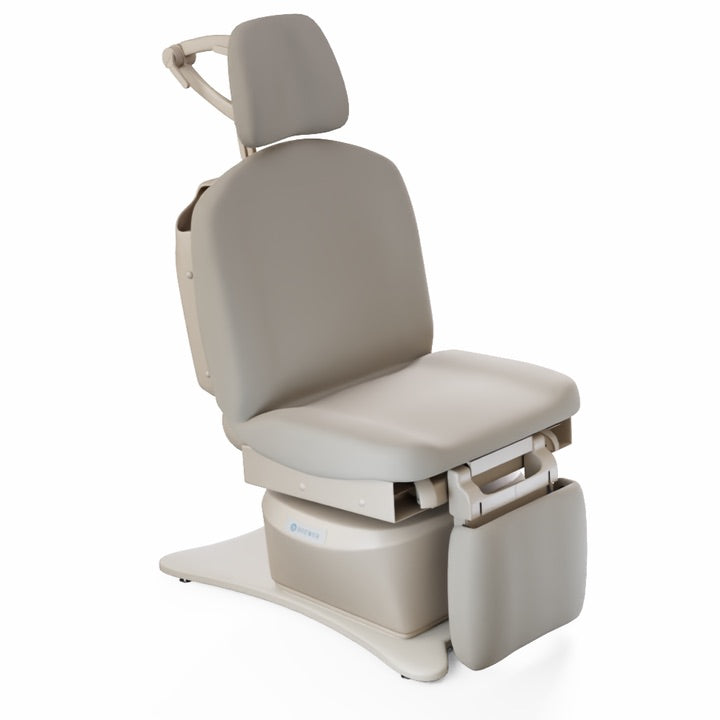

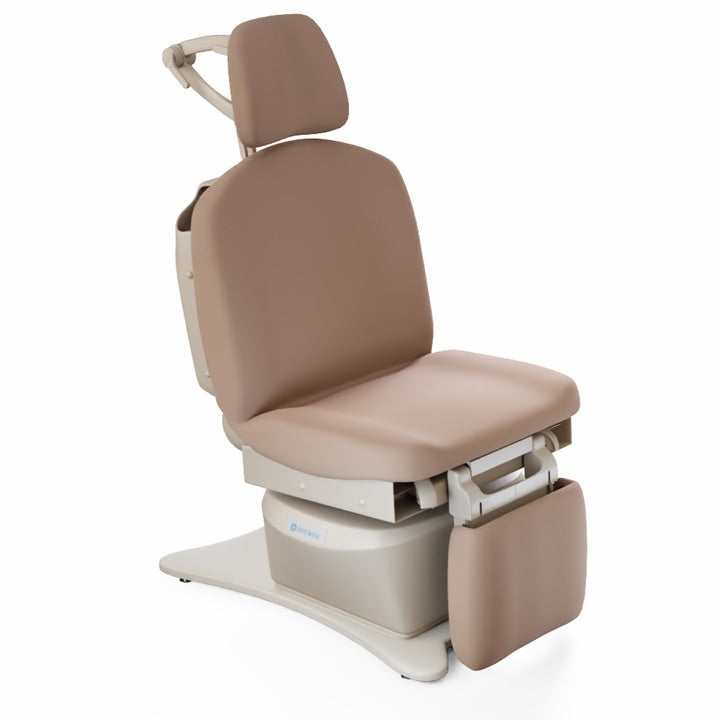

Upholstery Colors
Standard Colors (12): choose above
Additional Colors: special order
Other colors: Additional Brewer upholstery colors (shown at right, up-charge) and special-order colors are available. Add the item to your quote and tell us the color name and code, and we will confirm price and lead time with Brewer.
Premium plush UltraLeather™ colors: Arctic (UL5684), Charcoal (UL5763), Shetland (UL4351), Stone (UL3602), Admiral (UL2556). Plush tops on Assist tables are two-toned (Arctic with one of the plush colors).
On-screen colors can differ from the actual upholstery. Ask us for a physical swatch to confirm your selection before ordering. Brewer medical color chart
Other Brewer upholstery colors and special-order colors are available on request; ask us for a quote.
Resources
- Brewer Assist Power Procedure Table product page
- Assist data sheet (PDF)
- Assist sell sheet (PDF)
- Assist 7000 operator manual (PDF)
- AssistPRO 7500 operator manual (PDF)
- Assist unpacking instructions (PDF)
- Brewer cleaning guidelines (PDF)
Shipping: Ships direct from Brewer in Menomonee Falls, WI (FOB Menomonee Falls, WI). Larger items ship dock-to-dock by freight; liftgate and other special delivery services are extra. Free dock-to-dock freight on orders of $10,000+ in Brewer tables or $5,000+ in other Brewer products (continental US).
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
