Description

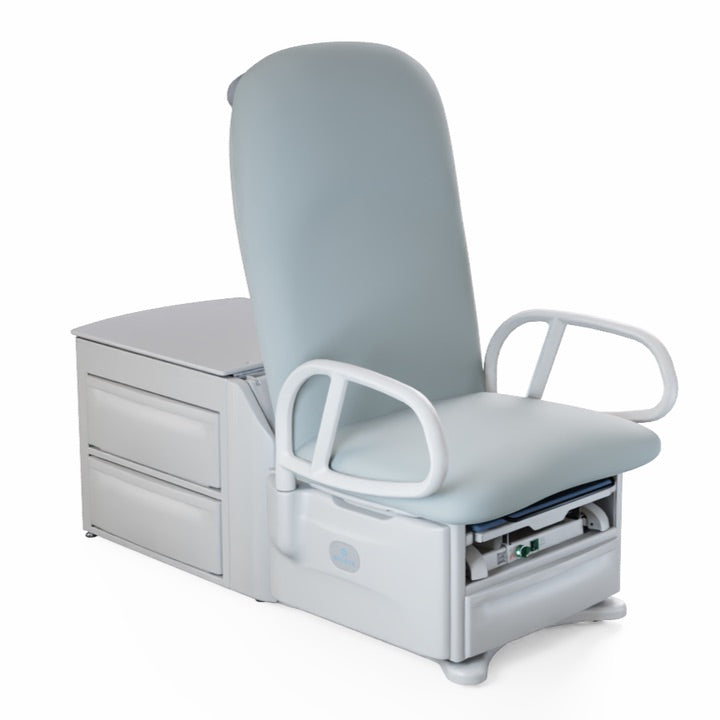

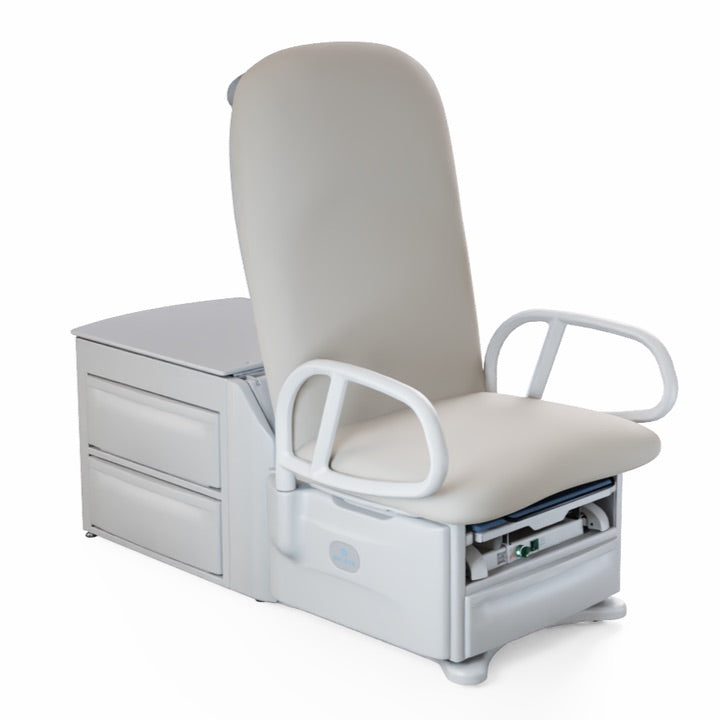

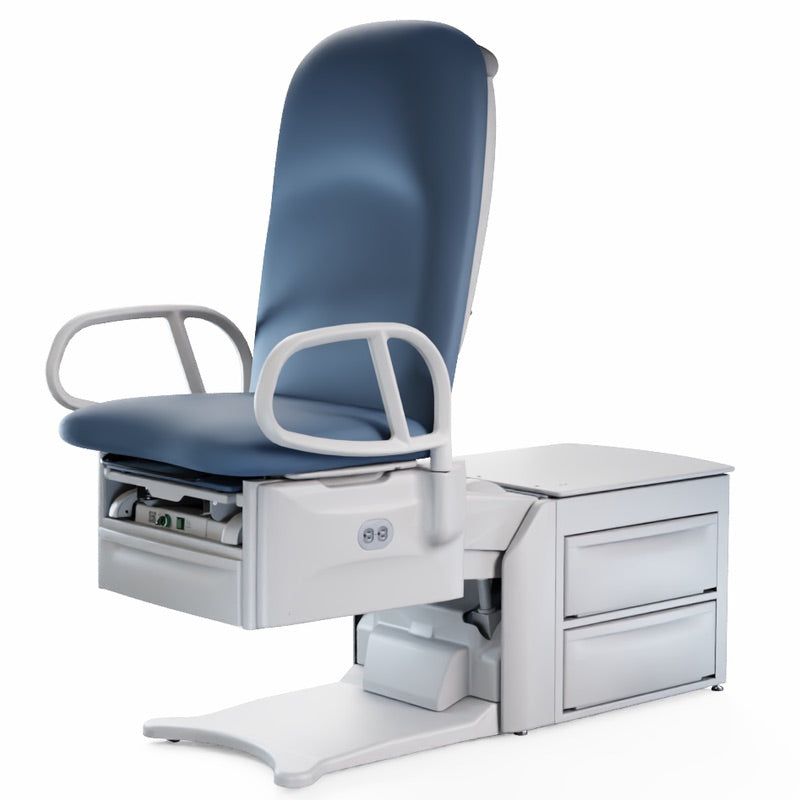

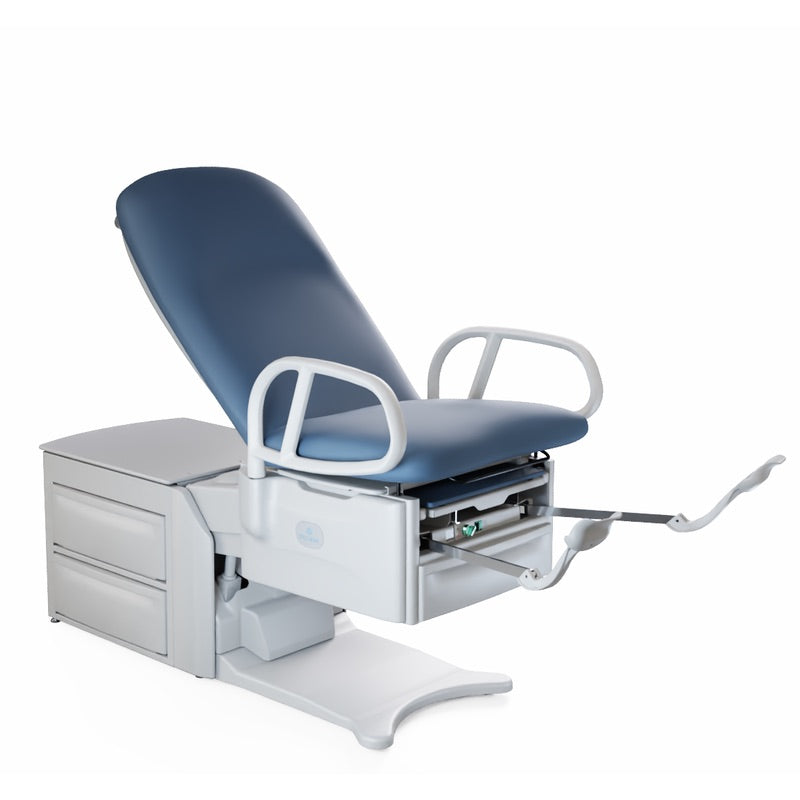

The Brewer Access® High-Low PLUS is Brewer's fully featured power exam table. ComfortGrip™ patient assist handles, ergonomic adjustable stirrups and a Mayo pass-through work surface are standard on every model, along with Brewer's Signature Storage Hub with patented pass-through side drawers. It lowers to an ADA-compliant 18" and comes in 450 lb and 700 lb capacity models.
Patient Access and Safety
- Power height adjustment from 18" to 37" (45.7–94 cm); both heights ADA compliant.
- 450 lb (204 kg) capacity on 6000PLUS, 6001PLUS, 6500PLUS and 6501PLUS; 700 lb (317 kg) on 6800PLUS and 6801PLUS.
- ComfortGrip assist handles (rated 100 lb) help patients on and off the table.

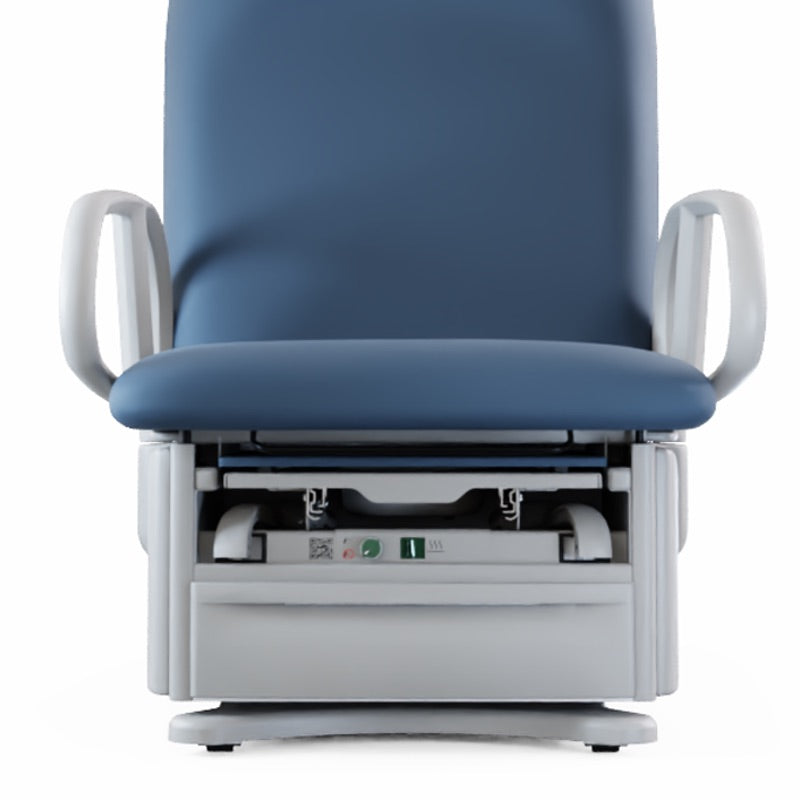

- Foot control standard; three safety zones, anti-tamper on/off switch and safe low-voltage actuators.
Exam Room Features
- Pneumatic backrest on 6000PLUS/6001PLUS; power backrest with return-to-chair on 6500PLUS, 6501PLUS, 6800PLUS and 6801PLUS.
- Women's health models (6001PLUS, 6501PLUS, 6801PLUS) add pelvic tilt and a 60 W front drawer warmer; 6501PLUS and 6801PLUS also include an outlet.

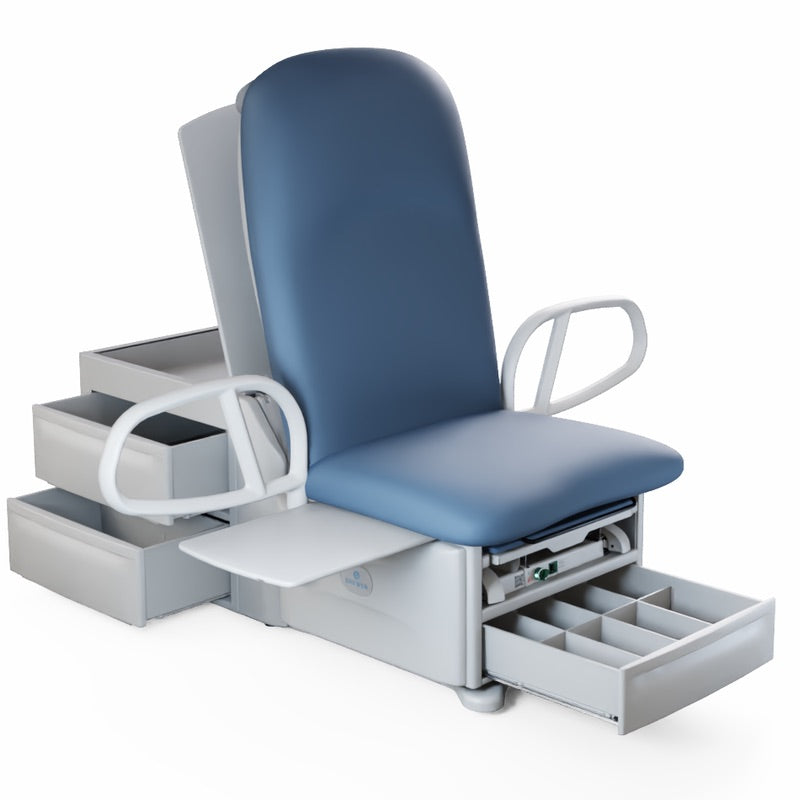

- Signature Storage Hub: front drawer, two pass-through side drawers and flip-top paper storage (5 cu. ft. total).

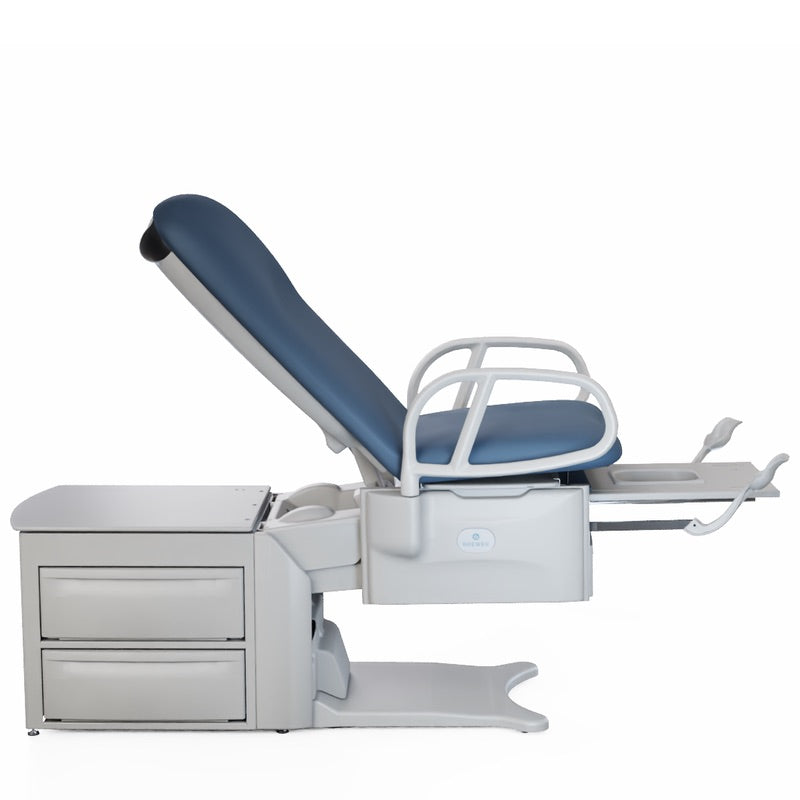

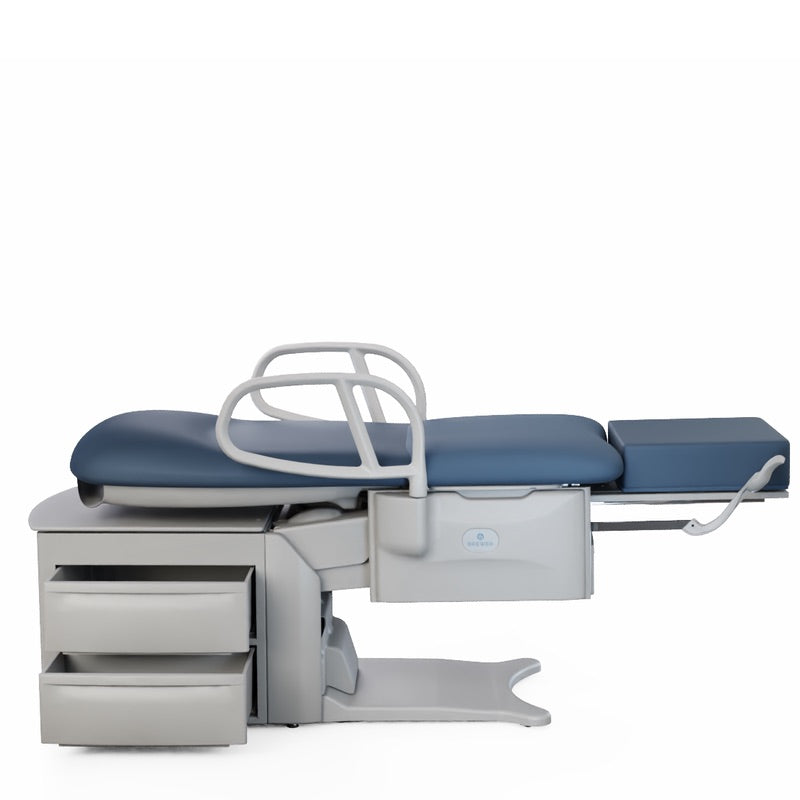

- SafeGlide™ 18" leg extension; table length extends from 60" to 78".
- Mayo pass-through work surface (rated 15 lb) standard; paper roll holder accepts 18" and 21" rolls.
Options
- EasyGlide™ one-touch mobility system.
- Factory-installed outlet for 6001PLUS (must be ordered with the table).
- Drawer dividers, Welch Allyn® IV/exam-light bracket, footrest pad and articulating knee crutches.
- These are listed separately with our FLEX PLUS and Access High-Low PLUS accessories.
Models
| Model | Includes |
| 6000PLUS | 450 lb capacity. Pneumatic back, stirrups, assist handles and work surface. |
| 6001PLUS | 450 lb capacity. Pneumatic back, stirrups, assist handles, work surface, pelvic tilt and drawer warmer. Outlet optional. |
| 6500PLUS | 450 lb capacity. Power back, stirrups, assist handles and work surface. |
| 6501PLUS | 450 lb capacity. Power back, outlet, stirrups, assist handles, work surface, pelvic tilt and drawer warmer. |
| 6800PLUS | 700 lb capacity. Power back, stirrups, assist handles and work surface. |
| 6801PLUS | 700 lb capacity. Power back, outlet, stirrups, assist handles, work surface, pelvic tilt and drawer warmer. |
Specifications
| Weight capacity | 450 lb (204 kg); 700 lb (317 kg) on 6800PLUS/6801PLUS |
| Height range | 18"–37" (45.7–94 cm) |
| Length | 60", extends to 78" |
| Upholstery top | 28" W x 60" L |
| Leg support | 18" x 18"; SafeGlide 18" extension; rated 50 lb |
| Back range | 0° to 80° ±5° |
| Pelvic tilt | 6001PLUS/6501PLUS/6801PLUS; up to 6° per data sheet |
| Front drawer | 19.75" x 19.25" x 4" |
| Side drawers | 2 pass-through, each 22.5" x 20.25" x 8" |
| Paper storage | 23" x 23.25" x 3.25" |
| Drawer warmer | 60 W (women's health models) |
| Electrical | 115 VAC, 60 Hz, 6.0 A max; outlet max load 2.0 A |
| Table weight | 410 lb (6000PLUS–6501PLUS); 438 lb (6800PLUS); 447 lb (6801PLUS) |
| Certifications | UL 60601-1; CAN-CSA C22.2 No. 601.1 |
| Warranty | 5 years |
| Made in | USA |

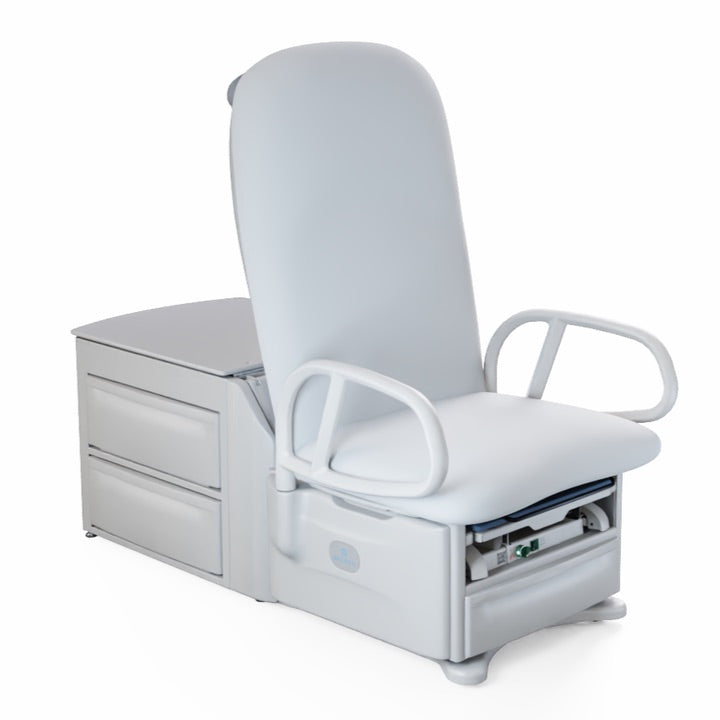

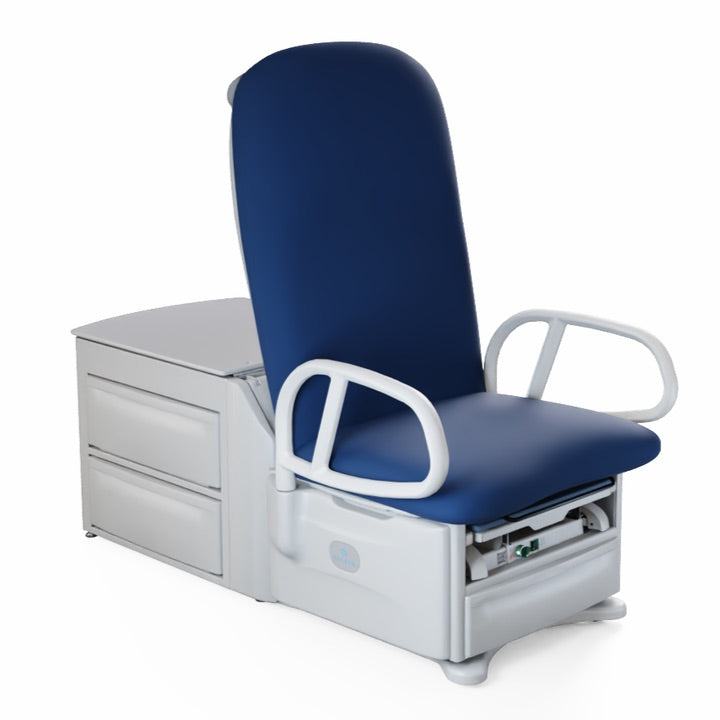

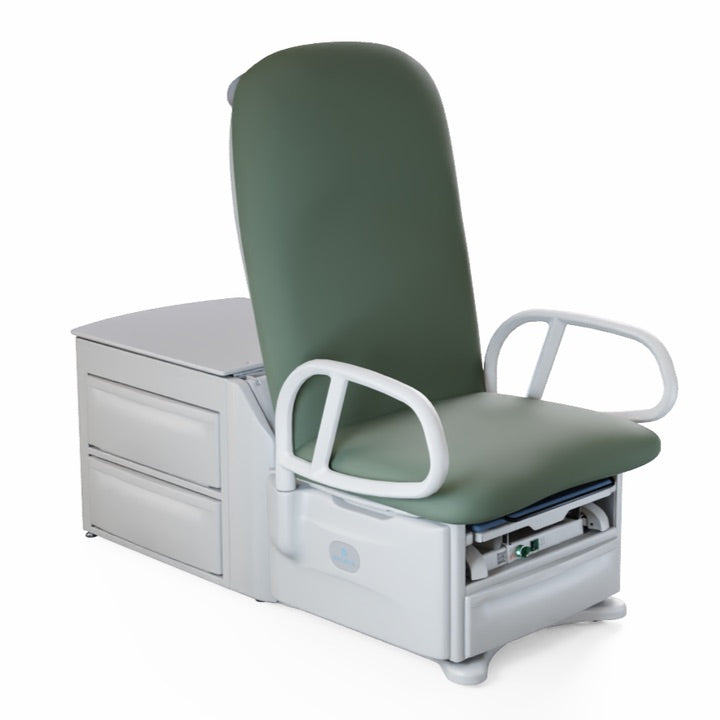

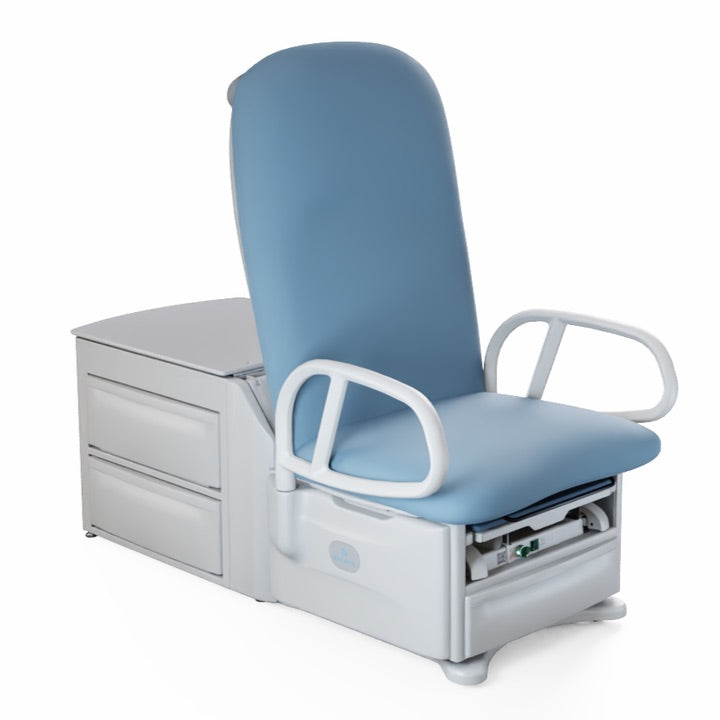

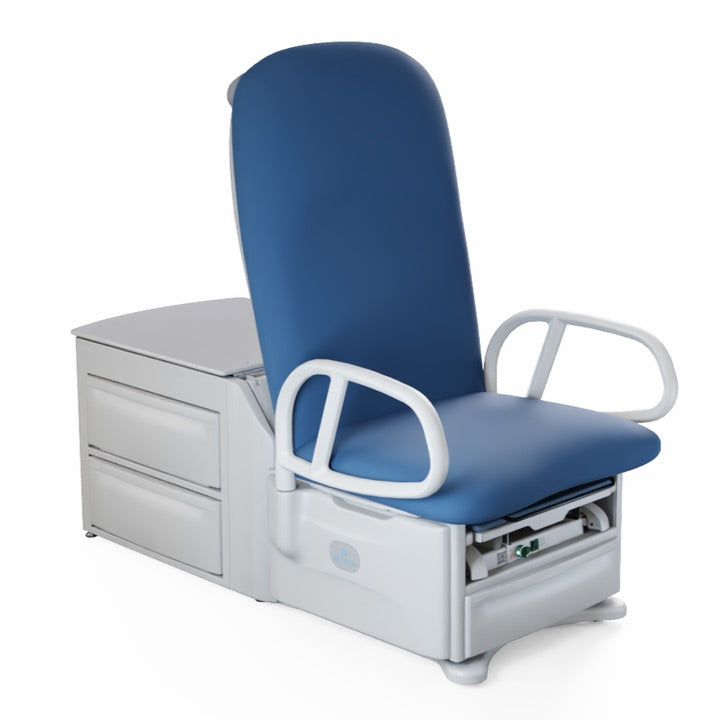

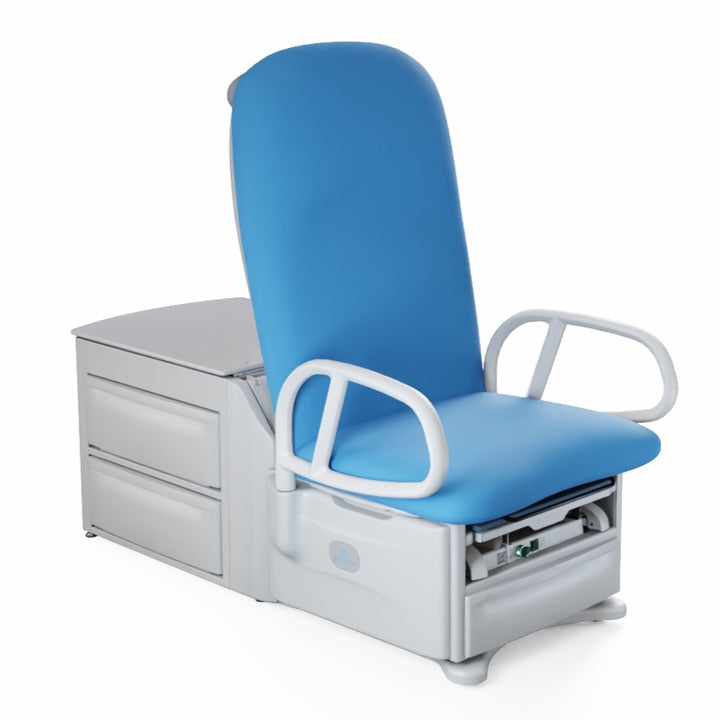

Upholstery Colors
Standard PLUS Model Colors (15): choose above
PLUS model tables are offered in these 15 colors. Special-order colors are available on request; add the table to your quote and tell us what you need.
On-screen colors can differ from the actual upholstery. Ask us for a physical swatch to confirm your selection before ordering. Brewer medical color chart
Other Brewer upholstery colors and special-order colors are available on request; ask us for a quote.
Resources
- Brewer Access High-Low PLUS product page
- Access High-Low PLUS data sheet (PDF)
- Access High-Low PLUS sell sheet (PDF)
- Access High-Low PLUS operator manual (PDF)
- Uncrating instructions (PDF)
- Brewer cleaning guidelines (PDF)
Shipping: Ships direct from Brewer in Menomonee Falls, WI (FOB Menomonee Falls, WI). Larger items ship dock-to-dock by freight; liftgate and other special delivery services are extra. Free dock-to-dock freight on orders of $10,000+ in Brewer tables or $5,000+ in other Brewer products (continental US).
Pricing: Contract and volume pricing available, including Vizient and Provista. Add this item to your quote for multi-unit pricing, freight and current lead time.
