Description
This 24" wide combination stacks a 6 cu.ft. Pharma-Vac 2-8°C refrigerator with a matching vaccine freezer, giving refrigerated and frozen vaccine storage in a single footprint. It ships in three boxes, including a StackRack that secures one unit on top of the other.
Key Features
- 6.0 cu.ft. Performance Series refrigerator at 2-8°C with +/-1°C control
- Choice of AFZ1PV countertop freezer (1.4 cu.ft.) or AFZ5PVBIADA freezer (3.88 cu.ft.), -30°C to -10°C
- Independent microprocessor controls and audible/visual alarms on each unit
- Remote alarm contacts, probe ports and password protection
- Factory-installed keyed locks, self-closing doors, antimicrobial handles
- StackRack stacking kit included; designed around CDC/VFC guidelines
Specifications
| Capacity | Refrigerator 6.0 cu.ft.; freezer 1.4 cu.ft. (AFZ1PV) or 3.88 cu.ft. (AFZ5PVBIADA) |
| Exterior Dimensions | 54.75" H x 23.38" W x 24.38" D (AFZ1PV stack); 64.0" H x 23.38" W x 25.0" D (AFZ5PVBIADA stack) |
| Temperature Range | Refrigerator 2°C to 8°C; freezer -30°C to -10°C |
| Shelves | Adjustable plastic-coated wire shelves |
| Defrost | Automatic (refrigerator); manual (freezer) |
| Power | 115V/60Hz, hospital-grade cords with green-dot plugs |
| Certifications | ETL, ETL-C |
| Warranty | 2 years parts & labor; 5 years compressor |
Options
- Solid Door (ARS6PV-...): Solid-door 6 cu.ft. refrigerator on top/bottom.
- Glass Door (ARG6PV-...): Glass-door 6 cu.ft. refrigerator.

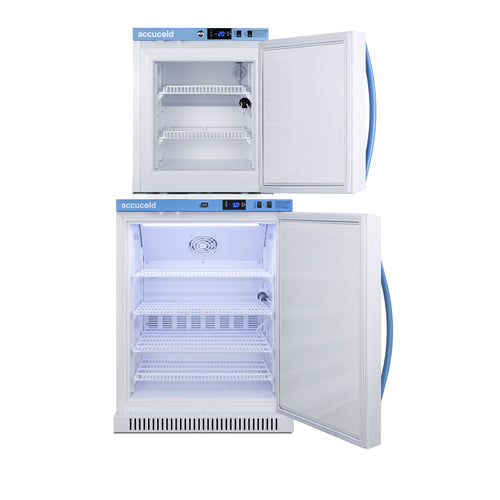

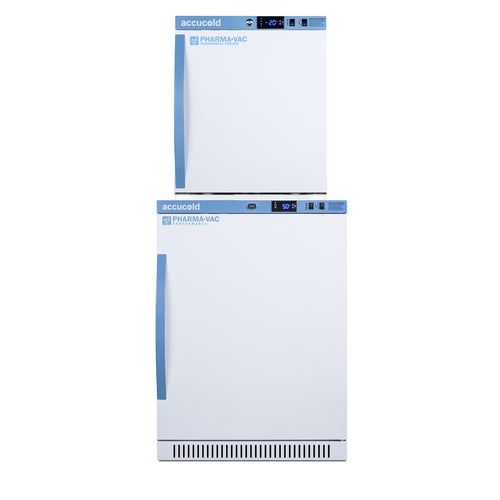

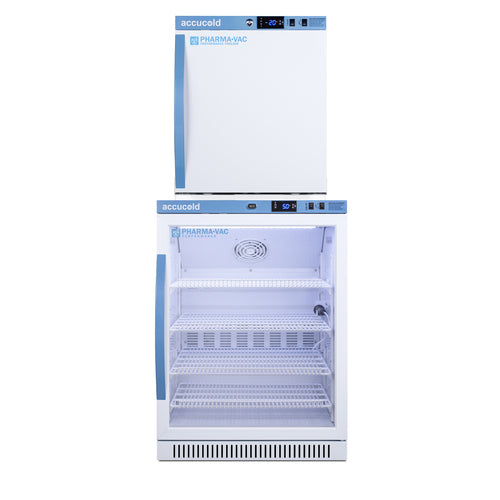

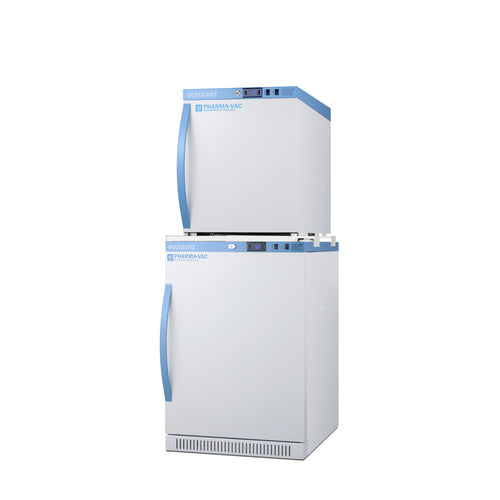

- AFZ1PV Pharma-Vac countertop freezer (...-AFZ1PVSTACK): 1.4 cu.ft. freezer; total 7.4 cu.ft.

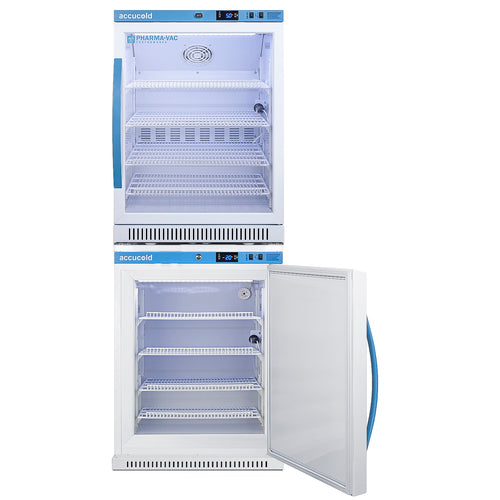

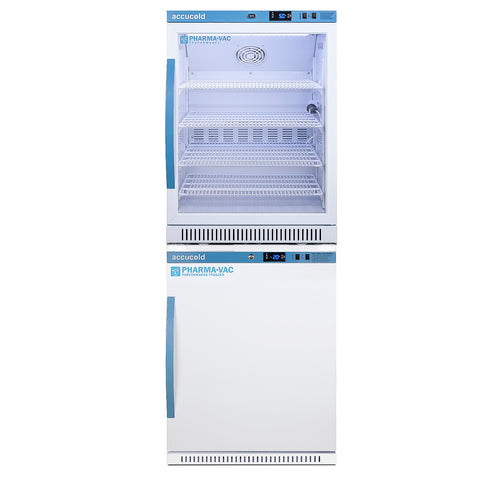

- AFZ5PVBIADA Pharma-Vac ADA freezer (...-AFZ5PVBIADASTACK): 3.88 cu.ft. freezer; total about 9.9 cu.ft.
- VT65ML -25°C medical freezer (...-VT65MLSTACKMED2): Discontinued; replaced by the AFZ5PVBIADA stack.
- Door Hinge: Right / Left (standard SKU / LHD suffix): Right-hand hinge ships standard; left-hand hinge versions are factory-configured mirror images.
Documents
Recommended accessories


- 3.5" x 7.25" x 3.25" (H x W x D)


- 6.5" x 3.88" x 1.75" (H x W x D) device


- 4.25" x 5.0" x 1.75" (H x W x D)


- LockBoxWKit: 5.88" x 19.13" x 10.25"; LockBox18WKIT: 5.88" x 24.0" x 10.25" (H x W x D)
