Description

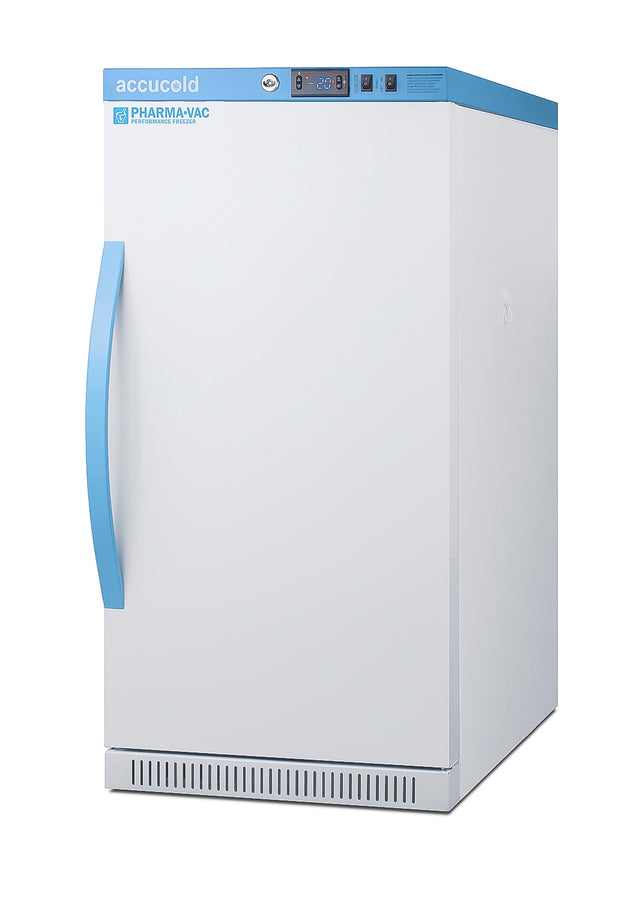

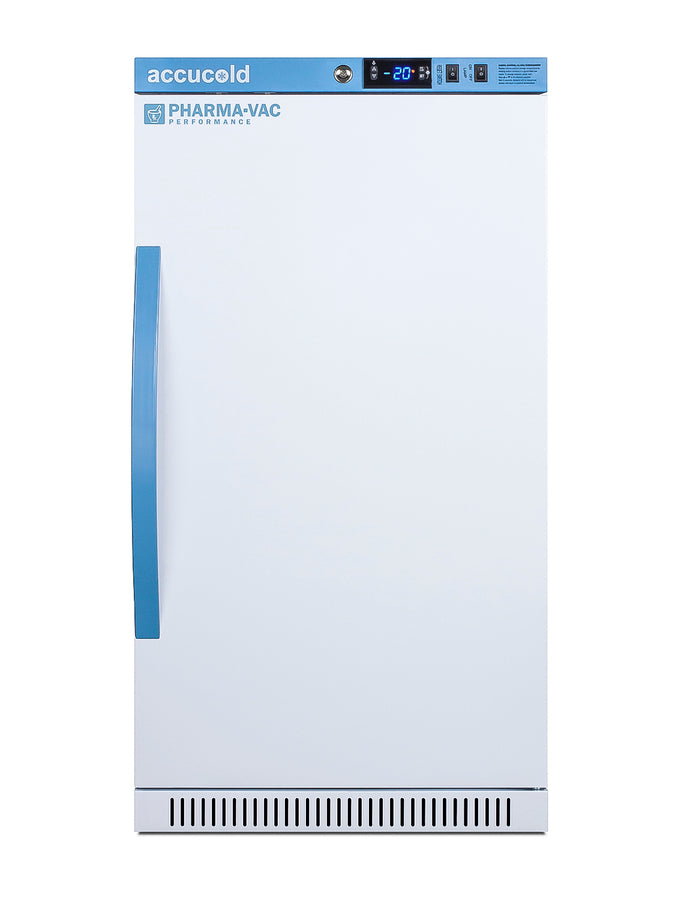

The Accucold Pharma-Vac AFZ2PVBIADA is an undercounter all-freezer sized for ADA-height counters, built to store vaccines and medications at -30°C to -10°C per CDC/VFC guidance. Its front-breathing cabinet allows built-in installation, and it adds digital controls, a full alarm suite and a keyed lock, with an optional factory-installed DL2B data logger.
Key Features
- ADA-compliant 32" height, front-breathing for built-in installation

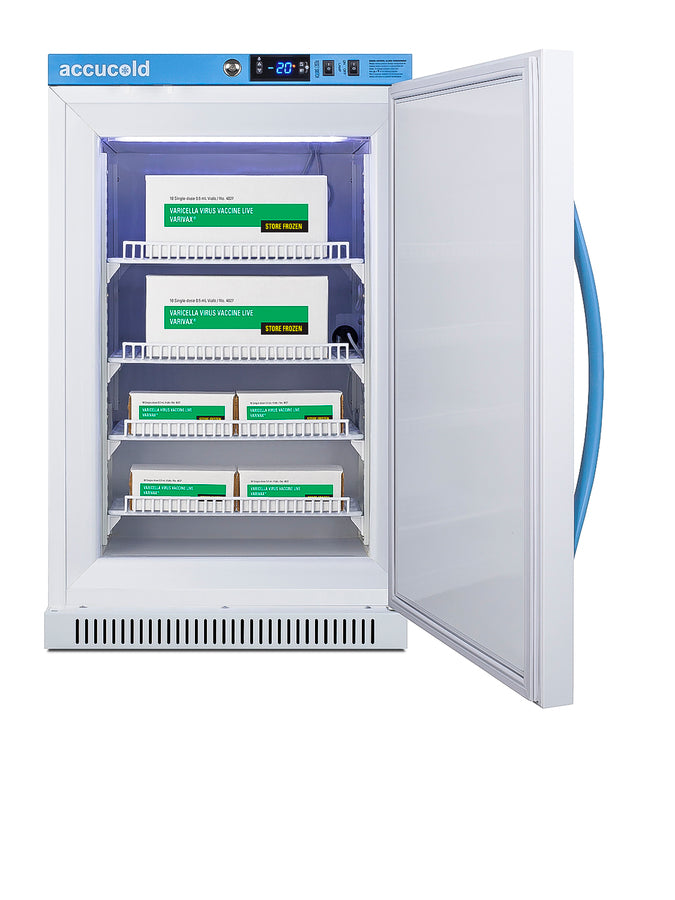

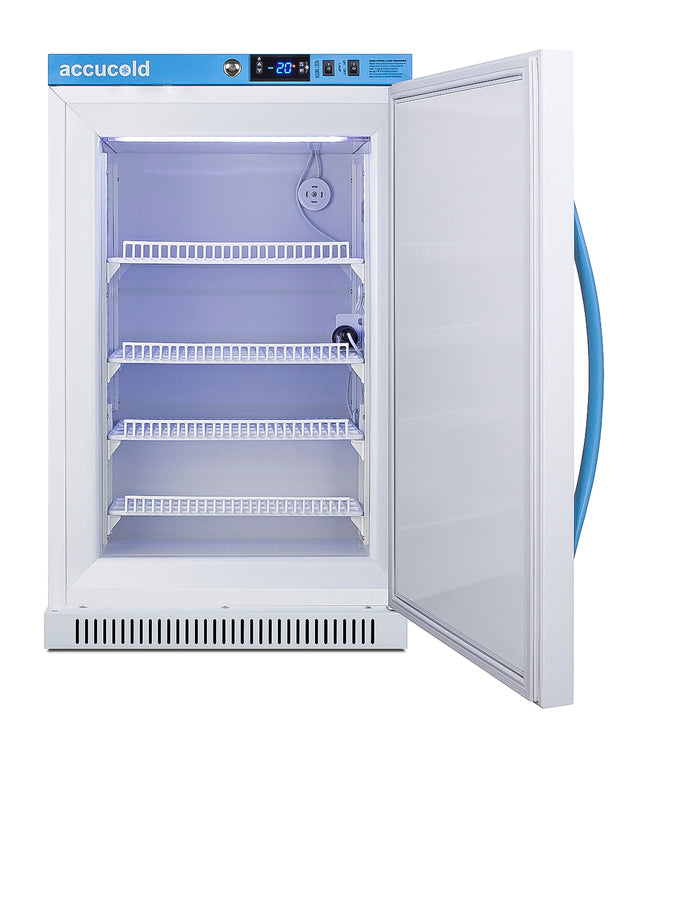

- 2.47 cu.ft. interior with 4 adjustable plastic-coated wire shelves

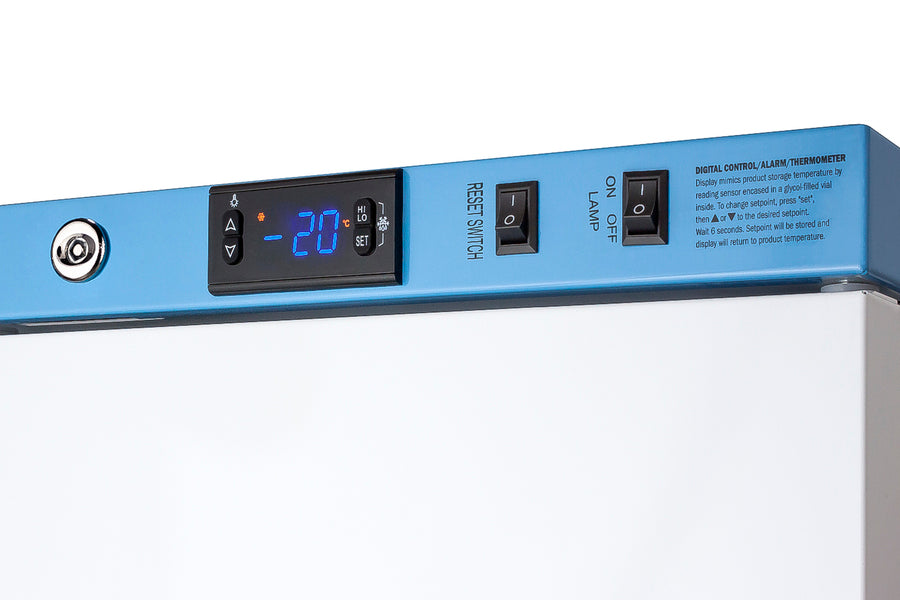

- Microprocessor controller with °C/°F display
- Audible/visual temperature alarm, power-failure alarm and open-door alarm
- Remote alarm contacts and 1/2" probe port for monitoring devices
- Self-closing, reversible door with factory-installed keyed lock
- Antimicrobial silver-ion coated handle; LED interior light with switch
- Compatible with Pyxis, Omnicell and AcuDose-Rx systems
Specifications
| Capacity | 2.47 cu.ft. (70 L) |
| Exterior Dimensions (H x W x D) | 32.0" x 19.75" x 22.63" |
| Weight | 99 lbs |
| Temperature Range | -30°C to -10°C |
| Shelves | 4 adjustable plastic-coated wire shelves |
| Defrost | Manual |
| Power | 115V AC / 60 Hz, 1.3 A, hospital-grade cord with green dot plug |
| Certifications | ETL, ETL-C, UL-471; CARB compliant, R290 refrigerant |
| Warranty | 2 years parts & labor; 5 years compressor |
Options
- Standard (AFZ2PVBIADA): Base freezer
- With Data Logger (DL2B) (AFZ2PVBIADADL2B): Adds a factory-installed NIST-calibrated USB digital data logger
- Door Hinge (LHD suffix): Left-hinged versions available
